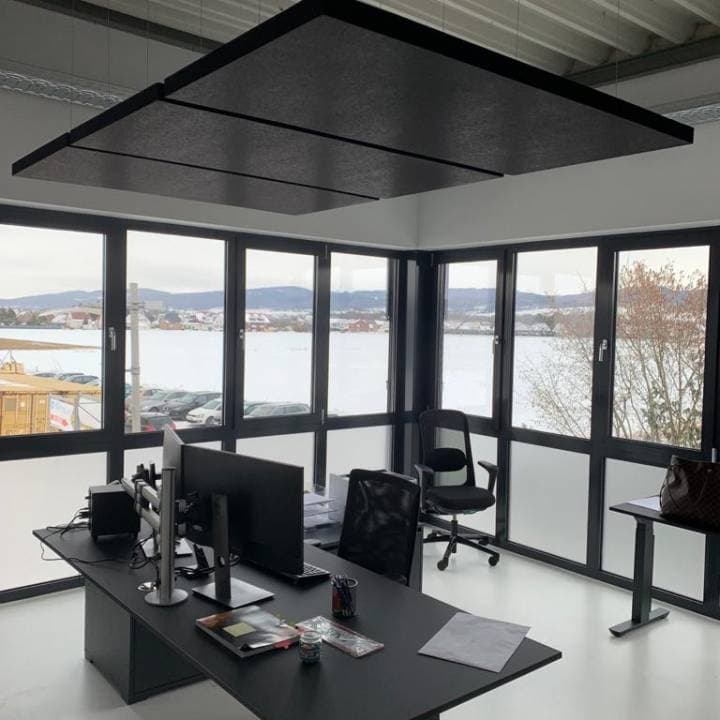

SUAM Universal Absorber

Name: SUAM Universal Absorber
Brand: SUAM Schall- & Akustikmanufaktur GmbH

Universal Absorber

Free-hangingCeilingWall

Description

The SUAM Universal Absorber is the acoustic basic system made of thermally bonded polyester fiber. It has been accredited and tested by TÜV Rheinland in numerous configurations and achieves αw 1.00, absorber class A, in the basic configuration (80 mm, with wooden frame). Available in 15, 25, and 80 mm material thickness. The TÜV measurements cover flat installations, block arrangements, and suspended variants. Use as wall, ceiling, or block absorber, free-hanging or directly mounted. All variants are binder-free, 100 % recyclable, and meet fire class B1 according to DIN 4102. Over 1,000 color variants available.

Technical data

Material: Thermally bonded polyester fiber, surface smoothed

Surface: smoothed on both sides

Up to fire class: B1 according to DIN 4102-1 (not easily flammable, core material)

Application: Wall, Ceiling, or Block Absorber, free-hanging

Certifications: OEKO-TEX Standard 100 (test no. 94.0.0541), binder-free, formaldehyde-free, allergy-friendly, fungicidal, bactericidal, 100 % recyclable

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 14 variants

α_w

1.00

Frequency values

α_p per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
α_p	0.45	0.90	1.00	1.00	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

			Value
80 mm polyester absorber, 19 mm timber frame	—	18 elements laid flat on reverberation-room floor	α_w1.00
25 mm PES, timber frame	10 mm cavity	laid flat on reverberation-room floor (3600 x 3200 mm)	α_w0.60
15 mm PES, timber frame	10 mm cavity	laid flat on reverberation-room floor (3600 x 3200 mm)	α_w0.45
80 mm polyester absorber	—	18 elements laid flat on reverberation-room floor, no frame	A_obj12.90m²
80 mm polyester absorber	—	5 blocks free-standing on reverberation-room floor	A_obj3.60m²
80 mm polyester absorber	400 mm	6 blocks freely suspended	A_obj3.40m²
80 mm polyester absorber	—	6 blocks free-standing on reverberation-room floor	A_obj2.80m²
80 mm polyester absorber	400 mm	9 blocks freely suspended	A_obj2.40m²
80 mm polyester absorber	—	9 blocks free-standing on reverberation-room floor	A_obj2.00m²
80 mm PES	TKH 280 mm	Datasheet: free-standing	A_obj1.85m²
80 mm PES	200 mm cavity	8 individual ceiling sails	A_obj1.80m²
25 mm PES	—	7 individual panels free-standing	A_obj1.40m²
80 mm polyester absorber	400 mm	18 individual panels freely suspended	A_obj1.20m²
80 mm polyester absorber	—	18 individual panels free-standing on reverberation-room floor	A_obj1.10m²

Absorber class: A

Institute: TÜV Rheinland LGA Products GmbH, Laboratory for Technical Acoustics and Noise Control (Nuremberg)

Measurement date: 20/10/2016

Room volume: 391.6 m³

Measured values as a table (14 measurements)

SUAM Universal Absorber: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	Absorber class	50 Hz	63 Hz	80 Hz	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
80 mm · Surface assembled from 18 elements edged with a wood frame (19 mm thick); laid on the floor	1.00	A	–	–	–	0.36	0.42	0.57	0.88	0.87	1.01	1.16	1.12	1.07	1.09	1.06	1.03	1.03	1.05	1.07	1.08	1.10	1.10
80 mm · flat surface 10,8 m², without frame, on the floor (A_obj, m²)	–	–	–	–	–	3.90	4.30	5.70	9.40	9.50	11.10	12.60	12.80	12.60	12.50	12.90	12.20	12.40	12.70	12.60	12.90	12.80	13.30
80 mm · 5 blocks 2400x1000x80 from each 4 elements, free-standing in the room, on the floor (A_obj, m²)	–	–	–	–	–	1.00	1.10	1.60	2.20	2.80	3.00	3.40	3.70	3.70	3.80	3.60	3.50	3.40	3.30	3.30	3.30	3.40	3.30
80 mm · 6 blocks 1800x1000x80 from each 3 elements, free-standing in the room, on the floor (A_obj, m²)	–	–	–	–	–	0.80	0.80	1.20	1.70	2.10	2.50	2.70	2.80	2.90	3.00	2.80	2.80	2.60	2.50	2.50	2.50	2.50	2.50
80 mm · 9 blocks 1200x1000x80 from each 2 elements, free-standing in the room, on the floor (A_obj, m²)	–	–	–	–	–	0.40	0.60	0.90	1.10	1.50	1.70	1.90	2.00	2.00	2.00	2.00	1.90	1.80	1.80	1.80	1.70	1.70	1.70
80 mm · 18 panels 1200x1000x80, free-standing in the room, on the floor (A_obj, m²)	–	–	–	–	–	0.30	0.30	0.40	0.60	0.80	0.90	1.00	1.10	1.20	1.10	1.10	1.10	1.10	1.00	1.00	1.00	1.00	0.90
80 mm · 6 blocks 1800x1000x80 from each 3 elements, suspended, suspension spacing 400 mm (A_obj, m²)	–	–	–	–	–	0.70	0.70	1.80	2.20	2.60	2.50	2.50	2.80	3.00	3.10	3.40	3.40	3.60	3.50	3.60	3.50	3.60	3.60
80 mm · 9 blocks 1200x1000x80 from each 2 elements, suspended, suspension spacing 400 mm (A_obj, m²)	–	–	–	–	–	0.40	0.50	1.20	1.50	1.70	1.70	1.70	1.90	2.10	2.20	2.40	2.40	2.50	2.40	2.40	2.40	2.50	2.50
80 mm · 18 panels 1200x1000x80, suspended, suspension spacing 400 mm (A_obj, m²)	–	–	–	–	–	0.20	0.30	0.60	0.70	0.80	0.90	0.80	0.90	1.10	1.10	1.20	1.20	1.30	1.20	1.30	1.30	1.30	1.30
15 mm · Flat panel on reverberation-chamber floor in wood frame, 3600 x 3200 x 25 mm	0.45	D	–	–	–	0.01	0.03	0.06	0.09	0.16	0.22	0.33	0.45	0.61	0.74	0.86	0.97	0.97	1.03	1.04	1.05	1.04	1.07
25 mm · Flat panel on reverberation-chamber floor in wood frame, 3600 x 3200 x 35 mm	0.60	C	–	–	–	0.03	0.08	0.13	0.18	0.27	0.42	0.61	0.74	0.87	0.96	1.00	1.05	1.03	1.02	1.00	0.99	0.98	0.98
25 mm · 7 single panels 1200x800x25 mm, freely positioned in the room (A_obj, m²)	–	–	–	–	–	0.20	0.40	0.50	0.70	0.60	0.80	0.90	1.00	1.20	1.30	1.40	1.60	1.60	1.70	1.70	1.80	1.70	1.60
80 mm · 8 panels 1200x800x80 mm as individual ceiling rafts, 200 mm cavity without filling (A_obj, m²)	–	–	–	–	–	0.30	0.50	0.80	1.10	1.60	1.70	1.70	1.70	1.70	1.70	1.80	1.80	1.80	1.90	1.90	1.90	1.90	1.90
80 mm PES-Material · assembly height 280 mm · Sharp-edged, custom colour close to RAL (A_obj, m²)	–	–	0.10	0.50	0.20	0.30	0.50	0.80	1.10	1.60	1.70	1.70	1.70	1.70	1.70	1.80	1.80	1.80	1.90	1.90	1.90	1.90	1.90
