SONATECH QuietLine Plus Ceiling Raft
QuietLine Plus Ceiling Raft
Description

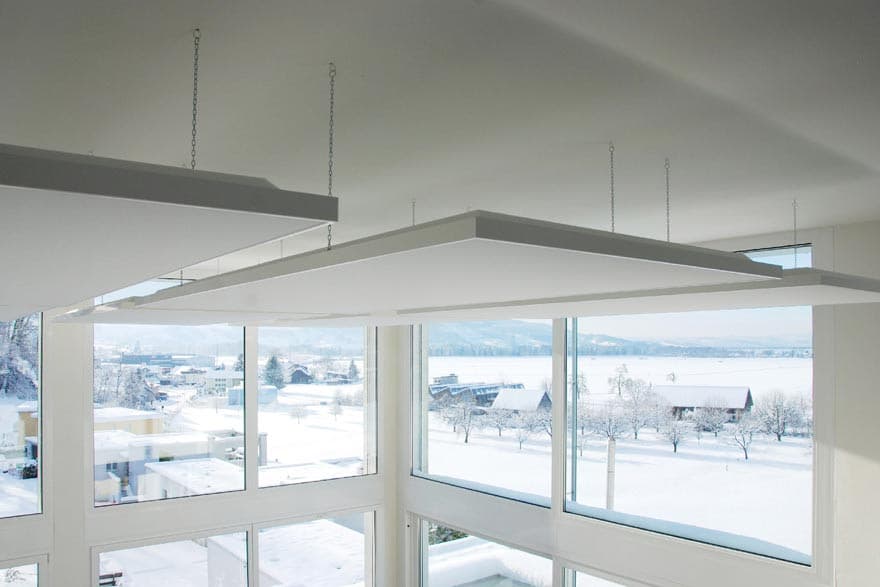

The QuietLine Plus Ceiling Raft is the 75 mm thick extension of the QuietLine Ceiling Raft for even more broadband damping of the low-frequency range. It is suspended with link chains or steel cables.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 10 variants
Choose size
Frequency values
Aobj per ISO 354 · octave band (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 0.20 | 0.63 | 0.70 | 0.69 | 0.63 | 0.55 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 225 mm | Aobj0.69m² | |
| 25 mm | Aobj0.64m² |
Institute: Ingenieurbüro Winkler, München
Measurement date: 2010-05-14
Measured values as a table (10 measurements)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.000 × 500 mm · 25 mm (Aobj, m²) | – | 0.09 | 0.17 | 0.32 | 0.51 | 0.60 | 0.69 | 0.73 | 0.73 | 0.71 | 0.68 | 0.62 | 0.59 | 0.57 | 0.54 | 0.55 | 0.52 | 0.47 | 0.41 |
| 1.000 × 1.000 mm · 25 mm (Aobj, m²) | – | 0.17 | 0.34 | 0.64 | 1.01 | 1.21 | 1.38 | 1.47 | 1.46 | 1.42 | 1.36 | 1.25 | 1.19 | 1.15 | 1.08 | 1.09 | 1.03 | 0.95 | 0.81 |
| 1.250 × 1.250 mm · 25 mm (Aobj, m²) | – | 0.27 | 0.53 | 1.00 | 1.58 | 1.89 | 2.16 | 2.30 | 2.28 | 2.22 | 2.12 | 1.95 | 1.86 | 1.80 | 1.69 | 1.70 | 1.61 | 1.48 | 1.27 |
| 2.000 × 1.000 mm · 25 mm (Aobj, m²) | – | 0.34 | 0.68 | 1.28 | 2.02 | 2.42 | 2.76 | 2.94 | 2.92 | 2.84 | 2.72 | 2.50 | 2.38 | 2.30 | 2.16 | 2.18 | 2.06 | 1.90 | 1.62 |
| 2.500 × 1.250 mm · 25 mm (Aobj, m²) | – | 0.53 | 1.06 | 2.00 | 3.16 | 3.78 | 4.31 | 4.59 | 4.56 | 4.44 | 4.25 | 3.91 | 3.72 | 3.59 | 3.38 | 3.41 | 3.22 | 2.97 | 2.53 |
| 1.000 × 500 mm · 225 mm (Aobj, m²) | – | 0.08 | 0.15 | 0.35 | 0.53 | 0.64 | 0.71 | 0.71 | 0.71 | 0.67 | 0.69 | 0.70 | 0.67 | 0.63 | 0.61 | 0.64 | 0.60 | 0.56 | 0.48 |
| 1.000 × 1.000 mm · 225 mm (Aobj, m²) | – | 0.16 | 0.30 | 0.70 | 1.06 | 1.27 | 1.42 | 1.42 | 1.42 | 1.34 | 1.37 | 1.40 | 1.33 | 1.26 | 1.23 | 1.28 | 1.20 | 1.11 | 0.97 |
| 1.250 × 1.250 mm · 225 mm (Aobj, m²) | – | 0.25 | 0.47 | 1.09 | 1.66 | 1.98 | 2.22 | 2.22 | 2.22 | 2.09 | 2.14 | 2.19 | 2.08 | 1.97 | 1.92 | 2.00 | 1.88 | 1.73 | 1.52 |
| 2.000 × 1.000 mm · 225 mm (Aobj, m²) | – | 0.32 | 0.60 | 1.40 | 2.12 | 2.54 | 2.84 | 2.84 | 2.84 | 2.68 | 2.74 | 2.80 | 2.66 | 2.52 | 2.46 | 2.56 | 2.40 | 2.22 | 1.94 |
| 2.500 × 1.250 mm · 225 mm (Aobj, m²) | – | 0.50 | 0.94 | 2.19 | 3.31 | 3.97 | 4.44 | 4.44 | 4.44 | 4.19 | 4.28 | 4.38 | 4.16 | 3.94 | 3.84 | 4.00 | 3.75 | 3.47 | 3.03 |
Measured values as a table (10 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
