SONATECH QuietLine Acoustic Element A2
QuietLine Acoustic Element A2
Description

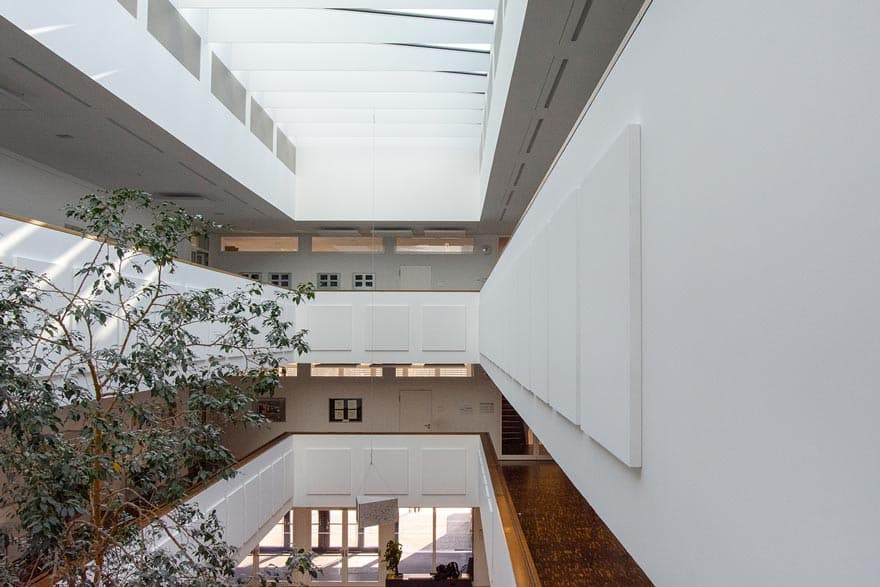

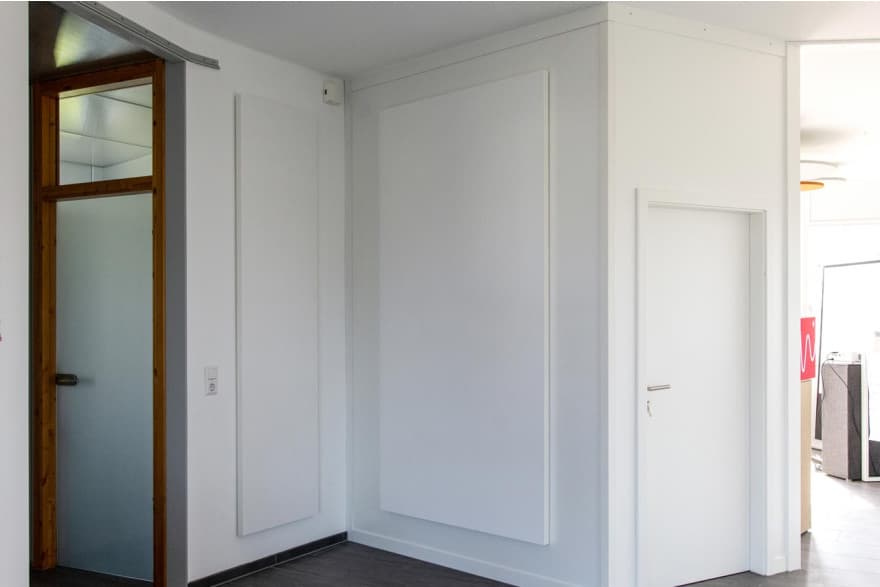

The QuietLine Acoustic Element A2 is a ceiling and wall element with a glass-wool core for applications with particularly high fire protection requirements, such as public buildings and escape routes. It is classified as non-combustible A2-s1,d0 to EN 13501-1.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 6 variants
Frequency values
Aobj per ISO 354 · octave band (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 1.20 | 2.40 | 3.30 | 4.70 | 4.90 | 4.70 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| 2.400 × 1.200 mm | 400 mm | Aobj4.70m² | |
| 2.400 × 1.200 mm | 200 mm | Aobj4.10m² | |
| 2.400 × 600 mm | 400 mm | Aobj2.60m² | |
| 1.200 × 1.200 mm | 400 mm | Aobj2.40m² | |
| 2.400 × 600 mm | 200 mm | Aobj2.40m² | |
| 1.200 × 1.200 mm | 200 mm | Aobj2.10m² |
Measured values as a table (6 measurements)
| Build-up | αw | 125 Hz | 250 Hz | 500 Hz | 1000 Hz | 2000 Hz | 4000 Hz |
|---|---|---|---|---|---|---|---|
| 1.200 × 1.200 mm · 200 mm (Aobj, m²) | – | 0.70 | 1.40 | 1.80 | 2.10 | 2.10 | 2.00 |
| 1.200 × 1.200 mm · 400 mm (Aobj, m²) | – | 0.60 | 1.20 | 1.70 | 2.40 | 2.50 | 2.40 |
| 2.400 × 600 mm · 200 mm (Aobj, m²) | – | 0.50 | 1.40 | 2.00 | 2.40 | 2.30 | 2.30 |
| 2.400 × 600 mm · 400 mm (Aobj, m²) | – | 0.40 | 1.20 | 1.80 | 2.60 | 2.70 | 2.70 |
| 2.400 × 1.200 mm · 200 mm (Aobj, m²) | – | 1.30 | 2.80 | 3.50 | 4.10 | 4.10 | 3.90 |
| 2.400 × 1.200 mm · 400 mm (Aobj, m²) | – | 1.20 | 2.40 | 3.30 | 4.70 | 4.90 | 4.70 |
Measured values as a table (6 measurements)
