SONATECH pure+ Wall Element Circle

Name: SONATECH pure+ Wall Element Circle
Brand: SONATECH GmbH + Co. KG

pure+ Wall Element Circle

Wall

Description

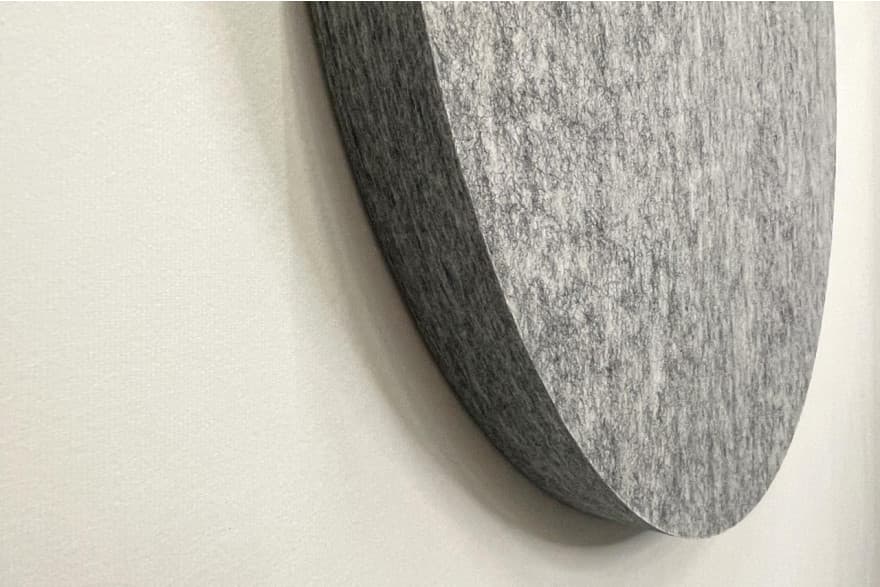

The pure+ Wall Element Circle is a frameless, round wall absorber from the pure+ line. The impact-resistant fibre surface in a minimalist felt look is pinnable, and the low weight makes installation easy.

Technical data

Material: PES fibres, recyclable

Surface: impact-resistant fibre surface in a minimalist felt look

Up to fire class: DIN 4102 B1

Colours: white, light-grey mottled, dark-grey mottled, black

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

A_obj

1.53 m²

at 1 kHz

Frequency values

A_obj per ISO 354 · octave band (m²)

f (Hz)	125	250	500	1k	2k	4k
A_obj	0.17	0.70	1.30	1.53	1.53	1.43

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare		Value
	Ø 1.200 mm	A_obj1.53m²
	Ø 600 mm	A_obj0.50m²

Institute: Müller-BBM, Planegg

Measurement date: 2023-08-23

Measured values as a table (2 measurements)

SONATECH pure+ Wall Element Circle: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
Ø 600 mm (A_obj, m²)	–	0.00	0.10	0.10	0.10	0.20	0.20	0.30	0.40	0.40	0.50	0.50	0.50	0.50	0.50	0.50	0.40	0.40	0.40
Ø 1.200 mm (A_obj, m²)	–	0.10	0.10	0.30	0.50	0.70	0.90	1.10	1.30	1.50	1.50	1.50	1.60	1.60	1.50	1.50	1.40	1.50	1.40
