Manufacturer
SONATECH GmbH + Co. KG
SONATECH is a southern German specialist for room acoustics and noise control, based in Ungerhausen (Bavaria). The company supplies acoustic solutions from a single source: consultancy, sound measurement, product and installation. The range spans the textile pure and pure+ ceiling and wall elements, the printable ConceptLine elements and QuietLine ceiling sails, Basotect and PUR foam absorbers, SkyLine acoustic columns and industrial solutions such as Cube, Baffel and MultiLane. The absorption values come from laboratory measurements based on the approach of DIN EN ISO 354. The materials are flame-retardant to DIN 4102 B1; for the Basotect foams, building-authority fire-protection test certificates are available.
Documents
SONATECH pure+ Ceiling Element Rectangle
pure+ Ceiling Element Rectangle
Description

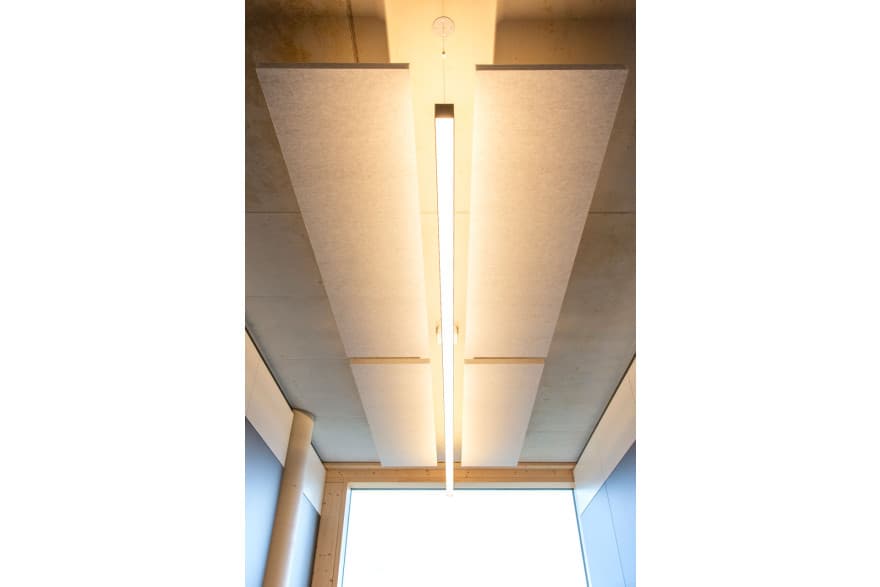

The pure+ Ceiling Element Rectangle is a frameless ceiling raft from the pure+ line for broadband reduction of reverberation time. It blends in discreetly, can be mounted flexibly, and can be repositioned when needed.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 4 variants
Frequency values
Aobj per ISO 354 · octave band (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 1.10 | 2.83 | 3.70 | 4.23 | 4.47 | 4.57 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| 1.200 × 2.400 mm | 260 mm | Aobj4.23m² | |
| 1.200 × 2.400 mm | 0 mm | Aobj3.67m² | |
| 1.200 × 1.200 mm | 260 mm | Aobj2.33m² | |
| 1.200 × 1.200 mm | 0 mm | Aobj1.00m² |
Institute: Müller-BBM, Planegg
Measurement date: 2023-08-23
Measured values as a table (4 measurements)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.200 × 1.200 mm · 0 mm (Aobj, m²) | – | 0.10 | 0.10 | 0.20 | 0.30 | 0.40 | 0.60 | 0.70 | 0.80 | 0.90 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 0.90 | 0.90 | 0.90 | 0.90 |
| 1.200 × 1.200 mm · 260 mm (Aobj, m²) | – | 0.40 | 0.60 | 0.90 | 1.10 | 1.50 | 1.80 | 1.90 | 2.00 | 2.00 | 2.20 | 2.40 | 2.40 | 2.40 | 2.40 | 2.50 | 2.40 | 2.50 | 2.50 |
| 1.200 × 2.400 mm · 0 mm (Aobj, m²) | – | 0.30 | 0.50 | 0.80 | 1.30 | 1.60 | 2.30 | 2.70 | 3.10 | 3.30 | 3.50 | 3.70 | 3.80 | 3.70 | 3.70 | 3.50 | 3.40 | 3.40 | 3.30 |
| 1.200 × 2.400 mm · 260 mm (Aobj, m²) | – | 0.50 | 0.90 | 1.90 | 2.30 | 2.80 | 3.40 | 3.70 | 3.80 | 3.60 | 4.00 | 4.30 | 4.40 | 4.50 | 4.40 | 4.50 | 4.50 | 4.70 | 4.50 |
