SONATECH pure Ceiling Element Sine Baffle
pure Ceiling Element Sine Baffle
Description

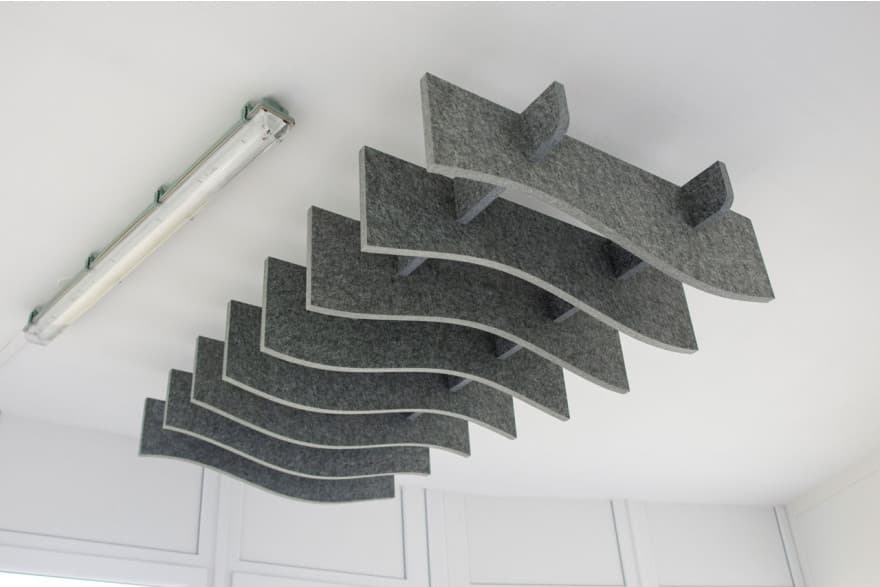

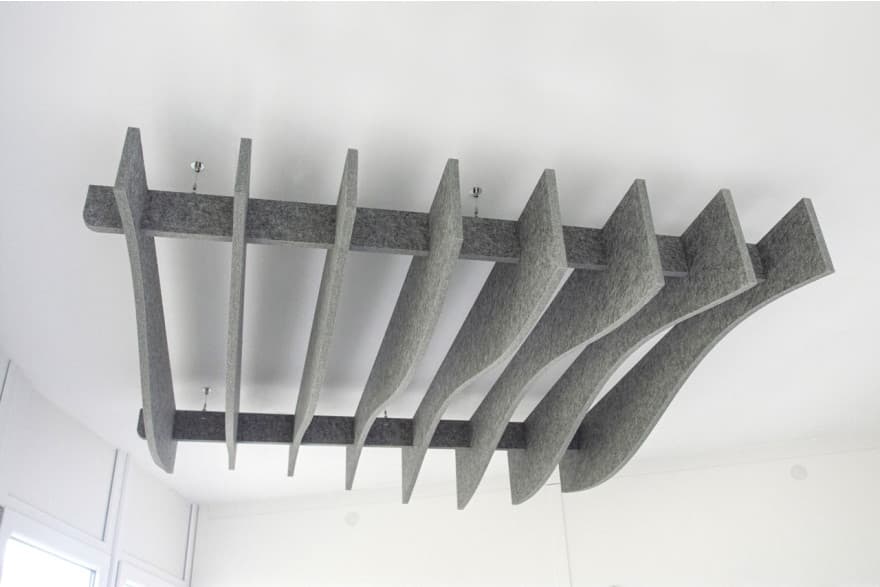

The pure Ceiling Element Sine Baffle is a frameless ceiling raft in a wave form with a simple click system. The three-dimensional sine geometry creates a large effective absorber area and is also suitable for thermally activated (concrete-core) ceilings.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 2 variants
Frequency values
Aobj per ISO 354 · octave band (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 0.80 | 2.10 | 2.93 | 4.37 | 5.40 | 5.50 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 2.000 × 2.000 mm | Aobj4.37m² | |
| 2.000 × 1.000 mm | Aobj2.57m² |
Institute: Müller-BBM, Planegg
Measurement date: 2021-10-28
Distance: 100 mm
Measured values as a table (2 measurements)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.000 × 1.000 mm · 100 mm (Aobj, m²) | – | 0.20 | 0.50 | 0.70 | 0.80 | 0.90 | 1.30 | 1.50 | 1.70 | 1.90 | 2.20 | 2.60 | 2.90 | 3.10 | 3.10 | 3.30 | 3.20 | 3.20 | 3.20 |
| 2.000 × 2.000 mm · 100 mm (Aobj, m²) | – | 0.40 | 0.80 | 1.20 | 1.80 | 2.10 | 2.40 | 2.70 | 2.90 | 3.20 | 3.70 | 4.40 | 5.00 | 5.20 | 5.40 | 5.60 | 5.50 | 5.50 | 5.50 |
Measured values as a table (2 measurements)
Access frequency bands, variants and export. Create a permanent free account
