Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH pure Ceiling Element Circle

pure Ceiling Element Circle

CeilingFree-hanging

Description

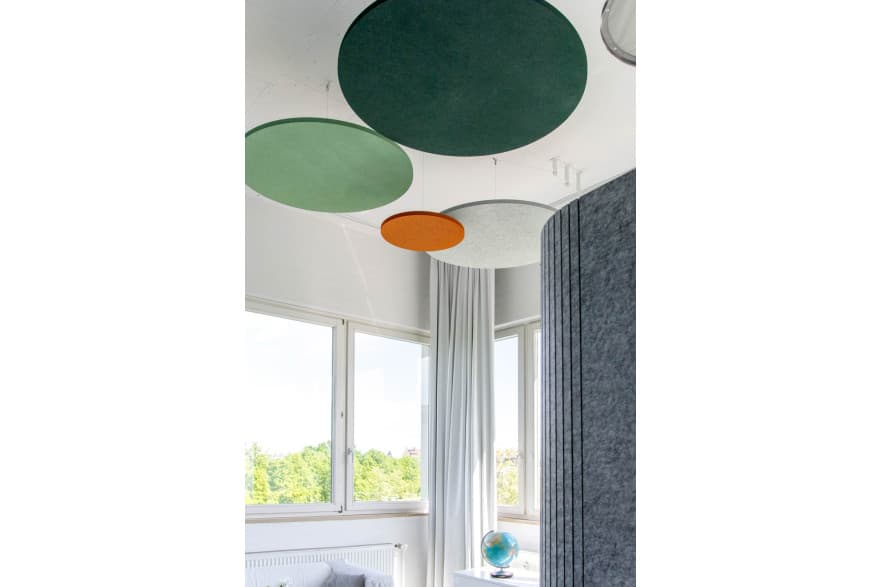

The pure Ceiling Element Circle is a frameless, round ceiling raft. Free-hanging, it lowers the reverberation time, and a larger distance to the ceiling improves absorption in the lower frequency range.

Technical data

Material: PES fibres, recyclable
Surface: impact-resistant fibre surface with a felt look
Up to fire class: DIN 4102 B1 (without colour)
Colours: according to colour chart

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 4 variants

Aobj
1.17
at 1 kHz

Frequency values

Aobj per ISO 354 · octave band (m²)

f (Hz)1252505001k2k4k
Aobj0.230.700.871.171.371.37

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

CompareValue
Ø 1.000 mm275 mmAobj1.17
Ø 1.000 mm0 mmAobj0.97
Ø 500 mm275 mmAobj0.35
Ø 500 mm0 mmAobj0.32
