Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH MultiLane

MultiLane

Ceiling

Description

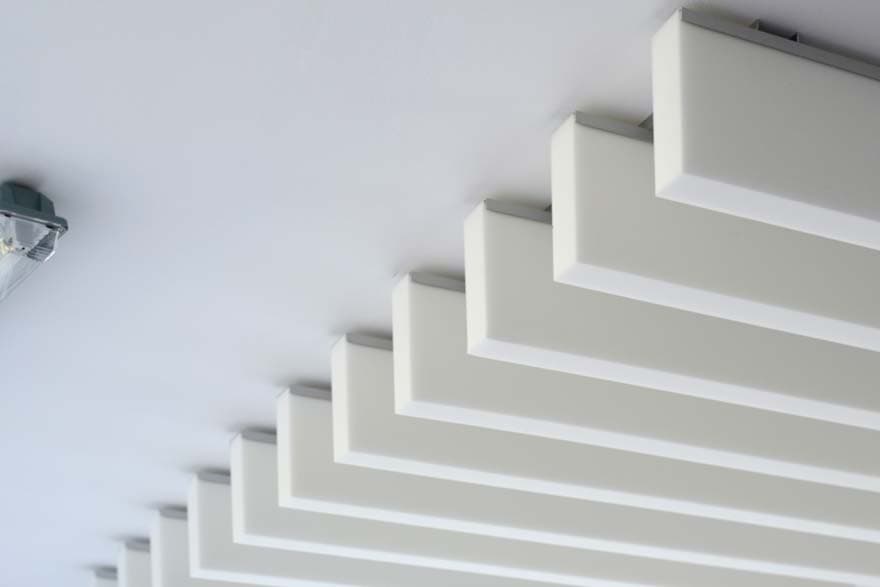

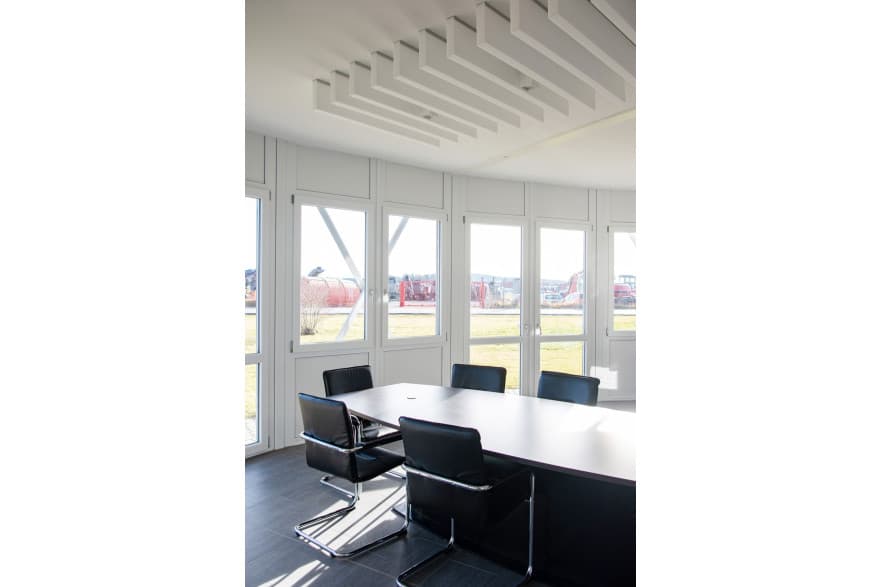

MultiLane is a complete baffle-structure system for the sound-absorbing design of whole or partial ceiling segments. Thanks to its low overall height and the small substructure footprint, MultiLane is particularly suitable for concrete-core-activated climate ceilings.

Technical data

Material: melamine resin foam (Basotect), baffle structure
Up to fire class: DIN 4102 B1 (flame-retardant)
Certifications: building-authority test certificate, material class DIN 4102 B1 (Basotect)
Colours: Absorber light grey/white; substructure natural matt aluminium

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw
0.75

Frequency values

αp nach ISO 11654

f (Hz)1252505001k2k4k
αp0.350.650.650.850.950.95

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Absorber class:C

Method (354): Measured

Measurement date (354): 2013-03-06
