Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH Cube Industrial

Cube Industrial

CeilingFree-hanging

Description

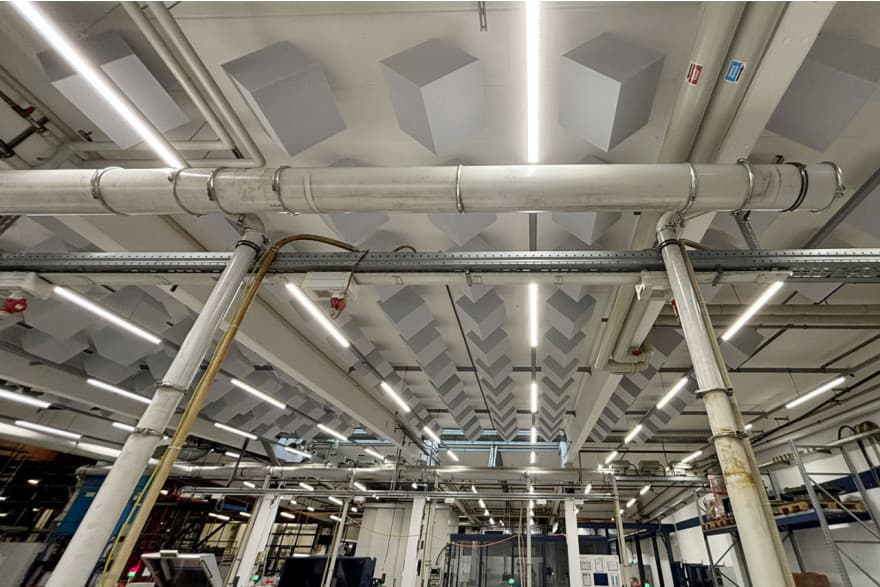

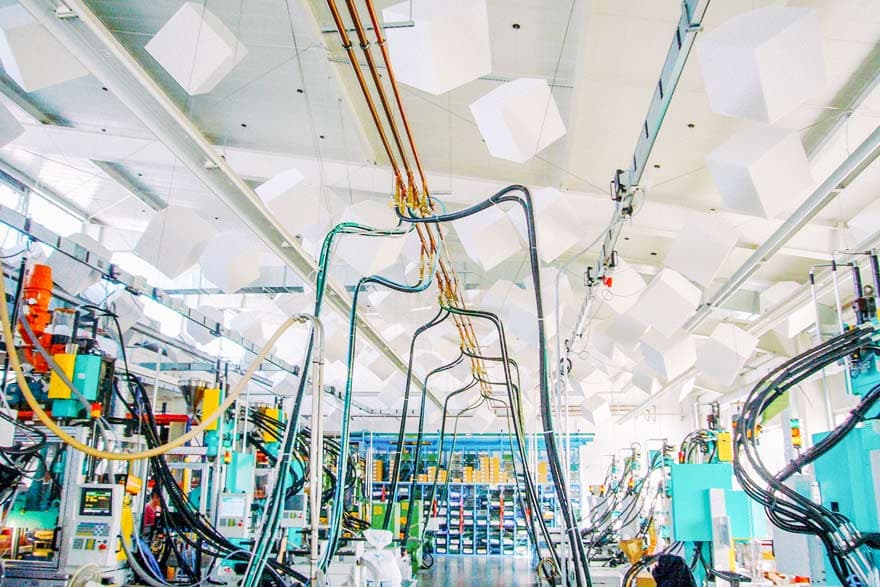

The Cube Industrial is a cube-shaped Basotect absorber offered as a complete solution for industrial and production areas with noise-intensive machinery. By covering individual ceiling fields, practical and economical noise reductions can be achieved.

Technical data

Material: melamine resin foam (Basotect)
Up to fire class: DIN 4102 B1 (flame-retardant)
Certifications: building-authority test certificate, material class DIN 4102 B1 (Basotect)
Colours: light grey, white

Measurement data

Sound absorption

ISO 354 – reverberation chamber

Aobj
1.63 m²
at 1 kHz

Frequency values

Aobj nach ISO 354 (m²)

f (Hz)1252505001k2k4k
Aobj0.511.191.591.631.551.49

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Method (354): Measured

Measurement date (354): 2013-03-06
