Manufacturer

SONATECH GmbH + Co. KG

SONATECH is a southern German specialist for room acoustics and noise control, based in Ungerhausen (Bavaria). The company supplies acoustic solutions from a single source: consultancy, sound measurement, product and installation. The range spans the textile pure and pure+ ceiling and wall elements, the printable ConceptLine elements and QuietLine ceiling sails, Basotect and PUR foam absorbers, SkyLine acoustic columns and industrial solutions such as Cube, Baffel and MultiLane. The absorption values come from laboratory measurements based on the approach of DIN EN ISO 354. The materials are flame-retardant to DIN 4102 B1; for the Basotect foams, building-authority fire-protection test certificates are available.

All products by this manufacturer Manufacturer website

Documents

Datasheet

SONATECH ConceptLine Screen TEX

Name: SONATECH ConceptLine Screen TEX
Brand: SONATECH GmbH + Co. KG

ConceptLine Screen TEX

Freestanding

Description

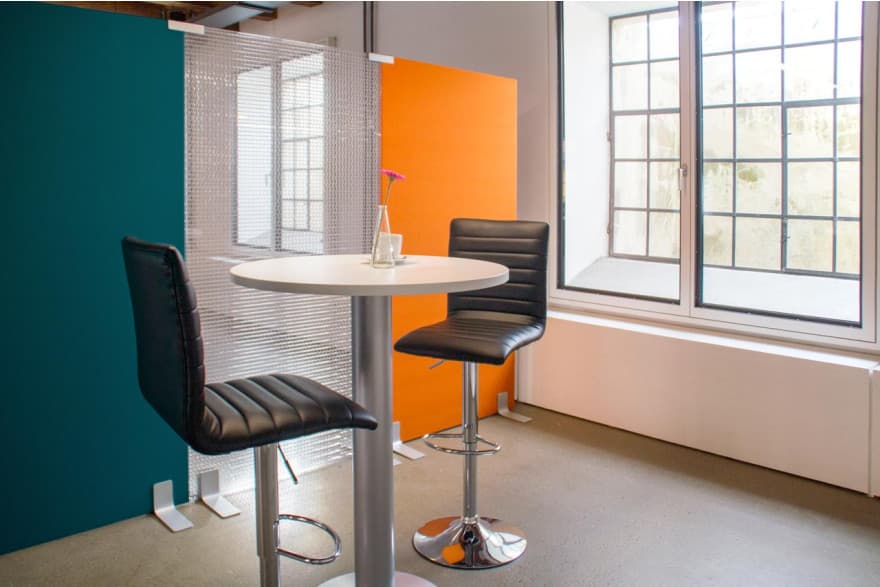

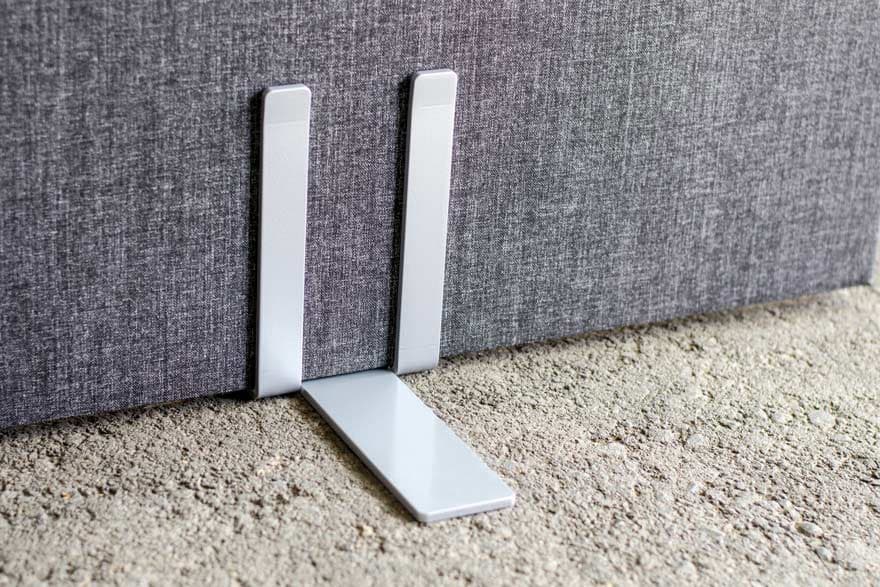

The ConceptLine Screen TEX is a frameless, fabric-covered floor element that is quick to set up without screwing. The highly absorbent surface improves room acoustics and can also be used as a pinboard surface.

Technical data

Material: PES fibre core

Surface: woven microfibre covering

Up to fire class: DIN 4102 B1 (core)

Colours: according to colour chart

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

A_obj

3.84 m²

at 1 kHz

Frequency values

A_obj per ISO 354 · octave band (m²)

f (Hz)	125	250	500	1k	2k	4k
A_obj	0.92	1.96	3.02	3.84	4.28	4.38

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare		Value
	2.000 × 1.200 mm	A_obj3.84m²
	2.000 × 990 mm	A_obj3.17m²

Institute: Müller-BBM, Planegg

Measurement date: 2016-10-20

Measured values as a table (2 measurements)

SONATECH ConceptLine Screen TEX: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
2.000 × 990 mm (A_obj, m²)	–	0.35	0.89	1.04	1.39	1.49	1.98	2.23	2.53	2.72	3.02	3.17	3.32	3.47	3.52	3.61	3.66	3.61	3.57
2.000 × 1.200 mm (A_obj, m²)	–	0.42	1.08	1.26	1.68	1.80	2.40	2.70	3.06	3.30	3.66	3.84	4.02	4.20	4.26	4.38	4.44	4.38	4.32

Measured values as a table (2 measurements)
