Manufacturer

SONATECH GmbH + Co. KG

SONATECH ist ein süddeutscher Spezialist für Raumakustik und Schallschutz mit Sitz in Ungerhausen (Bayern). Das Unternehmen liefert Akustiklösungen aus einer Hand: Beratung, Schallmessung, Produkt und Montage. Das Sortiment reicht von den textilen pure- und pure+-Decken- und Wandelementen über die bedruckbaren ConceptLine-Elemente und QuietLine-Deckensegel bis zu Basotect- und PUR-Schaumabsorbern, SkyLine-Akustiksäulen sowie Industrielösungen wie Cube, Baffel und MultiLane. Die Absorptionswerte stammen aus Labormessungen in Anlehnung an DIN EN ISO 354. Die Materialien sind schwer entflammbar nach DIN 4102 B1; für die Basotect-Schäume liegen bauaufsichtliche Brandschutz-Prüfzeugnisse vor.

Website

SONATECH Baso Plan

Baso Plan

WallCeiling

Description

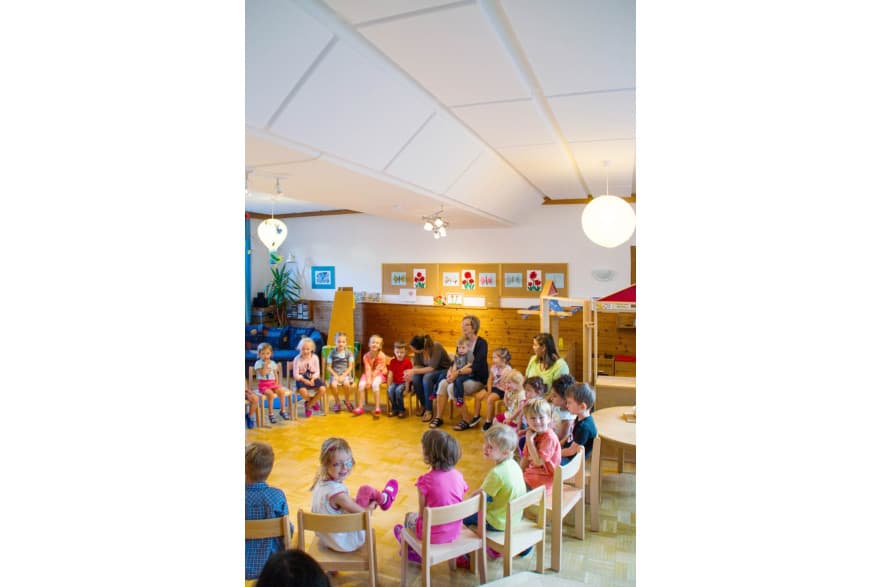

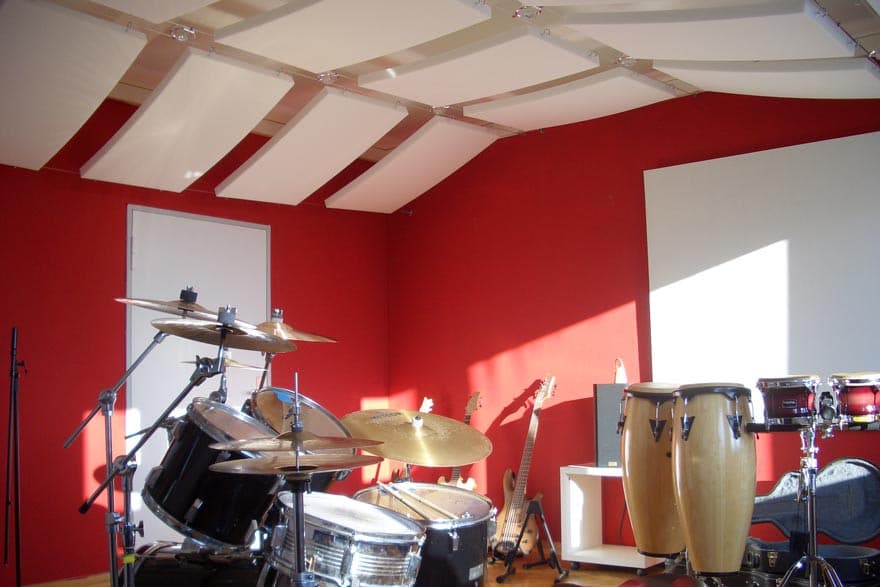

Baso Plan is a planar Basotect absorber for spaces where fire protection and high sound absorption come together. Thanks to its low density combined with high self-supporting stability, it can also be used as a self-supporting element without a continuous substructure, either flush across a surface, edge to edge, or as a single acoustic element.

Technical data

Material: melamine resin foam (Basotect), open-cell
Surface: fine open-cell structure
Up to fire class: DIN 4102 B1 (flame-retardant)
Certifications: building-authority test certificate, material class DIN 4102 B1 (Basotect)
Colours: light grey, white

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 4 variants

Choose thickness

αw
0.60

Frequency values

αp per ISO 11654

f (Hz)1252505001k2k4k
αp0.150.300.650.900.950.95

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Absorber class: C

Institute: Büro for Schalltechnik, Memmingen

Measurement date: 2003-02-10
