Manufacturer

SilentFiber

SilentFiber offers a broad portfolio of sustainable acoustic elements made from natural fibres. The product family ranges from the peat-based SilentRoot acoustic panel through the hemp-based SilentHEMP line to specialty products such as SilentSPA (wet room), SilentMOSS (moss picture) and SilentBEE (hexagon). Owner Dipl. Ing. Robert Schwemmer operates as a brand owner with selected European manufacturing partners. Custom formats and individual cutting are available from the first panel onward (max. 1.2 × 2.4 m). Awards: Green Product Award 2022, Klimaschutzpreis (Climate Protection Prize), Austrian Bauherrenpreis, Green Product Award Finalist 2026.

Website

Manufacturer page

Documents

EPD Fire protection M1

SilentPICTURE Acoustic Picture

Name: SilentPICTURE Acoustic Picture
Brand: SilentFiber

EPD availableWallCeiling

Description

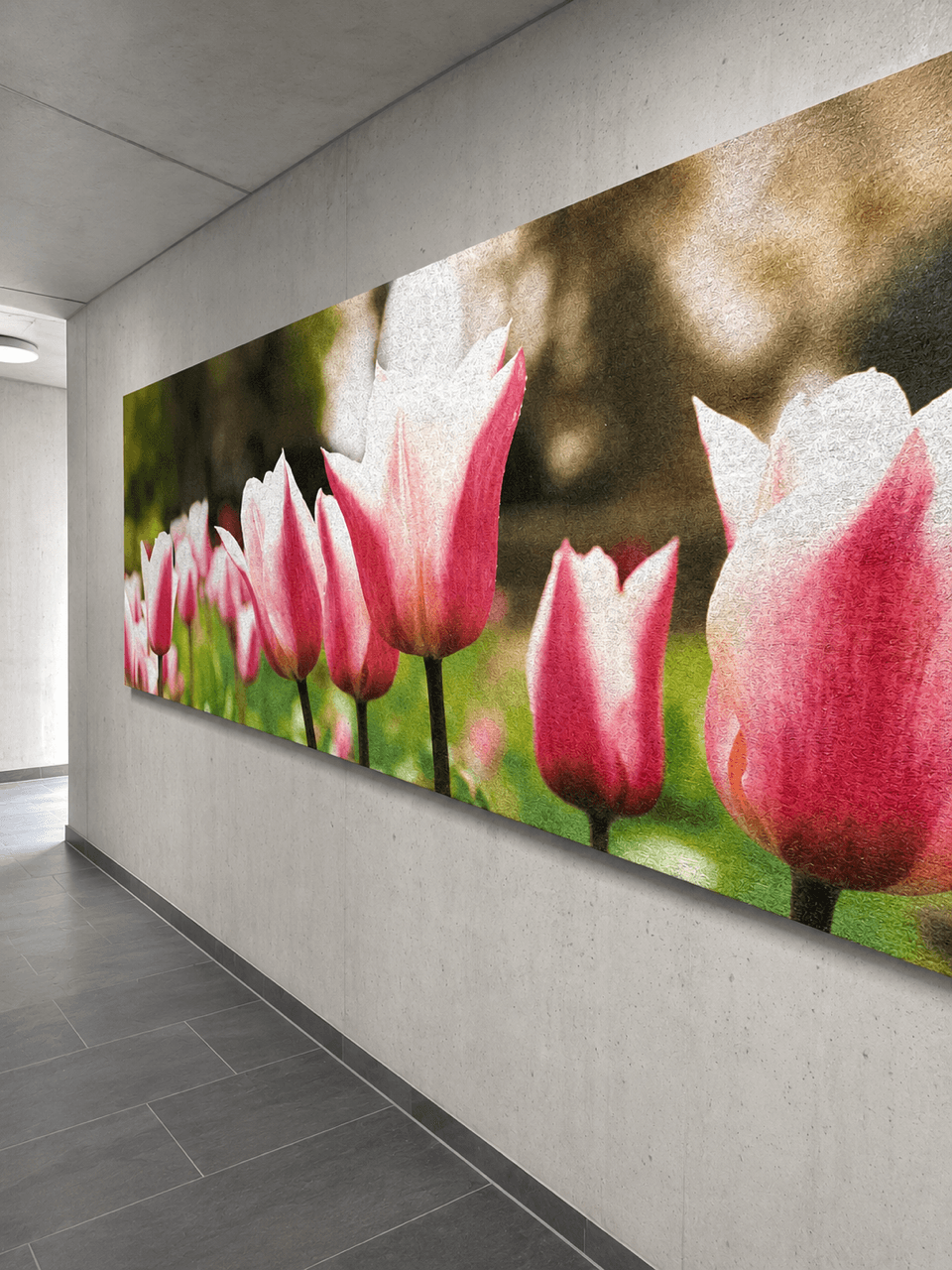

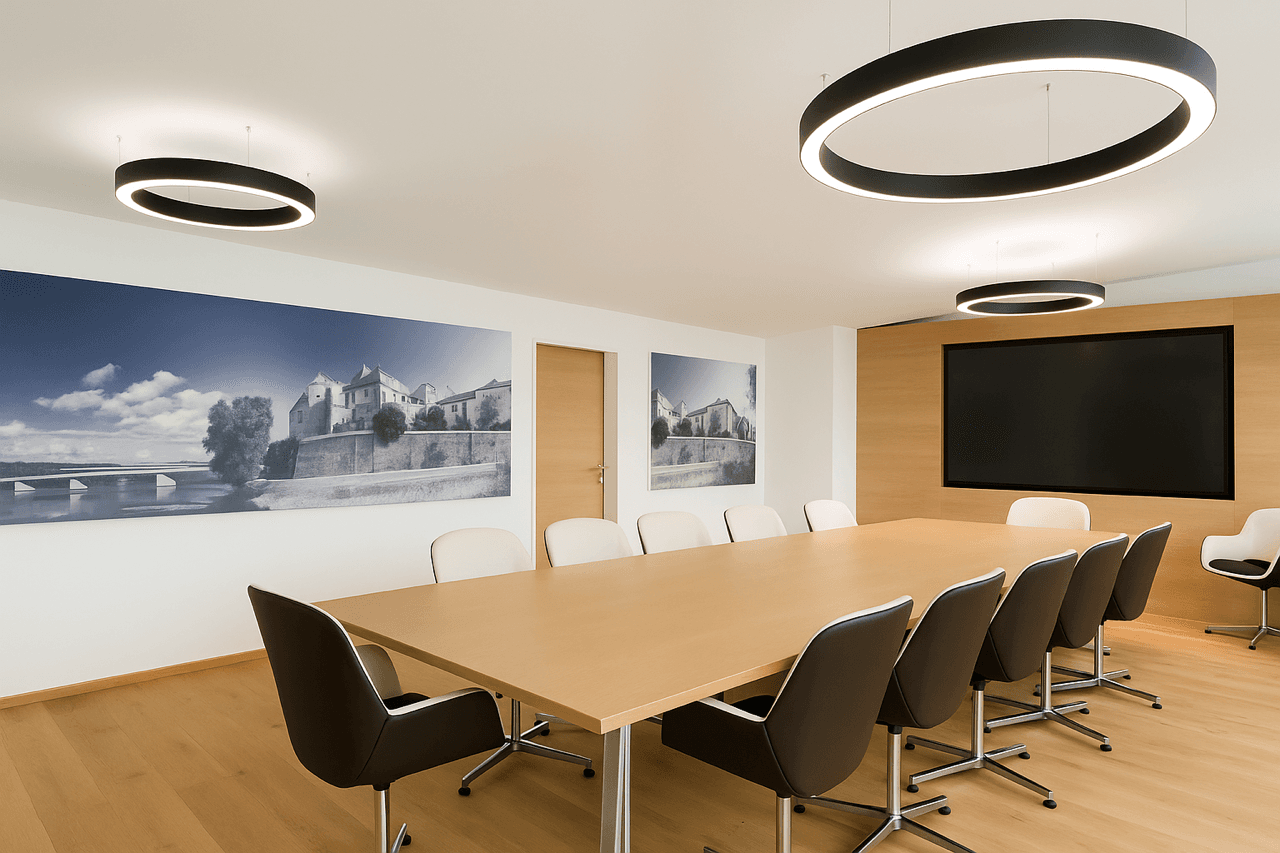

SilentPICTURE is the printed-motif version of the SilentRoot Torf acoustic panel. A custom-supplied image is printed directly onto the matt-porous fibre face — the fibre structure remains visible and the motif appears slightly darker after printing. Ideal where wall art and sound absorption should combine in a single element: conference rooms, corridors, stairwells, foyers. Maximum format 1.2 × 2.4 m per panel; larger wall pictures can be assembled from multiple panels (for example a 3.2 m wide composition from two pieces). Individual sizes from the first panel, four thicknesses (20 / 30 / 40 / 50 mm). Acoustic values are identical to SilentRoot: αw between 0.50 and 1.00 depending on wall standoff. The underlying measurements were carried out by Akustikverkstan Sweden in an accredited reverberation room per DIN EN ISO 354 + ISO 11654.

Technical data

Material: Peat-fibre acoustic panel made from surface peat, custom-printed motif

Surface: Direct print onto the matt, porous fibre face; the panel texture stays visible and the motif appears slightly darker

Up to fire class: B-s3,d0 per EN 13501-1:2018 (low flammability)

Application: Acoustic pictures as motif walls in conference rooms, foyers, stairwells, corridors and reception areas

Certifications: M1 Emission Class (Rakennustieto Oy, valid until 23 Jan 2027), EPD per EN 15804+A2 (EPDHUB-0179, valid until 11 Nov 2027), REACH SVHC-free (declaration 25 Sep 2025), reproduction-toxic boron compounds < 0.1 % (declaration 22 Aug 2025)

Colours: Customer-supplied motif via direct print — any photograph, graphic or pattern (the printed motif appears slightly darker than the original)

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 23 variants

Choose thickness

Datasheet 20 mm

αw

0.90

Frequency values

αp per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
αp	0.30	0.70	1.00	0.85	0.95	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

		Value
200 mm wall standoff	Acoustic picture with 200 mm wall standoff	αw0.90
400 mm wall standoff	Acoustic picture with 400 mm wall standoff	αw0.85
700 mm wall standoff	Acoustic picture with 700 mm wall standoff	αw0.80
100 mm wall standoff	Acoustic picture with 100 mm wall standoff	αw0.75
50 mm wall standoff	Acoustic picture with 50 mm wall standoff	αw0.55
0 mm (directly on the wall)	Acoustic picture mounted directly on the wall	αw0.50

Absorber class: A

Test report: 17-202-M4

Institute: Akustikverkstan Sweden (accreditation no. 10126, ISO/IEC 17025)

Measurement date: 2017-08-17

Room volume: 200 m³

Object area: 10 m²
