Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website

Manufacturer page

Schallsauger FRAMELESS SKY

Name: Schallsauger FRAMELESS SKY
Brand: SCHALLSAUGER (KASPER GmbH)

SKY

CeilingFree-hanging

Description

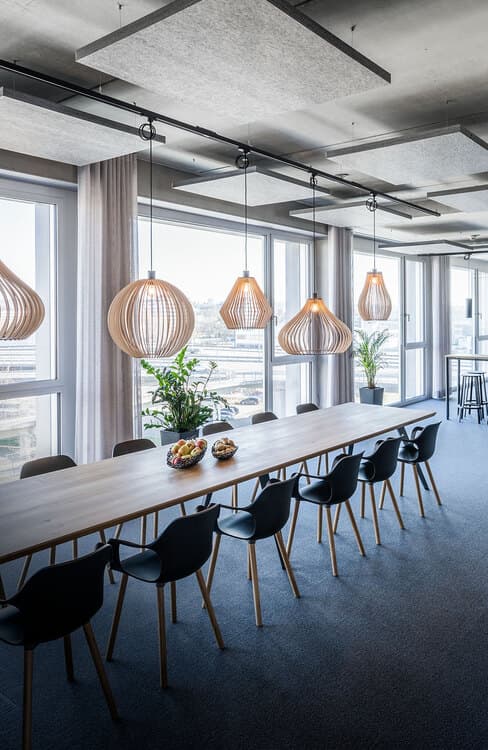

SCHALLSAUGER FRAMELESS SKY is a ceiling-mounted high-performance acoustic panel made from thermally bonded polyester nonwoven. With no frame construction, SKY blends discreetly into the ceiling plane, either as a suspended acoustic island or bonded directly to the ceiling. Available in white, mottled light grey, or black, in a rectangular or round version up to a maximum of 235 × 210 cm. Optionally lacquered in any RAL colour with no acoustic disadvantage. Material: SCHALLSAUGER FRAMELESS, thermally bonded nonwoven made from 100% PES staple fibres, area weight 3200 g/m², thickness 50 mm. Made from 60% recycled PET bottles, 100% recyclable, fire class C-s2,d0 to DIN EN 13501-1:2018 / B1 to DIN 4102-1. Five mounting variants: wire-rope suspension with C-rail (FLZ4C, minimum distance 7 cm from the ceiling), wire-rope suspension with drilling template in 4-point (FLZD4) or 6-point for large formats (FLZD6), each with a minimum distance of 6 cm; 3:1 wire-rope suspension for round panels in S/M/L/XL (FLZD 3zu1, minimum distance 34 cm), 3-point wire-rope for round panels (FLZD3, minimum distance 6 cm), as well as direct bonding with Merbenit HT50 mounting adhesive + hot-melt adhesive (FLZM). Integrated into the pCon Planner for office planning. 5-year full warranty.

Technical data

Material: Thermally bonded polyester nonwoven (100% PES staple fibres, 60% recycled PET, 3200 g/m², 50 mm thickness, no chemical additives). No frame, no fabric covering.

Up to fire class: C-s2,d0 to DIN EN 13501-1:2018 / B1 to DIN 4102-1 (flame-retardant)

Application: Ceiling-mounted high-performance acoustic panel for conference rooms, open-plan offices, foyers, hospitality, and living areas. Suspended or bonded directly to the ceiling; rectangular or round; flexible as an acoustic island in the ceiling plane.

Certifications: Oeko-Tex Standard 100, 60% fibre content from recycled PET bottles, 100% recyclable, allergy-friendly, breathable, skin-friendly, resistant to mould growth (DIN EN ISO 846:2019 + DIN IEC 68 Parts 2-10), resistant to vermin infestation and house dust mites, minimum sorption moisture 1.02% to DIN 52620. 5-year full warranty.

Colours: Available in white, mottled light grey, or black. On request, lacquered in any RAL colour with no acoustic disadvantage.

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

αw

1.00

Frequency values

αp per ISO 11654

f (Hz)	63	125	250	500	1k	2k
αp	0.40	0.60	0.90	0.90	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare			Value
	400 mm Deckenabstand	Deckenmontiertes Akustikpaneel, abgependelt with ca. 40 cm distance to the ceiling (FLZD 3zu1 / vergleichbar)	αw1.00
	Kein Deckenabstand (direkt deckenanliegend / verklebt)	Deckenmontiertes Akustikpaneel, direkt an die ceiling geklebt (FLZM-Montage)	αw0.90

Absorber class: A

Institute: Hersteller-Datenblatt (Hallraum-Spezifikation entspricht Fraunhofer-IBP)

Room volume: 391.6 m³

Weight / density: 3200 g/m²
