Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website

Manufacturer page

Schallsauger FRAMELESS COLOR

Name: Schallsauger FRAMELESS COLOR
Brand: SCHALLSAUGER (KASPER GmbH)

COLOR

Wall

Description

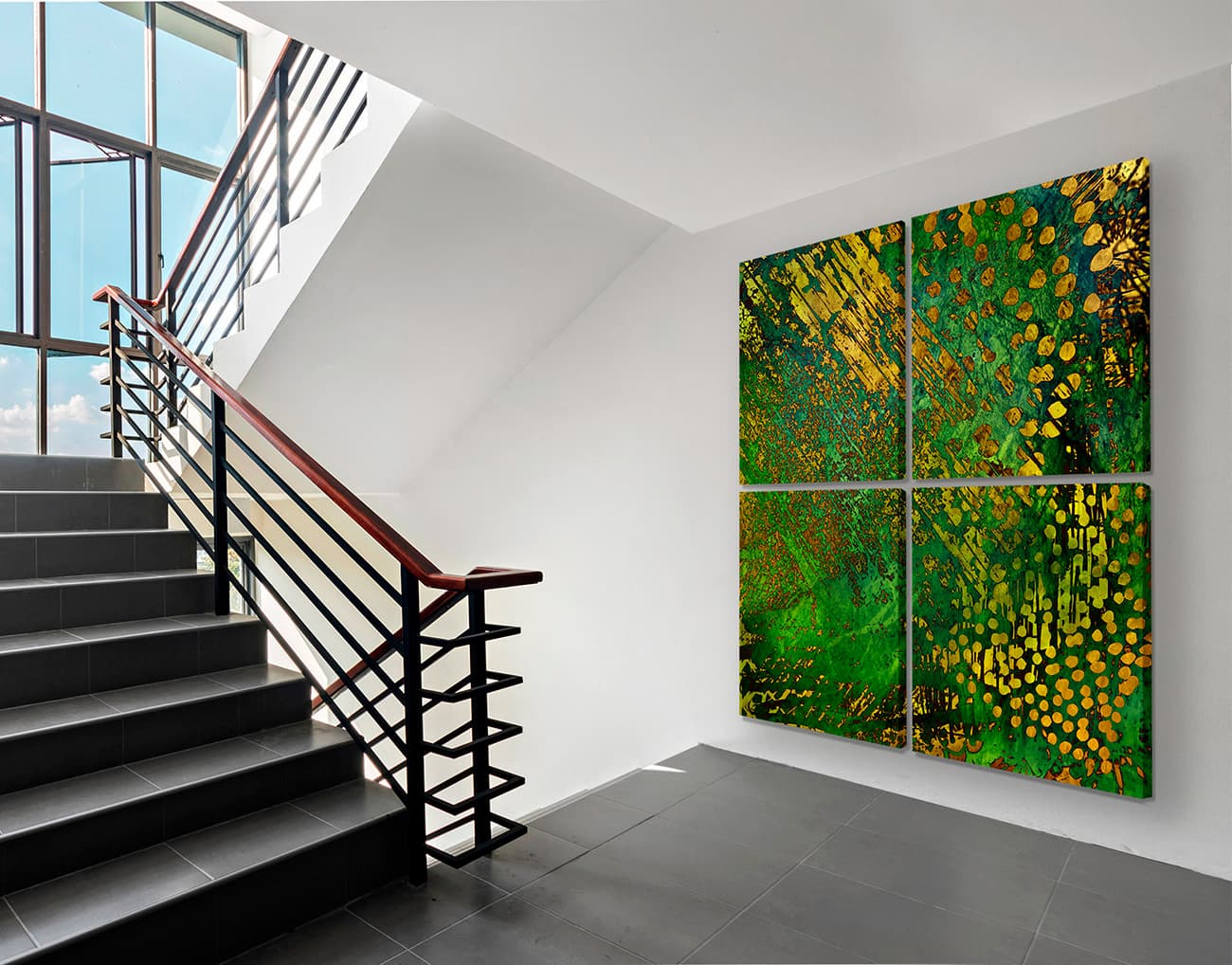

SCHALLSAUGER FRAMELESS COLOR is a wall-mounted acoustic panel with individually printed fabric covering, available either in 195 RAL-like standard colours or a freely chosen custom shade. The fabric fibres are dyed by thermal sublimation printing; the colour pigments penetrate deep into the fabric and produce durable, UV-resistant surfaces. Material: SCHALLSAUGER FRAMELESS, a thermally bonded nonwoven made of 100 % PES staple fibres, areal weight 3200 g/m², thickness 50 mm. Fabric covering of 100 % PES polyester fabric, 310 g/m², flame-retardant treated (B-s1,d0 per DIN EN 13501-1), UV-resistant per DIN EN ISO 105-B02. Substrate made 60 % from recycled PET bottles, 100 % recyclable. Both materials are Oeko-Tex Standard 100 certified. Standard formats: 50 × 50 cm, 70 × 70 cm, 65 × 115 cm, 75 × 100 cm, 100 × 100 cm, 100 × 115 cm, 100 × 160 cm. Custom formats on request. Fabric covering only in rectangular form. Mounting variants: wall mounting via hanging profile and Z-profile (set FLZWH4: 2 × hanging profile, 4 × Z-profile, 8 × plasterboard screw, 4 × wall plug, 4 × Spax, mounting template) with optional wall spacers at the lower panel edge, or alternatively bonding with hot-melt or assembly adhesive. The fabric surface is pinnable, so notes or notices can be attached directly to the panel.

Technical data

Material: Substrate: thermally bonded polyester nonwoven (100 % PES staple fibres, 60 % recycled PET, 3200 g/m², 50 mm thickness, without chemical additives). Covering: 100 % PES polyester fabric (310 g/m²), open-pored, washable, scratch-resistant, finished by thermal sublimation printing.

Up to fire class: Substrate: B-s1,d0 per DIN EN 13501-1:2018 / B1 per DIN 4102-1. Fabric covering: B-s1,d0 per DIN EN 13501-1 (flame-retardant treated, no smoke, no flaming/dripping debris).

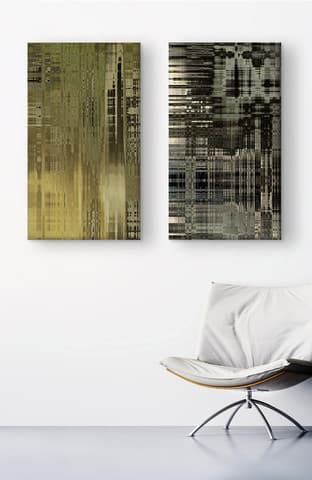

Application: Wall-mounted acoustic panel with individual colour and print design. The pinnable surface suits offices, homes, foyers and showrooms, so notes and notices can be attached directly to the panel.

Certifications: Oeko-Tex Standard 100 (substrate and covering), 60 % fibre content from recycled PET bottles, 100 % recyclable, allergy-friendly, breathable, skin-friendly, resistant to mould growth (DIN EN ISO 846:2019 + DIN IEC 68 Parts 2-10), resistant to vermin infestation and house dust mites, UV-resistant (colour fastness per DIN EN ISO 105-B02), minimum sorption moisture 1.02 % per DIN 52620. 5-year full warranty.

Colours: 195 RAL-like standard colours or a freely chosen custom shade (colour fan on request). Fabric covering dyed by thermal sublimation printing; deep pigment colouring, UV-resistant per DIN EN ISO 105-B02. Water-based colours, skin-friendly, with no harmful off-gassing.

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw

0.90

Frequency values

αp nach ISO 11654

f (Hz)	63	125	250	500	1k	2k
αp	0.05	0.20	0.60	0.90	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Absorber class:A

Method (354): Measured

Room volume: 391.6 m³

Download test protocol

Download test protocol with an account
