Schallsauger FRAMELESS BAFFLE BAFFLE

BAFFLE BAFFLE

αw 0.90–1.00Absorber class A

Free-hanging
With a free account

Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER is the acoustics product brand of KASPER GmbH in Rielasingen-Worblingen on Lake Constance. Founded in 1977, the family business manufactures printable fabric absorbers, LED-integrated acoustic panels and frameless wall and ceiling solutions on 2,500 m² of production space. The ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT and ORION 8 product ranges cover wall, ceiling, room-divider and lighting applications. All covering fabrics (akustikTex) are certified to Öko-Tex Standard 100 and fire-tested to DIN 4102 B1 / EN 13501-1 B-s1,d0. Acoustic measurements were determined by the Fraunhofer Institute for Building Physics (IBP) to DIN EN ISO 354 (test report S 10734-Alpha, 2014).

All products by this manufacturerManufacturer website

Description

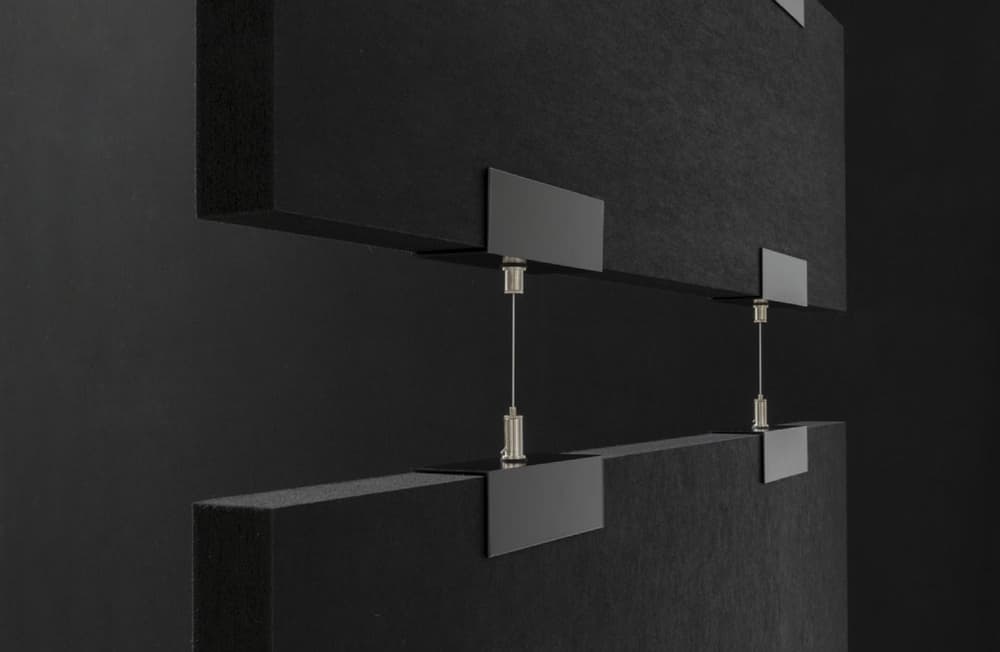

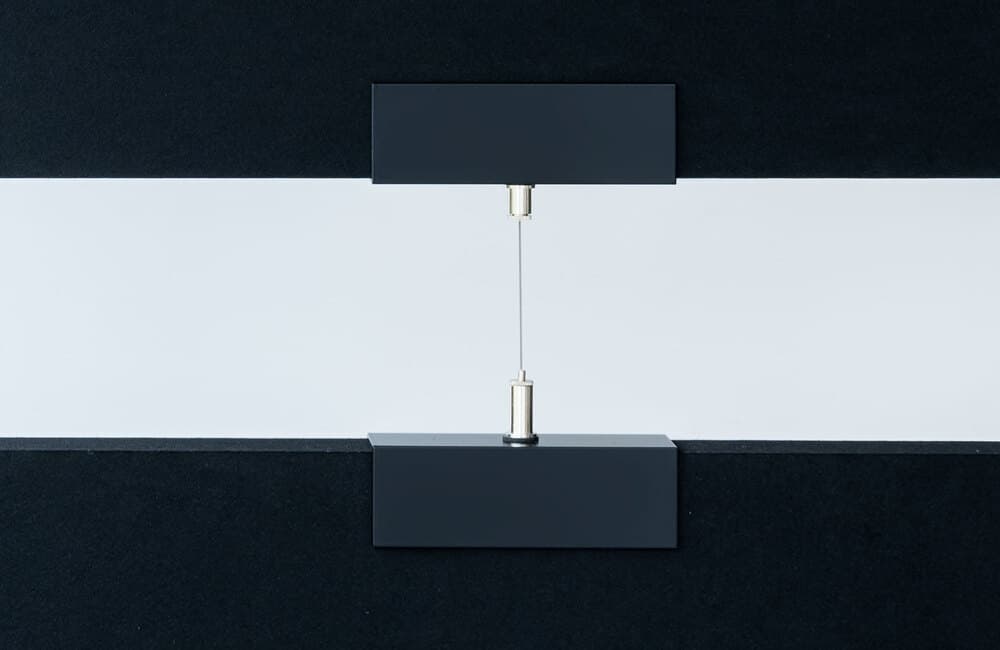

SCHALLSAUGER FRAMELESS BAFFLE BAFFLE is a vertically suspended acoustic baffle made of thermally bonded polyester nonwoven for zoning open-space areas. Several baffles can be hung one below another, creating a subtle, semi-transparent division of large areas into functional zones. Double-sided sound absorption: each baffle absorbs sound on both faces, creating a pleasant, screened working atmosphere without losing the open character of the room. Material: SCHALLSAUGER FRAMELESS, thermally bonded nonwoven made of 100 % PES staple fibres, area weight 3200 g/m², thickness 50 mm. Made 60 % from recycled PET bottles, 100 % recyclable, fire class C-s2,d0 to DIN EN 13501-1:2018 / B1 to DIN 4102-1. Available in white, mottled light grey or black, with square or rounded edges. Standard formats 200 × 35 cm and 100 × 35 cm. Custom sizes between 60–236 cm wide and 35–150 cm high are possible. Mounting via the Baffle wire-rope set FLBD2E (pre-assembled brackets, axis spacing 0.5 × baffle width) or, as a low-cost alternative, with a plug-in plate. Brackets in black, white or light grey.

Technical data

Material: Thermally bonded polyester nonwoven, 60 % recycled PET, no chemical additives
Up to fire class: C-s2,d0 to EN 13501-1:2018 / B1 to DIN 4102-1 (flame-retardant)
Application: Suspended room divider for office, coworking and foyer
Certifications: Oeko-Tex Standard 100, 60 % recycled PET bottles, recyclable
Colours: White, mottled light grey or black. Brackets in black, white or light grey.

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

αw
1.00

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

CompareValue
400 mm distance to ceiling / wallαw1.00
No distance to wall or ceilingαw0.90

Absorber class: A

Institute: Manufacturer datasheet (reverberation room specification corresponds to Fraunhofer-IBP)

Room volume: 391.6 m³

Weight / density: 3200 g/m²

Terms of use
Measured values as a table (2 measurements)
Schallsauger FRAMELESS BAFFLE BAFFLE: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upαwAbsorber class50 Hz63 Hz80 Hz100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
50 mm PES nonwoven · 3200 g/m² · 400 mm distance to ceiling / wall · Vertikal abgehängte baffle with ≥ 400 mm distance to the ceiling · FRAMELESS PES nonwoven (no frame, no fabric cover)1.00A0.380.380.450.590.450.730.880.880.930.910.870.980.970.981.011.051.051.061.051.030.98
