Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website
Manufacturer page

Schallsauger ALU LINE WALL

WALL

WallCeiling

Description

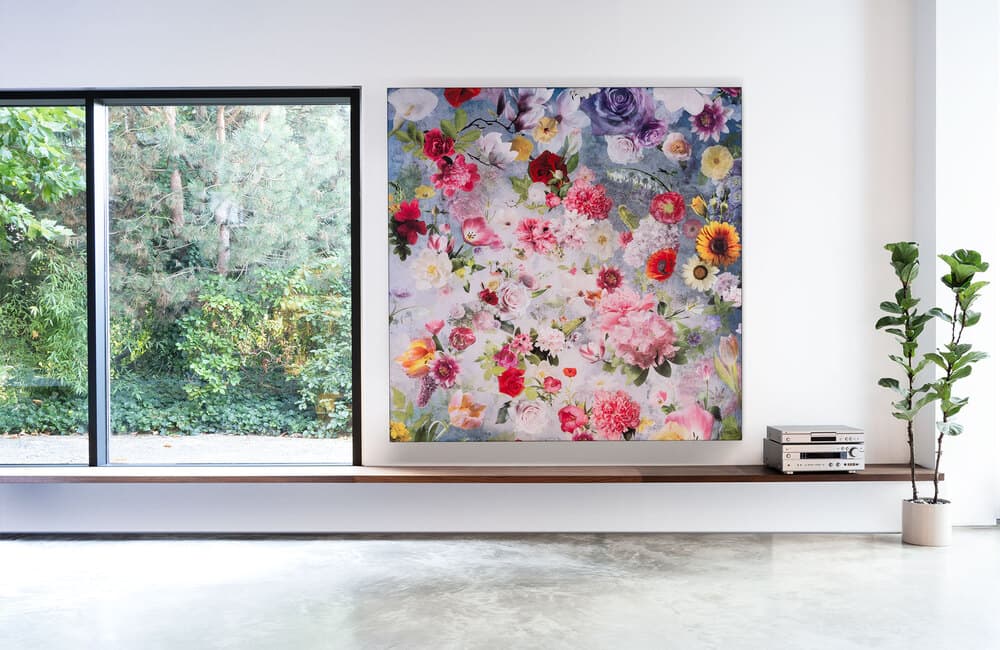

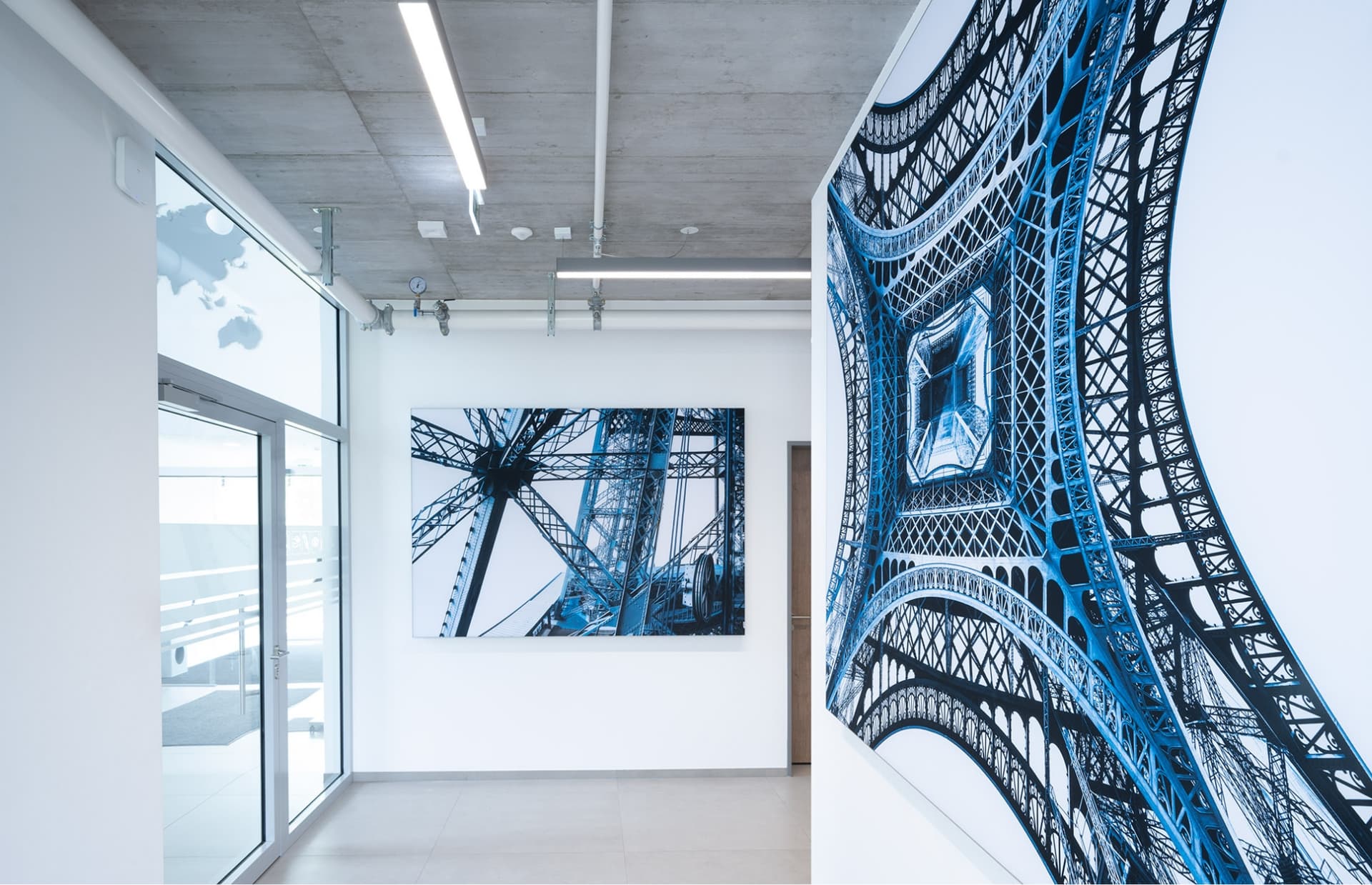

SCHALLSAUGER WALL is the ALU LINE picture wall for wall mounting: a wall-mounted acoustic absorber with individually printable fabric covering. As early as the turn of the millennium, SCHALLSAUGER was the first manufacturer to bring large-format acoustically effective picture walls to market. Motifs from the in-house image archive with a three-dimensional effect can be printed onto the akustikTex surface. Construction: powder-coated aluminium frame (all RAL colours on request) with akustikTex covering (1 mm polyester fabric, 220 g/m², printable on both sides). Available in project-specific sizes; acoustic classification based on a 1000 × 2000 × 50 mm reference element. Three mounting variants: Z-rail (standard wall mounting, closed frame, 25 mm drilling distance to the top edge of the frame), L-rail (closed frame, recommended from 4 m² panel area, 63 mm wall clearance) or optional ceiling mounting with wire ropes (frame with function groove).

Technical data

Material: Powder-coated aluminium frame (all RAL colours on request), akustikTex covering made of 100% polyester fabric (220 g/m², 1 mm, printable)
Up to fire class: B-s1,d0 per EN 13501-1 / B1 per DIN 4102 (no smoke, no flaming droplets/falling debris)
Application: Wall-mounted picture wall, acoustically effective large-format image for restaurant, foyer, living area
Certifications: Oeko-Tex Standard 100, low-crease per DIN EN 22313, akustikTex made in Germany, produced with green electricity (70% own PV)
Colours: Frame RAL powder-coated on request, akustikTex individually printable (own image archive from SCHALLSAUGER available)

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw
0.80

Frequency values

αp nach ISO 11654

f (Hz)1252505001k2k4k
αp0.100.501.001.000.950.90

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Absorber class:B

Method (354): Measured

Room volume: 392 m³

Object area: 12 m²

Measurement date (354): 2014-09-15

Test report: S 10734-Alpha (Anlage 4)

Download test protocol
