Schallsauger ALU LINE SKY VERTICAL
SKY VERTICAL
Aobj 3.23 m² at 1 kHz
Manufacturer
SCHALLSAUGER (KASPER GmbH)
SCHALLSAUGER is the acoustics product brand of KASPER GmbH in Rielasingen-Worblingen on Lake Constance. Founded in 1977, the family business manufactures printable fabric absorbers, LED-integrated acoustic panels and frameless wall and ceiling solutions on 2,500 m² of production space. The ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT and ORION 8 product ranges cover wall, ceiling, room-divider and lighting applications. All covering fabrics (akustikTex) are certified to Öko-Tex Standard 100 and fire-tested to DIN 4102 B1 / EN 13501-1 B-s1,d0. Acoustic measurements were determined by the Fraunhofer Institute for Building Physics (IBP) to DIN EN ISO 354 (test report S 10734-Alpha, 2014).
Description

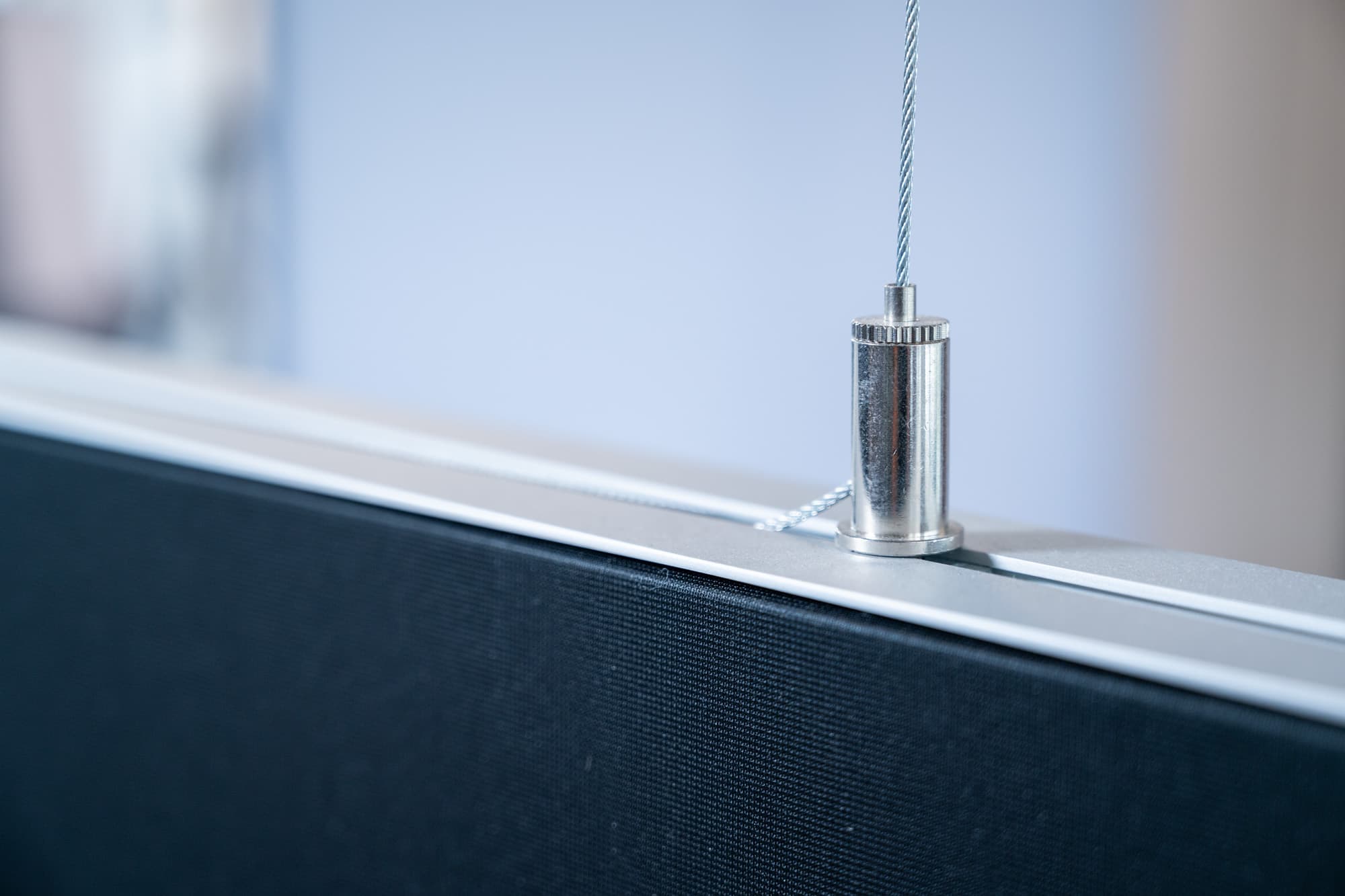

SKY VERTICAL is a vertically suspended room divider from the ALU LINE by SCHALLSAUGER. The free-standing modules acoustically separate open-space areas and create a semi-transparent, understated zoning without removing the open character of the room. Double-sided sound absorption: each screen, measuring 1000 × 2000 × 50 mm, absorbs sound on both sides. The akustikTex covering (1 mm polyester fabric, 220 g/m²) is individually printable; the powder-coated aluminium frame is available in all RAL colours. Mounting is via wire ropes with a screw cap and ceiling fasteners (the scope of delivery includes wire rope holders with a T-nut for the frame's function groove). Optionally couplable vertically beneath one another.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Room volume: 392 m³
Object area: 4 m²
Measurement date (354): 17/09/2014
Test report: S 10734-Alpha (Anlage 6)
Measured values as a table (1 measurement)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 mm frame, 1 mm akustikTex covering · Vertikal abgehängter room divider, free-standing gemessen · akustikTex (Polyestergewebe 220 g/m²) (Aobj, m²) | – | 0.70 | 0.70 | 0.90 | 1.10 | 1.40 | 1.60 | 2.00 | 2.40 | 2.80 | 3.00 | 3.20 | 3.50 | 3.60 | 3.50 | 3.60 | 3.50 | 3.50 | 3.50 |
