Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website

Manufacturer page

Schallsauger ALU LINE SKY HORIZONTAL

Name: Schallsauger ALU LINE SKY HORIZONTAL
Brand: SCHALLSAUGER (KASPER GmbH)

SKY HORIZONTAL

CeilingFree-hanging

Description

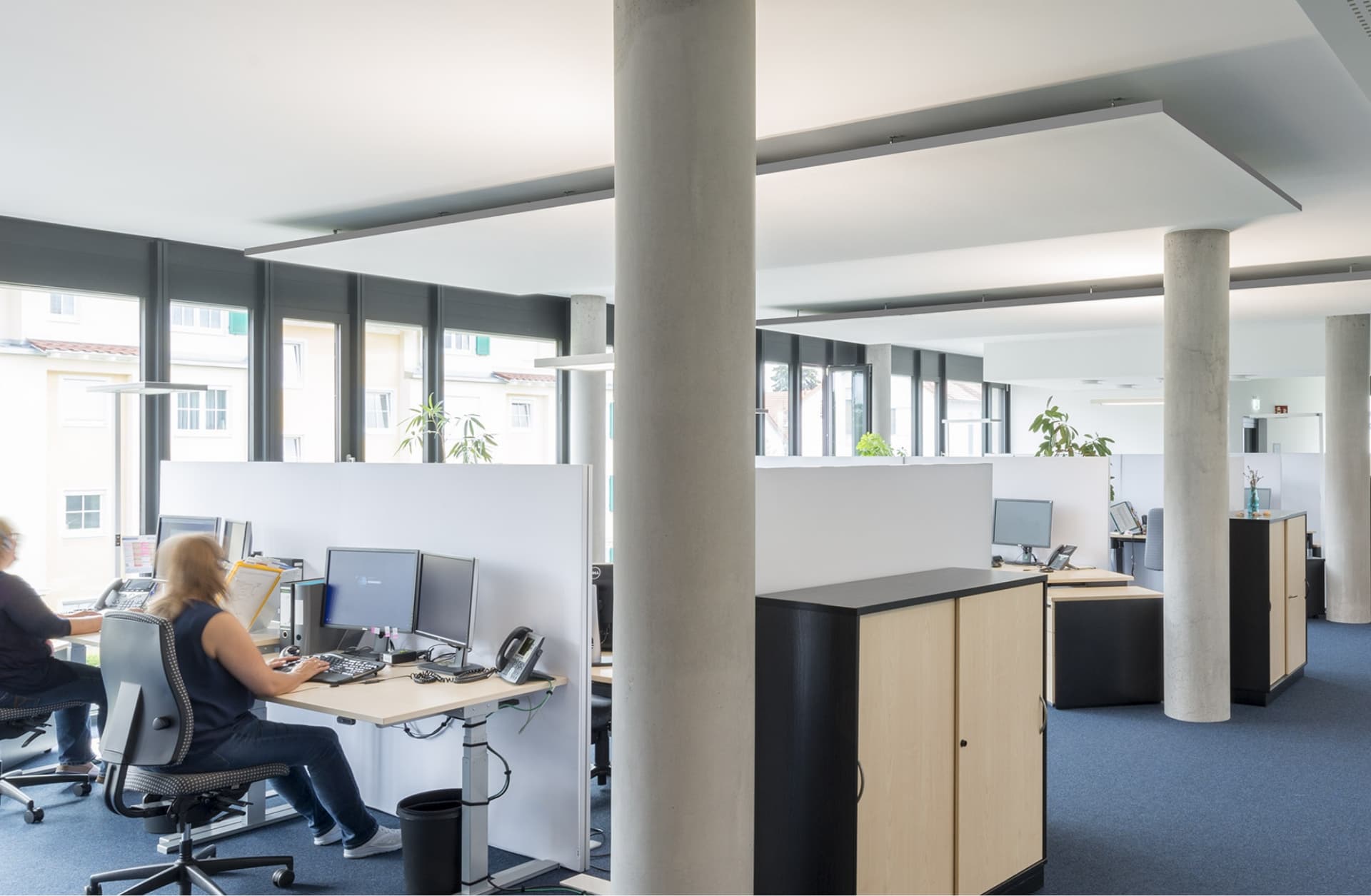

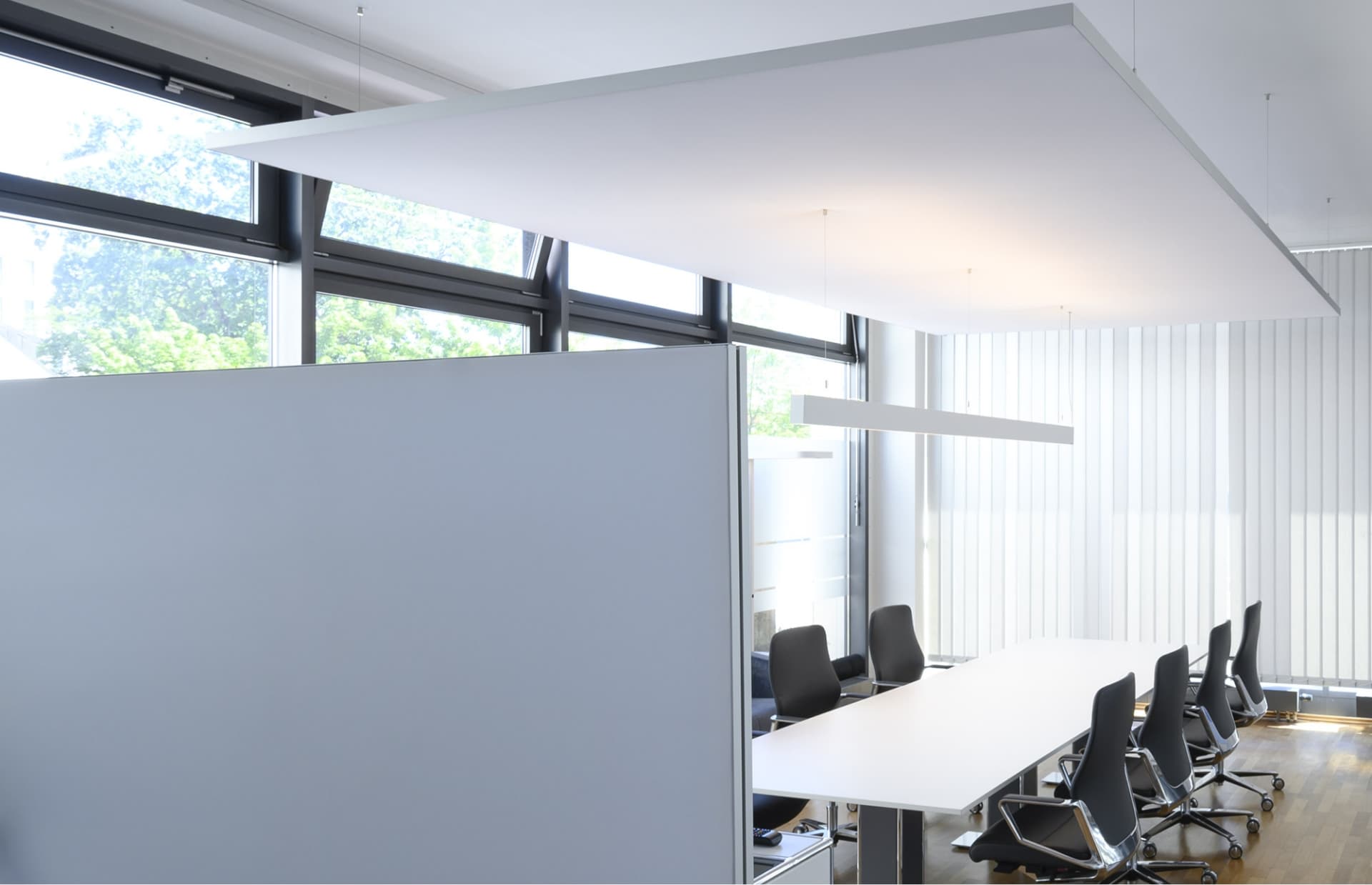

SKY HORIZONTAL is a horizontally suspended acoustic panel from the ALU LINE by SCHALLSAUGER. It offers an economical alternative to a full acoustic ceiling: individual panels suspended on wire ropes, available in almost any size and achievable seamlessly up to 20 metres in length. The powder-coated aluminium frame (all RAL colours on request) is designed as a closed frame for ceiling mounting. The akustikTex covering (1 mm polyester fabric, 220 g/m²) can be individually printed. Installation uses wire ropes with a screw cap, ceiling fastener, and wire rope holder with T-nut for the function groove in the frame.

Technical data

Material: Powder-coated aluminium frame (all RAL colours on request), akustikTex covering of 100 % polyester fabric (220 g/m², 1 mm, printable)

Up to fire class: B-s1,d0 per EN 13501-1 / B1 per DIN 4102 (no smoke, no flaming debris/dripping)

Application: Ceiling acoustic panel, horizontally suspended

Certifications: Oeko-Tex Standard 100, low-crease per DIN EN 22313, akustikTex manufactured in Germany, produced with green electricity (70 % own PV)

Colours: Frame RAL powder-coated on request, akustikTex individually printable

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

αw

1.00

Frequency values

αp per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
αp	0.45	0.85	0.95	0.95	1.00	0.95

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare			Value
	15 cm zur ceiling	Decken-Akustikpaneel with 15 cm Deckenabstand	αw1.00
	2 cm zur ceiling	Decken-Akustikpaneel with 2 cm Deckenabstand	αw0.80

Absorber class: A

Test report: S 10734-Alpha (Anlage 5)

Institute: Fraunhofer-IBP Stuttgart

Measurement date: 2014-09-16

Room volume: 392 m³

Object area: 12 m²

Dimensions: Prüffläche 3,0 × 4,0 m (sechs Elemente à 1000 × 2000 × 50 mm)
