Manufacturer

SCHALLSAUGER (KASPER GmbH)

SCHALLSAUGER ist die Akustik-Produktmarke der KASPER GmbH in Rielasingen-Worblingen am Bodensee. Der 1977 gegründete Familienbetrieb fertigt auf 2.500 m² Produktionsfläche bedruckbare Stoffabsorber, LED-integrierte Akustikpaneele und rahmenlose Wand-/Deckenlösungen. Die Produktreihen ALU LINE, FRAMELESS, LIGHTBOXX, MONO-LIT und ORION 8 decken Wand-, Decken-, Raumteiler- und Beleuchtungsanwendungen ab. Sämtliche Bezugsstoffe (akustikTex) sind nach Öko-Tex Standard 100 zertifiziert und nach DIN 4102 B1 / EN 13501-1 B-s1,d0 brandgeprüft. Akustikmesswerte wurden vom Fraunhofer-Institut für Bauphysik (IBP) nach DIN EN ISO 354 ermittelt (Messbericht S 10734-Alpha, 2014).

Website

Manufacturer page

Schallsauger ALU LINE MOVE

Name: Schallsauger ALU LINE MOVE
Brand: SCHALLSAUGER (KASPER GmbH)

MOVE

Freestanding

Description

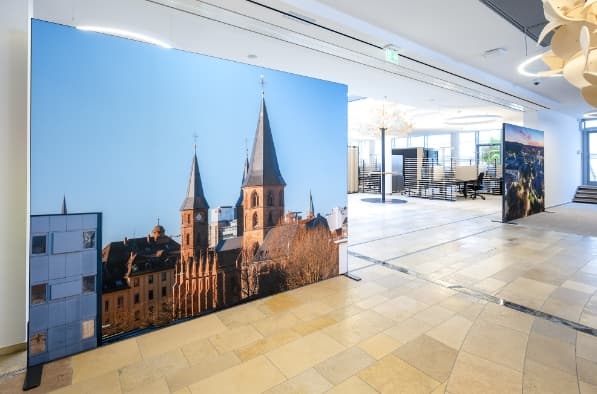

SCHALLSAUGER MOVE is a free-standing acoustic room divider from the ALU LINE: paravent, sound-protection screen, and visual screen in one. Used as a retrofit sound barrier between neighbouring seats or as a flexible partition system in open-plan offices, foyers, and coworking areas. Construction: powder-coated aluminium frame (all RAL colours on request) with an akustikTex covering (1 mm polyester fabric, 220 g/m², printable on both sides). The screens are available in custom sizes; a reinforced base is recommended from 160 cm height or 200 cm width. Three base variants to choose from: without reinforcement (for standard sizes), with reinforcement (for large formats), and with castors (mobile version). All variants engage the function groove of the frame via sliding nuts. Custom builds with square profiles in the corners are available on request.

Technical data

Material: Powder-coated aluminium frame (all RAL colours on request), akustikTex covering of 100 % polyester fabric (220 g/m², 1 mm, printable)

Up to fire class: B-s1,d0 to EN 13501-1 / B1 to DIN 4102 (no smoke, no flaming droplets/debris)

Application: Mobile room divider, paravent, sound-protection screen between neighbouring seats, visual screen

Certifications: Oeko-Tex Standard 100, low-crease to DIN EN 22313, akustikTex made in Germany, produced with green electricity (70 % own PV)

Colours: Frame RAL powder-coated on request, akustikTex individually printable

Measurement data

Sound absorption

ISO 354 – reverberation chamber

Aobj

3.23 m²

at 1 kHz

Frequency values

Aobj nach ISO 354 (m²)

f (Hz)	125	250	500	1k	2k	4k
Aobj	0.77	1.37	2.40	3.23	3.57	3.50

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Absorber class:B

Method (354): Measured

Room volume: 392 m³

Object area: 4 m²

Measurement date (354): 2014-09-17

Test report: S 10734-Alpha (Anlage 6)
