raumAKUSTIKS Round Wall Absorber

AluWall Round Wall Absorber

αw 0.90Absorber class A

Wall
With a free account

Manufacturer

raumAKUSTIKS

raumAKUSTIKS

raumAKUSTIKS (owner: Helge Herrmann) manufactures custom sound absorbers in Berlin for room acoustics in offices, industrial, retail, hospitality and residential settings. Every AluWall absorber is made to measure: an aluminium frame with a highly absorbent polyester core (ISO-BOND®, thermal conductivity class WLG 040, fire class B1 per DIN 4102), or a glass-wool core for the A2 variant. The visible face is a seamlessly tensioned, flame-retardant fabric in any colour, optionally printed with high-resolution digital artwork (seamless up to 300 cm). Beyond the AluWall system, the range includes acoustic louvres, transparent honeycomb sound shields, microperforated acrylic glass and acoustic curtains. Installation and planning are available throughout Germany as well as in Austria, Switzerland and the Benelux countries.

All products by this manufacturerManufacturer website

Description

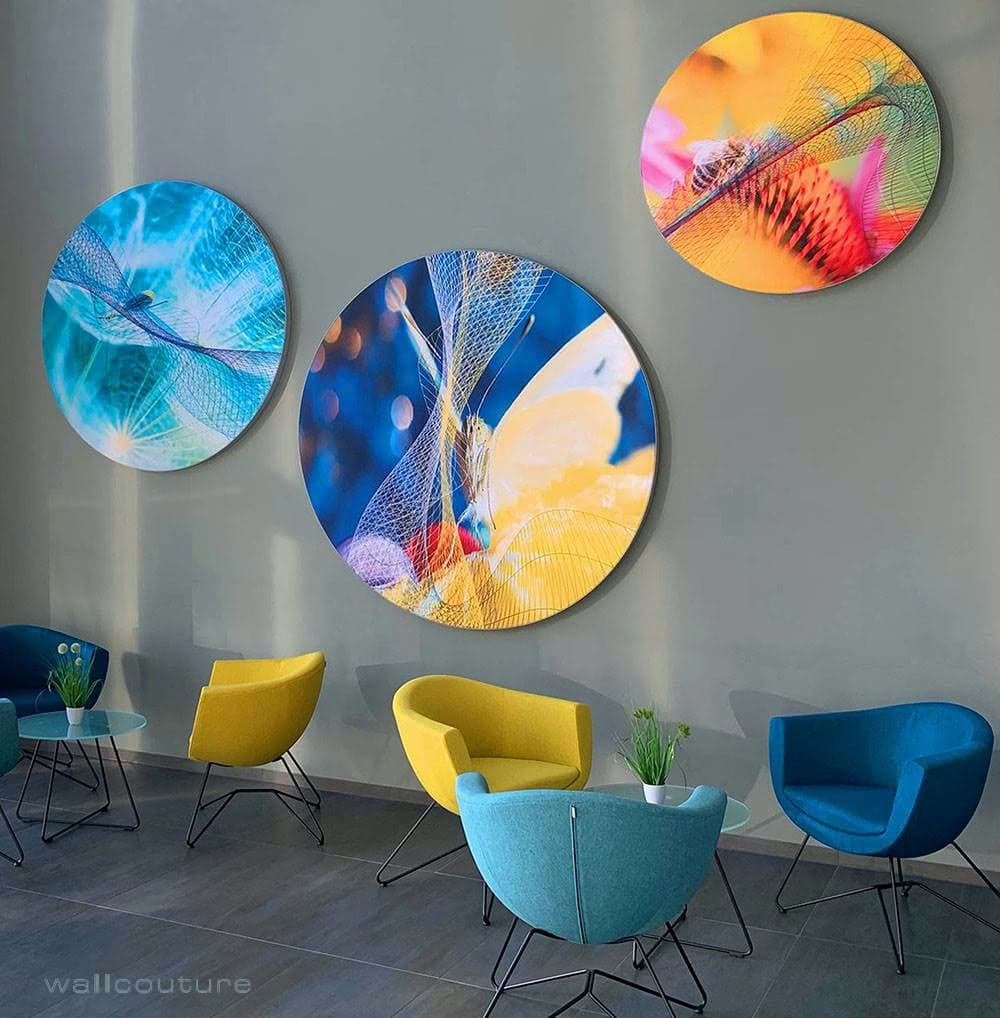

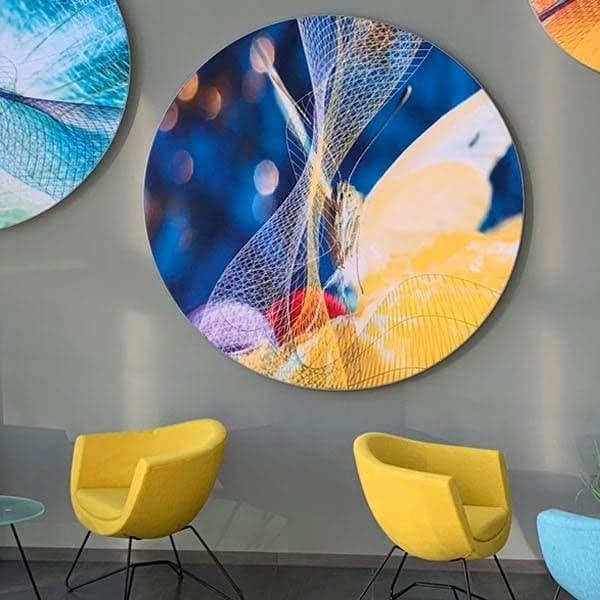

Circular AluWall variant for the wall. 50 mm polyester core, aluminum frame (1.8 mm visible edge), diameter 1200-3500 mm. Fabric covering in 45 standard colors or with custom motif print. Ideal as a decorative wall absorber in foyers, gastronomy, and office areas. AluWall absorbers are always made to measure and can therefore be used individually for every room situation.

Technical data

Material: Aluminum frame, 50 mm polyester core
Up to fire class: B1 (core material and fabric covering according to DIN 4102-1, B2 possible). A2 with glass wool core on request
Application: Round Wall Absorber
Certifications: OEKO-TEX Standard 100 for the core, approval Z-23.1.3-278, monitored by FIW
Colours: Over 45 standard fabric colors, more on request, seamless digital print up to 300 cm

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw
0.90

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

Absorber class:A

Method (354): Measured

Terms of use
Measured values as a table (1 measurement)
raumAKUSTIKS Round Wall Absorber: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upαwAbsorber class100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
50 mm · Vertical round wall mount0.90A0.160.170.300.370.550.670.820.920.850.880.890.940.950.960.971.000.980.99
Measured values as a table (1 measurement)

Access frequency bands, variants and export. Create a permanent free account

Last updated:

Calculate reverberation time with this product
