Wall and Ceiling Absorber Infinity Wall & Sky
ORGANOID Wall and Ceiling Absorber Infinity Wall & Sky
αw 0.95–1.00Absorber class A
Manufacturer
ORGANOID
ORGANOID GmbH from Fliess in Tyrol produces natural surfaces from hand-processed raw materials: alpine hay, Wildspitze, flowers and wool felt are compressed into surfaces without added binders, so they keep their scent and their feel. Under the name “Aesthetics & Acoustics” the company runs its own acoustics range. At the heart of the modular products is the Active Core, an absorber board of hemp and binding fibres that is 93.8% biodegradable. Alongside it comes the Infinity slat system on an MDF carrier for wall and ceiling surfaces.
Documents
Description

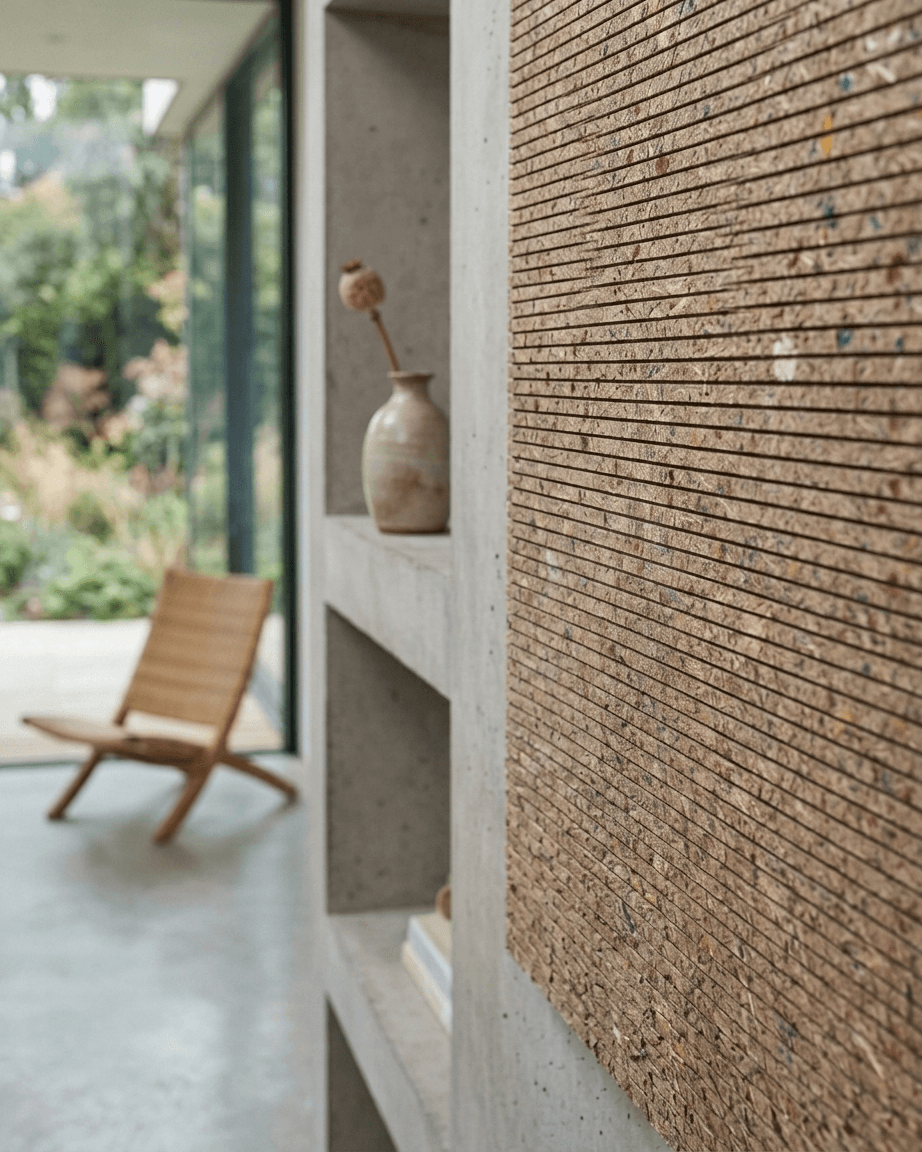

The wall absorber Infinity Wall and the ceiling absorber Infinity Sky are ready-to-install absorber elements in the format 2000 × 1000 × 76 mm on a 19 mm MDF carrier with 13 mm web width and 3 mm grooving. Wall is mounted on the wall, Sky on the ceiling; the hand-processed natural surface is available in ALMWIESE and ALMWIESE light (ALPINE MEADOW and ALPINE MEADOW light in ORGANOID's English brochure).
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 3 variants
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 200 mm distance, of which 180 mm insulation | αw1.00 | |
| 50 mm insulation, directly on wall or ceiling | αw0.95 | |
| 200 mm distance, of which 50 mm insulation | αw0.95 |
Absorber class: A
Dimensions: 2000 × 1000 × 76 mm
Perforation: Web width 13 mm, grooving 3 mm
Measured values as a table (3 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Web width 13 mm, grooving 3 mm · 76 mm · 50 mm insulation, directly on wall or ceiling · ALMWIESE / ALMWIESE light | 0.95 | A | 0.33 | 0.35 | 0.40 | 0.66 | 0.90 | 0.95 | 1.01 | 1.05 | 1.05 | 1.06 | 1.02 | 0.99 | 0.98 | 0.94 | 0.91 | 0.88 | 0.79 | 0.80 |
| Web width 13 mm, grooving 3 mm · 76 mm · 200 mm distance, of which 50 mm insulation · ALMWIESE / ALMWIESE light | 0.95 | A | 0.65 | 0.60 | 0.73 | 0.84 | 0.93 | 0.90 | 0.93 | 0.94 | 0.90 | 0.90 | 0.96 | 1.01 | 1.00 | 0.96 | 0.93 | 0.88 | 0.81 | 0.81 |
| Web width 13 mm, grooving 3 mm · 76 mm · 200 mm distance, of which 180 mm insulation · ALMWIESE / ALMWIESE light | 1.00 | A | 0.92 | 0.76 | 0.81 | 0.90 | 1.01 | 0.93 | 0.93 | 0.96 | 0.95 | 0.97 | 0.99 | 0.98 | 0.99 | 0.96 | 0.95 | 0.92 | 0.86 | 0.86 |
Measured values as a table (3 measurements)
Access frequency bands, variants and export. Create a permanent free account
