Acoustic Tiles Modular

Name: Acoustic Tiles Modular
Brand: ORGANOID

ORGANOID Acoustic Tiles Modular

α_w 0.50–1.00Absorber classes A, D

WallCeiling

With a free account

Manufacturer

ORGANOID

ORGANOID GmbH from Fliess in Tyrol produces natural surfaces from hand-processed raw materials: alpine hay, Wildspitze, flowers and wool felt are compressed into surfaces without added binders, so they keep their scent and their feel. Under the name “Aesthetics & Acoustics” the company runs its own acoustics range. At the heart of the modular products is the Active Core, an absorber board of hemp and binding fibres that is 93.8% biodegradable. Alongside it comes the Infinity slat system on an MDF carrier for wall and ceiling surfaces.

All products by this manufacturer Manufacturer website

Documents

Datasheet

Description

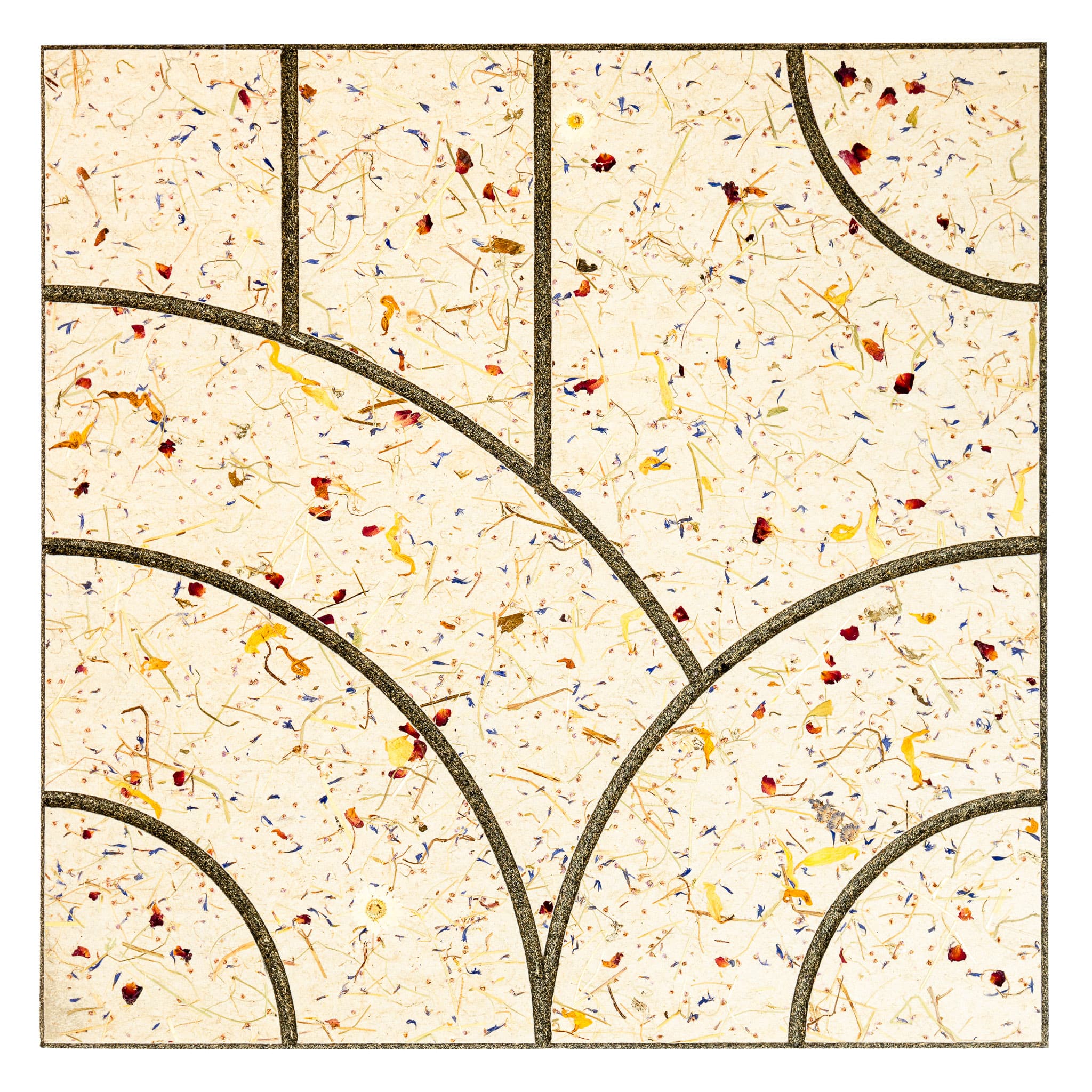

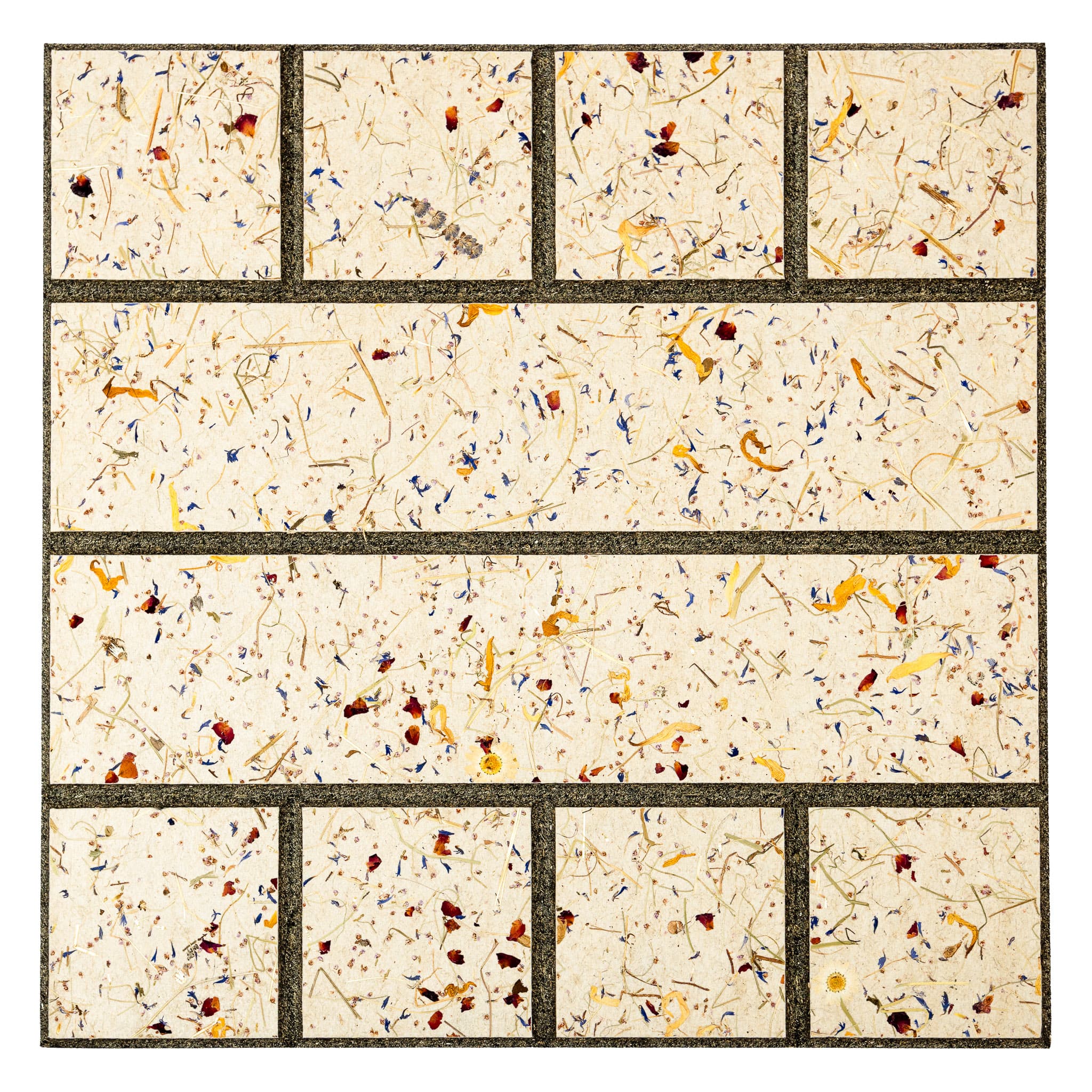

The Acoustic Tiles Modular are square absorber elements in the format 580 × 580 × 20 mm with an ORGANOID natural surface in ALMWIESE light (ALPINE MEADOW light in ORGANOID's English brochure). Nine different V-cut structures let the individual elements be combined into individual surfaces, graphic patterns or continuous wall images. The Active Core absorber core is made of hemp fibres and a binding component and is free from harmful substances. It can be punched, sawn, water-jet cut or CNC-machined.

Technical data

Material: ORGANOID natural surface on an Active Core absorber core, V-cut structure

Surface: ORGANOID ALMWIESE light (ALPINE MEADOW light): fragrant alpine hay with colourful flowers and daisies on flax fleece.

Application: Wall

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 8 variants

α_w

1.00

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

		Value
40 mm cavity, fully filled with 40 mm sheep-wool insulation	ALMWIESE light	α_w1.00
40 mm cavity, fully filled with 40 mm sheep-wool insulation	WOOL	α_w1.00
180 mm cavity, unfilled	ALMWIESE light	α_w1.00
180 mm cavity, unfilled	WOOL	α_w1.00
180 mm cavity, of which 40 mm sheep-wool insulation	ALMWIESE light	α_w1.00
180 mm cavity, of which 40 mm sheep-wool insulation	WOOL	α_w1.00
Directly on the substrate, no cavity	WOOL	α_w0.55
Directly on the substrate, no cavity	ALMWIESE light	α_w0.50

Absorber class: A

Test report: FRILAB-20260507-99-01

Institute: Acoustics laboratory of Fuchs Raumingenieure, Nuremberg

Measurement date: 10/03/2026

Room volume: 391.6 m³

Object area: 11.9 m²

Dimensions: 580 × 580 × 20 mm

Surface: ALMWIESE light

Measured values as a table (8 measurements)

Acoustic Tiles Modular: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	Absorber class	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
20 mm · Directly on the substrate, no cavity · ALMWIESE light	0.50	D	0.03	0.05	0.08	0.12	0.19	0.33	0.47	0.67	0.82	0.94	1.01	1.03	1.05	1.07	1.03	1.05	1.00	0.98
20 mm · Directly on the substrate, no cavity · WOOL	0.55	D	0.04	0.06	0.08	0.13	0.23	0.37	0.51	0.68	0.81	0.90	0.98	1.02	1.03	1.08	1.08	1.07	1.02	1.04
20 mm · 40 mm cavity, fully filled with 40 mm sheep-wool insulation · ALMWIESE light	1.00	A	0.23	0.33	0.45	0.67	0.87	0.97	1.04	1.12	1.11	1.08	1.05	1.05	0.99	0.95	0.99	0.99	1.01	1.06
20 mm · 40 mm cavity, fully filled with 40 mm sheep-wool insulation · WOOL	1.00	A	0.24	0.35	0.47	0.69	0.88	0.93	1.00	1.06	1.11	1.06	1.08	1.06	1.04	1.01	1.00	1.04	1.01	1.07
20 mm · 180 mm cavity, unfilled · ALMWIESE light	1.00	A	0.23	0.33	0.51	0.68	0.87	0.95	1.02	1.03	0.98	0.88	0.86	0.95	0.96	0.98	1.00	1.01	1.04	1.07
20 mm · 180 mm cavity, unfilled · WOOL	1.00	A	0.23	0.34	0.53	0.69	0.86	0.93	1.00	1.04	1.01	0.90	0.86	0.98	0.98	0.97	1.01	1.01	1.07	1.12
20 mm · 180 mm cavity, of which 40 mm sheep-wool insulation · ALMWIESE light	1.00	A	0.36	0.48	0.69	0.90	1.00	1.03	1.06	1.05	0.97	0.92	0.96	1.02	1.01	1.01	1.01	1.02	1.08	1.12
20 mm · 180 mm cavity, of which 40 mm sheep-wool insulation · WOOL	1.00	A	0.38	0.50	0.70	0.89	0.98	1.03	1.04	1.04	0.99	0.92	0.96	1.03	1.03	1.02	1.02	1.04	1.10	1.12

Measured values as a table (8 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated: 02/11/2026
