Manufacturer
MW Acoustics
Acoustic elements, absorbers, diffusers, ceiling rafts and studio solutions from MW-Acoustics, imported from the public web catalogue for internal data curation.
Broadband Absorber Wrap light
Broadband Absorber Wrap light
Wall
Description

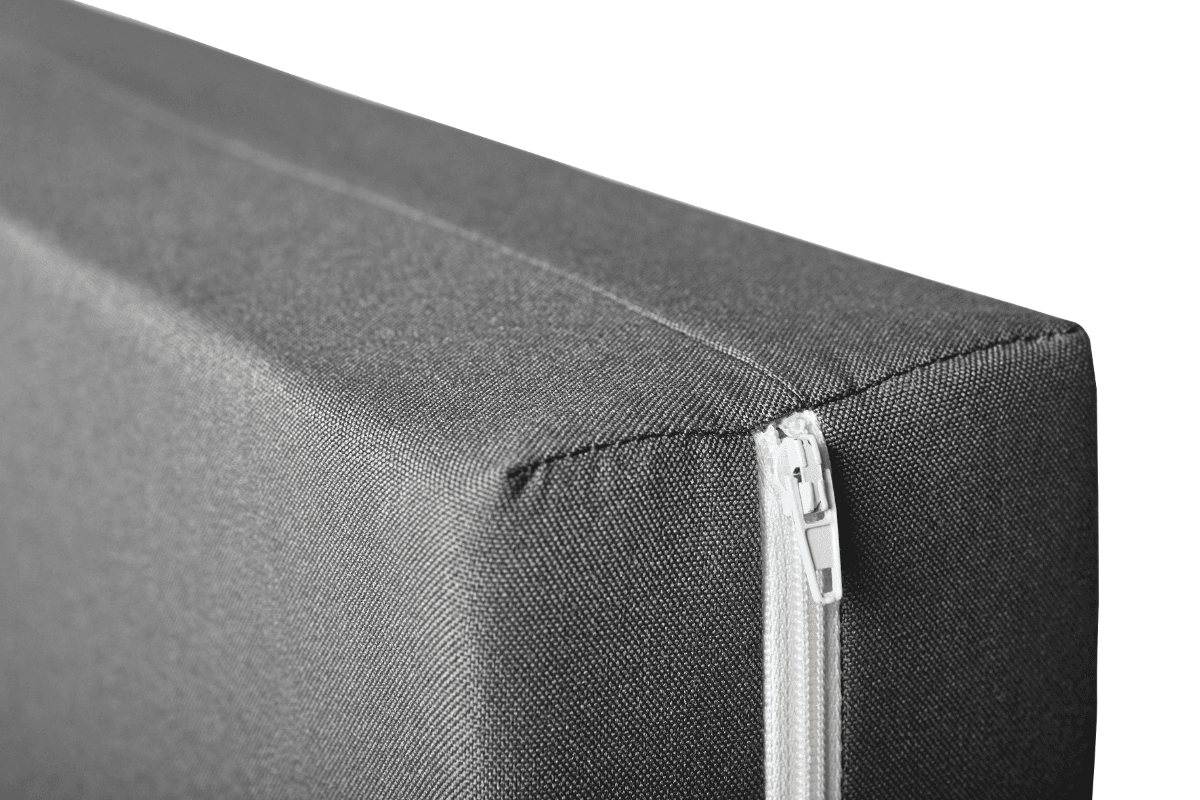

Lightweight fabric-covered broadband absorber made of Basotect® G+ (10 cm / 12 cm).
Technical data
Material: Basotect® G+, 100/120 mm, fabric covering
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 2 variants
αw
1.00
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.35 | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 12 cm | αw1.00 | |
| 10 cm | αw1.00 |
Absorber class: A
Measured values as a table (2 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 cm | 1.00 | A | 0.20 | 0.35 | 0.52 | 0.68 | 0.82 | 0.92 | 0.98 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| 10 cm | 1.00 | A | 0.16 | 0.30 | 0.45 | 0.62 | 0.78 | 0.90 | 0.97 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
Measured values as a table (2 measurements)
Access frequency bands, variants and export. Create a permanent free account
