Manufacturer
MW Acoustics
Acoustic elements, absorbers, diffusers, ceiling rafts and studio solutions from MW-Acoustics, imported from the public web catalogue for internal data curation.
WebsiteBreitband-Absorber Wrap

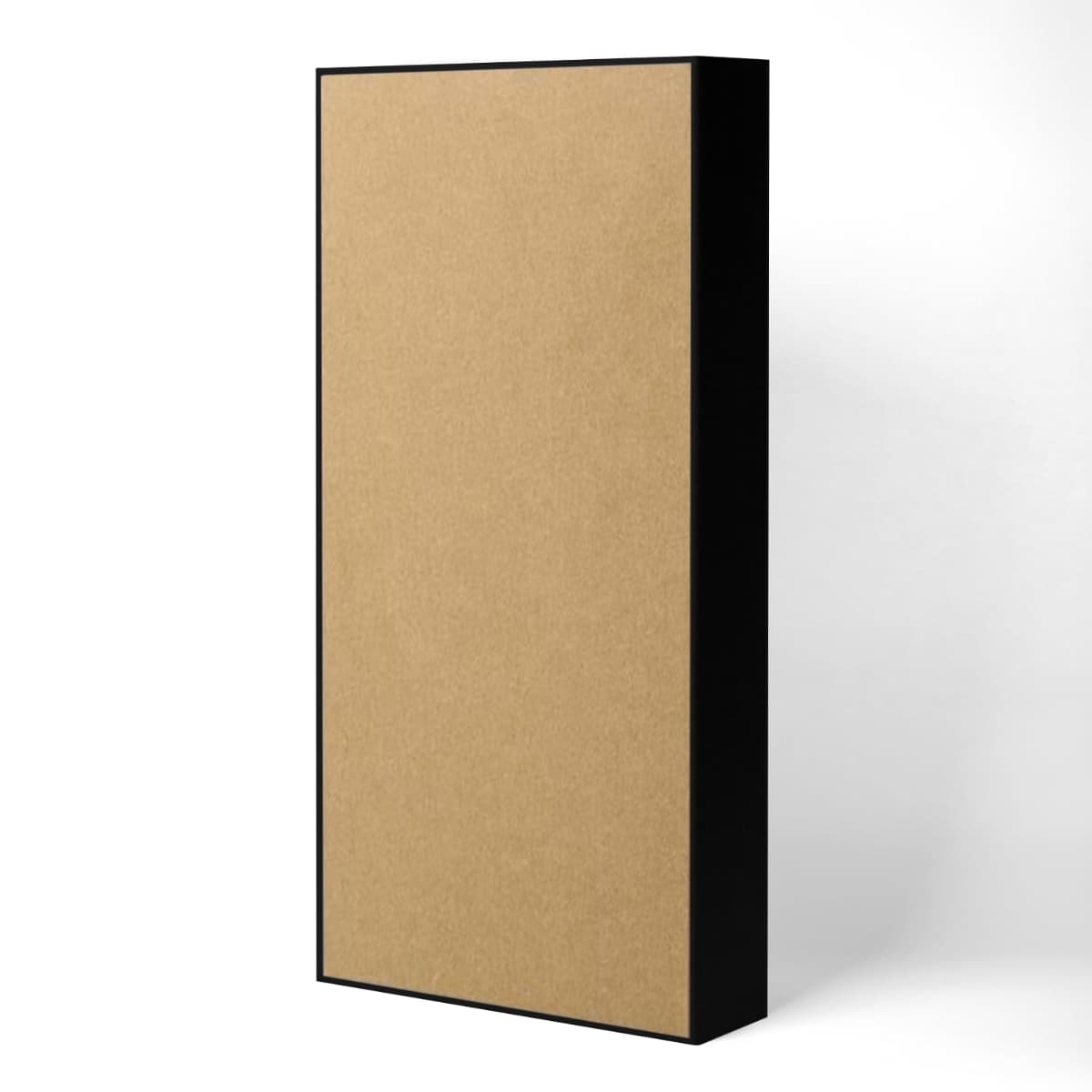

Breitband-Absorber Wrap
Wall
Description
Stoffbespannter Breitband-Absorber aus 12 cm Basotect® G+, vor der Wand montiert. Vier Größen.
Technical data
Material: Basotect® G+, 120 mm, Stoffbezug
Measurement data
Sound absorption
ISO 354 – reverberation chamber
αw
1.00
Frequency values
αp nach ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.35 | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Absorber class:A
Method (354): Analytically calculated
NRC: 0.95
