Broadband Absorber Premium
Broadband Absorber Premium
Wall
Description

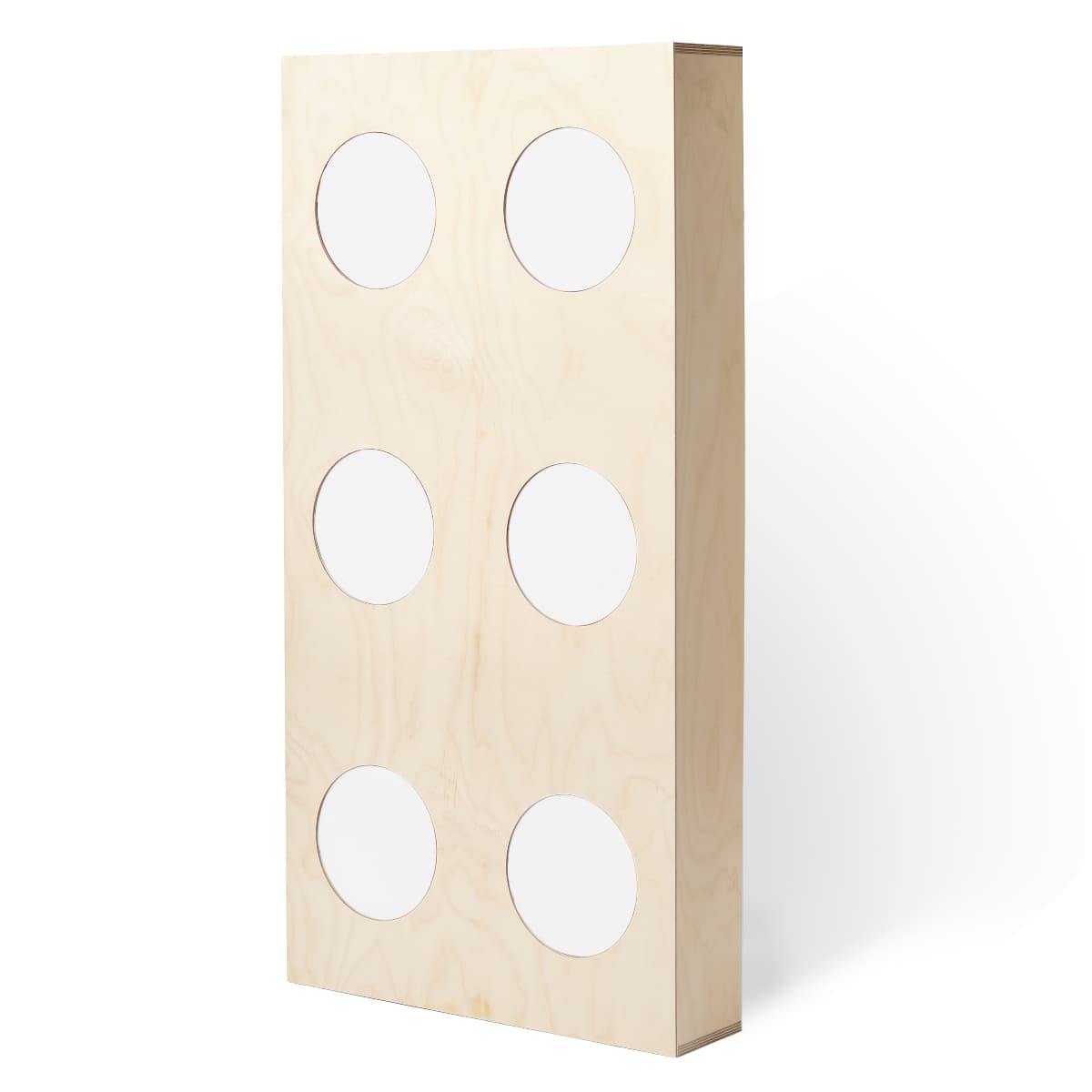

Broadband absorber made of 12 cm Basotect® G+ in a multiplex plywood body, mounted in front of the wall. Four sizes.
Technical data
Material: Basotect® G+ (melamine resin foam), 120 mm
Measurement data
Sound absorption
ISO 354 – reverberation chamber
αw
1.00
Frequency values
αp nach ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.35 | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Absorber class:A
Method (354): Analytically calculated
Measured values as a table (1 measurement)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120 mm, wall | 1.00 | A | 0.20 | 0.35 | 0.52 | 0.68 | 0.82 | 0.92 | 0.98 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
