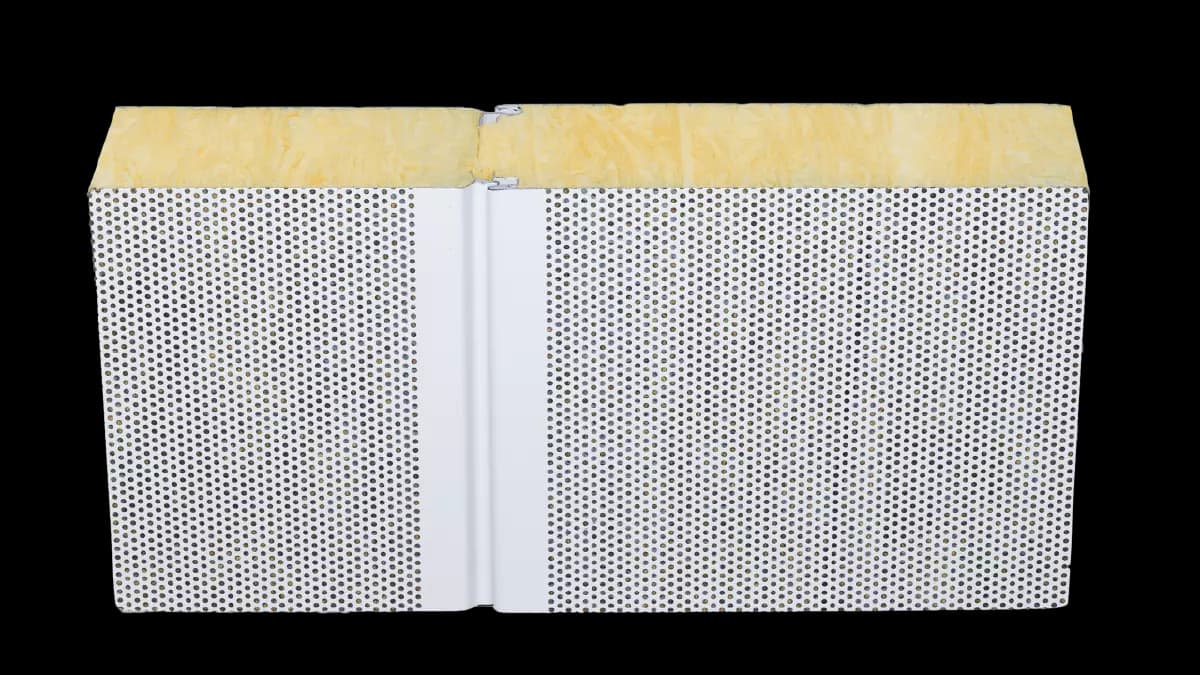

Metfiber Eco Wall Sound
Sound-absorbing sandwich wall panel (eco)
Description

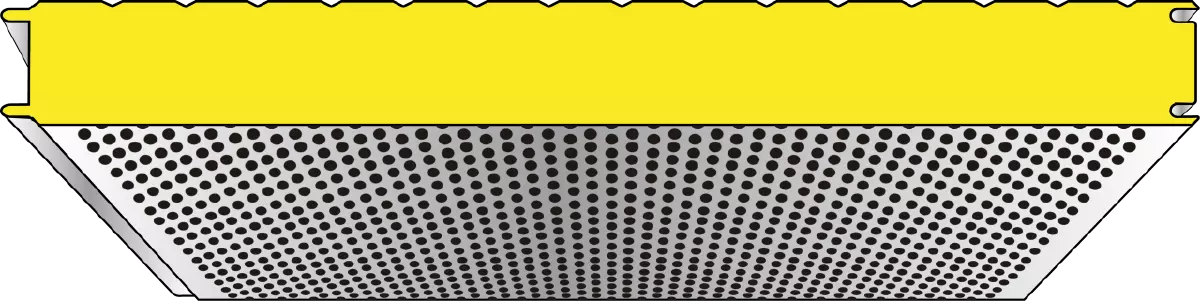

Sound-absorbing sandwich wall panel with a glass-wool core (80% recycled material) and a perforated inner skin. Excellent sound-insulation and absorption properties. Patented fleece dust-protection system between the inner skin and the glass-wool core. Ecologically sustainable through a high share of recycled content.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 9 variants
Choose thickness
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.60 | 0.85 | 0.95 | 0.95 | 1.00 | 0.95 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 0 mm (direct mounting) | αw1.00 | |
| 0 mm (direct mounting) | αw1.00 | |
| 100 mm wall standoff | αw1.00 | |
| 400 mm wall standoff | αw1.00 | |
| 400 mm wall standoff | αw0.95 |
Test report: 003
Institute: Peutz (NL)
Measured values as a table (9 measurements)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 mm · 0 mm (direct mounting) | 1.00 | 0.41 | 0.66 | 0.72 | 0.78 | 0.90 | 0.92 | 0.96 | 0.95 | 0.93 | 0.93 | 0.98 | 0.97 | 0.95 | 0.99 | 0.99 | 0.96 | 0.97 | 0.97 |
| 100 mm · 0 mm (direct mounting) | 1.00 | 0.38 | 0.81 | 0.85 | 0.78 | 0.87 | 0.94 | 0.92 | 0.94 | 0.92 | 0.97 | 0.97 | 1.02 | 1.02 | 1.04 | 1.03 | 1.01 | 0.93 | 0.70 |
| 120 mm · 0 mm (direct mounting) | 1.00 | 0.41 | 0.80 | 0.82 | 0.81 | 0.91 | 0.97 | 1.01 | 0.97 | 0.96 | 1.00 | 1.00 | 1.02 | 0.98 | 1.03 | 1.04 | 1.04 | 1.00 | 1.02 |
| 150 mm · 0 mm (direct mounting) | 1.00 | 0.49 | 0.75 | 0.82 | 0.77 | 0.84 | 0.79 | 0.91 | 0.95 | 0.96 | 0.98 | 0.99 | 0.99 | 1.03 | 1.04 | 1.03 | 0.99 | 0.98 | 0.95 |
| 200 mm · 0 mm (direct mounting) | 1.00 | 0.49 | 0.75 | 0.76 | 0.68 | 0.87 | 0.82 | 0.94 | 0.93 | 0.96 | 0.99 | 1.00 | 1.01 | 1.01 | 1.03 | 1.03 | 1.01 | 0.96 | 0.77 |
| 100 mm · 100 mm wall standoff | 1.00 | 0.34 | 0.78 | 0.80 | 0.78 | 0.79 | 0.83 | 0.95 | 0.95 | 0.95 | 0.98 | 0.99 | 1.03 | 1.01 | 1.03 | 1.05 | 1.04 | 1.00 | 1.04 |
| 100 mm · 400 mm wall standoff | 0.95 | 0.42 | 0.53 | 0.68 | 0.81 | 0.83 | 0.95 | 0.93 | 0.89 | 0.93 | 0.97 | 0.96 | 0.98 | 0.98 | 0.99 | 1.04 | 1.01 | 0.98 | 0.96 |
| 100 mm · 400 mm wall standoff | 1.00 | 0.48 | 0.49 | 0.63 | 0.81 | 0.84 | 0.90 | 0.90 | 0.92 | 0.93 | 0.99 | 0.98 | 0.97 | 0.99 | 0.99 | 1.00 | 0.98 | 1.00 | 0.94 |
| 200 mm · 300 mm wall standoff | 1.00 | 0.48 | 0.50 | 0.64 | 0.78 | 0.86 | 0.90 | 0.89 | 0.89 | 0.91 | 0.99 | 0.97 | 0.99 | 0.98 | 0.99 | 1.00 | 0.98 | 0.94 | 0.94 |
Measured values as a table (9 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
Building acoustics dataRw 35 (-1; -4) dB · 3 measurements
Airborne sound insulation Rw· 3 variants
EN ISO 10140-2 / ISO 717-1
Frequency values
R per third-octave band in dB
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| R | 26.10 | 19.30 | 21.80 | 25.50 | 25.20 | 29.40 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Thickness | Rw |
|---|---|---|
| 100 mm | 35 (-1; -4)dB | |
| 120 mm | 35 (-1; -4)dB | |
| 150 mm | 34 (-1; -3)dB |
TU Eindhoven (NL) · 2020 · 039
