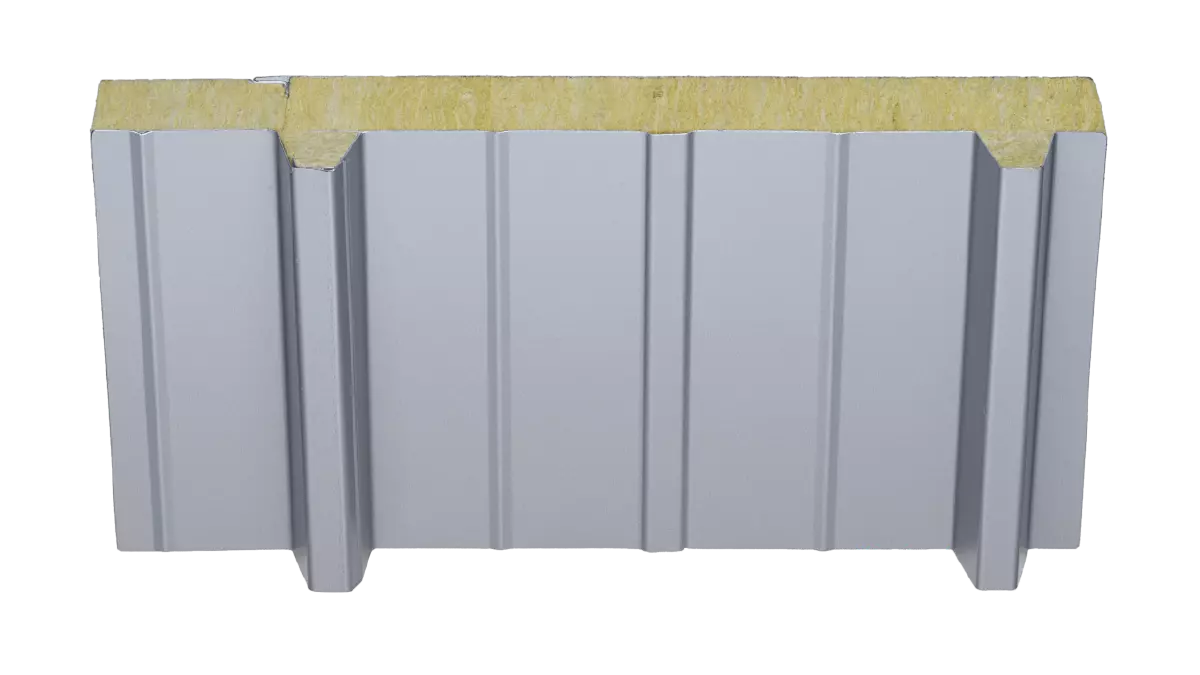

Hipertec Roof Sound

Name: Hipertec Roof Sound
Brand: Metecno Bausysteme GmbH

Sound-absorbing sandwich roof panel

Description

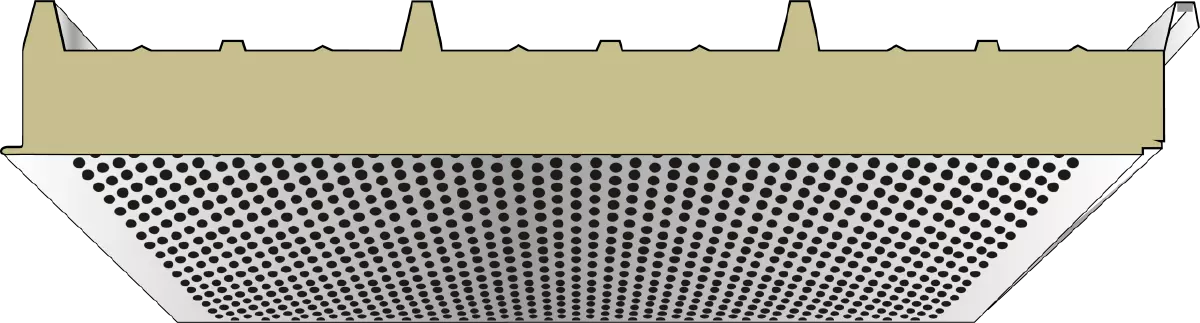

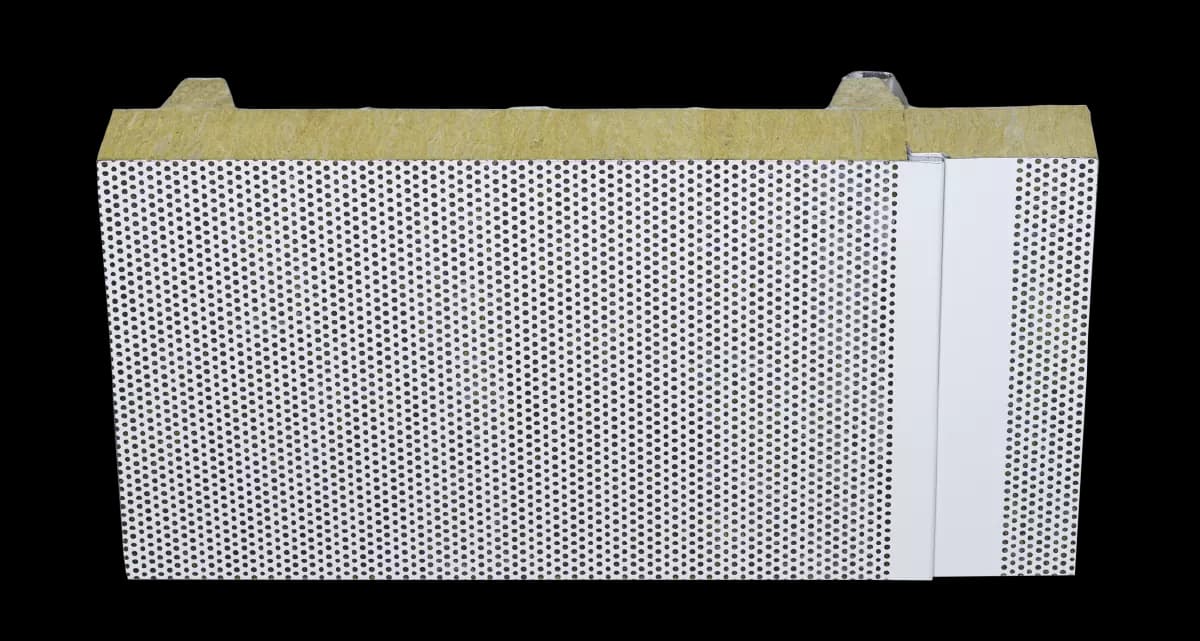

Sound-absorbing sandwich roof panel with mineral-wool core and perforated inner skin. Significantly improves sound insulation and sound absorption. Designed primarily for ceiling applications, and in special cases also usable as an external roof (unheated rooms only, since there is no vapour barrier). Patented fleece dust-protection system.

Technical data

Material: Mineral wool (rockwool), galvanized steel

Surface: 25 μm polyester, RC3

Up to fire class: A2-s1,d0

Application: Ceiling, exterior roof

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

Choose thickness

α_w

1.00

Frequency values

α_p per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
α_p	0.65	0.95	1.00	1.00	1.00	1.00

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Test report: 051

Institute: Istituto Giordano (IT)

Application: Gesamtdicke 118 mm

Measured values as a table (2 measurements)

Hipertec Roof Sound: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
80 mm · 0 mm (direct mounting) · Gesamtdicke 118 mm	1.00	0.39	0.55	0.97	0.96	0.92	1.02	1.02	1.02	1.08	1.14	1.12	1.14	1.10	1.08	1.00	1.00	1.00	0.96
100 mm · 0 mm (direct mounting) · Gesamtdicke 138 mm	0.90	0.29	0.51	0.60	0.59	0.70	0.75	0.80	0.82	0.85	0.88	0.90	0.91	0.91	0.91	0.88	0.86	0.85	0.79

Measured values as a table (2 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated: 15/09/2026

Building acoustics dataRw 35 dB · 3 measurements

35 dB

Airborne sound insulation Rw· 3 variants

EN ISO 10140-2 / ISO 717-1

Frequency values

R per third-octave band in dB

f (Hz)	100	125	160	200	250	315
R	20.70	25.20	22.40	23.00	25.30	30.40

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Airborne sound insulation Rw
Compare	Thickness	Rw
	100 mm	35dB
	80 mm	34dB
	50 mm	33dB

Istituto Giordano (IT) · 1997 · 016
