Holz Suttner is a family-run solid timber business in Haselbach, Lower Bavaria. Its core product is Dübelholz, dowel laminated timber in which softwood lamellas, mostly spruce, are joined with beech dowels into flat elements without glue. It makes wall, floor and roof elements, timber-concrete composite floors and solid timber houses, with in-house CNC joinery and prefabrication. The acoustic range is based on the Akustik Premium profile. Each lamella is slotted on its exposed face, with a wood fibre absorber filling the cavity behind. The loadbearing element is thus both finished exposed surface and absorber. It is used for ceilings, walls and roofs, for example in day nurseries, schools, offices, and sports and event halls.

All products by this manufacturerManufacturer website

Dowel Laminated Timber Akustik Premium 70

Suttner Dowel Laminated Timber Akustik Premium 70

CeilingWall

Description

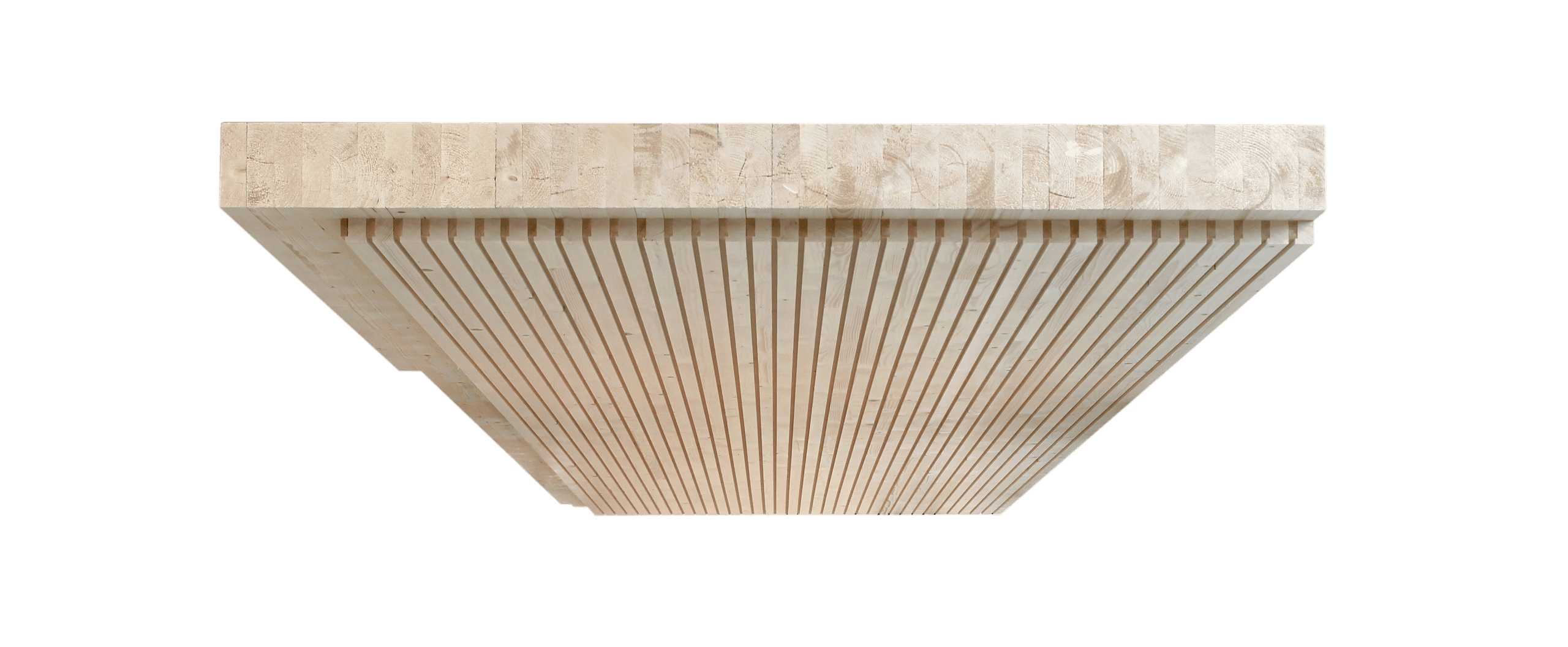

Load-bearing dowel laminated timber element of 40 mm wide softwood lamellas with a filigree look, joined with beech dowels without glue. Each lamella has a slot in its exposed face and a milled cavity behind it, filled with a wood fibre strip. Structure, exposed surface and absorber are thus combined in one component. Used for load-bearing ceilings, walls and roofs, also as the exposed soffit of timber-concrete composite floors, in spaces with room acoustics requirements such as nurseries, schools, offices and halls.

Technical data

Material: Dowel laminated timber (Brettstapel): softwood lamellas, joined with beech dowels without glue
Surface: Lamella width 40 mm, Akustik Premium profile with a slot in the exposed face of each lamella
Up to fire class: Dowel laminated timber D-s2,d0; fire resistance of exposed ceilings 30, 60 or 90 min by structural fire design

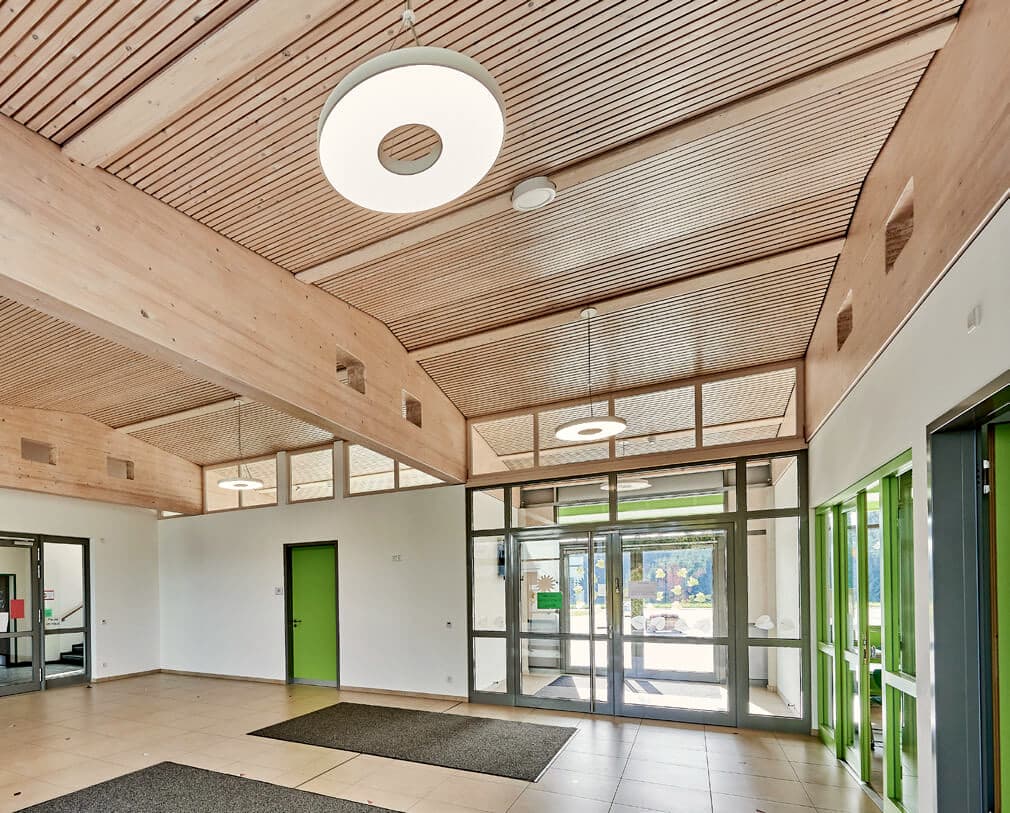

Application: Ceilings, walls and roofs; exposed soffit of timber-concrete composite floors; secondary structure in halls; nurseries, schools, offices, sports and event halls
Certifications: ETA-18/0960 (dowel laminated timber elements)

Measurement data

Sound absorption

ISO 354 – reverberation chamber

αw
0.70

Frequency values

αp nach ISO 11654

f (Hz)1252505001k2k4k
αp0.100.400.700.700.700.75

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Absorber class:C

Method (354): Measured

Mounting type: Type A – Direct on rigid wall

Room volume: 199.6 m³

Object area: 10.9 m²

Measurement date (354): 2012-08-31

Test report: M91200/01, Anhang A Seite 1

Terms of use
Measured values as a table (1 measurement)
Dowel Laminated Timber Akustik Premium 70: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upαwAbsorber class100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
135 mm · wood fibre 20 × 40 mm0.70C0.060.150.160.350.370.540.660.710.710.700.690.680.690.710.730.730.740.71
