Fural Metal Cassette Ceiling
Metal Cassette Ceiling
αw 0.05–1.00Absorber classes A–D
Manufacturer
Fural Systeme in Metall GmbH
Fural manufactures modular metal ceiling systems with outstanding acoustic performance. Every metal ceiling is an acoustic ceiling with additional functions such as fire protection, cooling, heating, hygiene or impact resistance. Certified to TAIM, with EPDs available for steel and aluminium systems.
Documents
Description

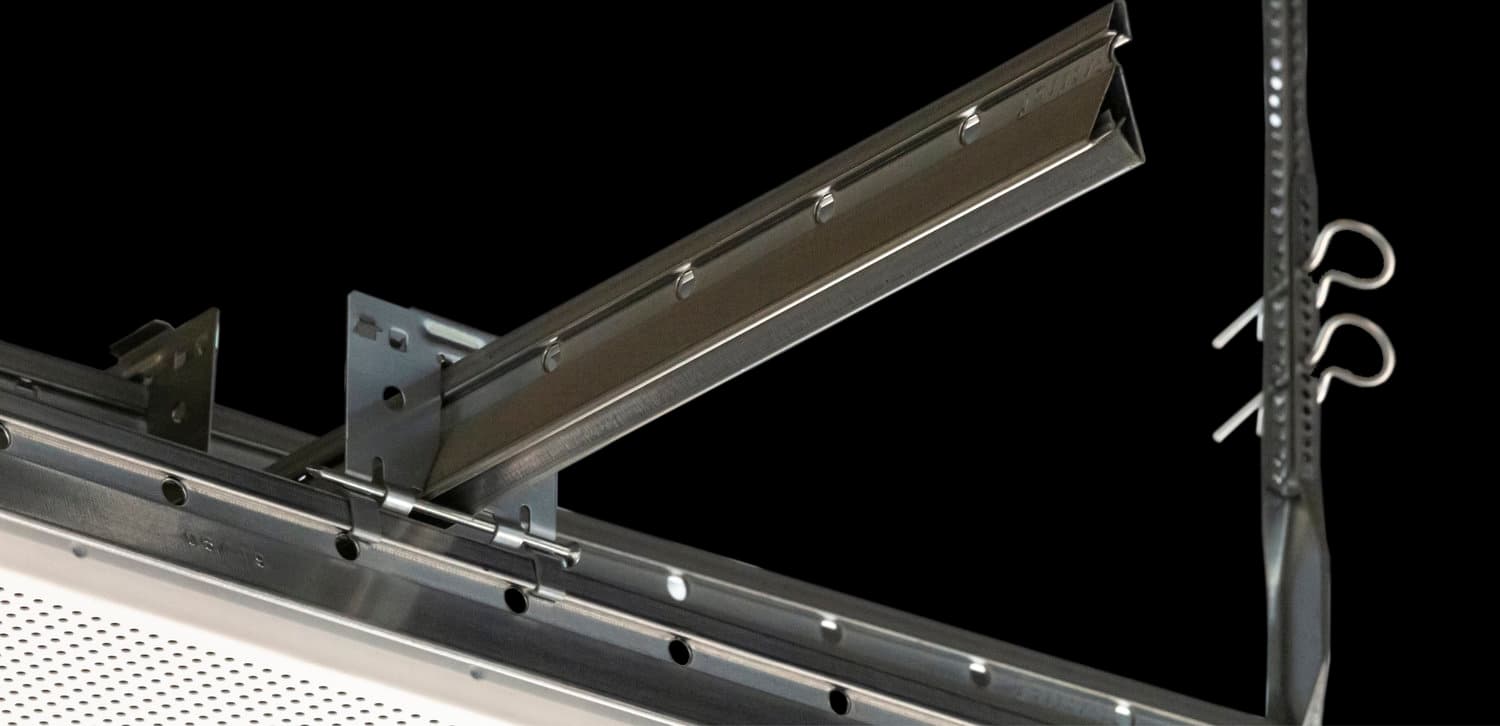

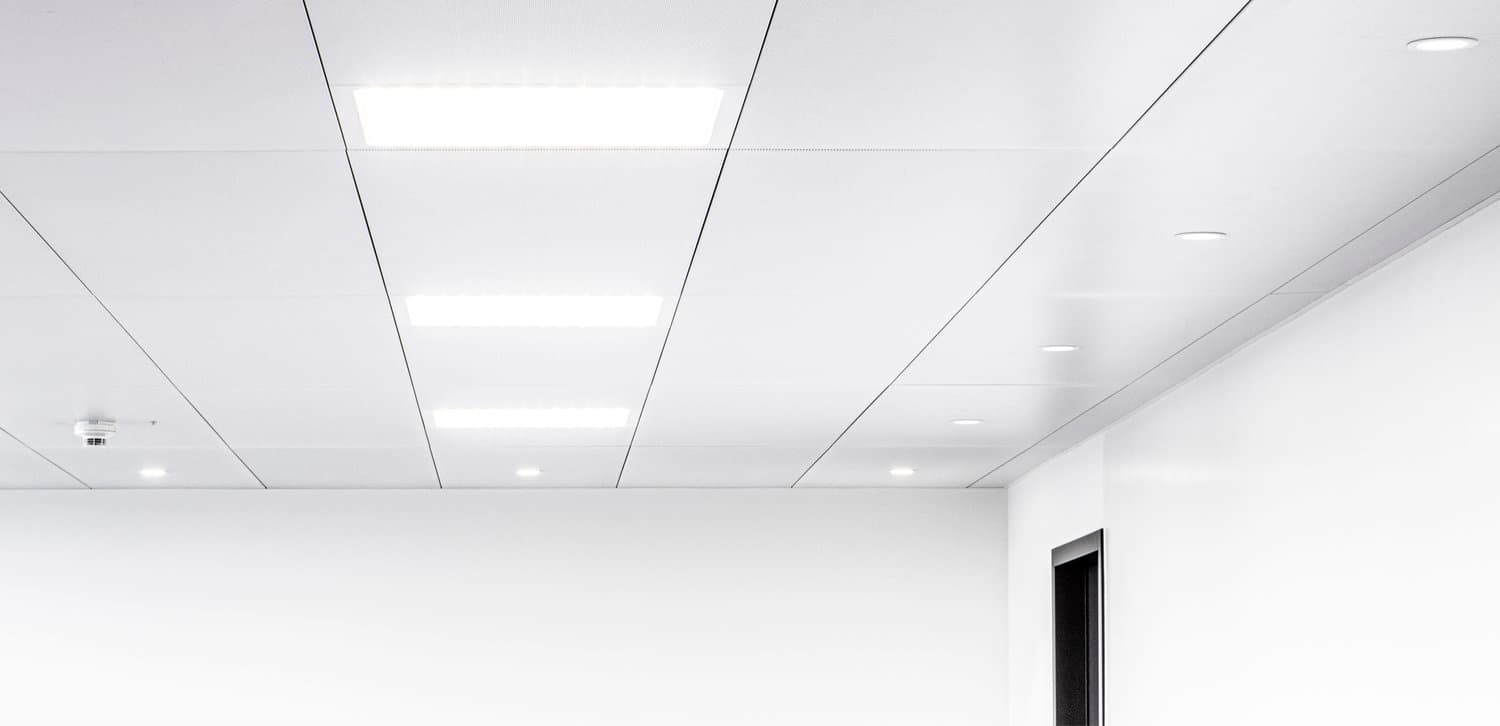

Modular metal ceiling system for suspended acoustic ceilings in new builds and existing buildings. Stress-free installation without height differences, including on existing T-profiles during refurbishment. Optionally combinable with a cooling and heating function, hygiene equipment, and ball-impact resistance. The surface can be individually printed via COLORPRINT, turning the cassette into a design element. Square and long-field cassettes, matched to varying room and absorption requirements.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 161 variants
Perforation
Gap / cavity
Surface
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Perforation | Gap / | Test setup | Surface | Value |
|---|---|---|---|---|---|
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 46 kg/m³ | with acoustic fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 50 mm mineral wool 45 kg/m³ | with acoustic fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm polyester wool 48 kg/m³ | with acoustic fleece | αw1.00 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 30 mm polyester wool 48 kg/m³ | with acoustic fleece | αw1.00 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film | without fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm polyester wool 20 kg/m³ | without fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm polyester wool 20 kg/m³ | with acoustic fleece | αw1.00 | |
| 2.5 x 2.0 x 0.5 x 0.5 | 200 mm suspension height | 40 mm polyester wool 20 kg/m³ | without fleece | αw1.00 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 40 mm polyester wool 20 kg/m³ | without fleece | αw1.00 | |
| Rg 2.5-16% | 200 mm suspension height | 20 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.95 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.95 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm foam 9 kg/m³ | with acoustic fleece | αw0.95 | |
| Rg 2.5-16% | 100 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.95 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm polyester wool 24 kg/m³ | with acoustic fleece | αw0.95 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | without fleece | αw0.95 | |
| Rg 2.5-16% | 50 mm suspension height | 50 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.95 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.95 | |
| Rd 1.8-21% | 200 mm suspension height | 40 mm mineral wool 45 kg/m³; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.95 | |
| Rv 1.6-20% | 200 mm suspension height | 40 mm mineral wool 45 kg/m³; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.95 | |
| Rd 1.8-21% | 200 mm suspension height | 30 mm mineral wool 50 kg/m³ in PE film | without fleece | αw0.95 | |
| 16.0 x 8.0 x1.5x1.0 | 400 mm suspension height | 40 mm polyester wool 20 kg/m³ | without fleece | αw0.95 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film (acoustic film) | with acoustic fleece | αw0.90 | |
| Rd 1.5-22% | 200 mm suspension height | 20 mm mineral wool 45 kg/m³ in PE film | with acoustic fleece | αw0.90 | |
| Rg 2.5-16% | 400 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.90 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film | with acoustic fleece | αw0.90 | |
| Rd 2.5-8% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.90 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 45 kg/m³ in PE film; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.90 | |
| Rd 1.5-22% | 200 mm suspension height | 40 mm polyester wool 20 kg/m³; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.90 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 50 kg/m³ in PE film | with acoustic fleece | αw0.90 | |
| Rg 2.5-16% | 200 mm suspension height | 20 mm polyester wool 20 kg/m³ | with acoustic fleece | αw0.90 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film | with acoustic fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 %; heavy overlay 1 mm sheet steel | with acoustic fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | 50 mm mineral wool 28 kg/m³ in PE film; heavy overlay 1 mm sheet steel | with acoustic fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % | with acoustic fleece | αw0.85 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film | with acoustic fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | without fleece | αw0.85 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.85 | |
| Rd 1.8-21% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 880 × 65 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % | with acoustic fleece | αw0.85 | |
| 22.0 x 12.0 x 2.0 x 1.5 | 200 mm suspension height | 20 mm polyester wool 20 kg/m³ | without fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | 20 mm polyester wool 20 kg/m³ | without fleece | αw0.85 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rv 1.6-20% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 100 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 50 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.80 | |
| Rv 1.6-20% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.80 | |
| Rd 4.0-33% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Qg 4.0-33% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| 3.0-11% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rg 4.0-17% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 %; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.80 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 44 % | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 50 mm mineral wool 28 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.80 | |
| Rd 1.5-22% | 200 mm suspension height | 20 mm mineral wool 45 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % | with acoustic fleece | αw0.80 | |
| Rv 1.6-20% | 200 mm suspension height | 30 mm mineral wool 44 kg/m³ in PE film; cooling harp 1400 × 50 mm, 6 pipe rows, coverage ratio 40 % | with acoustic fleece | αw0.80 | |
| Rv 1.6-20% | 200 mm suspension height | 30 mm mineral wool 44 kg/m³ in PE film; cooling coil 1600 × 52 mm, 6 pipe rows, coverage ratio 46 % | with acoustic fleece | αw0.80 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 30 kg/m³ in PE film; heavy overlay 1 mm sheet steel | without fleece | αw0.80 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 28 kg/m³ in PE film | with acoustic fleece | αw0.80 | |
| Rg 1.5-11% | 750 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1197 × 70 mm, 4 pipe rows, 120 mm grid, coverage ratio 47 % | with acoustic fleece | αw0.80 | |
| Rg 0.7-4% | 200 mm suspension height | 40 mm mineral wool 45 kg/m³ in PE film; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm polyester wool 20 kg/m³; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.80 | |
| Rd 1.8-21% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; Aquatherm cooling coil, two 25 mm wide distribution pipes 530 mm, 10 register pipes 10 mm wide, 950 mm, 4 cooling plates 60 mm wide, 950 mm, coverage ratio 49 % | without fleece | αw0.80 | |
| Rg 2.5-16% | 200 mm suspension height | 20 mm melamine resin foam, 9 kg/m³ | without fleece | αw0.80 | |
| Rd 2.5-4% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.75 | |
| Rg 0.7-4% | 200 mm suspension height | 20 mm mineral wool 45 kg/m³ in PE film | with acoustic fleece | αw0.75 | |
| Rg 2.5-16% | 400 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 1.8-21% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 1.8-20% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 3.0-20% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rv 3.0-20% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 2.5-16% | 30 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.75 | |
| Rd 2.8-20% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 2.5-8% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.75 | |
| Rv 2.5-23% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 53 % | with acoustic fleece | αw0.75 | |
| Rg 14.0-23% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 1.5-11% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 1.5-11% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 1.8-10% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 1.8-10% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film | with acoustic fleece | αw0.75 | |
| Rv 1.6-20% | 200 mm suspension height | 30 mm mineral wool 44 kg/m³ in PE film; cooling coil 1600 × 52 mm, 6 pipe rows + 500 × 50 mm, 2 pipe rows, coverage ratio 51 % | with acoustic fleece | αw0.75 | |
| Rg 0.8-6% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rg 0.7-4% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| 2.5 x 2.0 x 0.5 x 0.5 | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | 15 mm polyester wool 20 kg/m³ | without fleece | αw0.75 | |
| Qg 15-62% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| Rd 12-24% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.75 | |
| 22.0 x 12.0 x 2.0 x 1.5 | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile, 4 pipe rows, 1070 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 24 % | without fleece | αw0.75 | |
| Rg 2.5-16% | 200 mm suspension height | 28 pcs. polyester wool strips with 2400 × 25 × 50 mm, 80 kg/m³; 7 strips per cassette between ALPs; Schmöle acoustic guide profile 8 pipe rows, 2770 × 75 mm, coverage ratio 62 % | with acoustic fleece | αw0.75 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile 2 pipe rows, 1750 × 75 mm, coverage ratio 20 % | with acoustic fleece | αw0.75 | |
| Rg 2.5-16% | 400 mm suspension height | 20 mm melamine resin foam, 9 kg/m³ | without fleece | αw0.75 | |
| 16.0 x 8.0 x1.5x1.0 | 100 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rd 1.6-22% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rv 1.5-22% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rg 2.5-16% | 200 mm suspension height | 40 mm mineral wool 30 kg/m³ in PE film; cooling coil 1530 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 29 %; heavy overlay 1 mm sheet steel | without fleece | αw0.70 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 6 pipe rows, 95 mm grid, coverage ratio 66 % | with acoustic fleece | αw0.70 | |
| 16.0 x 8.0 x1.5x1.0 | 400 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.70 | |
| Rd 1.5-22% | 200 mm suspension height | 15 mm mineral-fibre panel 303 kg/m³ | with acoustic fleece | αw0.70 | |
| Rd 0.8-11% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rg 0.9-7% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rg 1.5-11% | 750 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1197 × 70 mm, 5 pipe rows, 100 mm grid, coverage ratio 59 % | with acoustic fleece | αw0.70 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.70 | |
| Rg 2.5-16% | 200 mm suspension height | 50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.70 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile 3 pipe rows, coverage ratio 46 % | with acoustic fleece | αw0.70 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % | with acoustic fleece | αw0.70 | |
| Rd 1.5-6% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| Rd 0.9-14% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.70 | |
| 22.0 x 12.0 x 2.0 x 1.5 | 400 mm suspension height | 20 mm melamine resin foam, 9 kg/m³ | without fleece | αw0.70 | |
| 22.0 x 12.0 x 2.0 x 1.5 | 400 mm suspension height | without absorber layer; Schmöle acoustic guide profile, 4 pipe rows, 1070 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 24 % | without fleece | αw0.70 | |
| Rg 0.7-4% | 200 mm suspension height | 20 mm mineral wool 44 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.65 | |
| Rd 1.5-22% | 200 mm suspension height | 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.65 | |
| Rv 4.5-51% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.65 | |
| Rd 1.5-22% | 200 mm suspension height | 20 mm mineral-fibre panel 325 kg/m³ | with acoustic fleece | αw0.65 | |
| Rv 1.6-20% | 200 mm suspension height | without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.65 | |
| Rd 1.8-21% | 200 mm suspension height | without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.65 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 53 % | with acoustic fleece | αw0.65 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 44 % | with acoustic fleece | αw0.65 | |
| Rv 1.6-20% | 200 mm suspension height | without absorber layer; cooling harp 1450 × 50 mm, 6 pipe rows, coverage ratio 40 % | with acoustic fleece | αw0.65 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; cooling coil 1350 × 50 mm, 4 pipe rows, 150 mm grid, coverage ratio 30 % | with acoustic fleece | αw0.65 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % | with acoustic fleece | αw0.65 | |
| Rg 0.7-4% | 200 mm suspension height | without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide | with acoustic fleece | αw0.65 | |
| Rg 2.5-16% | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile 5 pipe rows, coverage ratio 77 % | with acoustic fleece | αw0.65 | |
| 16.0 x 8.0 x1.5x1.0 | 400 mm suspension height | 15 mm polyester wool 20 kg/m³ | without fleece | αw0.65 | |
| Rg 12-12% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.65 | |
| Rd 0.9-04% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.65 | |
| 22.0 x 12.0 x 2.0 x 1.5 | 200 mm suspension height | without absorber layer; Schmöle acoustic guide profile, 5 pipe rows, 2770 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 77 % | without fleece | αw0.65 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.60 | |
| Rd 1.5-22% | 200 mm suspension height | 20 mm mineral wool 44 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.60 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer; cooling coil 1585 × 75 mm, 6 pipe rows, 95 mm grid, coverage ratio 66 % | with acoustic fleece | αw0.60 | |
| Rg 0.7-4% | 200 mm suspension height | 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % | with acoustic fleece | αw0.60 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % | with acoustic fleece | αw0.60 | |
| Rg 0.7-4% | 200 mm suspension height | 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.60 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.60 | |
| Rg 1.5-11% | 750 mm suspension height | 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1137 × 70 mm, 6 pipe rows, 80 mm grid, coverage ratio 70 % | with acoustic fleece | αw0.60 | |
| Rg 1.5-11% | 750 mm suspension height | 80 mm mineral wool 30 kg/m³ in PE film; cooling coil 1197 × 70 mm, 6 pipe rows, 120 mm grid, coverage ratio 70 % | with acoustic fleece | αw0.60 | |
| Rv 3.0-20% | 50 mm suspension height | without absorber layer | with acoustic fleece | αw0.55 | |
| Rg 0.7-1% | 400 mm suspension height | 30 mm mineral wool 28 kg/m³ | with acoustic fleece | αw0.55 | |
| Rd 0.9-14% | 400 mm suspension height | without absorber layer | with acoustic fleece | αw0.55 | |
| Rg 0.7-4% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.55 | |
| Rd 2.5-2% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.50 | |
| Rg 2.5-16% | 50 mm suspension height | without absorber layer | with acoustic fleece | αw0.50 | |
| Rg 0.7-1.5% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.50 | |
| Rg 0.7-1% | 200 mm suspension height | without absorber layer | with acoustic fleece | αw0.50 | |
| Rd 1.5-22% | 200 mm suspension height | without absorber layer; cooling coil 1585 × 75 mm, 6 pipe rows, 80 mm grid, coverage ratio 79 % | with acoustic fleece | αw0.50 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 6 pipe rows, 80 mm grid, coverage ratio 79 % | with acoustic fleece | αw0.50 | |
| Rd 1.5-22% | 200 mm suspension height | 30 mm mineral wool 46 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard | with acoustic fleece | αw0.50 | |
| 16.0 x 8.0 x1.5x1.0 | 200 mm suspension height | ca. 10 mm Synthetic acoustic fleece/felt, density 35 kg/m³ | with acoustic fleece | αw0.45 | |
| Rg 0.7-4% | 200 mm suspension height | without absorber layer; Schmöle cooling-pipe module | with acoustic fleece | αw0.45 | |
| 16.0 x 8.0 x1.5x1.0 | 50 mm suspension height | without absorber layer | with acoustic fleece | αw0.40 | |
| Rg 0.7-4% | 200 mm suspension height | 40 mm mineral wool 45 kg/m³ in PE film; Schmöle cooling-pipe module | with acoustic fleece | αw0.40 | |
| Rg 0.7-1% | 200 mm suspension height | without absorber layer | without fleece | αw0.35 | |
| Rd 2.5-1% | 200 mm suspension height | 30 mm mineral wool 45 kg/m³ | with acoustic fleece | αw0.30 | |
| Smooth | 200 mm suspension height | without absorber layer | without fleece | αw0.05 |
Absorber class: A
Test report: P-BA 279/2006 Bild 15
Institute: Fraunhofer IBP
Test setup: 40 mm mineral wool 46 kg/m³
Surface: with acoustic fleece
Measured values as a table (161 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16.0 x 8.0 x1.5x1.0 · 50 mm suspension height · without absorber layer · with acoustic fleece | 0.40 | D | 0.04 | 0.04 | 0.09 | 0.10 | 0.13 | 0.19 | 0.26 | 0.36 | 0.48 | 0.62 | 0.72 | 0.84 | 0.94 | 0.98 | 0.98 | 0.91 | 0.72 | 0.75 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.18 | 0.29 | 0.57 | 0.66 | 0.80 | 0.83 | 0.91 | 0.94 | 0.89 | 0.70 | 0.66 | 0.77 | 0.80 | 0.79 | 0.83 | 0.82 | 0.85 | 0.80 |
| Rd 2.5-4% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.75 | C | 0.20 | 0.41 | 0.64 | 0.71 | 0.73 | 0.75 | 0.75 | 0.76 | 0.72 | 0.67 | 0.72 | 0.75 | 0.71 | 0.70 | 0.70 | 0.70 | 0.73 | 0.73 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · ca. 10 mm Synthetic acoustic fleece/felt, density 35 kg/m³ · with acoustic fleece | 0.45 | D | 0.07 | 0.14 | 0.14 | 0.27 | 0.31 | 0.35 | 0.41 | 0.43 | 0.42 | 0.36 | 0.34 | 0.43 | 0.48 | 0.48 | 0.55 | 0.58 | 0.60 | 0.60 |
| Rv 3.0-20% · 50 mm suspension height · without absorber layer · with acoustic fleece | 0.55 | D | 0.08 | 0.11 | 0.15 | 0.19 | 0.25 | 0.31 | 0.40 | 0.53 | 0.66 | 0.75 | 0.86 | 0.96 | 0.99 | 0.99 | 0.87 | 0.73 | 0.60 | 0.65 |
| 16.0 x 8.0 x1.5x1.0 · 100 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.08 | 0.13 | 0.25 | 0.30 | 0.39 | 0.51 | 0.62 | 0.76 | 0.83 | 0.93 | 0.96 | 0.91 | 0.85 | 0.75 | 0.77 | 0.84 | 0.77 | 0.83 |
| Rd 2.5-2% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.50 | D | 0.19 | 0.41 | 0.54 | 0.56 | 0.52 | 0.54 | 0.53 | 0.53 | 0.49 | 0.47 | 0.50 | 0.49 | 0.48 | 0.46 | 0.47 | 0.43 | 0.45 | 0.44 |
| Rd 2.5-1% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.30 | D | 0.23 | 0.39 | 0.47 | 0.45 | 0.40 | 0.38 | 0.37 | 0.36 | 0.34 | 0.32 | 0.33 | 0.30 | 0.28 | 0.25 | 0.25 | 0.22 | 0.21 | 0.21 |
| Rg 2.5-16% · 200 mm suspension height · 20 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.95 | A | 0.23 | 0.38 | 0.65 | 0.75 | 0.87 | 0.88 | 1.04 | 0.98 | 0.95 | 0.83 | 0.86 | 0.96 | 0.98 | 0.99 | 0.95 | 0.94 | 0.93 | 0.88 |
| Rg 0.7-1% · 200 mm suspension height · without absorber layer · without fleece | 0.35 | D | 0.12 | 0.18 | 0.30 | 0.42 | 0.60 | 0.60 | 0.64 | 0.56 | 0.43 | 0.32 | 0.33 | 0.41 | 0.39 | 0.36 | 0.30 | 0.24 | 0.18 | 0.16 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.60 | C | 0.13 | 0.18 | 0.38 | 0.46 | 0.55 | 0.69 | 0.75 | 0.76 | 0.70 | 0.52 | 0.42 | 0.53 | 0.64 | 0.61 | 0.69 | 0.67 | 0.68 | 0.63 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.14 | 0.24 | 0.50 | 0.60 | 0.68 | 0.79 | 0.85 | 0.91 | 0.89 | 0.69 | 0.57 | 0.66 | 0.76 | 0.72 | 0.83 | 0.83 | 0.79 | 0.75 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.95 | A | 0.16 | 0.35 | 0.70 | 0.78 | 0.86 | 0.93 | 1.01 | 0.98 | 0.93 | 0.85 | 0.88 | 0.96 | 0.95 | 1.01 | 0.97 | 0.93 | 0.91 | 0.86 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 46 kg/m³ · with acoustic fleece | 1.00 | A | 0.20 | 0.46 | 0.72 | 0.80 | 0.90 | 0.91 | 0.98 | 0.98 | 0.95 | 0.93 | 0.97 | 1.00 | 1.01 | 0.98 | 0.98 | 0.92 | 0.92 | 0.88 |
| Rg 2.5-16% · 200 mm suspension height · 50 mm mineral wool 45 kg/m³ · with acoustic fleece | 1.00 | A | 0.26 | 0.48 | 0.77 | 0.93 | 0.95 | 0.93 | 1.04 | 0.95 | 0.96 | 0.97 | 1.04 | 1.03 | 1.00 | 1.02 | 0.98 | 0.95 | 0.91 | 0.92 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film (acoustic film) · with acoustic fleece | 0.90 | A | 0.22 | 0.41 | 0.69 | 0.78 | 0.83 | 0.84 | 0.89 | 0.90 | 0.84 | 0.81 | 0.85 | 0.90 | 0.90 | 0.92 | 0.92 | 0.85 | 0.84 | 0.77 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm foam 9 kg/m³ · with acoustic fleece | 0.95 | A | 0.20 | 0.37 | 0.66 | 0.80 | 0.94 | 0.96 | 0.99 | 0.98 | 0.93 | 0.84 | 0.88 | 1.00 | 0.99 | 0.99 | 0.97 | 0.95 | 0.96 | 0.89 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm polyester wool 48 kg/m³ · with acoustic fleece | 1.00 | A | 0.28 | 0.43 | 0.68 | 0.80 | 0.88 | 0.95 | 1.04 | 0.98 | 0.95 | 0.92 | 0.94 | 1.00 | 1.00 | 1.02 | 0.98 | 0.96 | 0.91 | 0.85 |
| Rd 1.5-22% · 200 mm suspension height · 20 mm mineral wool 44 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.60 | C | 0.18 | 0.21 | 0.19 | 0.23 | 0.27 | 0.37 | 0.51 | 0.66 | 0.77 | 0.94 | 1.03 | 1.05 | 1.07 | 1.04 | 0.96 | 0.84 | 0.75 | 0.68 |
| Rv 1.6-20% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.22 | 0.30 | 0.59 | 0.67 | 0.78 | 0.82 | 0.90 | 0.95 | 0.89 | 0.72 | 0.67 | 0.77 | 0.79 | 0.80 | 0.83 | 0.82 | 0.85 | 0.86 |
| Rg 0.7-4% · 200 mm suspension height · 40 mm mineral wool 45 kg/m³ in PE film; Schmöle cooling-pipe module · with acoustic fleece | 0.40 | D | 0.43 | 0.53 | 0.56 | 0.61 | 0.56 | 0.65 | 0.58 | 0.58 | 0.53 | 0.49 | 0.49 | 0.46 | 0.40 | 0.37 | 0.34 | 0.33 | 0.33 | 0.30 |
| Rg 0.7-4% · 200 mm suspension height · without absorber layer; Schmöle cooling-pipe module · with acoustic fleece | 0.45 | D | 0.39 | 0.49 | 0.57 | 0.70 | 0.61 | 0.71 | 0.67 | 0.68 | 0.59 | 0.48 | 0.46 | 0.47 | 0.41 | 0.38 | 0.34 | 0.32 | 0.31 | 0.30 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 30 mm polyester wool 48 kg/m³ · with acoustic fleece | 1.00 | A | 0.17 | 0.41 | 0.66 | 0.83 | 0.88 | 0.90 | 1.02 | 1.02 | 0.97 | 0.91 | 0.90 | 0.97 | 1.02 | 1.01 | 1.00 | 0.97 | 0.99 | 0.97 |
| Rg 0.7-4% · 200 mm suspension height · 20 mm mineral wool 44 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.65 | C | 0.17 | 0.22 | 0.21 | 0.26 | 0.31 | 0.44 | 0.58 | 0.75 | 0.85 | 0.96 | 1.00 | 0.96 | 0.93 | 0.86 | 0.74 | 0.63 | 0.52 | 0.47 |
| Rg 2.5-16% · 50 mm suspension height · without absorber layer · with acoustic fleece | 0.50 | D | 0.04 | 0.08 | 0.12 | 0.14 | 0.19 | 0.27 | 0.37 | 0.48 | 0.60 | 0.74 | 0.85 | 0.89 | 0.98 | 0.98 | 0.95 | 0.81 | 0.69 | 0.76 |
| Rd 1.5-22% · 200 mm suspension height · 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.65 | C | 0.18 | 0.25 | 0.21 | 0.26 | 0.31 | 0.44 | 0.61 | 0.80 | 0.90 | 1.03 | 1.07 | 0.98 | 0.92 | 0.83 | 0.71 | 0.61 | 0.54 | 0.53 |
| Rg 2.5-16% · 100 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.09 | 0.20 | 0.30 | 0.39 | 0.50 | 0.61 | 0.70 | 0.83 | 0.87 | 0.92 | 0.95 | 0.92 | 0.83 | 0.75 | 0.81 | 0.78 | 0.72 | 0.75 |
| Rg 0.7-4% · 200 mm suspension height · 20 mm mineral wool 45 kg/m³ in PE film · with acoustic fleece | 0.75 | C | 0.35 | 0.52 | 0.70 | 0.74 | 0.74 | 0.77 | 0.80 | 0.83 | 0.80 | 0.70 | 0.73 | 0.78 | 0.76 | 0.75 | 0.68 | 0.62 | 0.56 | 0.49 |
| Rg 2.5-16% · 400 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.27 | 0.56 | 0.74 | 0.82 | 0.82 | 0.84 | 0.73 | 0.63 | 0.73 | 0.73 | 0.72 | 0.78 | 0.80 | 0.83 | 0.84 | 0.84 | 0.83 | 0.83 |
| Rd 1.5-22% · 200 mm suspension height · 20 mm mineral wool 45 kg/m³ in PE film · with acoustic fleece | 0.90 | A | 0.33 | 0.56 | 0.68 | 0.80 | 0.82 | 0.84 | 0.92 | 0.97 | 0.91 | 0.78 | 0.80 | 0.90 | 0.88 | 0.89 | 0.87 | 0.85 | 0.80 | 0.74 |
| Rg 2.5-16% · 50 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.80 | B | 0.09 | 0.15 | 0.26 | 0.35 | 0.50 | 0.66 | 0.84 | 0.96 | 1.00 | 1.08 | 1.09 | 1.05 | 1.04 | 0.99 | 0.97 | 0.90 | 0.91 | 0.92 |
| Rg 2.5-16% · 100 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.95 | A | 0.16 | 0.27 | 0.43 | 0.57 | 0.73 | 0.77 | 1.01 | 1.03 | 1.01 | 1.03 | 1.03 | 0.98 | 0.94 | 0.95 | 0.98 | 0.96 | 0.92 | 0.90 |
| Rg 2.5-16% · 400 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.90 | A | 0.31 | 0.64 | 0.79 | 0.81 | 0.89 | 0.90 | 0.77 | 0.75 | 0.91 | 0.95 | 0.97 | 1.00 | 1.02 | 1.03 | 1.02 | 1.01 | 0.96 | 0.97 |
| Rv 4.5-51% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.65 | C | 0.20 | 0.31 | 0.41 | 0.55 | 0.69 | 0.68 | 0.76 | 0.81 | 0.79 | 0.58 | 0.47 | 0.60 | 0.66 | 0.62 | 0.68 | 0.65 | 0.63 | 0.62 |
| Rv 1.6-20% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.80 | B | 0.18 | 0.29 | 0.63 | 0.73 | 0.89 | 0.94 | 1.00 | 0.99 | 0.97 | 0.87 | 0.89 | 1.02 | 0.98 | 1.03 | 1.03 | 1.03 | 1.00 | 0.95 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film · with acoustic fleece | 0.85 | B | 0.24 | 0.43 | 0.67 | 0.76 | 0.83 | 0.85 | 0.88 | 0.86 | 0.80 | 0.79 | 0.82 | 0.89 | 0.89 | 0.89 | 0.84 | 0.74 | 0.72 | 0.65 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm polyester wool 24 kg/m³ · with acoustic fleece | 0.95 | A | 0.27 | 0.45 | 0.65 | 0.80 | 0.89 | 0.94 | 1.07 | 1.00 | 0.95 | 0.84 | 0.82 | 0.95 | 0.96 | 0.96 | 0.95 | 0.90 | 0.89 | 0.86 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · without fleece | 0.95 | A | 0.16 | 0.35 | 0.48 | 0.65 | 0.81 | 0.86 | 1.03 | 1.02 | 0.98 | 0.94 | 0.89 | 0.98 | 1.00 | 1.03 | 1.00 | 0.97 | 0.99 | 0.97 |
| Rg 0.7-1.5% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.50 | D | 0.31 | 0.50 | 0.58 | 0.75 | 0.72 | 0.73 | 0.75 | 0.71 | 0.67 | 0.55 | 0.53 | 0.55 | 0.50 | 0.49 | 0.44 | 0.41 | 0.35 | 0.31 |
| Rd 4.0-33% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.16 | 0.40 | 0.60 | 0.70 | 0.77 | 0.79 | 0.90 | 0.90 | 0.89 | 0.74 | 0.68 | 0.76 | 0.80 | 0.81 | 0.81 | 0.79 | 0.77 | 0.76 |
| Smooth · 200 mm suspension height · without absorber layer · without fleece | 0.05 | – | 0.10 | 0.16 | 0.19 | 0.16 | 0.12 | 0.08 | 0.06 | 0.05 | 0.04 | 0.04 | 0.02 | 0.02 | 0.02 | 0.02 | 0.01 | 0.02 | 0.04 | 0.05 |
| Rg 2.5-16% · 50 mm suspension height · 50 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.95 | A | 0.14 | 0.26 | 0.47 | 0.65 | 0.77 | 0.87 | 1.01 | 1.02 | 1.08 | 1.05 | 1.06 | 1.02 | 0.99 | 0.98 | 0.95 | 0.92 | 0.93 | 0.90 |
| Rd 1.8-21% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.23 | 0.30 | 0.47 | 0.57 | 0.75 | 0.82 | 0.94 | 0.96 | 0.86 | 0.68 | 0.57 | 0.69 | 0.76 | 0.71 | 0.75 | 0.69 | 0.67 | 0.65 |
| Rg 1.8-20% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.23 | 0.30 | 0.47 | 0.57 | 0.75 | 0.82 | 0.94 | 0.96 | 0.86 | 0.68 | 0.57 | 0.69 | 0.76 | 0.71 | 0.75 | 0.69 | 0.67 | 0.65 |
| Rg 3.0-20% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.23 | 0.33 | 0.51 | 0.65 | 0.85 | 0.85 | 0.93 | 0.98 | 0.90 | 0.71 | 0.62 | 0.73 | 0.78 | 0.73 | 0.78 | 0.70 | 0.74 | 0.70 |
| Rv 3.0-20% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.23 | 0.33 | 0.51 | 0.65 | 0.85 | 0.85 | 0.93 | 0.98 | 0.90 | 0.71 | 0.62 | 0.73 | 0.78 | 0.73 | 0.78 | 0.70 | 0.74 | 0.70 |
| Rd 1.6-22% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.23 | 0.37 | 0.47 | 0.62 | 0.75 | 0.73 | 0.83 | 0.87 | 0.85 | 0.65 | 0.54 | 0.67 | 0.72 | 0.67 | 0.72 | 0.69 | 0.66 | 0.65 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.95 | A | 0.18 | 0.31 | 0.61 | 0.73 | 0.87 | 0.93 | 1.00 | 1.01 | 0.96 | 0.87 | 0.88 | 1.00 | 1.02 | 0.98 | 1.04 | 0.98 | 1.00 | 0.95 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 1.00 | A | 0.19 | 0.37 | 0.68 | 0.77 | 0.89 | 0.95 | 1.02 | 1.01 | 0.95 | 0.87 | 0.88 | 0.99 | 1.00 | 0.99 | 1.04 | 0.99 | 1.00 | 1.01 |
| Rd 1.5-22% · 200 mm suspension height · 20 mm mineral-fibre panel 325 kg/m³ · with acoustic fleece | 0.65 | C | 0.24 | 0.29 | 0.26 | 0.39 | 0.40 | 0.44 | 0.53 | 0.65 | 0.67 | 0.69 | 0.76 | 0.80 | 0.80 | 0.79 | 0.80 | 0.79 | 0.80 | 0.77 |
| Rg 0.7-1% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.50 | D | 0.34 | 0.37 | 0.58 | 0.77 | 0.84 | 0.77 | 0.82 | 0.83 | 0.74 | 0.60 | 0.55 | 0.60 | 0.52 | 0.47 | 0.42 | 0.39 | 0.33 | 0.28 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer; cooling coil 1585 × 75 mm, 6 pipe rows, 80 mm grid, coverage ratio 79 % · with acoustic fleece | 0.50 | D | 0.24 | 0.38 | 0.47 | 0.54 | 0.60 | 0.57 | 0.61 | 0.64 | 0.59 | 0.52 | 0.49 | 0.49 | 0.51 | 0.45 | 0.41 | 0.37 | 0.33 | 0.30 |
| Rg 2.5-16% · 30 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.75 | C | 0.06 | 0.11 | 0.22 | 0.33 | 0.42 | 0.56 | 0.76 | 0.89 | 0.95 | 1.05 | 1.09 | 1.06 | 1.04 | 1.01 | 1.01 | 0.91 | 0.87 | 0.84 |
| Rv 1.6-20% · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.65 | C | 0.25 | 0.28 | 0.34 | 0.56 | 0.72 | 0.88 | 0.86 | 0.87 | 0.83 | 0.61 | 0.51 | 0.64 | 0.69 | 0.65 | 0.68 | 0.64 | 0.62 | 0.61 |
| Rd 1.8-21% · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.65 | C | 0.25 | 0.29 | 0.36 | 0.59 | 0.71 | 0.86 | 0.85 | 0.86 | 0.81 | 0.58 | 0.50 | 0.63 | 0.67 | 0.64 | 0.67 | 0.63 | 0.61 | 0.59 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 53 % · with acoustic fleece | 0.65 | C | 0.25 | 0.38 | 0.41 | 0.59 | 0.72 | 0.79 | 0.84 | 0.89 | 0.85 | 0.69 | 0.60 | 0.68 | 0.67 | 0.60 | 0.56 | 0.54 | 0.48 | 0.43 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film · with acoustic fleece | 0.90 | A | 0.20 | 0.46 | 0.69 | 0.78 | 0.81 | 0.80 | 0.88 | 0.87 | 0.86 | 0.79 | 0.85 | 0.90 | 0.91 | 0.91 | 0.90 | 0.89 | 0.89 | 0.86 |
| Rd 2.8-20% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.25 | 0.41 | 0.53 | 0.67 | 0.79 | 0.78 | 0.85 | 0.91 | 0.89 | 0.70 | 0.60 | 0.72 | 0.76 | 0.71 | 0.76 | 0.73 | 0.69 | 0.67 |
| Qg 4.0-33% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.15 | 0.38 | 0.61 | 0.67 | 0.77 | 0.79 | 0.90 | 0.93 | 0.89 | 0.75 | 0.69 | 0.77 | 0.81 | 0.81 | 0.81 | 0.76 | 0.77 | 0.75 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 44 % · with acoustic fleece | 0.65 | C | 0.27 | 0.35 | 0.38 | 0.60 | 0.70 | 0.77 | 0.83 | 0.88 | 0.86 | 0.68 | 0.57 | 0.69 | 0.70 | 0.65 | 0.61 | 0.58 | 0.49 | 0.47 |
| Rv 1.6-20% · 200 mm suspension height · without absorber layer; cooling harp 1450 × 50 mm, 6 pipe rows, coverage ratio 40 % · with acoustic fleece | 0.65 | C | 0.27 | 0.43 | 0.51 | 0.72 | 0.80 | 0.80 | 0.86 | 0.89 | 0.87 | 0.68 | 0.61 | 0.70 | 0.68 | 0.67 | 0.65 | 0.59 | 0.55 | 0.52 |
| Rd 2.5-8% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.21 | 0.43 | 0.60 | 0.70 | 0.74 | 0.73 | 0.78 | 0.78 | 0.75 | 0.67 | 0.64 | 0.69 | 0.72 | 0.75 | 0.77 | 0.66 | 0.63 | 0.64 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 6 pipe rows, 80 mm grid, coverage ratio 79 % · with acoustic fleece | 0.50 | D | 0.27 | 0.46 | 0.53 | 0.61 | 0.66 | 0.59 | 0.60 | 0.62 | 0.60 | 0.56 | 0.59 | 0.57 | 0.57 | 0.49 | 0.44 | 0.40 | 0.35 | 0.31 |
| 3.0-11% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.18 | 0.30 | 0.54 | 0.64 | 0.78 | 0.80 | 0.88 | 0.97 | 0.88 | 0.70 | 0.65 | 0.75 | 0.79 | 0.79 | 0.80 | 0.74 | 0.73 | 0.69 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.28 | 0.31 | 0.39 | 0.60 | 0.73 | 0.88 | 0.86 | 0.87 | 0.86 | 0.64 | 0.55 | 0.65 | 0.71 | 0.68 | 0.73 | 0.69 | 0.66 | 0.68 |
| Rv 1.5-22% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.28 | 0.31 | 0.39 | 0.60 | 0.73 | 0.88 | 0.86 | 0.87 | 0.86 | 0.64 | 0.55 | 0.65 | 0.71 | 0.68 | 0.73 | 0.69 | 0.66 | 0.68 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.75 | C | 0.28 | 0.35 | 0.34 | 0.40 | 0.49 | 0.68 | 0.81 | 0.97 | 1.02 | 1.04 | 1.01 | 0.92 | 0.85 | 0.77 | 0.68 | 0.62 | 0.61 | 0.61 |
| Rg 0.7-1% · 400 mm suspension height · 30 mm mineral wool 28 kg/m³ · with acoustic fleece | 0.55 | D | 0.42 | 0.56 | 0.64 | 0.66 | 0.67 | 0.68 | 0.65 | 0.66 | 0.72 | 0.74 | 0.73 | 0.68 | 0.61 | 0.54 | 0.46 | 0.39 | 0.36 | 0.29 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film · without fleece | 1.00 | A | 0.28 | 0.39 | 0.63 | 0.79 | 0.93 | 0.96 | 1.02 | 1.02 | 0.98 | 0.94 | 0.90 | 0.98 | 0.99 | 0.96 | 0.93 | 0.92 | 0.92 | 0.87 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 30 kg/m³ in PE film; cooling coil 1530 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 29 %; heavy overlay 1 mm sheet steel · without fleece | 0.70 | C | 0.36 | 0.42 | 0.46 | 0.49 | 0.52 | 0.68 | 0.76 | 0.87 | 0.94 | 1.01 | 0.94 | 0.86 | 0.76 | 0.65 | 0.60 | 0.61 | 0.64 | 0.60 |
| Rg 4.0-17% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.16 | 0.32 | 0.51 | 0.64 | 0.80 | 0.85 | 0.90 | 0.97 | 0.90 | 0.69 | 0.65 | 0.73 | 0.79 | 0.80 | 0.83 | 0.77 | 0.77 | 0.72 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 %; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.80 | B | 0.29 | 0.30 | 0.45 | 0.53 | 0.69 | 0.79 | 0.91 | 0.99 | 1.01 | 1.02 | 0.96 | 0.94 | 0.85 | 0.75 | 0.68 | 0.64 | 0.63 | 0.61 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer; cooling coil 1585 × 75 mm, 6 pipe rows, 95 mm grid, coverage ratio 66 % · with acoustic fleece | 0.60 | C | 0.29 | 0.39 | 0.43 | 0.59 | 0.72 | 0.73 | 0.79 | 0.84 | 0.67 | 0.60 | 0.60 | 0.67 | 0.64 | 0.57 | 0.52 | 0.49 | 0.43 | 0.38 |
| Rd 0.9-14% · 400 mm suspension height · without absorber layer · with acoustic fleece | 0.55 | D | 0.31 | 0.42 | 0.36 | 0.54 | 0.72 | 0.65 | 0.48 | 0.38 | 0.53 | 0.68 | 0.60 | 0.62 | 0.63 | 0.54 | 0.53 | 0.53 | 1.04 | 0.73 |
| Rg 0.7-4% · 200 mm suspension height · 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % · with acoustic fleece | 0.60 | C | 0.35 | 0.56 | 0.71 | 0.76 | 0.75 | 0.77 | 0.79 | 0.81 | 0.76 | 0.67 | 0.71 | 0.72 | 0.68 | 0.64 | 0.55 | 0.48 | 0.45 | 0.45 |
| Rv 2.5-23% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.30 | 0.33 | 0.42 | 0.64 | 0.78 | 0.92 | 0.89 | 0.91 | 0.90 | 0.69 | 0.59 | 0.69 | 0.74 | 0.71 | 0.76 | 0.72 | 0.69 | 0.71 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % · with acoustic fleece | 0.60 | C | 0.37 | 0.57 | 0.72 | 0.73 | 0.70 | 0.74 | 0.74 | 0.77 | 0.75 | 0.73 | 0.76 | 0.72 | 0.67 | 0.62 | 0.54 | 0.48 | 0.44 | 0.43 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 44 % · with acoustic fleece | 0.80 | B | 0.30 | 0.46 | 0.55 | 0.74 | 0.91 | 0.86 | 0.93 | 0.94 | 0.91 | 0.84 | 0.87 | 0.92 | 0.91 | 0.82 | 0.74 | 0.71 | 0.66 | 0.61 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 6 pipe rows, 95 mm grid, coverage ratio 66 % · with acoustic fleece | 0.70 | C | 0.31 | 0.44 | 0.53 | 0.74 | 0.83 | 0.82 | 0.82 | 0.89 | 0.83 | 0.77 | 0.82 | 0.83 | 0.82 | 0.70 | 0.63 | 0.58 | 0.54 | 0.50 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³; cooling coil 1585 × 75 mm, 4 pipe rows, 120 mm grid, coverage ratio 53 % · with acoustic fleece | 0.75 | C | 0.31 | 0.45 | 0.53 | 0.73 | 0.91 | 0.84 | 0.89 | 0.94 | 0.88 | 0.81 | 0.85 | 0.90 | 0.87 | 0.76 | 0.69 | 0.64 | 0.61 | 0.54 |
| Rg 0.7-4% · 200 mm suspension height · 20 mm mineral wool 44 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.60 | C | 0.21 | 0.25 | 0.23 | 0.30 | 0.37 | 0.52 | 0.66 | 0.83 | 0.89 | 0.91 | 0.89 | 0.79 | 0.73 | 0.65 | 0.54 | 0.45 | 0.41 | 0.41 |
| 16.0 x 8.0 x1.5x1.0 · 400 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.31 | 0.50 | 0.72 | 0.85 | 0.83 | 0.84 | 0.71 | 0.57 | 0.69 | 0.71 | 0.69 | 0.74 | 0.79 | 0.82 | 0.84 | 0.85 | 0.85 | 0.88 |
| Rg 14.0-23% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.21 | 0.43 | 0.60 | 0.70 | 0.74 | 0.73 | 0.78 | 0.78 | 0.75 | 0.67 | 0.64 | 0.69 | 0.72 | 0.75 | 0.77 | 0.66 | 0.63 | 0.64 |
| Rg 2.5-16% · 200 mm suspension height · 50 mm mineral wool 28 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.80 | B | 0.32 | 0.34 | 0.42 | 0.47 | 0.58 | 0.66 | 0.74 | 0.81 | 0.84 | 0.91 | 0.94 | 0.93 | 0.93 | 0.86 | 0.79 | 0.76 | 0.78 | 0.64 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.70 | C | 0.32 | 0.34 | 0.43 | 0.65 | 0.81 | 0.94 | 0.90 | 0.91 | 0.88 | 0.66 | 0.58 | 0.70 | 0.72 | 0.70 | 0.71 | 0.67 | 0.65 | 0.63 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 %; heavy overlay 1 mm sheet steel · with acoustic fleece | 0.85 | B | 0.32 | 0.37 | 0.43 | 0.55 | 0.66 | 0.77 | 0.90 | 0.97 | 1.04 | 1.02 | 1.00 | 0.93 | 0.87 | 0.78 | 0.74 | 0.68 | 0.70 | 0.65 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; cooling coil 1350 × 50 mm, 4 pipe rows, 150 mm grid, coverage ratio 30 % · with acoustic fleece | 0.65 | C | 0.32 | 0.47 | 0.53 | 0.73 | 0.69 | 0.84 | 0.92 | 0.90 | 0.85 | 0.71 | 0.67 | 0.71 | 0.67 | 0.63 | 0.60 | 0.56 | 0.51 | 0.48 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 %; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.60 | C | 0.28 | 0.36 | 0.38 | 0.49 | 0.57 | 0.71 | 0.77 | 0.87 | 0.88 | 0.85 | 0.79 | 0.73 | 0.66 | 0.61 | 0.52 | 0.47 | 0.45 | 0.44 |
| Rd 1.5-22% · 200 mm suspension height · 15 mm mineral-fibre panel 303 kg/m³ · with acoustic fleece | 0.70 | C | 0.12 | 0.46 | 0.48 | 0.51 | 0.56 | 0.55 | 0.53 | 0.59 | 0.63 | 0.73 | 0.78 | 0.82 | 0.84 | 0.79 | 0.73 | 0.67 | 0.59 | 0.48 |
| Rd 2.5-8% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ · with acoustic fleece | 0.90 | A | 0.19 | 0.37 | 0.67 | 0.79 | 0.81 | 0.84 | 0.89 | 0.91 | 0.86 | 0.79 | 0.84 | 0.92 | 0.89 | 0.89 | 0.87 | 0.88 | 0.87 | 0.88 |
| Rd 1.5-22% · 200 mm suspension height · 20 mm mineral wool 45 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % · with acoustic fleece | 0.80 | B | 0.33 | 0.56 | 0.70 | 0.84 | 0.86 | 0.87 | 0.94 | 0.95 | 0.88 | 0.77 | 0.83 | 0.89 | 0.85 | 0.82 | 0.72 | 0.66 | 0.62 | 0.58 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % · with acoustic fleece | 0.65 | C | 0.29 | 0.40 | 0.63 | 0.83 | 1.02 | 0.99 | 0.99 | 0.95 | 0.86 | 0.83 | 0.87 | 0.86 | 0.79 | 0.64 | 0.57 | 0.48 | 0.44 | 0.45 |
| Rd 1.5-11% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.34 | 0.39 | 0.47 | 0.67 | 0.83 | 0.94 | 0.91 | 0.93 | 0.92 | 0.70 | 0.63 | 0.73 | 0.74 | 0.73 | 0.76 | 0.72 | 0.68 | 0.68 |
| Rg 1.5-11% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.34 | 0.39 | 0.47 | 0.67 | 0.83 | 0.94 | 0.91 | 0.93 | 0.92 | 0.70 | 0.63 | 0.73 | 0.74 | 0.73 | 0.76 | 0.72 | 0.68 | 0.68 |
| Rg 2.5-16% · 200 mm suspension height · 50 mm mineral wool 28 kg/m³ in PE film; heavy overlay 1 mm sheet steel · with acoustic fleece | 0.85 | B | 0.35 | 0.37 | 0.46 | 0.54 | 0.64 | 0.76 | 0.84 | 0.88 | 0.98 | 1.01 | 0.98 | 0.96 | 0.97 | 0.88 | 0.78 | 0.76 | 0.72 | 0.65 |
| Rg 0.7-4% · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.65 | C | 0.33 | 0.40 | 0.47 | 0.67 | 0.85 | 0.95 | 0.91 | 0.91 | 0.88 | 0.69 | 0.60 | 0.70 | 0.70 | 0.67 | 0.65 | 0.60 | 0.55 | 0.51 |
| Rd 0.8-11% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.24 | 0.37 | 0.50 | 0.63 | 0.76 | 0.76 | 0.85 | 0.90 | 0.88 | 0.68 | 0.57 | 0.69 | 0.74 | 0.69 | 0.74 | 0.70 | 0.67 | 0.67 |
| Rg 0.9-7% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.25 | 0.41 | 0.49 | 0.64 | 0.76 | 0.77 | 0.85 | 0.91 | 0.85 | 0.67 | 0.59 | 0.69 | 0.72 | 0.67 | 0.70 | 0.67 | 0.62 | 0.59 |
| Rd 1.8-10% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.37 | 0.40 | 0.49 | 0.67 | 0.85 | 0.93 | 0.91 | 0.91 | 0.91 | 0.71 | 0.64 | 0.74 | 0.74 | 0.73 | 0.74 | 0.70 | 0.67 | 0.65 |
| Rg 1.8-10% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.37 | 0.40 | 0.49 | 0.67 | 0.85 | 0.93 | 0.91 | 0.91 | 0.91 | 0.71 | 0.64 | 0.74 | 0.74 | 0.73 | 0.74 | 0.70 | 0.67 | 0.65 |
| Rv 1.6-20% · 200 mm suspension height · 30 mm mineral wool 44 kg/m³ in PE film; cooling harp 1400 × 50 mm, 6 pipe rows, coverage ratio 40 % · with acoustic fleece | 0.80 | B | 0.37 | 0.54 | 0.70 | 0.83 | 0.85 | 0.86 | 0.90 | 0.89 | 0.85 | 0.80 | 0.86 | 0.87 | 0.82 | 0.80 | 0.72 | 0.66 | 0.63 | 0.60 |
| Rv 1.6-20% · 200 mm suspension height · 30 mm mineral wool 44 kg/m³ in PE film; cooling coil 1600 × 52 mm, 6 pipe rows, coverage ratio 46 % · with acoustic fleece | 0.80 | B | 0.37 | 0.54 | 0.72 | 0.85 | 0.85 | 0.85 | 0.92 | 0.93 | 0.87 | 0.81 | 0.86 | 0.86 | 0.81 | 0.78 | 0.67 | 0.66 | 0.63 | 0.59 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; cooling coil 1400 × 73 mm, 4 pipe rows, 150 mm grid, coverage ratio 37 % · with acoustic fleece | 0.80 | B | 0.37 | 0.61 | 0.76 | 0.83 | 0.82 | 0.83 | 0.88 | 0.91 | 0.87 | 0.85 | 0.92 | 0.89 | 0.85 | 0.79 | 0.70 | 0.64 | 0.60 | 0.58 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 28 kg/m³ in PE film; cooling coil 1492 × 52 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % · with acoustic fleece | 0.85 | B | 0.38 | 0.49 | 0.71 | 0.88 | 0.95 | 0.92 | 0.98 | 0.92 | 0.88 | 0.84 | 0.94 | 0.93 | 0.90 | 0.79 | 0.71 | 0.70 | 0.73 | 0.69 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 30 kg/m³ in PE film; heavy overlay 1 mm sheet steel · without fleece | 0.80 | B | 0.38 | 0.51 | 0.49 | 0.50 | 0.52 | 0.64 | 0.70 | 0.80 | 0.88 | 0.96 | 0.94 | 0.92 | 0.87 | 0.77 | 0.71 | 0.71 | 0.73 | 0.68 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film · with acoustic fleece | 0.75 | C | 0.35 | 0.55 | 0.65 | 0.64 | 0.63 | 0.69 | 0.71 | 0.76 | 0.74 | 0.72 | 0.77 | 0.78 | 0.77 | 0.74 | 0.68 | 0.61 | 0.54 | 0.49 |
| Rv 1.6-20% · 200 mm suspension height · 30 mm mineral wool 44 kg/m³ in PE film; cooling coil 1600 × 52 mm, 6 pipe rows + 500 × 50 mm, 2 pipe rows, coverage ratio 51 % · with acoustic fleece | 0.75 | C | 0.38 | 0.54 | 0.72 | 0.85 | 0.84 | 0.84 | 0.90 | 0.91 | 0.85 | 0.79 | 0.84 | 0.83 | 0.79 | 0.76 | 0.65 | 0.60 | 0.56 | 0.50 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film · with acoustic fleece | 0.85 | B | 0.38 | 0.61 | 0.68 | 0.68 | 0.68 | 0.72 | 0.75 | 0.83 | 0.81 | 0.77 | 0.82 | 0.87 | 0.87 | 0.88 | 0.86 | 0.81 | 0.78 | 0.71 |
| Rg 0.8-6% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.29 | 0.46 | 0.60 | 0.71 | 0.79 | 0.79 | 0.85 | 0.91 | 0.91 | 0.74 | 0.66 | 0.76 | 0.78 | 0.73 | 0.73 | 0.69 | 0.65 | 0.63 |
| Rg 1.5-11% · 750 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1137 × 70 mm, 6 pipe rows, 80 mm grid, coverage ratio 70 % · with acoustic fleece | 0.60 | C | 0.41 | 0.50 | 0.51 | 0.50 | 0.54 | 0.65 | 0.65 | 0.72 | 0.74 | 0.73 | 0.66 | 0.64 | 0.60 | 0.56 | 0.52 | 0.49 | 0.46 | 0.42 |
| Rg 1.5-11% · 750 mm suspension height · 80 mm mineral wool 30 kg/m³ in PE film; cooling coil 1197 × 70 mm, 6 pipe rows, 120 mm grid, coverage ratio 70 % · with acoustic fleece | 0.60 | C | 0.42 | 0.51 | 0.56 | 0.57 | 0.66 | 0.72 | 0.69 | 0.74 | 0.75 | 0.71 | 0.65 | 0.63 | 0.60 | 0.57 | 0.53 | 0.49 | 0.47 | 0.42 |
| Rd 1.8-21% · 200 mm suspension height · 40 mm mineral wool 45 kg/m³; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.95 | A | 0.42 | 0.52 | 0.65 | 0.81 | 1.07 | 1.08 | 1.00 | 0.98 | 0.95 | 0.91 | 0.95 | 0.98 | 0.93 | 0.89 | 0.84 | 0.87 | 0.92 | 0.87 |
| Rv 1.6-20% · 200 mm suspension height · 40 mm mineral wool 45 kg/m³; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.95 | A | 0.42 | 0.53 | 0.65 | 0.81 | 1.06 | 1.08 | 1.00 | 0.97 | 0.94 | 0.90 | 0.95 | 0.97 | 0.92 | 0.88 | 0.83 | 0.85 | 0.92 | 0.87 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.50 | D | 0.18 | 0.22 | 0.22 | 0.22 | 0.24 | 0.32 | 0.41 | 0.52 | 0.59 | 0.72 | 0.79 | 0.83 | 0.89 | 0.89 | 0.89 | 0.85 | 0.82 | 0.77 |
| Rg 0.7-4% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.30 | 0.36 | 0.57 | 0.74 | 0.88 | 0.87 | 0.95 | 0.97 | 0.89 | 0.72 | 0.63 | 0.73 | 0.75 | 0.72 | 0.73 | 0.67 | 0.62 | 0.62 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 28 kg/m³ in PE film · with acoustic fleece | 0.80 | B | 0.36 | 0.50 | 0.67 | 0.86 | 0.94 | 0.91 | 0.95 | 0.93 | 0.86 | 0.80 | 0.85 | 0.90 | 0.90 | 0.84 | 0.75 | 0.68 | 0.59 | 0.53 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm mineral wool 45 kg/m³ in PE film; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.90 | A | 0.44 | 0.56 | 0.65 | 0.81 | 1.04 | 1.05 | 0.97 | 0.95 | 0.92 | 0.88 | 0.93 | 0.93 | 0.88 | 0.84 | 0.79 | 0.82 | 0.87 | 0.80 |
| Rg 1.5-11% · 750 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1197 × 70 mm, 5 pipe rows, 100 mm grid, coverage ratio 59 % · with acoustic fleece | 0.70 | C | 0.48 | 0.58 | 0.59 | 0.56 | 0.61 | 0.74 | 0.73 | 0.83 | 0.87 | 0.86 | 0.78 | 0.75 | 0.70 | 0.66 | 0.62 | 0.58 | 0.53 | 0.51 |
| Rg 1.5-11% · 750 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 1197 × 70 mm, 4 pipe rows, 120 mm grid, coverage ratio 47 % · with acoustic fleece | 0.80 | B | 0.50 | 0.62 | 0.62 | 0.57 | 0.62 | 0.76 | 0.78 | 0.86 | 0.92 | 0.91 | 0.83 | 0.82 | 0.77 | 0.73 | 0.70 | 0.66 | 0.63 | 0.60 |
| Rg 0.7-4% · 200 mm suspension height · 40 mm mineral wool 45 kg/m³ in PE film; Temperon cooling coil, two 14 mm wide distribution pipes, 14 register pipes 10 mm wide · with acoustic fleece | 0.80 | B | 0.42 | 0.58 | 0.65 | 0.78 | 1.01 | 1.01 | 0.92 | 0.90 | 0.87 | 0.84 | 0.87 | 0.85 | 0.79 | 0.74 | 0.69 | 0.72 | 0.73 | 0.63 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.70 | C | 0.25 | 0.41 | 0.55 | 0.68 | 0.89 | 0.92 | 0.89 | 0.92 | 0.87 | 0.71 | 0.66 | 0.75 | 0.70 | 0.68 | 0.64 | 0.58 | 0.53 | 0.51 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.80 | B | 0.34 | 0.51 | 0.69 | 0.73 | 0.94 | 0.94 | 0.93 | 0.92 | 0.87 | 0.84 | 0.88 | 0.89 | 0.84 | 0.76 | 0.68 | 0.66 | 0.68 | 0.63 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm polyester wool 20 kg/m³; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.80 | B | 0.35 | 0.57 | 0.71 | 0.76 | 0.97 | 0.98 | 0.96 | 0.95 | 0.91 | 0.86 | 0.87 | 0.90 | 0.86 | 0.80 | 0.72 | 0.66 | 0.63 | 0.56 |
| Rg 2.5-16% · 200 mm suspension height · 50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.70 | C | 0.30 | 0.47 | 0.69 | 0.76 | 0.94 | 0.97 | 0.91 | 0.86 | 0.76 | 0.67 | 0.71 | 0.78 | 0.72 | 0.73 | 0.69 | 0.64 | 0.57 | 0.58 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 3 pipe rows, coverage ratio 46 % · with acoustic fleece | 0.70 | C | 0.24 | 0.38 | 0.54 | 0.69 | 0.90 | 0.94 | 0.89 | 0.93 | 0.88 | 0.71 | 0.65 | 0.76 | 0.71 | 0.70 | 0.68 | 0.61 | 0.58 | 0.55 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 5 pipe rows, coverage ratio 77 % · with acoustic fleece | 0.65 | C | 0.26 | 0.43 | 0.55 | 0.68 | 0.89 | 0.93 | 0.88 | 0.90 | 0.85 | 0.69 | 0.64 | 0.73 | 0.68 | 0.67 | 0.62 | 0.54 | 0.51 | 0.48 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · without fleece | 0.85 | B | 0.20 | 0.32 | 0.59 | 0.82 | 0.95 | 1.04 | 1.03 | 0.98 | 0.95 | 0.90 | 0.92 | 0.93 | 0.88 | 0.79 | 0.72 | 0.73 | 0.73 | 0.66 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm polyester wool 20 kg/m³ · without fleece | 1.00 | A | 0.20 | 0.31 | 0.53 | 0.79 | 0.90 | 1.01 | 1.03 | 1.03 | 0.99 | 0.94 | 0.91 | 0.95 | 0.99 | 0.97 | 0.97 | 0.94 | 0.96 | 0.91 |
| Rd 1.5-22% · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.70 | C | 0.22 | 0.36 | 0.50 | 0.67 | 0.87 | 0.93 | 0.89 | 0.93 | 0.87 | 0.68 | 0.61 | 0.73 | 0.70 | 0.69 | 0.66 | 0.59 | 0.54 | 0.53 |
| Rd 1.5-22% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.85 | B | 0.32 | 0.50 | 0.68 | 0.78 | 0.98 | 1.01 | 1.00 | 0.98 | 0.93 | 0.89 | 0.94 | 0.96 | 0.92 | 0.84 | 0.74 | 0.72 | 0.74 | 0.69 |
| Rd 1.5-22% · 200 mm suspension height · 40 mm polyester wool 20 kg/m³; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece | 0.90 | A | 0.31 | 0.50 | 0.69 | 0.82 | 1.03 | 1.06 | 1.04 | 1.03 | 0.98 | 0.93 | 0.93 | 0.97 | 0.94 | 0.89 | 0.80 | 0.74 | 0.71 | 0.66 |
| Rd 1.5-6% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.28 | 0.44 | 0.59 | 0.67 | 0.87 | 0.88 | 0.85 | 0.87 | 0.85 | 0.71 | 0.67 | 0.74 | 0.71 | 0.69 | 0.67 | 0.61 | 0.57 | 0.51 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.80 | B | 0.23 | 0.40 | 0.55 | 0.69 | 0.89 | 0.94 | 0.89 | 0.94 | 0.92 | 0.74 | 0.67 | 0.77 | 0.77 | 0.75 | 0.78 | 0.73 | 0.70 | 0.68 |
| Rg 2.5-16% · 200 mm suspension height · 40 mm polyester wool 20 kg/m³ · with acoustic fleece | 1.00 | A | 0.34 | 0.53 | 0.72 | 0.80 | 1.00 | 1.03 | 1.00 | 1.01 | 0.97 | 0.91 | 0.91 | 0.98 | 0.98 | 0.96 | 0.93 | 0.91 | 0.90 | 0.84 |
| Rg 0.7-4% · 200 mm suspension height · 30 mm mineral wool 46 kg/m³ in PE film; heavy overlay 12.5 mm plasterboard · with acoustic fleece | 0.55 | D | 0.17 | 0.25 | 0.23 | 0.25 | 0.27 | 0.34 | 0.42 | 0.51 | 0.58 | 0.66 | 0.72 | 0.74 | 0.77 | 0.76 | 0.71 | 0.66 | 0.60 | 0.54 |
| 2.5 x 2.0 x 0.5 x 0.5 · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.15 | 0.30 | 0.53 | 0.70 | 0.90 | 0.90 | 0.88 | 0.91 | 0.90 | 0.74 | 0.61 | 0.72 | 0.76 | 0.70 | 0.78 | 0.76 | 0.75 | 0.76 |
| 2.5 x 2.0 x 0.5 x 0.5 · 200 mm suspension height · 40 mm polyester wool 20 kg/m³ · without fleece | 1.00 | A | 0.18 | 0.28 | 0.51 | 0.78 | 0.89 | 0.98 | 1.03 | 1.01 | 1.00 | 0.95 | 0.87 | 0.96 | 1.02 | 1.00 | 0.99 | 1.03 | 1.05 | 1.04 |
| Rd 1.8-21% · 200 mm suspension height · 30 mm mineral wool 50 kg/m³ in PE film · without fleece | 0.95 | A | 0.23 | 0.35 | 0.58 | 0.76 | 0.97 | 0.98 | 1.00 | 1.01 | 0.97 | 0.92 | 0.85 | 0.97 | 0.98 | 0.98 | 0.95 | 0.89 | 0.87 | 0.84 |
| Rg 2.5-16% · 200 mm suspension height · 30 mm mineral wool 50 kg/m³ in PE film · with acoustic fleece | 0.90 | A | 0.30 | 0.48 | 0.72 | 0.80 | 0.98 | 0.92 | 0.95 | 0.95 | 0.90 | 0.88 | 0.92 | 0.97 | 0.96 | 0.93 | 0.86 | 0.82 | 0.80 | 0.79 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 15 mm polyester wool 20 kg/m³ · without fleece | 0.75 | C | 0.11 | 0.20 | 0.30 | 0.44 | 0.59 | 0.68 | 0.75 | 0.79 | 0.75 | 0.66 | 0.60 | 0.74 | 0.82 | 0.79 | 0.86 | 0.87 | 0.90 | 0.90 |
| 16.0 x 8.0 x1.5x1.0 · 400 mm suspension height · 15 mm polyester wool 20 kg/m³ · without fleece | 0.65 | C | 0.22 | 0.39 | 0.65 | 0.63 | 0.69 | 0.62 | 0.52 | 0.46 | 0.60 | 0.70 | 0.70 | 0.75 | 0.81 | 0.83 | 0.87 | 0.88 | 0.91 | 0.92 |
| 16.0 x 8.0 x1.5x1.0 · 200 mm suspension height · 40 mm polyester wool 20 kg/m³ · without fleece | 1.00 | A | 0.19 | 0.32 | 0.57 | 0.79 | 0.97 | 1.01 | 1.01 | 1.04 | 0.99 | 0.94 | 0.88 | 0.96 | 0.99 | 0.99 | 1.01 | 1.01 | 1.04 | 1.04 |
| 16.0 x 8.0 x1.5x1.0 · 400 mm suspension height · 40 mm polyester wool 20 kg/m³ · without fleece | 0.95 | A | 0.31 | 0.66 | 0.95 | 0.82 | 0.92 | 0.92 | 0.84 | 0.75 | 0.90 | 0.98 | 0.96 | 0.96 | 1.00 | 1.02 | 1.04 | 1.03 | 1.05 | 1.06 |
| Qg 15-62% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.19 | 0.37 | 0.56 | 0.69 | 0.87 | 0.85 | 0.87 | 0.90 | 0.90 | 0.78 | 0.64 | 0.72 | 0.78 | 0.74 | 0.80 | 0.79 | 0.77 | 0.74 |
| Rd 1.8-21% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 880 × 65 mm, 4 pipe rows, 150 mm grid, coverage ratio 32 % · with acoustic fleece | 0.85 | B | 0.28 | 0.42 | 0.73 | 0.82 | 1.03 | 0.94 | 0.99 | 0.96 | 0.94 | 0.86 | 0.88 | 0.91 | 0.87 | 0.85 | 0.73 | 0.70 | 0.68 | 0.69 |
| Rd 1.8-21% · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; Aquatherm cooling coil, two 25 mm wide distribution pipes 530 mm, 10 register pipes 10 mm wide, 950 mm, 4 cooling plates 60 mm wide, 950 mm, coverage ratio 49 % · without fleece | 0.80 | B | 0.22 | 0.34 | 0.58 | 0.77 | 0.96 | 0.95 | 0.98 | 0.95 | 0.92 | 0.84 | 0.87 | 0.87 | 0.81 | 0.77 | 0.68 | 0.67 | 0.64 | 0.59 |
| Rg 2.5-16% · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · with acoustic fleece | 0.90 | A | 0.28 | 0.46 | 0.72 | 0.80 | 0.96 | 0.91 | 0.99 | 1.01 | 1.02 | 0.85 | 0.83 | 0.93 | 0.92 | 0.93 | 0.92 | 0.90 | 0.86 | 0.83 |
| 22.0 x 12.0 x 2.0 x 1.5 · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece | 0.85 | B | 0.15 | 0.23 | 0.36 | 0.49 | 0.67 | 0.72 | 0.80 | 0.89 | 0.86 | 0.77 | 0.70 | 0.79 | 0.90 | 0.86 | 0.90 | 0.92 | 0.94 | 0.89 |
| Rd 12-24% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.75 | C | 0.23 | 0.37 | 0.60 | 0.69 | 0.88 | 0.81 | 0.90 | 0.95 | 0.95 | 0.77 | 0.66 | 0.73 | 0.77 | 0.73 | 0.77 | 0.75 | 0.69 | 0.63 |
| Rg 12-12% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.65 | C | 0.28 | 0.38 | 0.66 | 0.70 | 0.85 | 0.74 | 0.81 | 0.80 | 0.82 | 0.69 | 0.63 | 0.67 | 0.66 | 0.63 | 0.63 | 0.60 | 0.54 | 0.45 |
| Rd 0.9-04% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.65 | C | 0.27 | 0.42 | 0.66 | 0.72 | 0.89 | 0.78 | 0.86 | 0.87 | 0.87 | 0.69 | 0.63 | 0.69 | 0.66 | 0.62 | 0.62 | 0.58 | 0.53 | 0.48 |
| Rd 0.9-14% · 200 mm suspension height · without absorber layer · with acoustic fleece | 0.70 | C | 0.20 | 0.32 | 0.48 | 0.61 | 0.77 | 0.76 | 0.87 | 0.91 | 0.88 | 0.66 | 0.55 | 0.66 | 0.71 | 0.67 | 0.71 | 0.70 | 0.65 | 0.64 |
| 22.0 x 12.0 x 2.0 x 1.5 · 400 mm suspension height · 20 mm melamine resin foam, 9 kg/m³ · without fleece | 0.70 | C | 0.25 | 0.42 | 0.70 | 0.66 | 0.64 | 0.63 | 0.55 | 0.53 | 0.69 | 0.79 | 0.79 | 0.88 | 0.88 | 0.89 | 0.93 | 0.95 | 0.96 | 0.97 |
| 22.0 x 12.0 x 2.0 x 1.5 · 400 mm suspension height · without absorber layer; Schmöle acoustic guide profile, 4 pipe rows, 1070 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 24 % · without fleece | 0.70 | C | 0.37 | 0.61 | 0.86 | 0.71 | 0.77 | 0.78 | 0.66 | 0.60 | 0.68 | 0.70 | 0.68 | 0.72 | 0.74 | 0.75 | 0.77 | 0.73 | 0.69 | 0.65 |
| 22.0 x 12.0 x 2.0 x 1.5 · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile, 4 pipe rows, 1070 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 24 % · without fleece | 0.75 | C | 0.17 | 0.38 | 0.59 | 0.68 | 0.86 | 0.82 | 0.86 | 0.88 | 0.88 | 0.70 | 0.63 | 0.71 | 0.71 | 0.70 | 0.74 | 0.71 | 0.69 | 0.64 |
| 22.0 x 12.0 x 2.0 x 1.5 · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile, 5 pipe rows, 2770 × 75 mm, on perforated carrier plate Rg 2.5-16 %, fleece on top of the carrier plate between plate and ALP, carrier plate laid on STM, coverage ratio 77 % · without fleece | 0.65 | C | 0.20 | 0.38 | 0.65 | 0.68 | 0.83 | 0.77 | 0.82 | 0.79 | 0.80 | 0.65 | 0.60 | 0.65 | 0.63 | 0.62 | 0.63 | 0.59 | 0.55 | 0.52 |
| Rg 2.5-16% · 200 mm suspension height · 28 pcs. polyester wool strips with 2400 × 25 × 50 mm, 80 kg/m³; 7 strips per cassette between ALPs; Schmöle acoustic guide profile 8 pipe rows, 2770 × 75 mm, coverage ratio 62 % · with acoustic fleece | 0.75 | C | 0.27 | 0.43 | 0.71 | 0.76 | 0.93 | 0.87 | 0.94 | 0.95 | 0.93 | 0.71 | 0.70 | 0.78 | 0.75 | 0.75 | 0.71 | 0.67 | 0.62 | 0.59 |
| Rg 2.5-16% · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece | 0.85 | B | 0.14 | 0.24 | 0.36 | 0.52 | 0.70 | 0.77 | 0.86 | 0.90 | 0.84 | 0.76 | 0.70 | 0.82 | 0.90 | 0.87 | 0.89 | 0.89 | 0.88 | 0.85 |
| Rg 2.5-16% · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 2 pipe rows, 1750 × 75 mm, coverage ratio 20 % · with acoustic fleece | 0.75 | C | 0.21 | 0.36 | 0.56 | 0.68 | 0.88 | 0.85 | 0.91 | 0.93 | 0.91 | 0.74 | 0.63 | 0.72 | 0.74 | 0.71 | 0.74 | 0.72 | 0.68 | 0.63 |
| Rg 2.5-16% · 200 mm suspension height · 20 mm melamine resin foam, 9 kg/m³ · without fleece | 0.80 | B | 0.14 | 0.20 | 0.31 | 0.47 | 0.66 | 0.74 | 0.83 | 0.85 | 0.81 | 0.71 | 0.70 | 0.84 | 0.88 | 0.90 | 0.92 | 0.92 | 0.92 | 0.87 |
| Rg 2.5-16% · 400 mm suspension height · 20 mm melamine resin foam, 9 kg/m³ · without fleece | 0.75 | C | 0.23 | 0.48 | 0.73 | 0.66 | 0.71 | 0.67 | 0.58 | 0.54 | 0.72 | 0.78 | 0.79 | 0.86 | 0.88 | 0.90 | 0.93 | 0.94 | 0.94 | 0.92 |
Measured values as a table (161 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
