Fural Ceiling Raft

Name: Fural Ceiling Raft
Brand: Fural Systeme in Metall GmbH

Ceiling Raft

α_w 0.35–1.00Absorber classes A–D

EPD availableCeilingFree-hanging

With a free account

Manufacturer

Fural Systeme in Metall GmbH

Fural manufactures modular metal ceiling systems with outstanding acoustic performance. Every metal ceiling is an acoustic ceiling with additional functions such as fire protection, cooling, heating, hygiene or impact resistance. Certified to TAIM, with EPDs available for steel and aluminium systems.

All products by this manufacturer Manufacturer website

Documents

EPD

Description

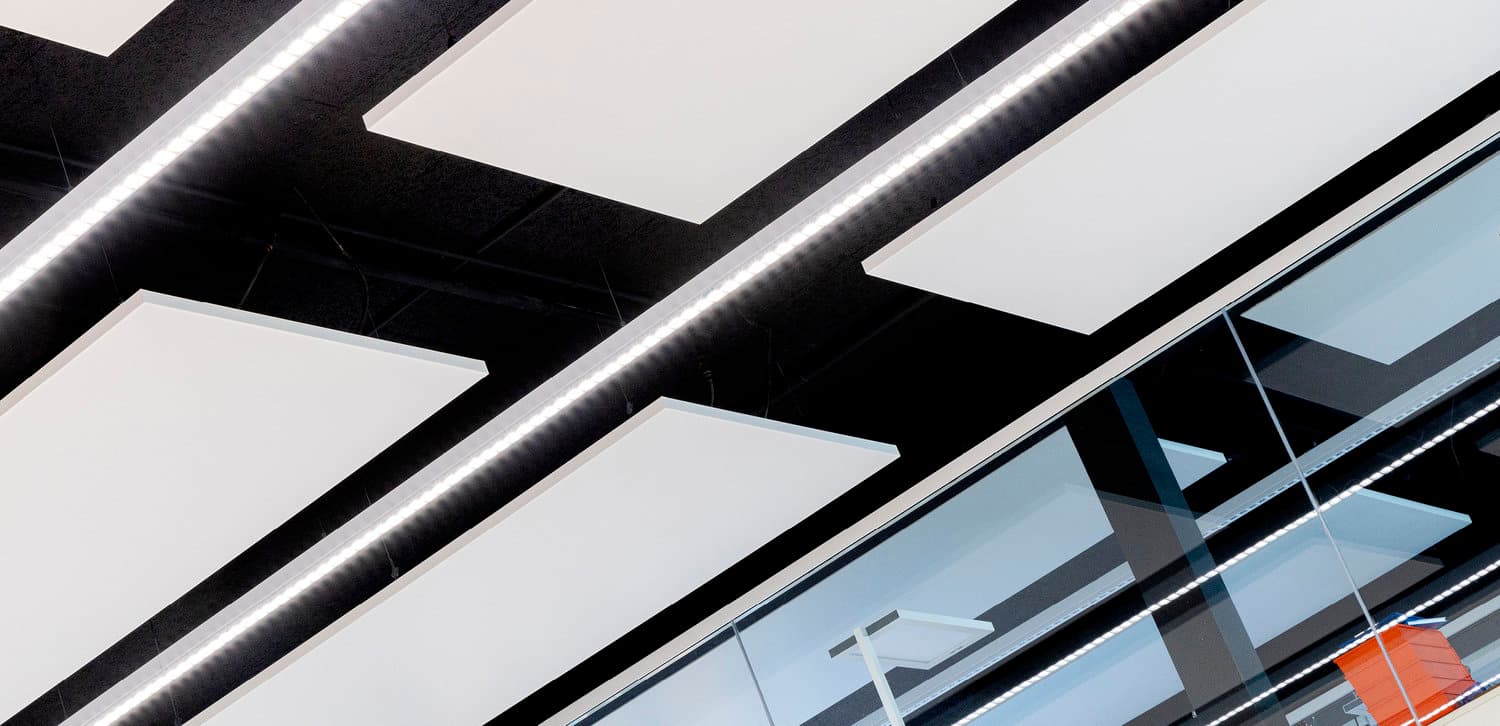

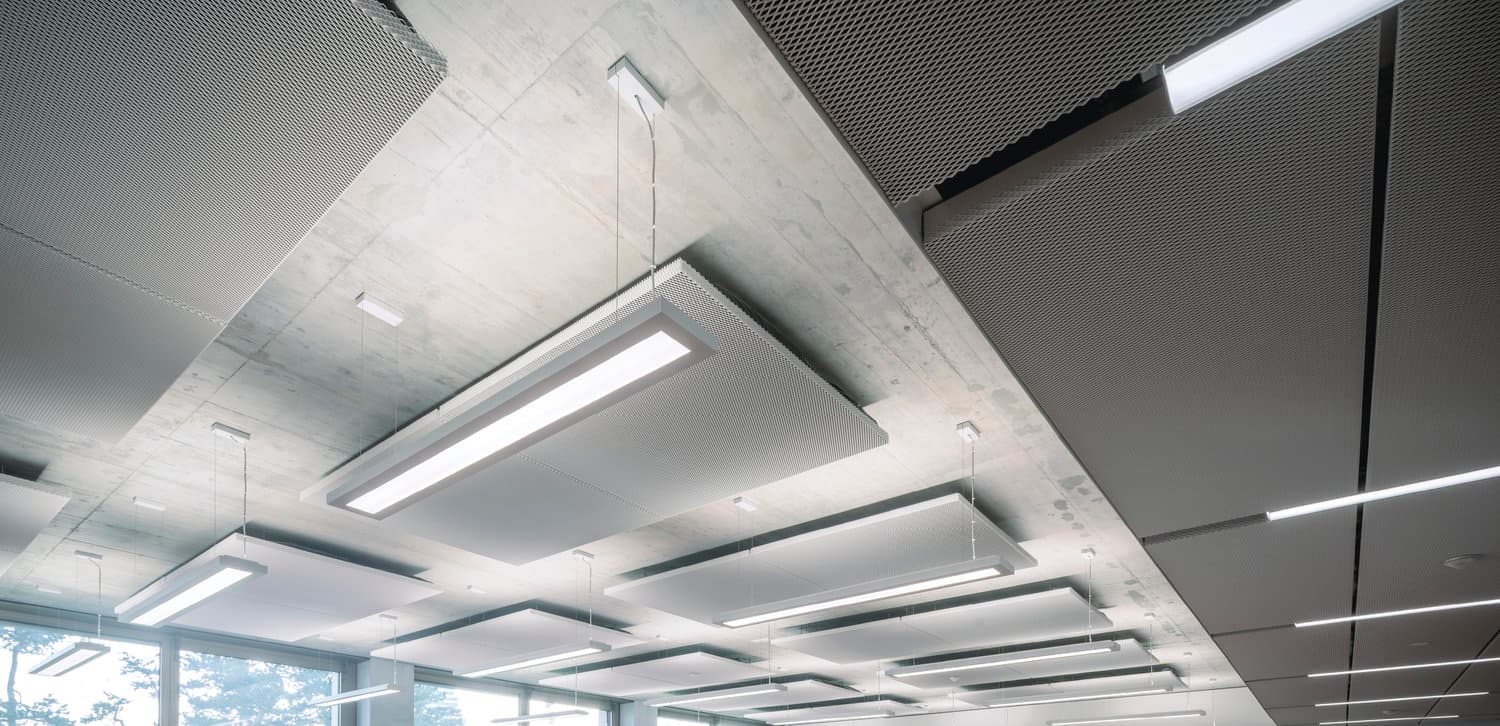

Free-hanging metal ceiling raft for flexible room acoustics, available as a single-piece or multi-piece version with a 55° or 90° folded edge. It can also be installed retrofit, without modifying the existing lighting. It can be combined with a cooling and heating function for later climate retrofitting. The structural ceiling remains visible and accessible for maintenance. Available formats: 2.88 m² (2.4x1.2 m), 3.45 m² (3x1.15 m), 1.35 m² (3x0.45 m), 2.70 m² (3x0.9 m), 4.05 m² (3x1.35 m), 2.88 m² (4.8x0.6 m), 3.60 m² (3x1.2 m), 1.96 m² (1.98 x 0.99 m).

Technical data

Material: galvanized steel

Surface: RAL 9010, powder coating 60–70 μm

Up to fire class: A1 (DIN EN 13501-1)

Application: Ceiling raft (free-hanging)

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 46 variants

Perforation

Size

Gap / cavity

Surface

α_w

1.00

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

Perforation	Size	Gap / cavity	Test setup	Surface	Value
Rv 1.6-20%	2400 × 1200 mm	200 mm suspension height	50 mm mineral wool 100 kg/m³ in PE film	with acoustic fleece	α_w1.00
Rv 1.6-20%	2400 × 1200 mm	200 mm suspension height	50 mm mineral wool 150 kg/m³ in PE film	with acoustic fleece	α_w1.00
Rg 2.5-16%	2400 × 1200 mm	200 mm suspension height	50 mm mineral wool 150 kg/m³ in PE film	with acoustic fleece	α_w1.00
Rg 2.5-16%	2400 × 1200 mm	200 mm suspension height	50 mm mineral wool 100 kg/m³ in PE film	with acoustic fleece	α_w1.00
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	6 pcs 3000 x 50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 8 pipe rows, coverage ratio 62 %	with acoustic fleece	α_w1.00
Rg 2.5-16%	3000 × 1350 mm	400 mm suspension height	50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 %	with acoustic fleece	α_w1.00
P30-System	3000 × 1200 mm	200 mm suspension height	30 mm mineral wool in PE 80 kg/m³	without fleece	α_w1.00
P30-System	3000 × 1200 mm	400 mm suspension height	30 mm mineral wool in PE 80 kg/m³	without fleece	α_w1.00
Rg 2.5-16%	1980 × 990 mm	105 mm suspension height	100 mm mineral wool 50 kg/m³ in PE film	with acoustic fleece	α_w1.00
Rv 1.6-20%	1980 × 990 mm	105 mm suspension height	3x polyester wool 20 kg/m³, 40 + 30 + 30 mm	with acoustic fleece	α_w1.00
Rd 1.5-22%	3000 × 900 mm	200 mm suspension height	30 mm mineral wool 25 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w1.00
Rd 1.8-21%	3000 × 900 mm	200 mm suspension height	30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w1.00
Rd 1.5-22%	3000 × 900 mm	200 mm suspension height	30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w1.00
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	13 strips 50x50x3000 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, parallel to cooling coil, coverage ratio 57 %; cooling coil reproduced 2800x75, 8 pipe rows, 145 mm grid, coverage ratio 49 %	with acoustic fleece	α_w0.95
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	7 pcs. polyester wool strips with 2400x50x25, 80 kg/m³; Schmöle acoustic guide profile 8 pipe rows, 2800x75 mm, 110 mm grid, coverage ratio 62 %	with acoustic fleece	α_w0.95
Rd 1.5-22%	3000 × 900 mm	200 mm suspension height	30 mm mineral wool 20 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	without fleece	α_w0.95
Rg 0.7-4%	3000 × 900 mm	200 mm suspension height	30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w0.90
Rg 2.5-16%	2400 × 1200 mm	200 mm suspension height	without absorber layer; Temperon cooling coil, two 14 mm distribution pipes, 14 29 mm register pipes, coverage ratio 30 %	with acoustic fleece	α_w0.80
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	50 mm mineral wool 100 kg/m³ in PE film; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 %	with acoustic fleece	α_w0.80
Rg 2.5-16%	3000 × 450 mm	200 mm suspension height	without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 %	with acoustic fleece	α_w0.80
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	without absorber layer; Schmöle acoustic guide profile 6 pipe rows, coverage ratio 46 %	with acoustic fleece	α_w0.80
Rg 2.5-16%	3000 × 1350 mm	400 mm suspension height	without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 %	with acoustic fleece	α_w0.80
Rg 2.5-16%	4800 × 600 mm	200 mm suspension height	without absorber layer	with acoustic fleece	α_w0.80
22.0 x 12.0 x 2.0 x 1.5	3000 × 900 mm	200 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
22.0 x 12.0 x 2.0 x 1.5	3000 × 1350 mm	200 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
22.0 x 12.0 x 2.0 x 1.5	3000 × 900 mm	400 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
Rg 2.5-16%	3000 × 900 mm	600 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
Rg 2.5-16%	3000 × 900 mm	400 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.80
Rv 1.6-20%	2400 × 1200 mm	200 mm suspension height	without absorber layer; Temperon cooling coil, two 14 mm distribution pipes, 14 29 mm register pipes, coverage ratio 30 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	13 strips 50x50x3000 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, parallel to cooling coil, coverage ratio 57 %; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	34 strips 50x50x1150 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, perpendicular to cooling coil, coverage ratio 57 %; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	without absorber layer; Schmöle acoustic guide profile 10 pipe rows, coverage ratio 77 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 72 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	2400 × 1200 mm	200 mm suspension height	without absorber layer	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 900 mm	200 mm suspension height	without absorber layer; Schmöle WLP 3 pipe rows, 1780x70, 200 mm grid, coverage ratio 14 %	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 1350 mm	200 mm suspension height	without absorber layer	with acoustic fleece	α_w0.75
Rg 2.5-16%	3000 × 1350 mm	200 mm suspension height	without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 %	with acoustic fleece	α_w0.70
Rg 2.5-16%	3000 × 900 mm	800 mm suspension height	20 mm polyester wool 20 kg/m³	without fleece	α_w0.70
Rd 1.5-22%	3000 × 900 mm	200 mm suspension height	without absorber layer; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w0.65
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	without absorber layer; cooling coil reproduced 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 %	with acoustic fleece	α_w0.60
Rg 2.5-16%	3000 × 1150 mm	200 mm suspension height	without absorber layer; Schmöle WLP 12 pipe rows, coverage ratio 72 %	with acoustic fleece	α_w0.60
Rg 0.7-4%	3000 × 900 mm	200 mm suspension height	without absorber layer; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 %	with acoustic fleece	α_w0.60
22.0 x 12.0 x 2.0 x 1.5	3000 × 900 mm	200 mm suspension height	without absorber layer	with acoustic fleece	α_w0.55
Smooth	3000 × 900 mm	200 mm suspension height	50 mm polyester wool 40 kg/m³	without fleece	α_w0.50
Rg 2.5-16%	2400 × 1200 mm	50 mm suspension height	without absorber layer	with acoustic fleece	α_w0.35

Absorber class: A

Test report: M 61840/21

Institute: Müller-BBM

Dimensions: 2.88 m²

Test setup: 50 mm mineral wool 100 kg/m³ in PE film

Measured values as a table (46 measurements)

Fural Ceiling Raft: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	Absorber class	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
Rv 1.6-20% · 2400 × 1200 mm · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm distribution pipes, 14 29 mm register pipes, coverage ratio 30 % · with acoustic fleece	0.75	C	0.14	0.21	0.28	0.45	0.59	0.63	0.76	0.87	0.87	0.73	0.59	0.69	0.76	0.69	0.76	0.73	0.69	0.73
Rg 2.5-16% · 2400 × 1200 mm · 200 mm suspension height · without absorber layer; Temperon cooling coil, two 14 mm distribution pipes, 14 29 mm register pipes, coverage ratio 30 % · with acoustic fleece	0.80	B	0.17	0.24	0.31	0.52	0.69	0.69	0.83	0.90	0.94	0.83	0.69	0.76	0.80	0.76	0.80	0.73	0.73	0.73
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · without absorber layer; cooling coil reproduced 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 % · with acoustic fleece	0.60	C	0.14	0.23	0.55	0.49	0.64	0.67	0.72	0.72	0.72	0.67	0.67	0.67	0.61	0.61	0.52	0.46	0.41	0.35
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · 13 strips 50x50x3000 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, parallel to cooling coil, coverage ratio 57 %; cooling coil reproduced 2800x75, 8 pipe rows, 145 mm grid, coverage ratio 49 % · with acoustic fleece	0.95	A	0.29	0.43	0.84	0.87	1.19	1.16	1.19	1.28	1.13	1.10	1.07	1.01	1.01	0.93	0.87	0.81	0.75	0.72
Rv 1.6-20% · 2400 × 1200 mm · 200 mm suspension height · 50 mm mineral wool 100 kg/m³ in PE film · with acoustic fleece	1.00	A	0.38	0.52	0.69	0.97	1.08	1.22	1.25	1.32	1.39	1.32	1.32	1.35	1.39	1.28	1.22	1.18	1.08	1.01
Rv 1.6-20% · 2400 × 1200 mm · 200 mm suspension height · 50 mm mineral wool 150 kg/m³ in PE film · with acoustic fleece	1.00	A	0.35	0.56	0.83	1.01	1.22	1.25	1.32	1.35	1.32	1.35	1.39	1.39	1.39	1.35	1.28	1.22	1.18	1.04
Rg 2.5-16% · 2400 × 1200 mm · 200 mm suspension height · 50 mm mineral wool 150 kg/m³ in PE film · with acoustic fleece	1.00	A	0.38	0.56	0.83	1.01	1.22	1.28	1.32	1.35	1.35	1.35	1.39	1.39	1.35	1.32	1.25	1.18	1.11	1.01
Rg 2.5-16% · 2400 × 1200 mm · 200 mm suspension height · 50 mm mineral wool 100 kg/m³ in PE film · with acoustic fleece	1.00	A	0.38	0.56	0.69	0.97	1.08	1.22	1.25	1.37	1.39	1.32	1.32	1.35	1.39	1.25	1.22	1.15	0.97	0.90
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · 13 strips 50x50x3000 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, parallel to cooling coil, coverage ratio 57 %; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 % · with acoustic fleece	0.75	C	0.23	0.52	0.84	0.84	1.04	1.01	0.99	1.04	0.99	0.93	0.87	0.81	0.81	0.72	0.67	0.61	0.55	0.52
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · 34 strips 50x50x1150 mm mineral wool 44 kg/m³ in PE film, 90 mm spacing, perpendicular to cooling coil, coverage ratio 57 %; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 % · with acoustic fleece	0.75	C	0.29	0.52	0.84	0.78	1.07	0.96	0.99	1.04	1.01	0.96	0.90	0.84	0.84	0.75	0.67	0.61	0.55	0.49
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · 50 mm mineral wool 100 kg/m³ in PE film; cooling coil mock-up 2800x75, 12 pipe rows, 90 mm grid, coverage ratio 73 % · with acoustic fleece	0.80	B	0.38	0.67	0.90	0.96	1.13	1.01	1.04	1.07	1.01	0.96	0.90	0.87	0.87	0.78	0.70	0.64	0.58	0.52
Rg 2.5-16% · 3000 × 450 mm · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 4 pipe rows, coverage ratio 62 % · with acoustic fleece	0.80	B	0.15	0.22	0.30	0.67	0.74	1.04	0.96	1.04	1.04	0.89	0.81	0.96	0.89	0.81	0.74	0.67	0.59	0.52
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · 6 pcs 3000 x 50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 8 pipe rows, coverage ratio 62 % · with acoustic fleece	1.00	A	0.19	0.33	0.44	0.67	0.89	1.11	1.26	1.37	1.22	1.11	1.19	1.22	1.11	1.07	1.00	0.93	0.85	0.81
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 6 pipe rows, coverage ratio 46 % · with acoustic fleece	0.80	B	0.07	0.22	0.26	0.52	0.63	0.81	0.89	1.00	0.93	0.78	0.74	0.85	0.81	0.78	0.78	0.70	0.63	0.56
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 10 pipe rows, coverage ratio 77 % · with acoustic fleece	0.75	C	0.15	0.26	0.26	0.52	0.67	0.85	0.93	1.00	0.89	0.78	0.74	0.85	0.78	0.74	0.74	0.63	0.59	0.52
Rg 2.5-16% · 3000 × 1350 mm · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 % · with acoustic fleece	0.70	C	0.17	0.20	0.30	0.52	0.64	0.77	0.84	0.91	0.89	0.79	0.72	0.81	0.77	0.72	0.69	0.64	0.57	0.49
Rg 2.5-16% · 3000 × 1350 mm · 400 mm suspension height · without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 % · with acoustic fleece	0.80	B	0.22	0.30	0.54	0.69	0.79	0.86	0.77	0.69	0.79	0.86	0.81	0.84	0.84	0.79	0.79	0.72	0.64	0.62
Rg 2.5-16% · 3000 × 1350 mm · 400 mm suspension height · 50 mm mineral-wool strips 50 mm wide 57 kg/m³ in PE film; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 62 % · with acoustic fleece	1.00	A	0.25	0.42	0.62	0.81	0.91	0.99	0.89	0.96	1.14	1.19	1.21	1.23	1.19	1.11	1.09	1.04	0.96	0.86
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · without absorber layer; Schmöle acoustic guide profile 12 pipe rows, coverage ratio 72 % · with acoustic fleece	0.75	C	0.12	0.20	0.29	0.46	0.61	0.78	0.87	0.90	0.87	0.81	0.72	0.78	0.75	0.70	0.70	0.61	0.58	0.55
Rg 2.5-16% · 3000 × 1150 mm · 200 mm suspension height · without absorber layer; Schmöle WLP 12 pipe rows, coverage ratio 72 % · with acoustic fleece	0.60	C	0.09	0.23	0.32	0.43	0.58	0.72	0.78	0.75	0.75	0.70	0.67	0.70	0.64	0.61	0.55	0.49	0.43	0.38
Rg 2.5-16% · 2400 × 1200 mm · 50 mm suspension height · without absorber layer · with acoustic fleece	0.35	D	0.07	0.10	0.07	0.10	0.10	0.17	0.21	0.31	0.42	0.59	0.69	0.80	0.87	0.90	0.90	0.80	0.63	0.56
Rg 2.5-16% · 2400 × 1200 mm · 200 mm suspension height · without absorber layer · with acoustic fleece	0.75	C	0.10	0.24	0.21	0.42	0.49	0.66	0.73	0.83	0.83	0.76	0.63	0.69	0.76	0.73	0.76	0.73	0.69	0.66
Rg 2.5-16% · 4800 × 600 mm · 200 mm suspension height · without absorber layer · with acoustic fleece	0.80	B	0.07	0.17	0.35	0.49	0.59	0.66	0.83	0.90	0.90	0.76	0.66	0.76	0.83	0.80	0.80	0.76	0.73	0.69
P30-System · 3000 × 1200 mm · 200 mm suspension height · 30 mm mineral wool in PE 80 kg/m³ · without fleece	1.00	A	0.14	0.25	0.50	0.78	0.78	0.92	1.22	1.42	1.50	1.44	1.33	1.17	1.08	1.06	1.17	1.19	0.94	0.83
P30-System · 3000 × 1200 mm · 400 mm suspension height · 30 mm mineral wool in PE 80 kg/m³ · without fleece	1.00	A	0.14	0.28	0.69	0.83	0.78	0.89	1.14	1.25	1.50	1.61	1.47	1.28	1.19	1.25	1.33	1.39	1.11	0.94
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · without absorber layer; Schmöle WLP 3 pipe rows, 1780x70, 200 mm grid, coverage ratio 14 % · with acoustic fleece	0.75	C	0.11	0.19	0.30	0.48	0.56	0.74	0.78	0.85	0.89	0.78	0.67	0.74	0.78	0.74	0.70	0.70	0.67	0.63
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · 7 pcs. polyester wool strips with 2400x50x25, 80 kg/m³; Schmöle acoustic guide profile 8 pipe rows, 2800x75 mm, 110 mm grid, coverage ratio 62 % · with acoustic fleece	0.95	A	0.11	0.26	0.44	0.63	0.70	0.93	1.04	1.11	1.11	1.00	0.89	1.00	0.96	0.96	0.93	0.89	0.85	0.81
Rg 2.5-16% · 1980 × 990 mm · 105 mm suspension height · 100 mm mineral wool 50 kg/m³ in PE film · with acoustic fleece	1.00	A	0.46	0.61	0.97	1.12	1.38	1.33	1.43	1.38	1.33	1.28	1.22	1.17	1.12	1.07	1.07	1.07	1.02	1.02
Rv 1.6-20% · 1980 × 990 mm · 105 mm suspension height · 3x polyester wool 20 kg/m³, 40 + 30 + 30 mm · with acoustic fleece	1.00	A	0.51	0.56	0.71	0.92	0.97	1.02	1.02	1.02	1.02	1.07	1.07	1.07	1.02	0.92	0.92	0.92	0.82	0.77
Rg 2.5-16% · 3000 × 1350 mm · 200 mm suspension height · without absorber layer · with acoustic fleece	0.75	C	0.07	0.17	0.27	0.42	0.54	0.67	0.79	0.86	0.89	0.77	0.64	0.74	0.81	0.77	0.81	0.79	0.77	0.72
Rd 1.5-22% · 3000 × 900 mm · 200 mm suspension height · 30 mm mineral wool 20 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · without fleece	0.95	A	0.07	0.19	0.37	0.56	0.74	1.00	1.15	1.19	1.22	1.22	1.22	1.19	1.07	1.00	0.89	0.85	0.78	0.74
Rd 1.5-22% · 3000 × 900 mm · 200 mm suspension height · 30 mm mineral wool 25 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	1.00	A	0.22	0.41	0.70	0.81	0.96	1.11	1.26	1.30	1.33	1.26	1.26	1.22	1.15	1.04	0.93	0.89	0.85	0.85
Rd 1.5-22% · 3000 × 900 mm · 200 mm suspension height · without absorber layer; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	0.65	C	0.07	0.22	0.33	0.48	0.59	0.70	0.81	0.89	0.85	0.74	0.63	0.70	0.70	0.63	0.63	0.56	0.48	0.48
Rd 1.8-21% · 3000 × 900 mm · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	1.00	A	0.15	0.37	0.70	0.81	0.89	1.07	1.26	1.26	1.30	1.33	1.30	1.26	1.19	1.04	0.93	0.89	0.85	0.81
Rd 1.5-22% · 3000 × 900 mm · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	1.00	A	0.22	0.37	0.67	0.78	0.93	1.11	1.26	1.30	1.33	1.33	1.33	1.26	1.19	1.07	0.96	0.93	0.89	0.78
22.0 x 12.0 x 2.0 x 1.5 · 3000 × 900 mm · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.07	0.19	0.19	0.33	0.44	0.70	0.78	0.96	1.04	0.96	0.93	0.96	1.11	1.07	1.07	1.07	1.11	1.07
22.0 x 12.0 x 2.0 x 1.5 · 3000 × 1350 mm · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.10	0.15	0.22	0.35	0.44	0.64	0.77	0.89	0.96	0.91	0.86	0.94	1.06	0.99	1.04	1.04	1.06	1.04
22.0 x 12.0 x 2.0 x 1.5 · 3000 × 900 mm · 400 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.11	0.26	0.37	0.56	0.63	0.78	0.67	0.63	0.78	0.96	1.00	1.11	1.15	1.19	1.19	1.19	1.22	1.22
Rg 0.7-4% · 3000 × 900 mm · 200 mm suspension height · 30 mm mineral wool 45 kg/m³ in PE film; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	0.90	A	0.22	0.44	0.85	0.81	0.93	1.04	1.22	1.22	1.19	1.19	1.19	1.07	1.04	0.89	0.81	0.74	0.74	0.67
Rg 0.7-4% · 3000 × 900 mm · 200 mm suspension height · without absorber layer; cooling coil 2260x75, 8 pipe rows, coverage ratio 50 % · with acoustic fleece	0.60	C	0.11	0.26	0.41	0.56	0.59	0.74	0.78	0.81	0.78	0.67	0.63	0.67	0.67	0.59	0.56	0.48	0.41	0.41
Smooth · 3000 × 900 mm · 200 mm suspension height · 50 mm polyester wool 40 kg/m³ · without fleece	0.50	D	0.22	0.44	0.70	0.74	0.81	0.89	0.81	0.78	0.70	0.63	0.52	0.56	0.52	0.44	0.41	0.37	0.37	0.37
Rg 2.5-16% · 3000 × 900 mm · 200 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.11	0.15	0.22	0.33	0.44	0.70	0.78	0.93	1.00	0.93	0.89	1.04	1.11	1.11	1.11	1.07	1.07	1.07
Rg 2.5-16% · 3000 × 900 mm · 600 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.15	0.33	0.44	0.56	0.52	0.52	0.59	0.78	0.81	0.96	1.04	1.19	1.26	1.26	1.26	1.26	1.37	1.30
Rg 2.5-16% · 3000 × 900 mm · 800 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.70	C	0.15	0.33	0.44	0.44	0.41	0.56	0.56	0.70	0.85	0.96	1.04	1.15	1.26	1.22	1.26	1.26	1.33	1.30
Rg 2.5-16% · 3000 × 900 mm · 400 mm suspension height · 20 mm polyester wool 20 kg/m³ · without fleece	0.80	B	0.15	0.30	0.41	0.56	0.63	0.74	0.63	0.63	0.81	0.96	1.00	1.11	1.19	1.15	1.22	1.22	1.30	1.19
22.0 x 12.0 x 2.0 x 1.5 · 3000 × 900 mm · 200 mm suspension height · without absorber layer · with acoustic fleece	0.55	D	0.07	0.11	0.19	0.26	0.33	0.52	0.56	0.67	0.67	0.56	0.41	0.56	0.56	0.48	0.56	0.59	0.59	0.52

Measured values as a table (46 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated: 05/11/2026
