Fural Acoustic Wall

Name: Fural Acoustic Wall
Brand: Fural Systeme in Metall GmbH

Acoustic Wall

EPD availableWall

Description

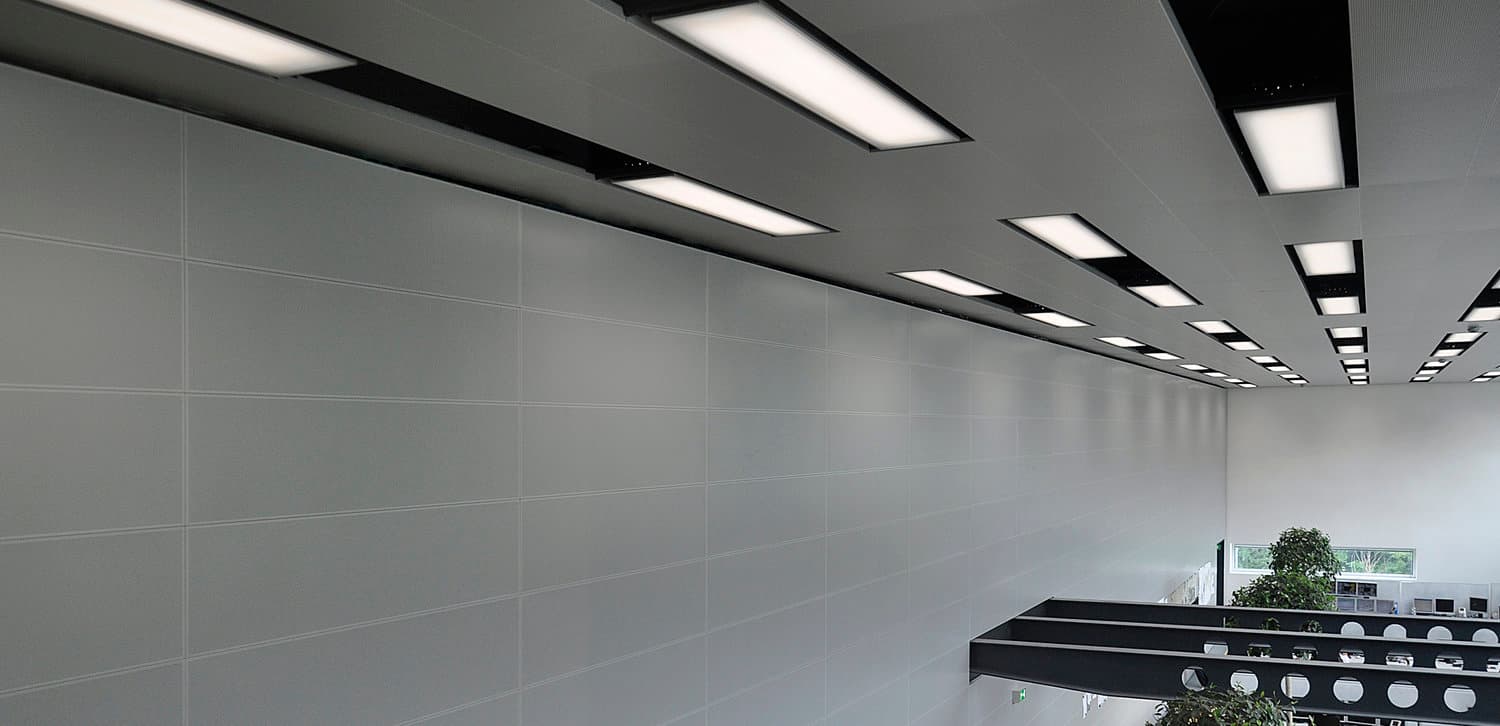

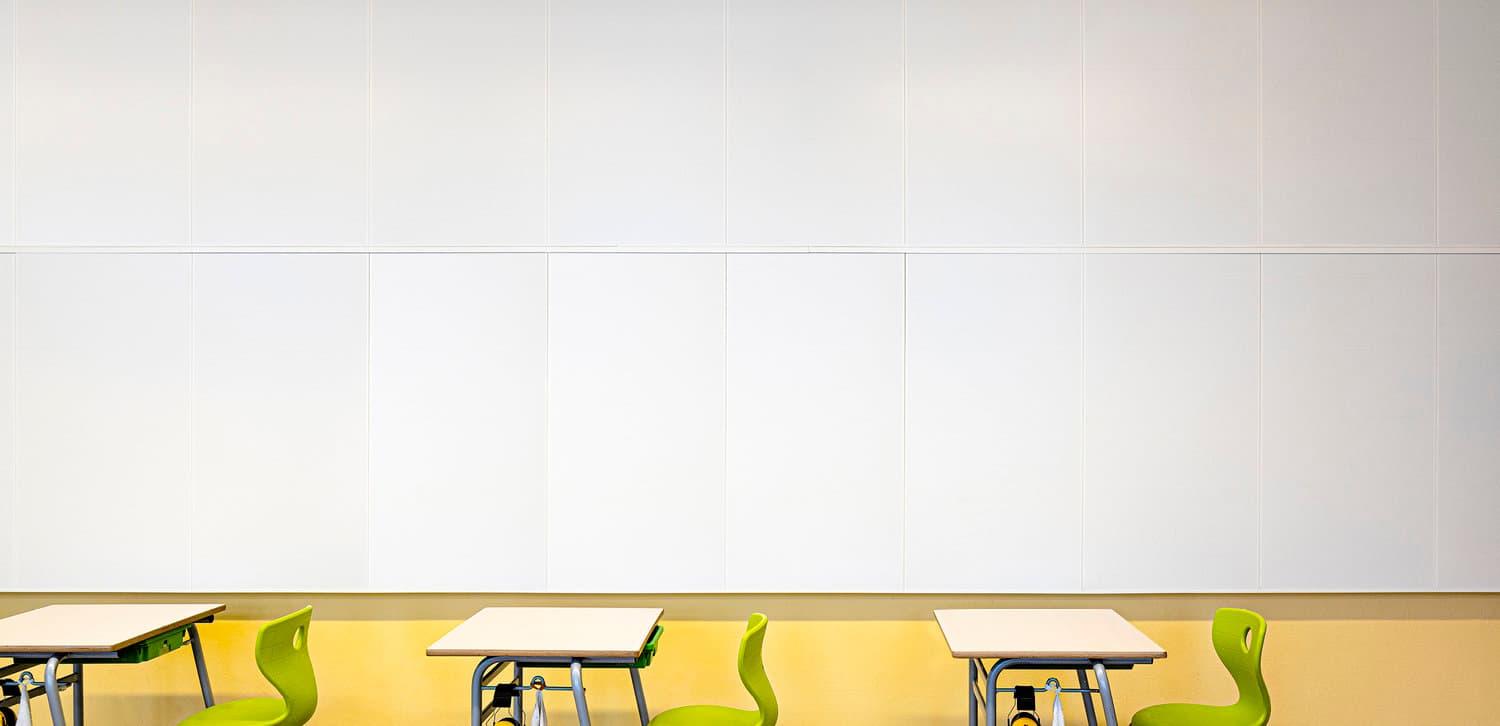

Acoustic wall cladding made of perforated metal for targeted room-acoustic optimization, ideal for retrofitting in existing buildings. A seamless transition from ceiling to wall in identical appearance is possible when the wall is combined with a Fural metal ceiling system. It can be printed individually via COLORPRINT and thus used as a visual design element. 20 tested configurations with different specifications.

Technical data

Material: galvanized steel

Surface: RAL 9010, powder coating 60–70 μm

Up to fire class: A1 (DIN EN 13501-1)

Application: wall cladding

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 20 variants

Perforation

Size

α_w

1.00

Frequency values

α_p per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
α_p	0.50	0.90	1.00	1.00	0.95	0.90

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Perforation	Size	Test setup	Value
Rg 2,5-16%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm, incl. resonant plate Fe 1,0 mm at 80 mm	α_w1.00
Rg 2,5-16%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm	α_w1.00
Rg 2,5-16%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 30 + 30 + 30 mm, incl. resonant plate Fe 1,0 mm at 60 mm	α_w1.00
Rg 2,5-16%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 30 + 30 + 30 mm	α_w1.00
Rg 2,5-16%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 30 + 30 mm	α_w1.00
Rv 1,6-20%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm, incl. resonant plate Fe 1,0 mm at 80 mm	α_w1.00
Rv 1,6-20%	105 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm	α_w1.00
Rv 1,6-20%	110 mm Aufbau	3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm	α_w1.00
Rv 1,6-20%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.95
Rd 1,8-21%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.95
Rg 2,5-16%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.90
Rv 3,0-20%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.90
Rv 1,6-20%	105 mm Aufbau	100 mm mineral wool 50 kg/m³ in PE film	α_w0.90
Rg 2,5-16%	105 mm Aufbau	100 mm mineral wool 50 kg/m³ in PE film	α_w0.90
Rg 0,7-4%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.80
Rv 1,6-20%	105 mm Aufbau	2x 50 mm mineral wool 50 kg/m³in PE film	α_w0.80
Rg 2,5-16%	105 mm Aufbau	2x 50 mm mineral wool 50 kg/m³in PE film	α_w0.75
Rv 1,6-20%	105 mm Aufbau	2x 50 mm mineral wool 50 kg/m³in PE film incl. resonant plate Fe 1,0 mm between the two mineral-wool layers	α_w0.75
Rg 2,5-16%	105 mm Aufbau	2x 50 mm mineral wool 50 kg/m³in PE film incl. resonant plate Fe 1,0 mm between the two mineral-wool layers	α_w0.70
Rg 0,7-1%	50 mm Aufbau	50 mm mineral wool 100 kg/m³ in PE film	α_w0.40

Absorber class: A

Test report: 2024-07-16 Messprotokoll Kurve 4

Dimensions: 105 mm total height

Measured values as a table (20 measurements)

Fural Acoustic Wall: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	Absorber class	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
Rv 1,6-20% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.95	A	0.20	0.25	0.41	0.73	0.88	0.94	0.91	0.93	0.93	0.97	0.96	0.97	1.05	0.96	1.01	0.99	0.80	0.62
Rg 2,5-16% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.90	A	0.20	0.27	0.46	0.75	0.87	0.92	0.89	0.90	0.90	0.94	0.93	0.95	0.96	0.92	0.90	0.85	0.74	0.63
Rv 3,0-20% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.90	A	0.21	0.28	0.44	0.72	0.87	0.93	0.90	0.90	0.91	0.94	0.94	0.95	0.96	0.93	0.91	0.85	0.74	0.63
Rd 1,8-21% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.95	A	0.19	0.25	0.42	0.74	0.86	0.94	0.92	0.93	0.93	0.97	0.96	0.98	0.99	0.95	0.94	0.88	0.76	0.64
Rg 0,7-4% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.80	B	0.25	0.30	0.49	0.74	0.86	0.90	0.86	0.88	0.87	0.90	0.88	0.89	0.88	0.82	0.77	0.70	0.58	0.48
Rg 0,7-1% · 50 mm Aufbau · 50 mm mineral wool 100 kg/m³ in PE film · fleece	0.40	D	0.35	0.45	0.61	0.65	0.70	0.69	0.63	0.63	0.58	0.55	0.54	0.51	0.47	0.40	0.37	0.31	0.25	0.19
Rg 2,5-16% · 105 mm Aufbau · 2x 50 mm mineral wool 50 kg/m³in PE film incl. resonant plate Fe 1,0 mm between the two mineral-wool layers · fleece	0.70	C	0.23	0.21	0.34	0.43	0.46	0.54	0.59	0.65	0.71	0.75	0.81	0.83	0.84	0.79	0.78	0.77	0.75	0.69
Rg 2,5-16% · 105 mm Aufbau · 2x 50 mm mineral wool 50 kg/m³in PE film · fleece	0.75	C	0.45	0.31	0.41	0.51	0.59	0.62	0.66	0.70	0.75	0.78	0.82	0.87	0.86	0.82	0.80	0.80	0.76	0.69
Rv 1,6-20% · 105 mm Aufbau · 100 mm mineral wool 50 kg/m³ in PE film · fleece	0.90	A	0.47	0.43	0.50	0.68	0.79	0.79	0.82	0.84	0.85	0.86	0.91	0.91	0.93	0.88	0.89	0.89	0.83	0.76
Rg 2,5-16% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm, incl. resonant plate Fe 1,0 mm at 80 mm · fleece	1.00	A	0.42	0.50	0.65	0.84	0.96	0.96	1.08	1.03	1.03	0.99	1.00	1.00	0.98	0.95	0.94	0.94	0.89	0.85
Rg 2,5-16% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm · fleece	1.00	A	0.39	0.47	0.69	0.90	1.02	0.96	1.08	1.03	1.00	0.97	0.98	0.99	0.98	0.95	0.95	0.94	0.92	0.87
Rv 1,6-20% · 105 mm Aufbau · 2x 50 mm mineral wool 50 kg/m³in PE film incl. resonant plate Fe 1,0 mm between the two mineral-wool layers · fleece	0.75	C	0.28	0.26	0.39	0.49	0.54	0.60	0.68	0.73	0.76	0.79	0.84	0.88	0.86	0.84	0.83	0.85	0.83	0.76
Rv 1,6-20% · 105 mm Aufbau · 2x 50 mm mineral wool 50 kg/m³in PE film · fleece	0.80	C	0.44	0.39	0.46	0.57	0.63	0.67	0.71	0.75	0.78	0.80	0.86	0.90	0.88	0.85	0.87	0.86	0.81	0.75
Rg 2,5-16% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 30 + 30 + 30 mm, incl. resonant plate Fe 1,0 mm at 60 mm · fleece	1.00	A	0.49	0.48	0.54	0.73	0.91	0.92	1.06	1.05	1.05	1.02	1.02	0.98	0.98	0.94	0.94	0.94	0.90	0.85
Rg 2,5-16% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 30 + 30 + 30 mm · fleece	1.00	A	0.36	0.47	0.66	0.88	0.99	0.96	1.09	1.03	1.00	0.98	0.97	0.98	1.00	0.96	0.97	0.96	0.92	0.86
Rg 2,5-16% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 30 + 30 mm · fleece	1.00	A	0.42	0.52	0.67	0.92	1.00	0.95	1.06	1.03	0.99	0.98	0.97	0.97	1.01	0.98	0.94	0.95	0.92	0.87
Rg 2,5-16% · 105 mm Aufbau · 100 mm mineral wool 50 kg/m³ in PE film · fleece	0.90	A	0.53	0.44	0.51	0.71	0.79	0.79	0.86	0.88	0.86	0.86	0.89	0.91	0.93	0.89	0.86	0.84	0.77	0.70
Rv 1,6-20% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm, incl. resonant plate Fe 1,0 mm at 80 mm · fleece	1.00	A	0.41	0.52	0.63	0.85	0.95	0.97	1.08	1.08	1.05	1.03	1.02	1.01	1.02	1.01	0.99	1.00	0.97	0.94
Rv 1,6-20% · 105 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm · fleece	1.00	A	0.37	0.48	0.65	0.92	1.02	0.99	1.10	1.05	1.05	1.01	1.02	1.01	1.02	1.01	0.97	1.01	0.98	0.94
Rv 1,6-20% · 110 mm Aufbau · 3x Sandler Blue Fiber, 20 kg/m³, 40 + 40 + 15 mm · fleece	1.00	A	0.38	0.51	0.67	0.93	1.01	1.00	1.11	1.06	1.04	0.98	1.02	1.01	1.01	1.01	1.00	0.99	0.99	0.94

Measured values as a table (20 measurements)
