Manufacturer
freiraum Akustik
Since 2004, freiraum Akustik has developed custom-made acoustic art panels, room dividers, desk partitions and ceiling rafts for offices, medical practices, meeting rooms and residential spaces. The focus is on combining effective sound absorption with individual design, art motifs, custom colours and personal acoustic consulting all the way through to installation.

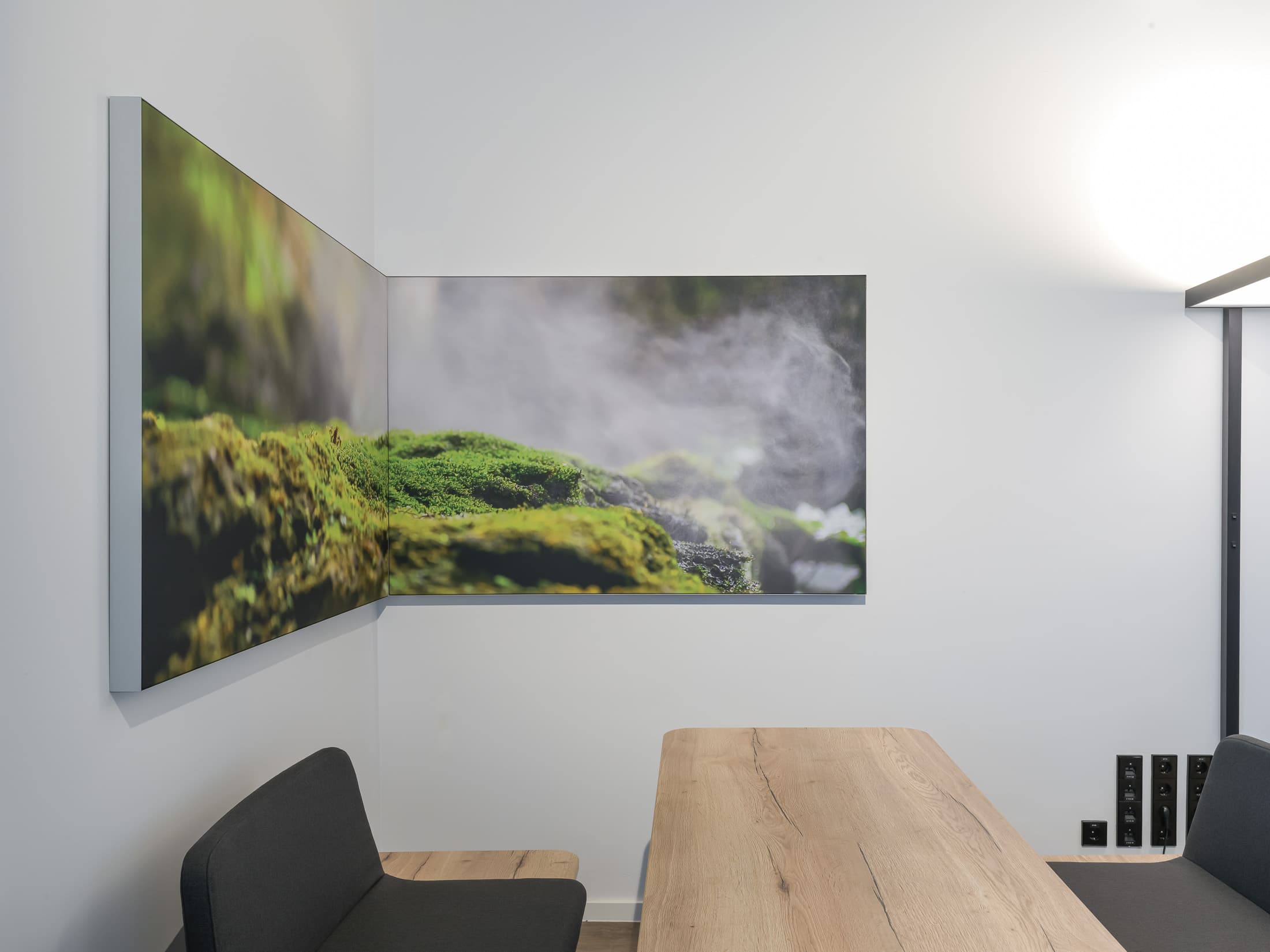

Acoustic Picture Nature Motifs
Acoustic Wall Pictures Nature
Wall
Description
No description available.
Technical data
Material: Silver matte anodized aluminum frame, acoustically effective fabric covering
Surface: UV-resistant fabric covering, changeable or cold washable
Up to fire class: DIN 4102 B1 / EN 13501-1 B-s1,d0
Application: Living rooms, doctor's offices, offices, waiting areas, meeting rooms
Certifications: OEKO-TEX 100, low VOC, recyclable, allergy-friendly
Measurement data
Sound absorption
ISO 354 – reverberation chamber
αw
0.90
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.40 | 0.70 | 0.95 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Object area: 4.75 m²
Measurement date (354): 22/04/2024
Measured values as a table (1 measurement)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 mm · 2000 g/m² · Caruso Akustik Bond 50 mm / 2000 g/m² · Caruso Akustik Bond | 0.90 | 0.35 | 0.42 | 0.47 | 0.55 | 0.74 | 0.87 | 0.94 | 0.96 | 0.98 | 0.99 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
Measured values as a table (1 measurement)
Access frequency bands, variants and export. Create a permanent free account
