Manufacturer
freiraum Akustik
Since 2004, freiraum Akustik has developed custom-made acoustic art panels, room dividers, desk partitions and ceiling rafts for offices, medical practices, meeting rooms and residential spaces. The focus is on combining effective sound absorption with individual design, art motifs, custom colours and personal acoustic consulting all the way through to installation.

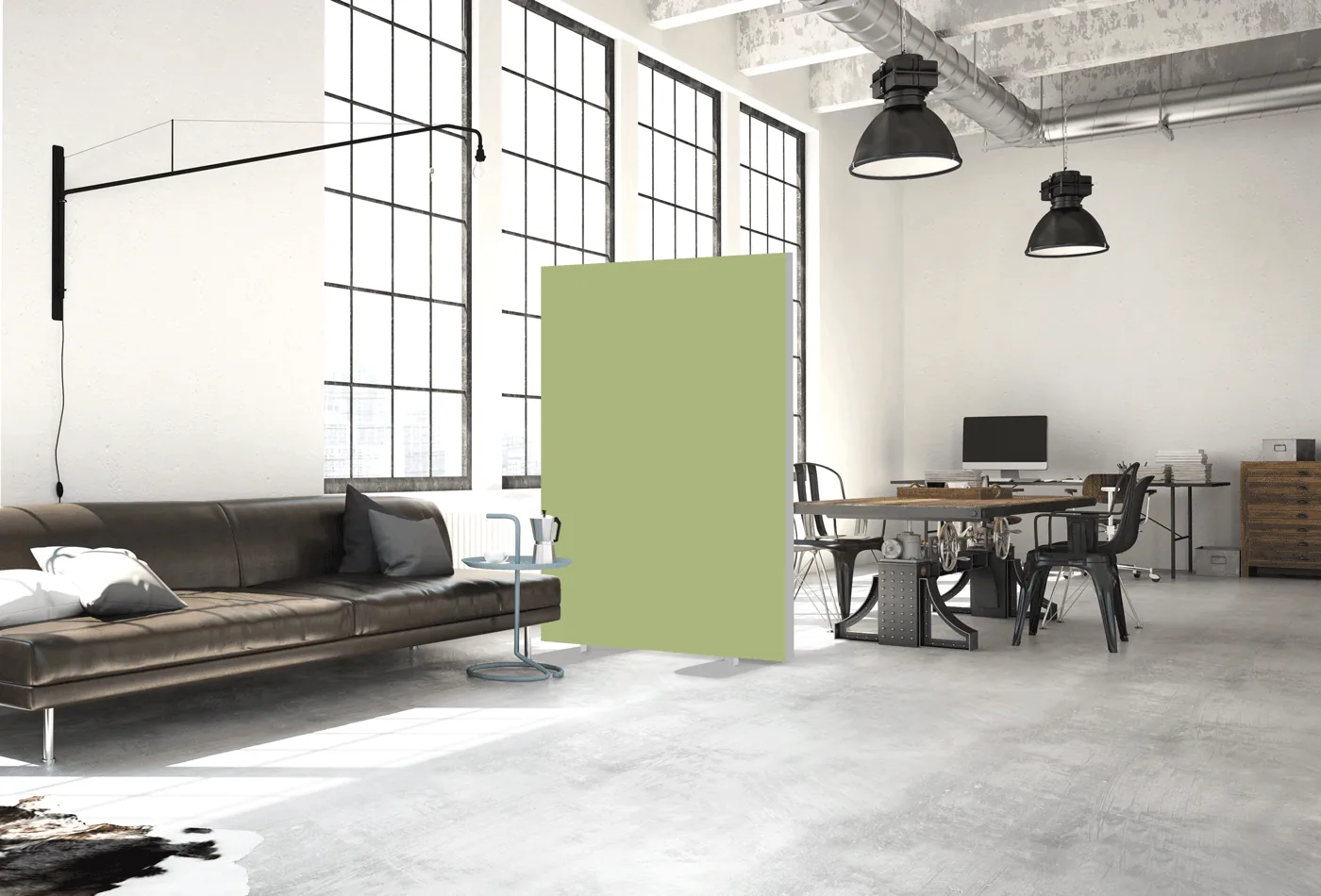

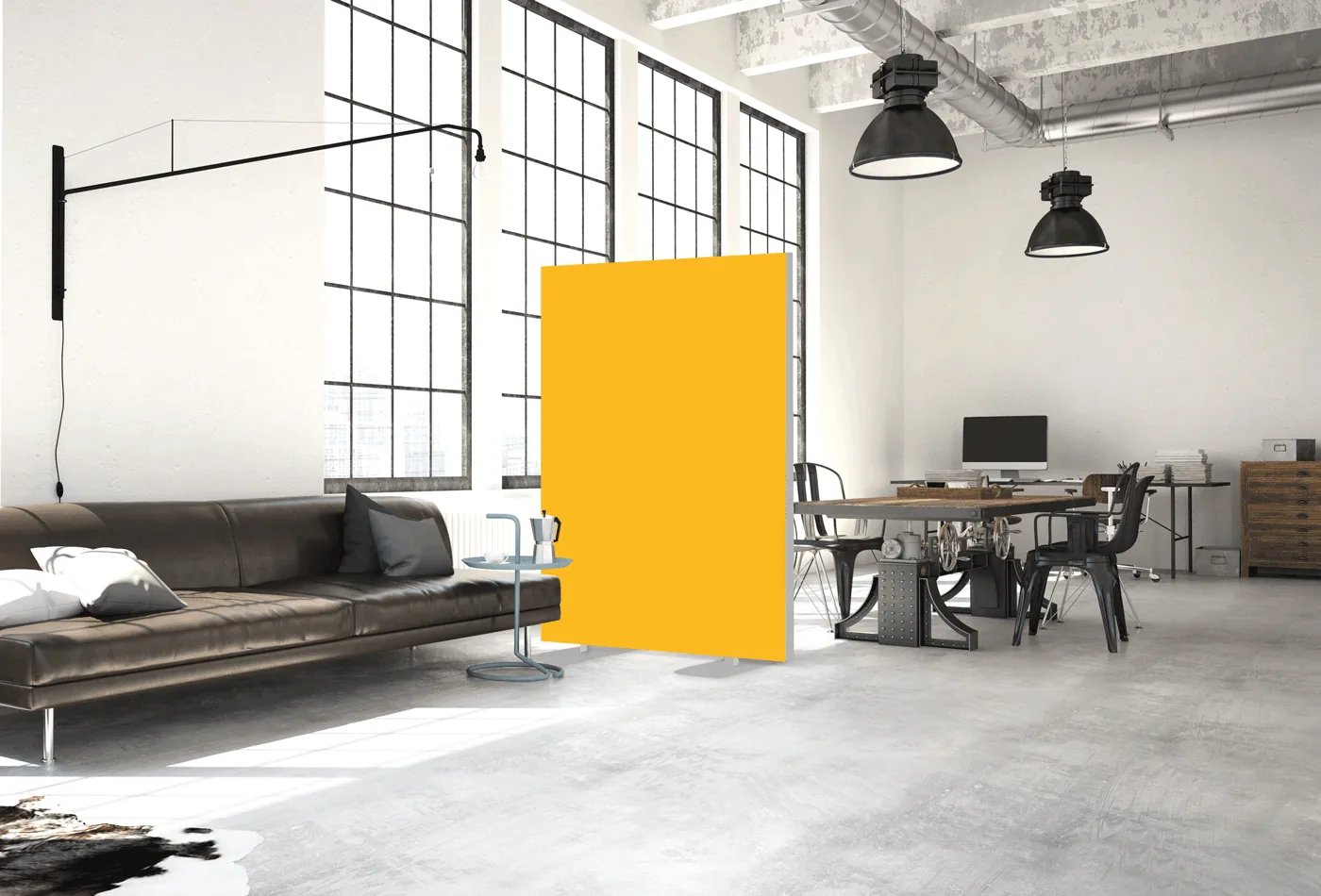

Acoustic Room Divider
Acoustic Room Divider
Description

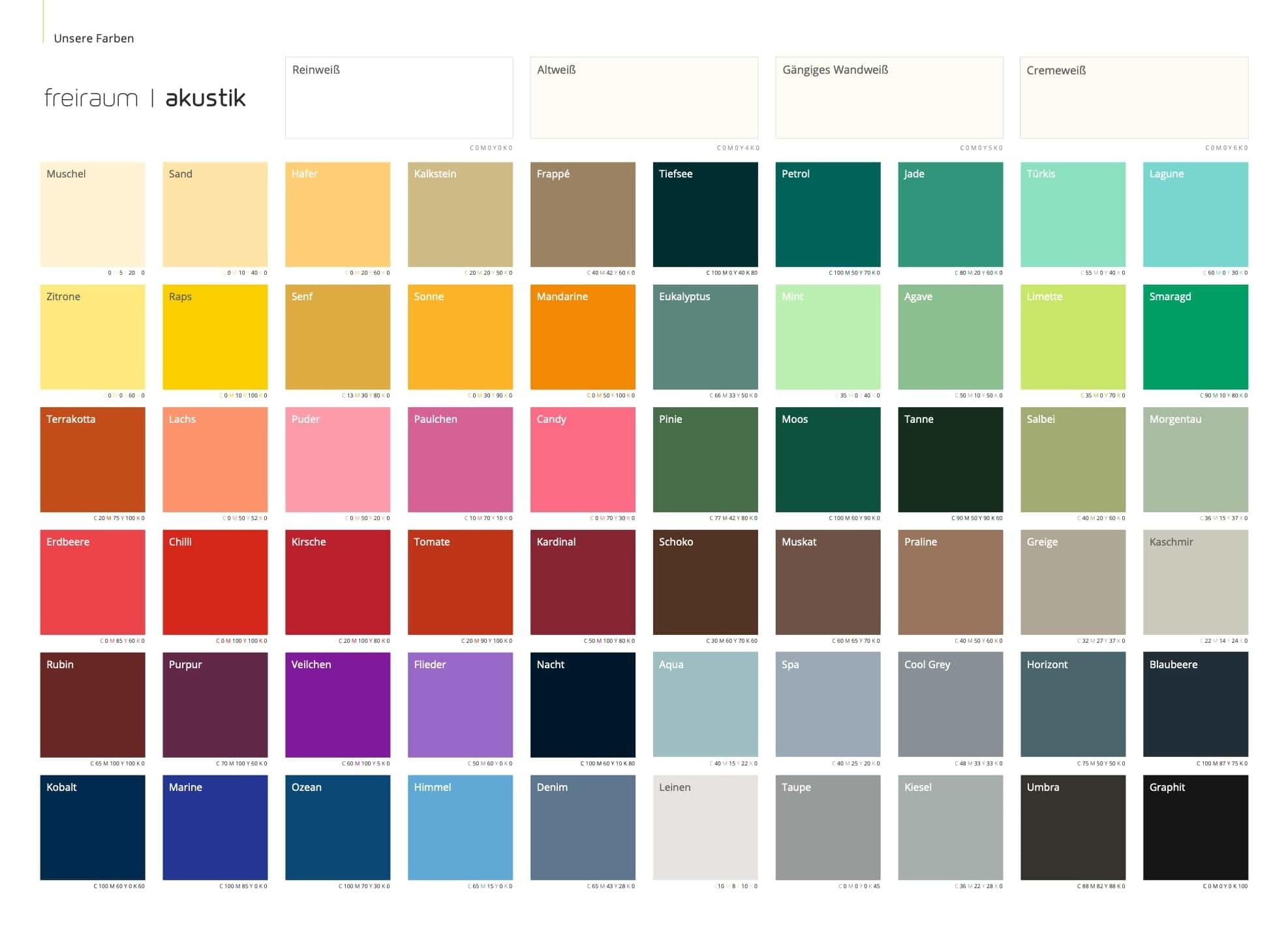

Acoustic room dividers structure rooms and contribute to pleasant room acoustics. Design motifs and desired colors make work environments inspiring and representative; the acoustic benefit remains effective on both sides. Freiraum manufactures all elements individually according to selection, in desired size and, on request, also as an XXL format or as part of a larger room concept. Room dividers are particularly suitable for open office structures, waiting areas, or multifunctional rooms where visual privacy and acoustic calming are to be combined.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.40 | 0.70 | 0.95 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
Method (354): Measured
Room volume: 391.6 m³
Object area: 11.29 m²
Measurement date (354): 23/02/2018
Measured values as a table (1 measurement)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rahmentiefe 5 cm · Framed acoustic element / free-standing frame absorber · Fabric covering with PET-acoustic fleece | 0.95 | 0.34 | 0.41 | 0.46 | 0.54 | 0.73 | 0.87 | 0.95 | 0.96 | 0.98 | 0.99 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
Measured values as a table (1 measurement)
