Manufacturer
FoamTnC UG
FoamTnC UG from Hürth near Cologne was founded in 2021 and converts technical foams for room acoustics. Under the soundSTOMP brand the company manufactures absorbers from Basotect, BASF's open-cell melamine resin foam, with more than 5,000 orders delivered to industrial, commercial and private customers as well as public institutions. CNC production ranges from series cutting with several thousand parts to individual project work: bespoke dimensions from 50 × 50 mm, material thicknesses from 10 mm, special shapes, contours, chamfers, fabric covering and fixing systems.

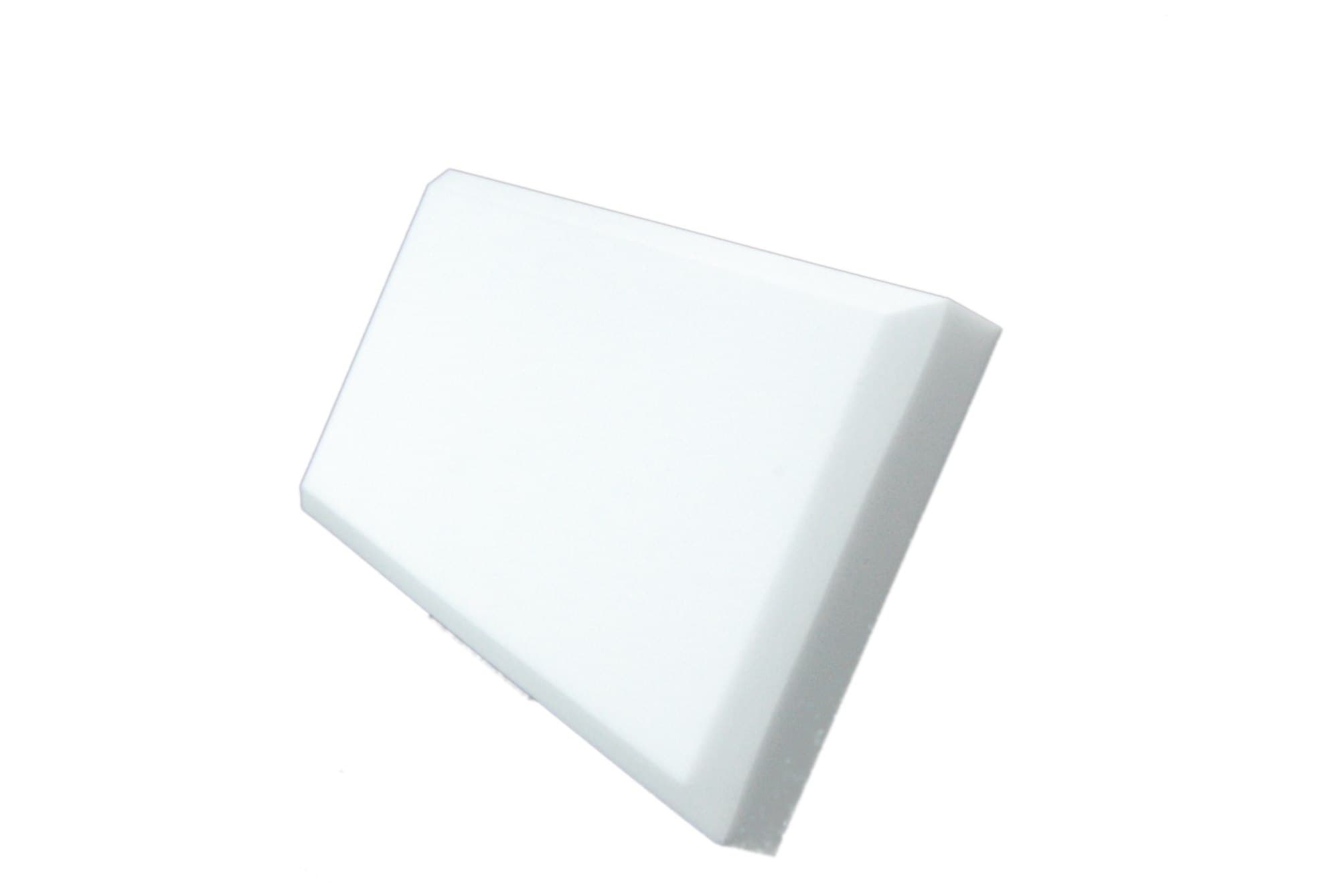

soundSTOMP Basotect G+ acoustic panel
soundSTOMP Basotect G+ acoustic panel
Description
The soundSTOMP acoustic panel is a CNC-cut absorber made of Basotect G+, the open-cell melamine resin foam from BASF (8.5 ± 1.5 kg/m³). Panels in 1000 × 500, 500 × 500 and 1150 × 500 mm, optionally with a 45° decorative chamfer, in light grey, white and black; material thicknesses from 5 to 100 mm as well as special shapes, contours and fabric covering from 50 × 50 mm. The sound absorption follows the established BASF material curves for Basotect (Technical Information “Acoustics Basotect G”, reverberation room per DIN EN ISO 354), with a complete third-octave curve for each material thickness, from class D (20 mm) to class A (60 mm). As a suspended baffle system (type J) the material was additionally measured by TÜV Rheinland LGA. Reaction to fire C-s2,d0 per DIN EN 13501-1, documented by MPA NRW classification report 230008744-6.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 5 variants
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.25 | 0.65 | 1.00 | 1.00 | 1.00 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| 60 mm | 0 mm (direct mounting) | αw0.95 | |
| 50 mm | 0 mm (direct mounting) | αw0.85 | |
| 40 mm | 0 mm (direct mounting) | αw0.70 | |
| 50 mm | suspended (baffle, Reihenachsabstand 600 mm) | αw0.50 | |
| 20 mm | 0 mm (direct mounting) | αw0.45 |
Absorber class: A
Institute: BASF SE (Basotect-Materialmessung, ISO 354)
Measured values as a table (5 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 mm · 0 mm (direct mounting) · Wand-/Deckenmontage, vollflächig | 0.45 | D | 0.03 | 0.08 | 0.10 | 0.14 | 0.18 | 0.24 | 0.32 | 0.41 | 0.48 | 0.57 | 0.69 | 0.75 | 0.78 | 0.84 | 0.87 | 0.88 | 0.87 | 0.90 |
| 40 mm · 0 mm (direct mounting) · Wand-/Deckenmontage, vollflächig | 0.70 | C | 0.10 | 0.15 | 0.22 | 0.29 | 0.43 | 0.53 | 0.65 | 0.78 | 0.83 | 0.87 | 0.93 | 0.99 | 0.98 | 1.00 | 0.99 | 1.02 | 0.99 | 1.11 |
| 50 mm · 0 mm (direct mounting) · Wand-/Deckenmontage, vollflächig | 0.85 | B | 0.11 | 0.19 | 0.32 | 0.41 | 0.56 | 0.70 | 0.80 | 0.91 | 0.95 | 1.02 | 1.01 | 1.02 | 0.99 | 1.03 | 1.04 | 1.06 | 1.03 | 1.06 |
| 60 mm · 0 mm (direct mounting) · Wand-/Deckenmontage, vollflächig | 0.95 | A | 0.09 | 0.23 | 0.37 | 0.50 | 0.67 | 0.83 | 0.93 | 0.99 | 1.03 | 1.02 | 1.03 | 1.02 | 1.01 | 1.02 | 1.02 | 1.03 | 0.99 | 1.03 |
| 50 mm · suspended (baffle, Reihenachsabstand 600 mm) · Deckenbaffel-System, waagerecht suspended | 0.50 | D | 0.09 | 0.18 | – | 0.21 | 0.28 | 0.28 | 0.41 | 0.49 | – | 0.62 | 0.66 | – | – | 0.69 | – | – | – | – |
Measured values as a table (5 measurements)
