AKUSTIpan green silence Acoustic Panel

Name: AKUSTIpan green silence Acoustic Panel
Brand: BVS Akustik

AKUSTIpan green silence

WallCeiling

Description

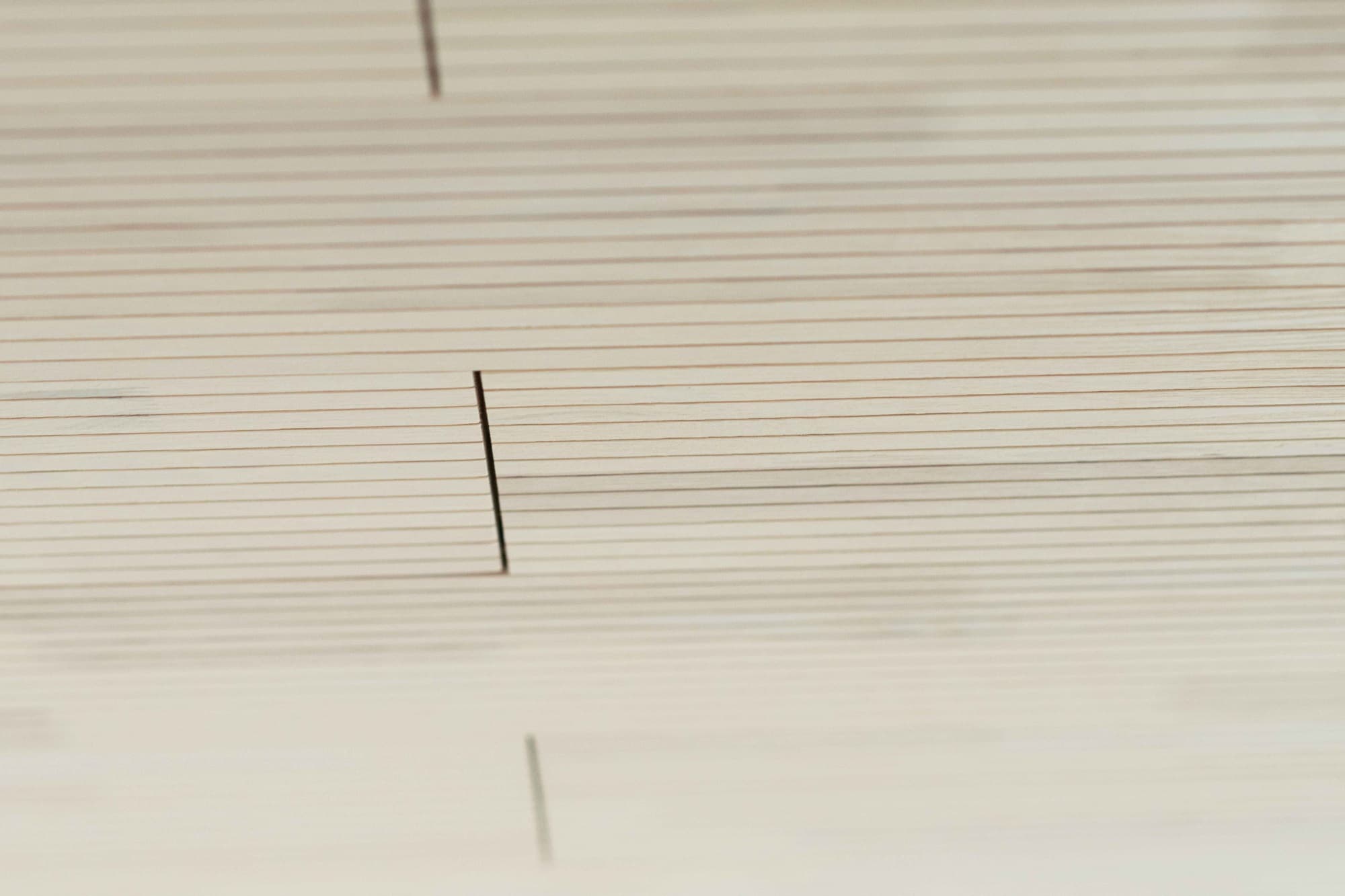

AKUSTIpan green silence is an acoustic panel made from untreated solid spruce, produced as an 18 mm glued lamella with a stable finger-jointed bond. The spruce comes from sustainable forestry, the wood remains low-emission and this is documented by an emissions test to DE-UZ 38. The face is slotted at 2, 3 or 4 mm, the back carries openings and is optionally fitted with acoustic fleece. The panel is offered on a 16 mm grid (2940 x 160 x 18 mm) and a 32 mm grid (2940 x 192 x 18 mm), on request with irregular slotting to minimise the moiré effect. The edges are formed as a tongue-and-groove joint, producing a seamless continuous look; the surface can be left sanded raw, oiled, waxed or lacquered with water-based paints. Cuts, cut-outs and beam integrations can be carried out directly on site, which also makes the panel suitable for work on existing buildings. Acoustically, the panel only works through the interplay of the slotting on the face, the openings on the back and the build-up behind it: slot width and build-up depth determine in which frequency range sound is absorbed, and can be adjusted at no extra cost through the slot spacing. Sound absorption is determined in the reverberation room per EN ISO 354 and rated per EN ISO 11654; for design work the full third-octave curve matters alongside the weighted single-number rating, and not the individual figure alone.

Technical data

Material: Untreated solid spruce from sustainable forestry; 18 mm glued lamella with finger-jointed bond; surface sanded raw, oiled, waxed or lacquered with water-based paints; low-emission to DE-UZ 38 (01/2013)

Up to fire class: B2 per DIN 4102 / DIN EN 13501-1

Application: Wall and ceiling cladding in rooms with demands on a healthy indoor climate, such as kindergartens and schools; conversions and refurbishments in older buildings

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 28 variants

Choose the look

Choose the slot pattern · web / slot width in mm

α_w

0.70

Frequency values

α_p per ISO 11654

f (Hz)	125	250	500	1k	2k	4k
α_p	0.55	0.70	1.00	0.80	0.65	0.55

Create a permanent free account — Access frequency bands, variants and export.

Free. No password required.

Compare	Gap / cavity	Value
	h=70 mm · 22 mm air gap	α_w0.70
	h=100 mm · 52 mm air gap	α_w0.70
	h=200 mm · 152 mm air gap	α_w0.70
	h=50 mm · 2 mm air gap	α_w0.65

Absorber class: C

Test report: 1939-003-21

Institute: SG-Bauakustik, Institute for Acoustic Product Optimisation

Measurement date: 2021-09-01

Perforation: 13/3

Measured values as a table (28 measurements)

AKUSTIpan green silence Acoustic Panel: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	α_w	Absorber class	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
12/4 · h=50 mm · 2 mm air gap	0.70	C	0.39	0.40	0.57	0.48	0.58	0.73	0.85	0.99	0.99	0.96	0.89	0.82	0.73	0.61	0.60	0.56	0.61	0.57
12/4 · h=70 mm · 22 mm air gap	0.70	C	0.53	0.58	0.60	0.63	0.69	0.92	0.99	1.15	0.93	0.89	0.80	0.75	0.72	0.61	0.64	0.65	0.61	0.57
12/4 · h=100 mm · 52 mm air gap	0.70	C	0.60	0.64	0.77	0.87	0.79	0.94	1.08	0.96	0.94	0.85	0.79	0.73	0.62	0.68	0.65	0.60	0.63	0.60
12/4 · h=200 mm · 152 mm air gap	0.70	C	1.05	0.85	0.97	0.95	0.86	0.83	0.89	0.86	0.78	0.68	0.60	0.74	0.72	0.71	0.64	0.63	0.62	0.54
13/3 · h=50 mm · 2 mm air gap	0.65	C	0.47	0.49	0.50	0.44	0.61	0.78	0.91	1.00	0.99	0.93	0.79	0.75	0.67	0.57	0.56	0.57	0.57	0.55
13/3 · h=70 mm · 22 mm air gap	0.70	C	0.48	0.60	0.60	0.62	0.69	0.84	1.05	1.00	1.03	0.90	0.76	0.75	0.67	0.63	0.58	0.60	0.58	0.54
13/3 · h=100 mm · 52 mm air gap	0.70	C	0.54	0.70	0.81	0.89	0.96	0.98	1.07	0.95	0.91	0.87	0.72	0.68	0.61	0.62	0.60	0.61	0.57	0.60
13/3 · h=200 mm · 152 mm air gap	0.70	C	0.99	0.75	0.94	1.05	0.86	0.98	0.81	0.86	0.84	0.66	0.61	0.75	0.67	0.65	0.61	0.58	0.59	0.57
14/2 · h=50 mm · 2 mm air gap	0.55	D	0.49	0.51	0.46	0.52	0.72	0.81	0.98	1.09	0.95	0.86	0.76	0.71	0.60	0.49	0.46	0.47	0.46	0.40
14/2 · h=70 mm · 22 mm air gap	0.60	C	0.58	0.62	0.57	0.63	0.74	0.86	0.93	1.06	0.92	0.85	0.73	0.65	0.57	0.55	0.49	0.46	0.45	0.39
14/2 · h=100 mm · 52 mm air gap	0.60	C	0.55	0.60	0.90	0.83	0.85	0.98	1.05	1.00	0.94	0.71	0.68	0.63	0.57	0.51	0.51	0.50	0.46	0.46
14/2 · h=200 mm · 152 mm air gap	0.60	C	1.06	0.88	1.00	1.09	0.90	0.86	0.85	0.84	0.73	0.65	0.61	0.64	0.57	0.53	0.48	0.52	0.48	0.44
28/4 · h=50 mm · 2 mm air gap	0.45	D	0.59	0.55	0.60	0.60	0.58	0.71	0.88	0.93	0.69	0.70	0.60	0.52	0.44	0.41	0.35	0.37	0.36	0.39
28/4 · h=70 mm · 22 mm air gap	0.50	D	0.61	0.63	0.67	0.66	0.63	0.73	0.80	0.82	0.72	0.56	0.52	0.54	0.48	0.41	0.39	0.38	0.40	0.35
28/4 · h=100 mm · 52 mm air gap	0.50	D	0.64	0.69	0.91	0.84	0.79	0.76	0.79	0.75	0.66	0.59	0.50	0.48	0.43	0.39	0.41	0.42	0.42	0.41
28/4 · h=200 mm · 152 mm air gap	0.50	D	1.03	0.92	0.97	0.81	0.64	0.65	0.67	0.61	0.51	0.55	0.45	0.46	0.46	0.44	0.41	0.38	0.41	0.37
29/3 · h=50 mm · 2 mm air gap	0.45	D	0.46	0.50	0.64	0.52	0.58	0.66	0.83	0.88	0.71	0.69	0.53	0.51	0.42	0.39	0.35	0.34	0.38	0.38
29/3 · h=70 mm · 22 mm air gap	0.45	D	0.60	0.68	0.64	0.65	0.61	0.79	0.87	0.76	0.71	0.61	0.51	0.47	0.47	0.38	0.35	0.37	0.39	0.35
29/3 · h=100 mm · 52 mm air gap	0.50	D	0.68	0.71	0.87	0.78	0.83	0.80	0.74	0.72	0.66	0.56	0.49	0.48	0.43	0.38	0.38	0.40	0.40	0.40
29/3 · h=200 mm · 152 mm air gap	0.45	D	0.94	0.86	0.83	0.79	0.74	0.77	0.73	0.66	0.61	0.47	0.48	0.44	0.44	0.41	0.37	0.40	0.36	0.33
30/2 · h=50 mm · 2 mm air gap	0.40	D	0.47	0.51	0.61	0.55	0.67	0.82	0.73	0.75	0.63	0.61	0.50	0.47	0.39	0.31	0.31	0.31	0.33	0.32
30/2 · h=70 mm · 22 mm air gap	0.40	D	0.64	0.77	0.67	0.77	0.65	0.71	0.81	0.79	0.61	0.52	0.48	0.43	0.36	0.35	0.33	0.33	0.30	0.26
30/2 · h=100 mm · 52 mm air gap	0.40	D	0.66	0.64	0.78	0.89	0.73	0.78	0.70	0.69	0.61	0.47	0.46	0.43	0.39	0.36	0.35	0.33	0.31	0.27
30/2 · h=200 mm · 152 mm air gap	0.40	D	1.02	0.81	0.85	0.77	0.65	0.58	0.62	0.64	0.53	0.46	0.41	0.41	0.38	0.36	0.31	0.34	0.31	0.25
irreg/2 · h=50 mm · 2 mm air gap	0.55	D	0.50	0.52	0.57	0.56	0.63	0.76	0.87	0.93	0.91	0.87	0.65	0.62	0.55	0.48	0.47	0.43	0.39	0.39
irreg/2 · h=70 mm · 22 mm air gap	0.55	D	0.63	0.59	0.66	0.70	0.67	0.75	0.85	0.95	0.81	0.70	0.55	0.58	0.53	0.46	0.43	0.50	0.40	0.41
irreg/2 · h=100 mm · 52 mm air gap	0.55	D	0.55	0.69	0.75	0.78	0.85	0.85	0.86	0.79	0.82	0.69	0.58	0.52	0.52	0.49	0.49	0.46	0.39	0.40
irreg/2 · h=200 mm · 152 mm air gap	0.55	D	1.12	0.77	0.91	0.87	0.79	0.77	0.80	0.76	0.66	0.54	0.52	0.53	0.51	0.48	0.48	0.44	0.43	0.38

Measured values as a table (28 measurements)
