Manufacturer
B11
B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.
B11 Wing Square
Wing Square
Description

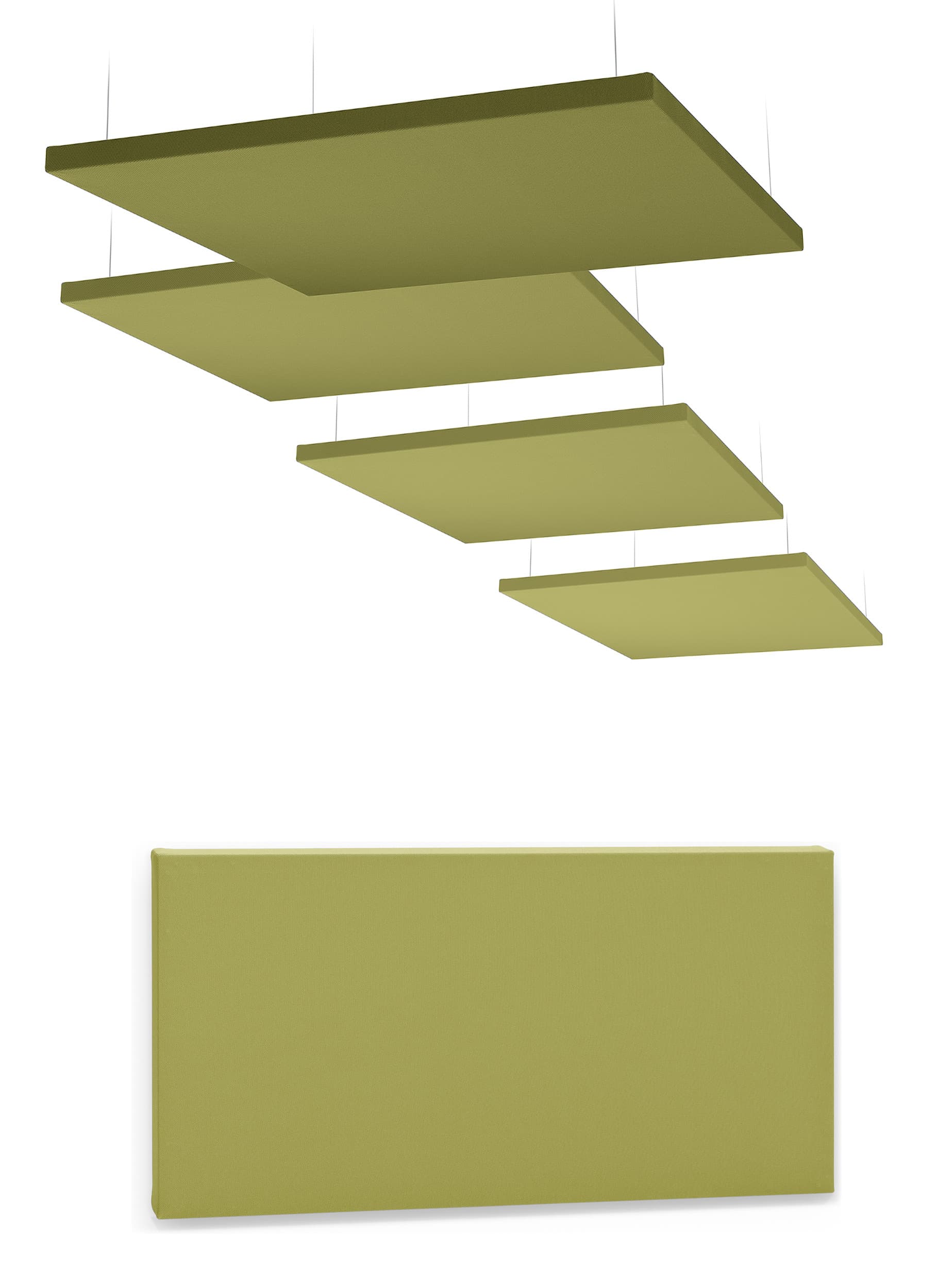

The WING SQUARE is B11's most versatile surface element — a feather-light square that floats on the ceiling or sits on the wall, creating calm zones over large areas. As the printed WING PRINT variant, the acoustic surface also becomes a picture.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 4 variants
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.20 | 0.65 | 0.95 | 0.95 | 0.95 | 1.00 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value |
|---|---|
| αw0.95 | |
| αw0.95 | |
| Aobj2.40m² | |
| Aobj1.80m² |
Absorber class: A
Test report: M10 3132/3
Institute: Müller-BBM GmbH, Planegg
Measurement date: 2012-09-25
Room volume: 199.6 m³
Object area: 11.72 m²
Dimensions: Einzelabsorber 1,25 × 1,25 × 0,055 m bzw. 1,25 × 0,625 × 0,055 m
Measured values as a table (4 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| wall absorber B11-WING FOR WALLS with Bespannung Nexus, flächig with 10 mm Abstand (Aufbautyp E-60) | Aufbautyp E-60 nach ISO 354; neun wall absorber (6× 1250×1250 mm, 3× 1250×625 mm) stumpf gestoßen on Distanzklötze d=10 mm; Overall build-up (without frame) 3750 × 3125 × 60 mm; Fugen abgeklebt | DIN EN ISO 354 / DIN EN ISO 11654 (Bewertung); Aufbautyp E-60 | Prüfbericht M10 3132/3 | 0.95 | A | 0.10 | 0.20 | 0.32 | 0.49 | 0.63 | 0.80 | 0.89 | 0.96 | 0.94 | 0.96 | 0.99 | 0.94 | 0.94 | 0.94 | 0.97 | 1.00 | 0.99 | 0.99 |
| wall absorber B11-WING FOR WALLS with Bespannung Nexus, Einzelabsorber with 10 mm Abstand | Prüfung als Einzelabsorber; zwei wall absorber über Befestigungsschienen aufgelegt, Abstand Rückseite zum Hallraumboden 10 mm; Abstand untereinander > 2 m; zwei Positionen | DIN EN ISO 354 | Prüfbericht M10 3132/3 (Aobj, m²) | – | – | 0.20 | 0.20 | 0.50 | 0.80 | 1.00 | 1.40 | 1.80 | 2.10 | 2.10 | 2.00 | 1.80 | 1.70 | 1.60 | 1.60 | 1.70 | 1.70 | 1.70 | 1.70 |
| ceiling raft B11-WING ON TOP with Bespannung Nexus | Prüfung als Einzelabsorber (ceiling raft); zwei ceiling raft with der Sichtseite nach oben über punktuelle Abstandshalter (4 Holzleisten each ceiling raft) aufgeständert, Abstand Rückseite zum Hallraumboden 300 mm, Gesamtaufbauhöhe 350 mm; Abstand untereinander > 2 m; zwei Positionen | DIN EN ISO 354 | Prüfbericht M10 3132/4 (Aobj, m²) | – | – | 0.30 | 0.50 | 0.80 | 1.20 | 1.40 | 1.60 | 1.80 | 1.90 | 2.10 | 2.40 | 2.40 | 2.30 | 2.20 | 2.20 | 2.30 | 2.30 | 2.40 | 2.30 |
Measured values as a table (4 measurements)
