B11 Tower of Silence

Tower of Silence

Aobj 2.90–3.80 m² at 1 kHz

Freestanding
With a free account

Manufacturer

B11

B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.

All products by this manufacturerManufacturer website

Documents

Fire protectionOEKO-TEXDatasheet

Description

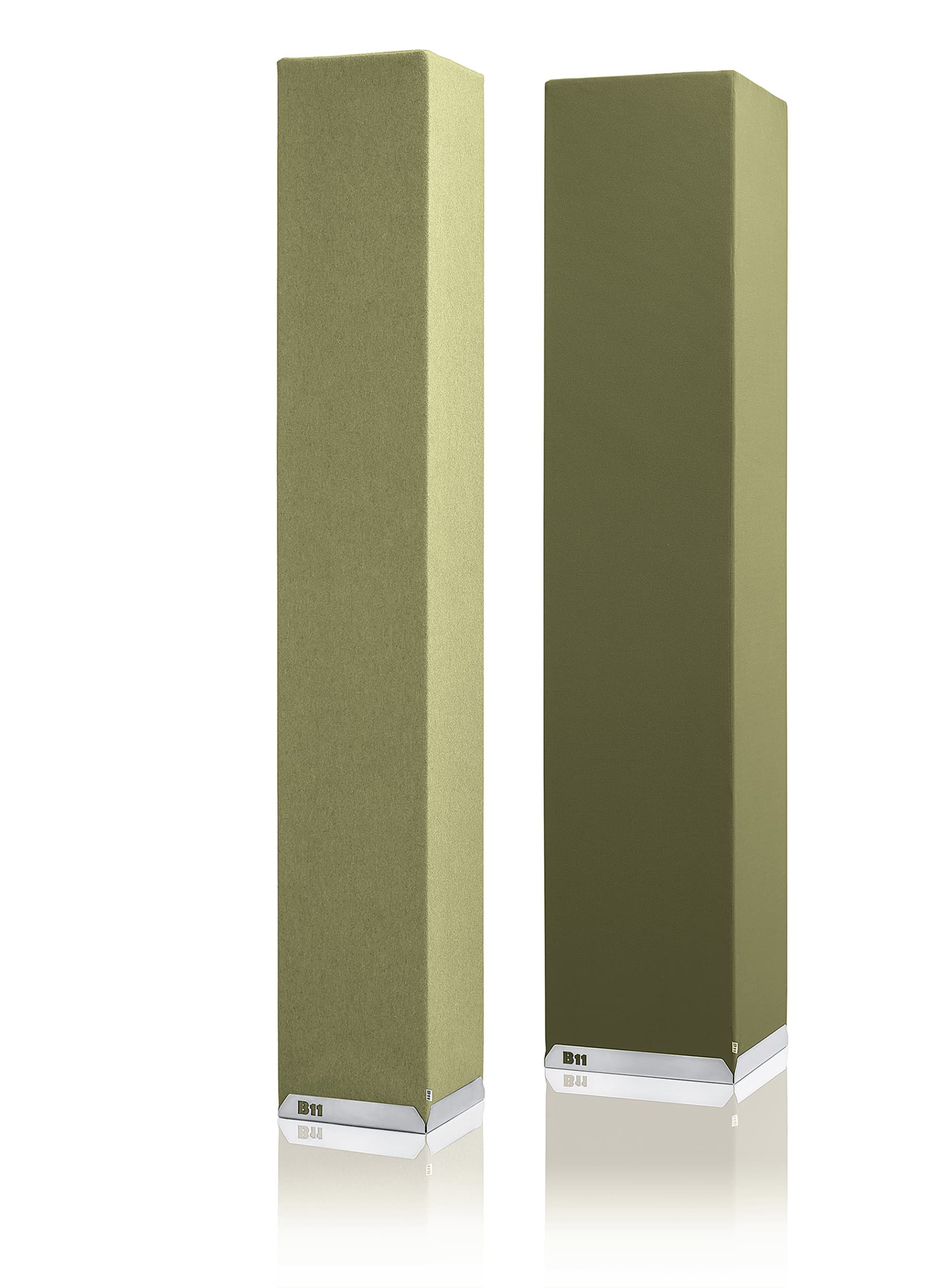

The TOWER OF SILENCE brings calm where no wall or ceiling surface is free — a slender, all-round acoustic column that simply stands in the room and can be moved at any time. Depending on its cross-section it acts as a discreet companion or a deliberate design statement.

Technical data

Material: Melamine resin foam core, textile-covered
Surface: Camira Nexus (100% polyester); Lucia / Lucia CS on request
Up to fire class: B1 · flame-retardant per DIN 4102-1 (Basotect core)
Application: Open space, reception, waiting area, lounge, practice
Certifications: Oeko-Tex Standard 100 (cover); building-authority test certificate Basotect G
Colours: Camira Nexus, Lucia & Lucia CS; custom colours per RAL / brand CI

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 2 variants

Aobj
3.80 m²
at 1 kHz

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

CompareVariantValue
Variant 1Aobj3.80m²
Variant 2Aobj2.90m²

Test report: M10 3132/1

Institute: Müller-BBM GmbH, Planegg

Measurement date: 25/09/2012

Room volume: 199.6 m³

Dimensions: 0.40 × 0.40 × 2.00 m (L × B × H)

Terms of use
Measured values as a table (2 measurements)
B11 Tower of Silence: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upαw100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
B11-TOWER OF SILENCE with Bespannung Nexus | Prüfung als Einzelabsorber; drei absorber frei on dem Hallraumboden aufgestellt, Abstand untereinander > 2 m; Prüfung nacheinander an two Positionen | DIN EN ISO 354 | Prüfbericht M10 3132/1 (Aobj, m²)–1.301.702.003.003.303.603.703.803.903.803.803.703.603.603.503.503.503.50
B11-TOWER OF SILENCE with Bespannung Nexus, Grundfläche 300 mm | Prüfung als single object nach DIN EN ISO 354; drei Absorberelemente direkt on dem Hallraumboden aufgestellt; Prüfung nacheinander an drei unregelmäßig verteilten Positionen | DIN EN ISO 354 | Prüfbericht M103132/7 (Aobj, m²)–0.701.101.301.501.902.202.602.802.903.002.902.902.802.802.702.702.702.60
Measured values as a table (2 measurements)

Access frequency bands, variants and export. Create a permanent free account
