Manufacturer
B11
B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.
Documents
B11 Flying Wall PET
Flying Wall PET
Description

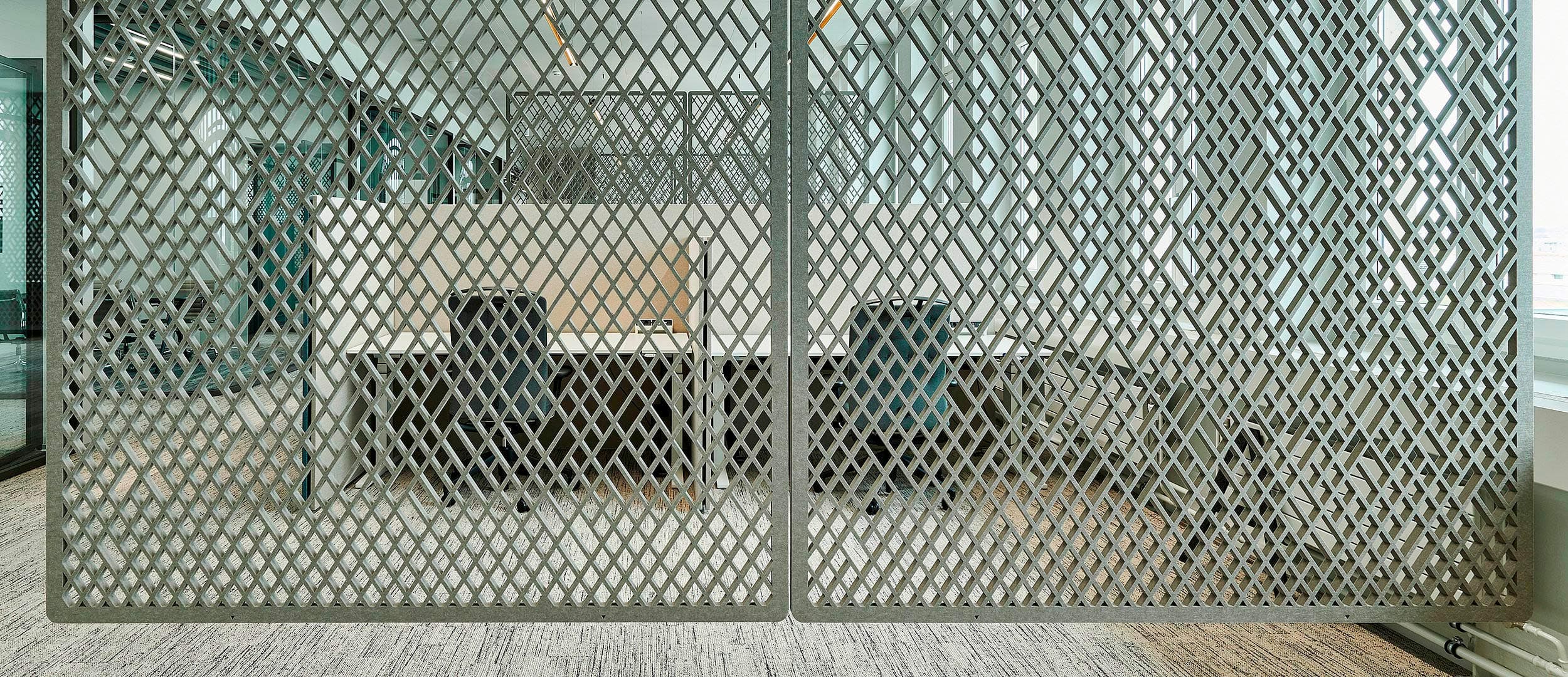

The FLYING WALL PET divides rooms with character — a freely suspended divider of recycled felt whose cut patterns range from dense to airy and perforated. It creates zones and visual screening while staying light and freely shapeable.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 3 variants
Frequency values
Aobj per ISO 354 · octave band (m²)
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| Aobj | 1.80 | 3.20 | 4.10 | 5.70 | 6.70 | 6.90 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 24 mm | Aobj5.70m² | |
| 12 mm | Aobj4.40m² | |
| 24 mm | Aobj2.80m² |
Institute: Impact Acoustic / B11 (manufacturer data)
Measured values as a table (3 measurements)
| Build-up | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 mm · Plain 2400 × 900 mm (KLEIN) (Aobj, m²) | – | 0.60 | 0.95 | 1.12 | 1.64 | 1.68 | 1.51 | 1.86 | 1.99 | 2.29 | 2.59 | 2.85 | 3.07 | 3.24 | 3.28 | 3.50 | 3.41 | 3.50 | 3.50 |
| 24 mm · Plain 2400 × 1800 mm (LARGE) (Aobj, m²) | – | 1.21 | 1.90 | 2.25 | 3.28 | 3.37 | 3.02 | 3.72 | 3.97 | 4.58 | 5.18 | 5.70 | 6.13 | 6.48 | 6.57 | 7.00 | 6.83 | 7.00 | 7.00 |
| 12 mm · Plain 2800 × 1200 mm (TALL) (Aobj, m²) | – | – | 1.40 | – | – | 2.50 | – | – | 3.20 | – | – | 4.40 | – | – | 5.20 | – | – | 5.40 | – |
Measured values as a table (3 measurements)
