Manufacturer

B11

B11 develops and manufactures lightweight, free-standing and suspended room-acoustic objects in Edling, Bavaria. Founded in 2011 by Dirk Huber, the brand stands for distinctive, design-led acoustic solutions „made in Bavaria“. The core range is based on melamine resin foam (Basotect) with a textile cover (Camira Nexus/Lucia): the TOWER OF SILENCE acoustic column, the CUBE, the square WING, the rotatable ROTARY WALL and the suspended FLYING WALL room divider. B11 also offers a PET line made from recycled ARCHISONIC Felt (Impact Acoustic) and the through-dyed WING UNICOLOR. Sound absorption is documented per product — via accredited measurements (Müller-BBM, University of Stuttgart) or manufacturer data sheets; free-standing single objects as the equivalent absorption area A per object.

All products by this manufacturerManufacturer website

B11 Cube

Cube up & seat

FreestandingFree-hanging

Description

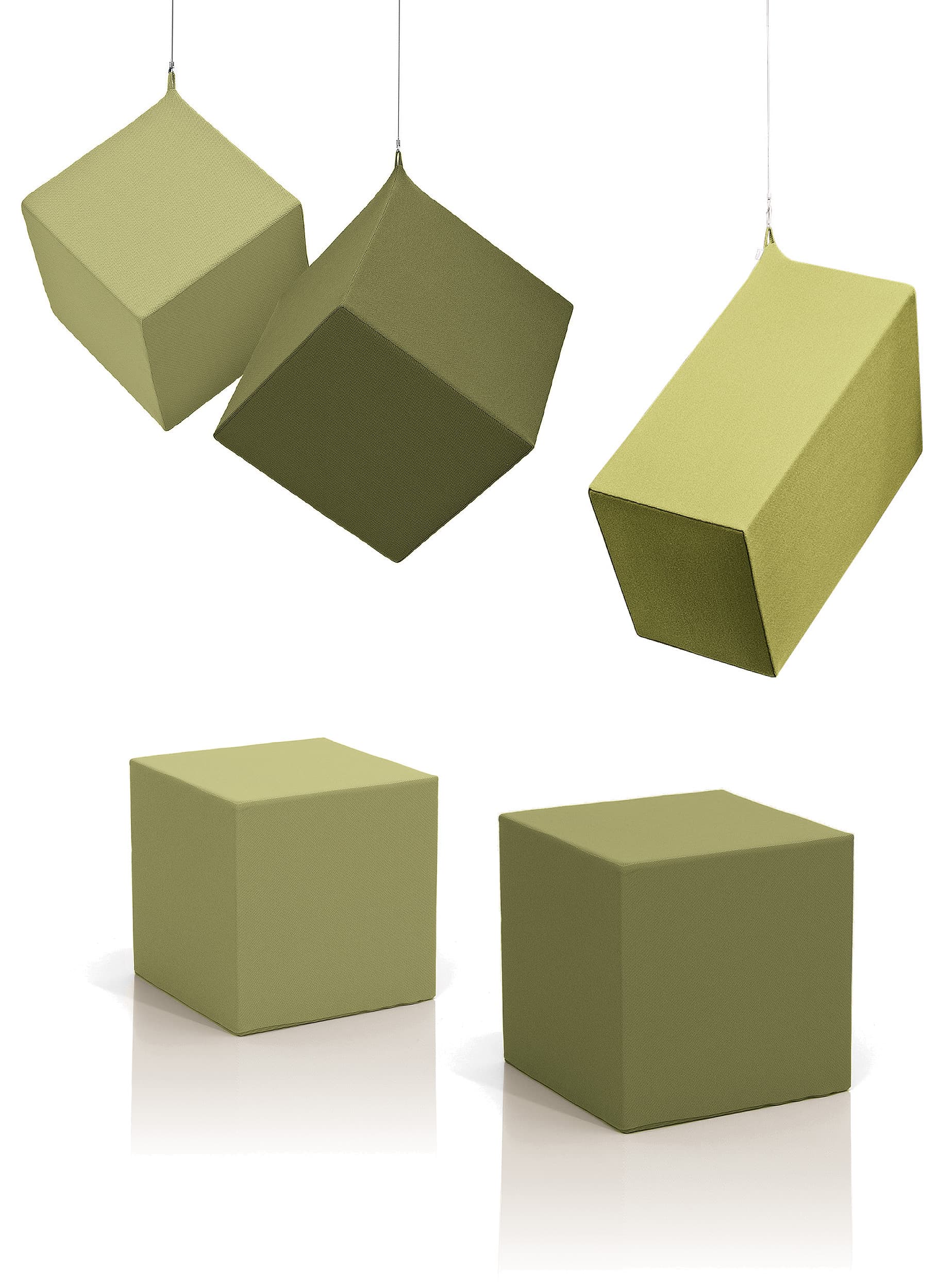

The CUBE is a seat and a sound absorber in one, bringing calm exactly where people come together. As a soft cube it can be placed flexibly — and, on request, turned into a printed brand carrier.

Technical data

Material: Melamine resin foam core, textile-covered
Surface: Camira Nexus (100% polyester); Lucia / Lucia CS on request
Up to fire class: B1 — flame-retardant per DIN 4102-1 (Basotect core)
Application: Lounge, cafeteria, break-out and meeting zones
Certifications: Oeko-Tex Standard 100 (cover); building-authority test certificate Basotect G
Colours: Camira Nexus, Lucia & Lucia CS; custom colours per RAL / brand CI

Measurement data

Sound absorption

ISO 354 – reverberation chamber

Aobj
1.80 m²
at 1 kHz

Frequency values

Aobj nach ISO 354 (m²)

f (Hz)100125160200250315
Aobj0.500.600.801.001.301.60

Create a permanent free accountAccess frequency bands, variants and export.

Free. No password required.

Method (354): Measured

Room volume: 199.6 m³

Measurement date (354): 2012-09-25

Test report: M10 3132/2

Terms of use
Measured values as a table (1 measurement)
B11 Cube: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-upαw100 Hz125 Hz160 Hz200 Hz250 Hz315 Hz400 Hz500 Hz630 Hz800 Hz1000 Hz1250 Hz1600 Hz2000 Hz2500 Hz3150 Hz4000 Hz5000 Hz
B11-CUBE UP & SEAT with Bespannung Nexus | Prüfung als Einzelabsorber; drei absorber in unterschiedlichen heights über dem Hallraumboden aufgehängt, Abstand untereinander > 2 m; Prüfung nacheinander an zwei Positionen | DIN EN ISO 354 | Prüfbericht M10 3132/2 (Aobj, m²)0.500.600.801.001.301.601.701.801.801.901.801.701.701.701.701.601.701.60
