alpha AKUSTIK Slotted Panel G

ALPHA-AKUSTIK Slotted Panel "G"

αw 0.40–0.85Absorber classes B–D

WallCeiling
With a free account

Manufacturer

alpha AKUSTIK

alpha AKUSTIK is the acoustics brand of Staudigel GmbH from Veitshöchheim — a family business with over 70 years of experience in wood processing. On around 7,500 m² of production area the company manufactures sound-absorbing perforated, slotted and micro-perforated panels (NANOLITE) on an MDF base for wall and ceiling. The panels are built up with a backing acoustic fleece (SoundTex) and mineral insulation into acoustically effective claddings. The range spans from discreetly perforated visible surfaces to highly absorbent slot-and-hole patterns and is broadly documented by accredited reverberation-chamber measurements (Fraunhofer IBP, BAE Fiedler, ita).

All products by this manufacturerManufacturer website

Description

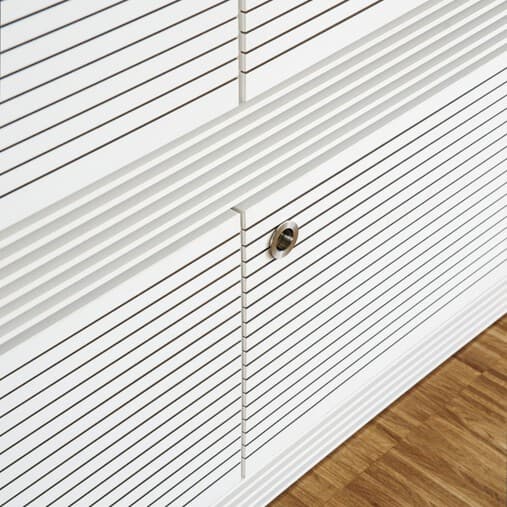

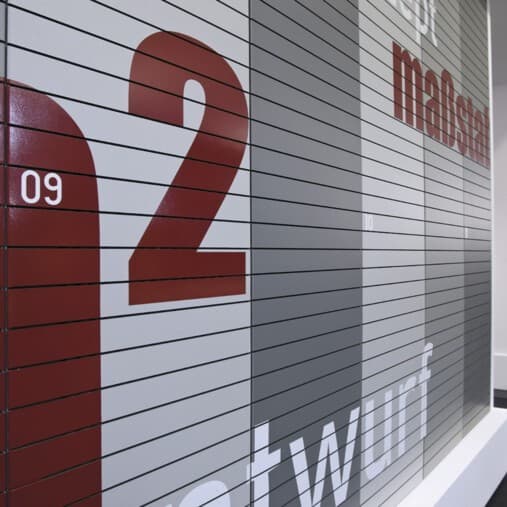

The alpha AKUSTIK "G" slotted-panel range: slotted MDF panels with a backing SoundTex acoustic fleece in several slot patterns (8-2 G to 32-4 G). The narrow, even slotting gives a restrained visible surface for wall and ceiling. Tunable via slot pattern and backing, from class D to B. Also available without mineral wool, with the SoundTex fleece alone (slim 59 mm build-up).

Technical data

Material: MDF carrier board with SoundTex C 1986 acoustic fleece, mineral wool depending on build-up
Surface: slotted; raw, veneered or coated
Application: sound-absorbing wall and ceiling lining
Certifications: Accredited reverberation-chamber measurements per DIN EN ISO 354, incl. Fraunhofer IBP

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 23 variants

Choose perforation

αw
0.85

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

Absorber class: B

Test report: BAE 10-078-01

Institute: BAE Fiedler – Office for Acoustics and Engineering (Lahnau)

Measurement date: 05/11/2010

Distance: Soundtex C 1986

Perforation: 8-2 G

Terms of use
Measured values as a table (23 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated:

Calculate reverberation time with this product
