alpha AKUSTIK Perforated Panel

ALPHA-AKUSTIK Perforated Panel (round perforation)

αw 0.20–0.95Absorber classes A–E

WallCeiling
With a free account

Manufacturer

alpha AKUSTIK

alpha AKUSTIK is the acoustics brand of Staudigel GmbH from Veitshöchheim — a family business with over 70 years of experience in wood processing. On around 7,500 m² of production area the company manufactures sound-absorbing perforated, slotted and micro-perforated panels (NANOLITE) on an MDF base for wall and ceiling. The panels are built up with a backing acoustic fleece (SoundTex) and mineral insulation into acoustically effective claddings. The range spans from discreetly perforated visible surfaces to highly absorbent slot-and-hole patterns and is broadly documented by accredited reverberation-chamber measurements (Fraunhofer IBP, BAE Fiedler, ita).

All products by this manufacturerManufacturer website

Description

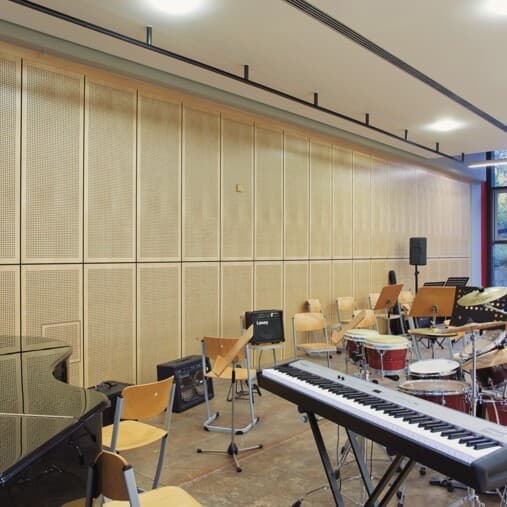

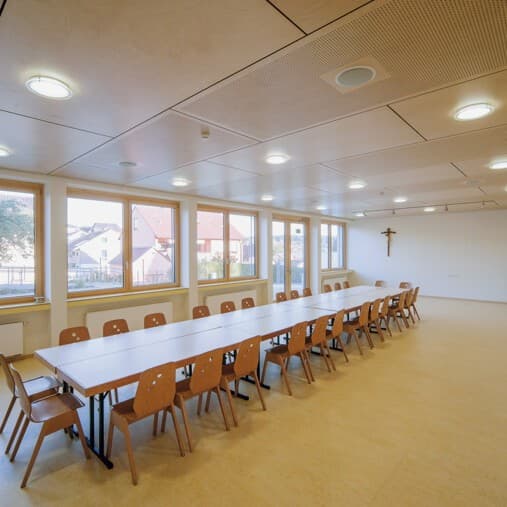

The round-perforated acoustic panel by alpha AKUSTIK (Staudigel GmbH): an MDF carrier board with a backing acoustic fleece (SoundTex), used as a sound-absorbing wall and ceiling lining. Absorption is tuned via the hole pattern (grid spacing and hole diameter, e.g. 16/16-10-5) and the backing build-up. Available from discreetly perforated visible surfaces to highly absorbent hole patterns — raw, veneered or melamine-coated. As the hole ratio and wall distance grow, the effect rises up to the highest absorption class A.

Technical data

Material: MDF carrier board 16 or 19 mm with acoustic fleece, backed with mineral wool
Surface: perforated; raw, veneered (ash/anigre, etc.) or melamine-coated
Application: Wall and ceiling lining, also as partition / gypsum-box element and cabinet door
Certifications: Accredited reverberation-chamber measurements per DIN EN ISO 354, incl. Fraunhofer IBP

Measurement data

Sound absorption

ISO 354 – reverberation chamber· 44 variants

Choose the perforation

By mounting

αw
0.95

Frequency values

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

Absorber class: A

Test report: P-BA 298/2002

Institute: Fraunhofer Institute for Building Physics (IBP), Stuttgart

Measurement date: 11/09/2002

Distance: 40 mm Sonorock

Perforation: 16/16-10-8

Terms of use
Measured values as a table (44 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated:

Calculate reverberation time with this product
