slimline stripes [3]
slimline stripes [3]
αw 0.80Absorber classes A, B
Manufacturer
akustikplus GmbH & Co. KG
akustikplus develops and manufactures decorative acoustic solutions from wood-based materials at its site in Stephanskirchen near Rosenheim. The company belongs to the Hamberger Group and combines industrial production with real-wood veneer expertise. The range comprises four product lines: smartline (acoustic panels with an integrated wood-wool absorber), slimline (slender slotted panels mounted over a mineral-wool insulation layer), proline (micro-perforated acoustic boards, also available as a furniture board decorative on both sides) and designline (felt panels with veneered MDF slats). Non-combustible versions on a gypsum-fibre base are available on request.
Description

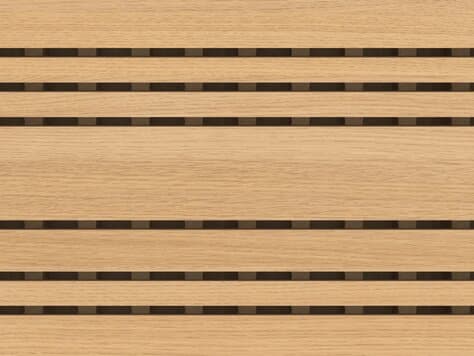

The slimline is a slim, slotted MDF acoustic panel for mounting on a substructure. The acoustic effect arises from the interaction of the slotted face with a mineral wool insulation layer behind it, and, depending on the build-up, with an additional open cavity. The panels join into a continuous surface via a tongue-and-groove joint. The stripes version varies the web widths irregularly. This creates a lively, striped joint pattern instead of the uniform grid.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 2 variants
Frequency values
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 30 mm mineral wool | αw0.80 | |
| 60 mm mineral wool | αw0.80 |
Absorber class: B
Dimensions: Overall build-up 46 mm
Distance: without cavity (direct)
Absorber: 30 mm mineral wool
Measured values as a table (2 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| without cavity (direct) · 30 mm mineral wool | 0.80 | B | 0.08 | 0.21 | 0.35 | 0.56 | 0.66 | 0.75 | 0.80 | 0.83 | 0.84 | 0.86 | 0.85 | 0.79 | 0.78 | 0.76 | 0.76 | 0.71 | 0.67 | 0.64 |
| without cavity (direct) · 60 mm mineral wool | 0.80 | A | 0.28 | 0.44 | 0.71 | 0.83 | 0.93 | 0.88 | 0.85 | 0.87 | 0.84 | 0.77 | 0.79 | 0.78 | 0.74 | 0.74 | 0.77 | 0.75 | 0.70 | 0.65 |
Measured values as a table (2 measurements)
Access frequency bands, variants and export. Create a permanent free account
