Manufacturer
akustikplus GmbH & Co. KG
akustikplus develops and manufactures decorative acoustic solutions from wood-based materials at its site in Stephanskirchen near Rosenheim. The company belongs to the Hamberger Group and combines industrial production with real-wood veneer expertise. The range comprises four product lines: smartline (acoustic panels with an integrated wood-wool absorber), slimline (slender slotted panels mounted over a mineral-wool insulation layer), proline (micro-perforated acoustic boards, also available as a furniture board decorative on both sides) and designline (felt panels with veneered MDF slats). Non-combustible versions on a gypsum-fibre base are available on request.
proline classic
proline classic
Description

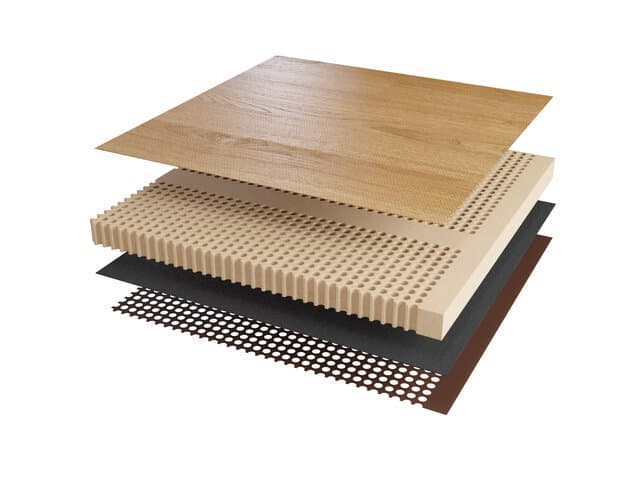

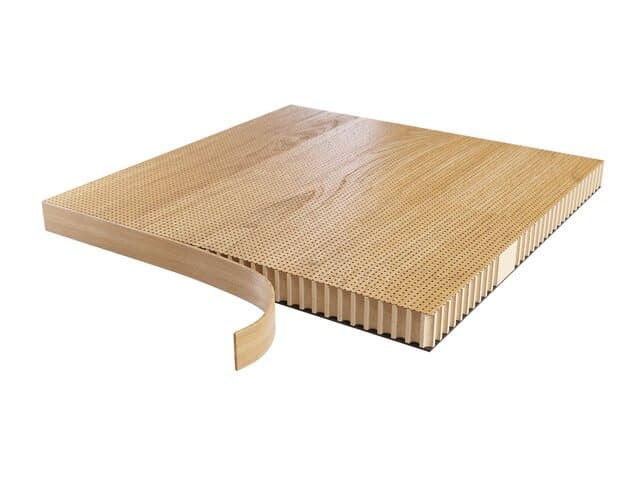

The proline is a large-format, micro-perforated acoustic panel in real-wood veneer or CPL. At viewing distance the perforation recedes strongly and the panel reads as a calm wood surface. It is mounted over a mineral wool insulation layer, optionally with an additional open cavity for greater depth of effect. The classic perforation is the coarser of the two perforation patterns. At close range it is visible as a fine dot grid and has the larger open area of the line.
Technical data
Measurement data
Sound absorption
ISO 354 – reverberation chamber· 3 variants
Frequency values
αp per ISO 11654
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.65 | 0.80 | 0.85 | 1.00 | 0.95 | 0.85 |
Create a permanent free account — Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| 350 mm cavity (offen) | αw0.95 | |
| 150 mm cavity (offen) | αw0.90 | |
| without cavity (direkt) | αw0.80 |
Absorber class: A
Dimensions: Overall build-up 420 mm
Measured values as a table (3 measurements)
| Build-up | αw | Absorber class | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| without cavity (direkt) · 30 mm mineral wool | 0.80 | B | 0.12 | 0.13 | 0.23 | 0.34 | 0.44 | 0.68 | 0.83 | 0.94 | 1.04 | 1.08 | 1.08 | 1.00 | 0.96 | 0.90 | 0.82 | 0.79 | 0.78 | 0.69 |
| 150 mm cavity (offen) · 50 mm mineral wool | 0.90 | A | 0.41 | 0.47 | 0.69 | 0.89 | 0.98 | 1.01 | 0.90 | 0.91 | 0.97 | 0.97 | 0.98 | 0.98 | 0.93 | 0.92 | 0.89 | 0.82 | 0.76 | 0.70 |
| 350 mm cavity (offen) · 50 mm mineral wool | 0.95 | A | 0.51 | 0.62 | 0.76 | 0.74 | 0.81 | 0.81 | 0.83 | 0.84 | 0.93 | 0.97 | 1.02 | 0.99 | 0.95 | 0.94 | 0.91 | 0.89 | 0.85 | 0.79 |
Measured values as a table (3 measurements)
