Hersteller
Lindner Group
Lindner Group, Arnstorf: Metalldecken, Heiz- und Kühldecken, Doppelböden, Wand- und Deckenbekleidungen und die Schallabsorber-Linie MUTE+.

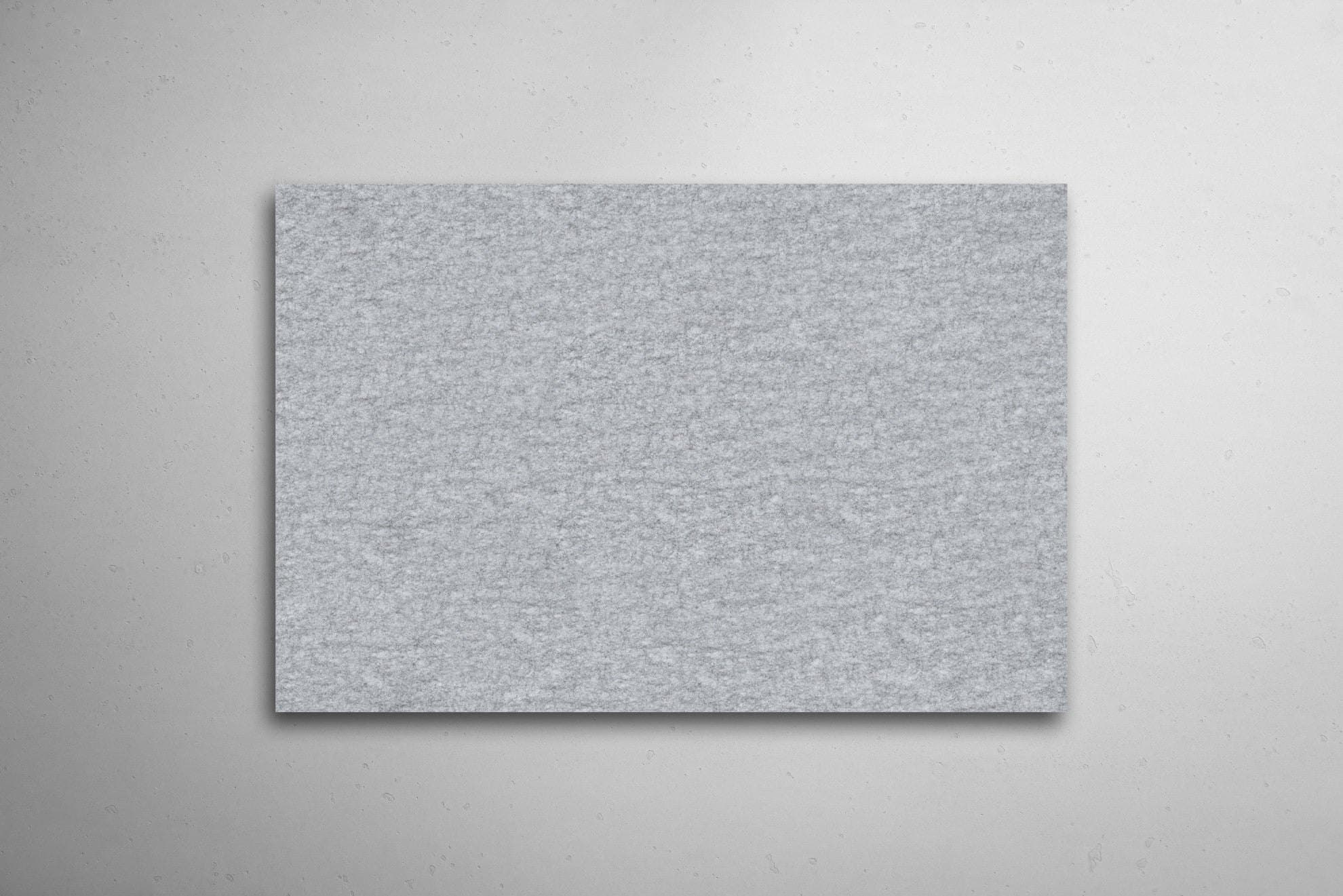

MUTE+ board Deckensegel
Beschreibung
Waagerecht abgehängtes Deckensegel aus Polyester, eckig oder rund. Mineralfaserfrei und allergikerfreundlich, Recyclinganteil bis zu 20 Prozent, zu 100 Prozent recycelbar und wiederverwendbar. Segelgröße und Abstand zur Rohdecke bestimmen die Absorption.
Technische Daten
Material: Polyester
Oberfläche: Glanzgrad 1 bis 5 GU je Farbe
Bis Baustoffklasse: B1 — nach DIN 4102
Zertifikate: Oeko-Tex Standard 100 (S24-3191, Hohenstein HTTI), Indoor Air Comfort GOLD, Emissionsklasse A+ (VOC, Frankreich)
Farben: white, grey marbled, darkgrey marbled, nightgrey marbled, black, weitere Polyesterfarben auf Anfrage
Messdaten
Schallabsorption
ISO 354 – Hallraum· 24 Varianten
Aobj
4.10 m²
bei 1 kHz
Frequenzwerte
Aobj nach ISO 354 · Terzband (m²)
| f (Hz) | 125 | 160 | 200 | 250 | 315 | 400 |
|---|---|---|---|---|---|---|
| Aobj | 1.30 | 2.00 | 2.50 | 2.70 | 2.90 | 3.20 |
Dauerhaft kostenlosen Account erstellen — Auf Frequenzbänder, Varianten und Export zugreifen.
Kostenlos. Kein Passwort nötig.
| Vergleichen | Wert | ||
|---|---|---|---|
| 40 mm | 400 mm | Aobj4.10m² | |
| 40 mm | 200 mm | Aobj3.70m² | |
| 40 mm | 400 mm | Aobj3.30m² | |
| 40 mm | 200 mm | Aobj3.10m² | |
| 40 mm | 240 mm | Aobj2.90m² | |
| 40 mm | 240 mm | Aobj2.60m² | |
| 40 mm | 400 mm | Aobj2.40m² | |
| 40 mm | 240 mm | Aobj2.30m² | |
| 40 mm | 200 mm | Aobj2.20m² | |
| 24 mm | 200 mm | Aobj2.20m² | |
| 40 mm | 240 mm | Aobj2.00m² | |
| 40 mm | 400 mm | Aobj2.00m² | |
| 24 mm | 200 mm | Aobj1.90m² | |
| 40 mm | 200 mm | Aobj1.80m² | |
| 40 mm | 240 mm | Aobj1.70m² | |
| 24 mm | 200 mm | Aobj1.70m² | |
| 24 mm | 200 mm | Aobj1.40m² | |
| 40 mm | 240 mm | Aobj1.30m² | |
| 24 mm | 200 mm | Aobj1.20m² | |
| 40 mm | 400 mm | Aobj1.00m² | |
| 24 mm | 200 mm | Aobj1.00m² | |
| 40 mm | 200 mm | Aobj0.90m² | |
| 40 mm | 240 mm | Aobj0.80m² | |
| 24 mm | 200 mm | Aobj0.60m² |
Prüfbericht: H231016P1/8k_rev00
Institut: GiB mbH, Arnstorf
Messdatum: 2023-10-16
Raumvolumen: 208.5 m³
Messwerte als Tabelle (24 Messungen)
| Aufbau | αw | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 mm · 240 mm · Segel ø 750 mm (Aobj, m²) | – | 0.00 | 0.00 | 0.20 | 0.40 | 0.50 | 0.60 | 0.70 | 0.70 | 0.80 | 0.80 | 0.80 | 0.90 | 0.80 | 0.90 | 0.90 | 0.90 | 0.80 | 0.80 |
| 40 mm · 240 mm · Segel 1000 x 1000 mm (Aobj, m²) | – | 0.10 | 0.20 | 0.60 | 0.90 | 1.00 | 1.20 | 1.40 | 1.50 | 1.50 | 1.50 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 | 1.70 |
| 40 mm · 240 mm · Segel 1500 x 1000 mm (Aobj, m²) | – | 0.20 | 0.30 | 0.80 | 1.30 | 1.50 | 1.80 | 2.10 | 2.20 | 2.10 | 2.10 | 2.30 | 2.40 | 2.40 | 2.50 | 2.40 | 2.40 | 2.50 | 2.40 |
| 40 mm · 240 mm · Segel 2000 x 1000 mm (Aobj, m²) | – | 0.30 | 0.50 | 1.20 | 1.70 | 2.00 | 2.30 | 2.50 | 2.70 | 2.80 | 2.70 | 2.90 | 3.00 | 3.00 | 3.10 | 3.10 | 3.00 | 3.20 | 3.20 |
| 40 mm · 240 mm · Segel ø 1000 mm (Aobj, m²) | – | 0.10 | 0.10 | 0.40 | 0.70 | 0.80 | 1.00 | 1.20 | 1.20 | 1.20 | 1.20 | 1.30 | 1.40 | 1.30 | 1.40 | 1.40 | 1.40 | 1.40 | 1.30 |
| 40 mm · 240 mm · Segel ø 1250 mm (Aobj, m²) | – | 0.20 | 0.30 | 0.70 | 1.10 | 1.30 | 1.50 | 1.80 | 1.80 | 1.90 | 1.80 | 2.00 | 2.00 | 1.90 | 2.10 | 2.00 | 2.00 | 2.00 | 2.00 |
| 40 mm · 240 mm · Segel ø 1500 mm (Aobj, m²) | – | 0.30 | 0.50 | 1.00 | 1.40 | 1.80 | 2.10 | 2.40 | 2.50 | 2.50 | 2.40 | 2.60 | 2.60 | 2.70 | 2.80 | 2.70 | 2.70 | 2.70 | 2.70 |
| 40 mm · 200 mm · Segel 1200 x 1200 mm (Aobj, m²) | – | – | – | 0.90 | 1.20 | 1.30 | 1.60 | 2.00 | 2.10 | 2.10 | 2.10 | 2.20 | 2.20 | 2.20 | 2.20 | 2.30 | 2.30 | 2.30 | 2.30 |
| 40 mm · 400 mm · Segel 1200 x 1200 mm (Aobj, m²) | – | – | – | 1.30 | 1.50 | 1.60 | 1.70 | 1.70 | 1.80 | 2.00 | 2.20 | 2.40 | 2.50 | 2.60 | 2.50 | 2.60 | 2.60 | 2.60 | 2.60 |
| 40 mm · 400 mm · Segel 1800 x 1200 mm (Aobj, m²) | – | – | – | 1.60 | 1.90 | 2.30 | 2.30 | 2.50 | 2.60 | 3.00 | 3.20 | 3.30 | 3.40 | 3.60 | 3.50 | 3.60 | 3.70 | 3.70 | 3.90 |
| 40 mm · 200 mm · Segel 1800 x 1200 mm (Aobj, m²) | – | – | – | 1.30 | 1.40 | 1.80 | 2.10 | 2.80 | 3.10 | 3.20 | 3.10 | 3.10 | 3.10 | 3.30 | 3.20 | 3.30 | 3.20 | 3.20 | 3.30 |
| 40 mm · 200 mm · Segel ø 800 mm (Aobj, m²) | – | – | – | – | – | – | 0.60 | 0.70 | 0.90 | 0.90 | 0.90 | 0.90 | 1.00 | 1.00 | 0.90 | 0.90 | 0.90 | 0.90 | 0.90 |
| 40 mm · 400 mm · Segel ø 800 mm (Aobj, m²) | – | – | – | – | 0.60 | 0.50 | 0.60 | 0.70 | 0.80 | 0.90 | 0.90 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.10 | 1.00 | 1.00 |
| 40 mm · 400 mm · Segel ø 1200 mm (Aobj, m²) | – | – | – | 1.10 | 1.30 | 1.20 | 1.30 | 1.40 | 1.50 | 1.70 | 1.90 | 2.00 | 2.00 | 2.00 | 2.00 | 2.10 | 2.10 | 2.10 | 2.10 |
| 40 mm · 200 mm · Segel ø 1200 mm (Aobj, m²) | – | – | – | 0.70 | 0.80 | 1.00 | 1.20 | 1.50 | 1.70 | 1.70 | 1.70 | 1.80 | 1.80 | 1.90 | 1.80 | 1.80 | 1.80 | 1.80 | 1.80 |
| 40 mm · 200 mm · Segel 2400 x 1200 mm (Aobj, m²) | – | – | – | 1.50 | 1.90 | 2.20 | 2.60 | 3.60 | 3.90 | 3.90 | 3.90 | 3.70 | 3.90 | 4.10 | 4.10 | 4.20 | 4.10 | 4.00 | 4.10 |
| 40 mm · 400 mm · Segel 2400 x 1200 mm (Aobj, m²) | – | – | 1.30 | 2.00 | 2.50 | 2.70 | 2.90 | 3.20 | 3.20 | 3.70 | 4.10 | 4.10 | 4.20 | 4.50 | 4.40 | 4.60 | 4.70 | 4.60 | 4.70 |
| 24 mm · 200 mm · Segel 1000 x 1000 mm (Aobj, m²) | – | – | – | 0.40 | 0.50 | 0.60 | 0.90 | 1.10 | 1.20 | 1.30 | 1.20 | 1.20 | 1.40 | 1.40 | 1.40 | 1.50 | 1.50 | 1.50 | 1.60 |
| 24 mm · 200 mm · Segel 1500 x 1000 mm (Aobj, m²) | – | – | – | 0.60 | 0.80 | 1.00 | 1.30 | 1.60 | 1.80 | 1.80 | 1.80 | 1.70 | 1.90 | 2.00 | 2.00 | 2.10 | 2.20 | 2.20 | 2.30 |
| 24 mm · 200 mm · Segel 2000 x 1000 mm (Aobj, m²) | – | – | – | 0.80 | 1.00 | 1.30 | 1.70 | 2.10 | 2.40 | 2.40 | 2.30 | 2.20 | 2.50 | 2.70 | 2.60 | 2.80 | 2.90 | 2.90 | 3.00 |
| 24 mm · 200 mm · Segel ø 750 mm (Aobj, m²) | – | – | – | – | – | – | 0.40 | 0.50 | 0.60 | 0.60 | 0.60 | 0.60 | 0.70 | 0.70 | 0.70 | 0.70 | 0.80 | 0.70 | 0.80 |
| 24 mm · 200 mm · Segel ø 1000 mm (Aobj, m²) | – | – | – | – | 0.40 | 0.50 | 0.70 | 0.90 | 1.00 | 1.00 | 1.00 | 1.00 | 1.10 | 1.20 | 1.10 | 1.20 | 1.30 | 1.20 | 1.30 |
| 24 mm · 200 mm · Segel ø 1250 mm (Aobj, m²) | – | – | – | 0.50 | 0.60 | 0.80 | 1.00 | 1.40 | 1.50 | 1.50 | 1.40 | 1.40 | 1.60 | 1.70 | 1.70 | 1.70 | 1.90 | 1.80 | 1.90 |
| 24 mm · 200 mm · Segel ø 1500 mm (Aobj, m²) | – | – | 0.40 | 0.70 | 0.90 | 1.20 | 1.40 | 1.90 | 2.00 | 2.10 | 2.00 | 1.90 | 2.20 | 2.40 | 2.30 | 2.30 | 2.50 | 2.50 | 2.60 |
