Manufacturer

ThomTek

ThomTek is the noise control brand of Michael Thomas GmbH from Wassenberg, a specialist in perimeter protection. The ThomTek Perilux fence system is sold through specialist dealers in Germany and seven other countries.

All products by this manufacturerManufacturer website

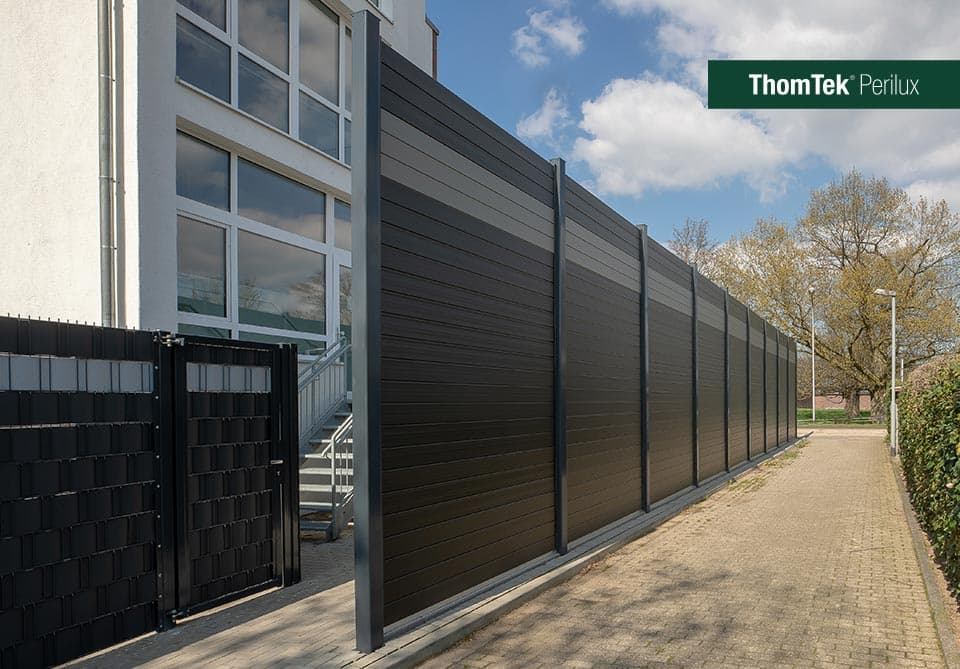

ThomTek Perilux noise barrier wall

ThomTek Perilux

Description

Noise barrier wall made of WPC profiles between hot-dip galvanised steel posts, system build-up identical to the Perilux fence. From 2,400 mm system height; post cross-sections and foundations are dimensioned project-specifically.

Technical data

Material: WPC profiles (70% wood fibre, single-grade PE), hot-dip galvanised steel posts
Up to fire class: E (EN 13501-1, profile datasheet)
Application: Noise barrier wall from 0.1 in system height: enclosure of cooling towers and plant, screening at commercial premises and property boundaries

Measurement data

Last updated:

Building acoustics dataRw 29 dB · 2 measurements
Rw
29 dB
DLR
26 dB · B3

Airborne sound insulation Rw· 1 variant

EN ISO 10140-2 / ISO 717-1 · Thickness: 1.5 in (geprüfte Profilgeneration 140 x 37…

This test report provides only the single-number rating, no third-octave spectrum.

MFPA Leipzig GmbH · 2011 · PB 4.2/11-339-1Caveat from the test record

Noise barrier DLR / DLα· 1 variant

EN 1793 · Thickness: 1.5 in (geprüfte Profilgeneration 140 x 37…

This test report provides only the single-number rating, no third-octave spectrum.

MFPA Leipzig GmbH · 2011 · PB 4.2/11-339-1Caveat from the test record
