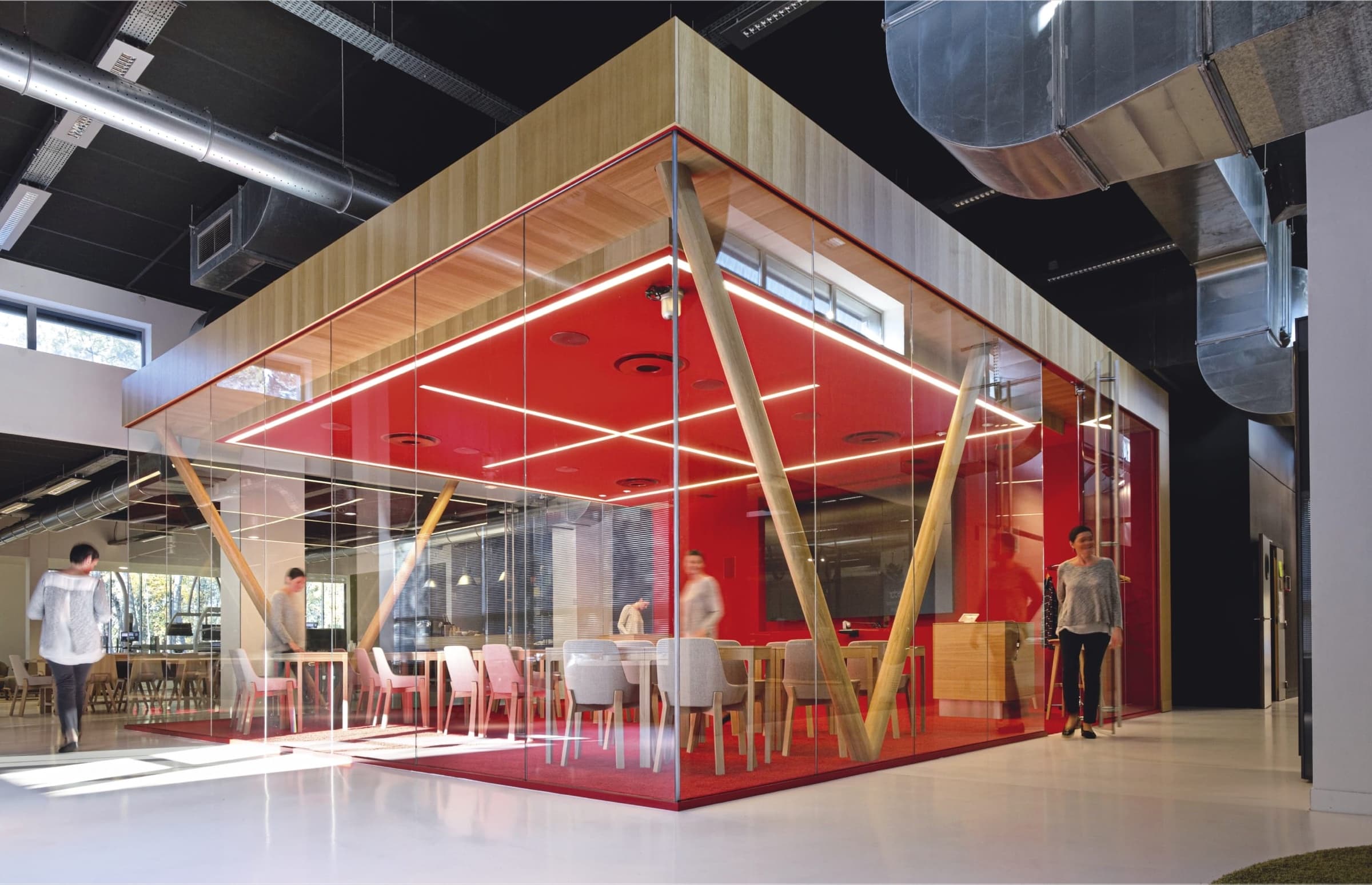

Photo: Studio Erick Saillet

Manufacturer

Texaa

Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.

All products by this manufacturer Manufacturer website

Documents

EPD Brochure (EN)EPD Vibrasto 15 EPD Vibrasto 55 Colour chart Aeria (EN)Technical datasheet Vibrasto 15 (EN)Technical datasheet Vibrasto 30 (EN)Technical datasheet Vibrasto 55 (EN)

Texaa Vibrasto acoustic cladding

Name: Texaa Vibrasto acoustic cladding
Brand: Texaa

EPD availableWallCeiling

Description

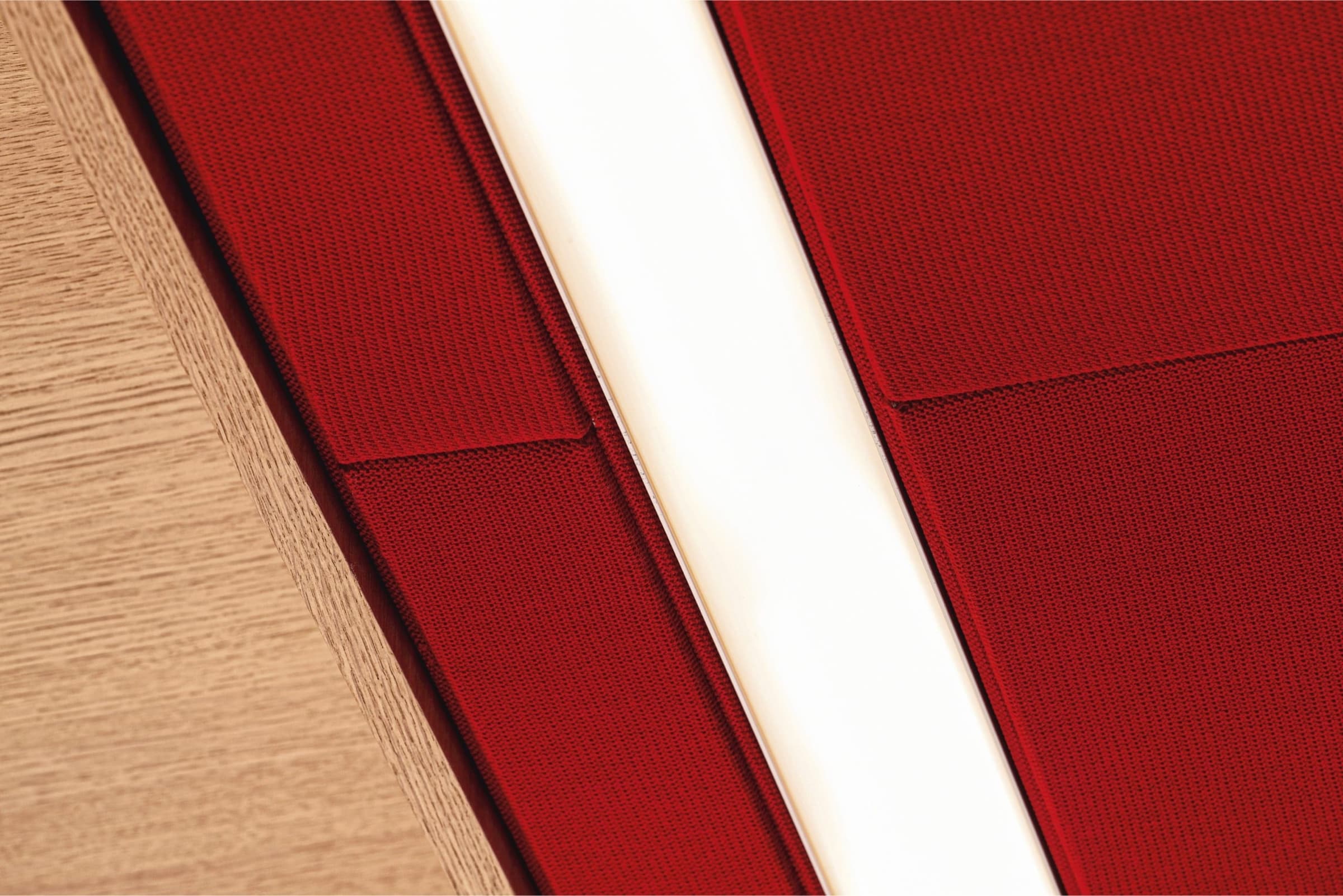

Vibrasto is a stretched acoustic cladding. Its facing, Aeria knitted fabric laminated onto thin wadding, is stretch-fitted between battens in front of an absorber fixed to the substrate. The three systems Vibrasto 15, 30 and 55 differ in the absorber behind it. The flexible facing covers large walls and ceilings as one surface with fine pencil-line joins, follows convex and concave shapes and can clad furniture. Vibrasto 15 saves depth; the thicker systems suit strongly reverberant rooms. Battens give clean edges around lights, loudspeakers and vents, and stretched Aeria can be added for see-through areas.

Technical data

Material: Vibrasto 15: Aeria facing laminated onto 0.12 in black or gray wadding, in front of 0.39 in AF2 sound-absorbing felt; Vibrasto 30: same facing in front of one 0.98 in RI panel (A2-s1,d0); Vibrasto 55: same facing in front of two 0.98 in RI panels (A2-s1,d0) or 1.8 in mineral wool; tensioning battens from fully recycled material

Surface: Aeria Maille Ronde, 330 g/m², run-resistant and antistatic knit; removable and refittable

Fire class (EN 13501-1): B-s2,d0 (Vibrasto 15), B-s1,d0 (facing of Vibrasto 30 and 55)

Certifications: A+ indoor air (ISO 16000); AgBB compliant; Indoor Air Comfort (Vibrasto 15), Indoor Air Comfort Gold (Vibrasto 30 and 55); EPD 6.91 (Vibrasto 15), 5.87 (Vibrasto 30), 7.69 (Vibrasto 55) kg CO2 eq/m²; recycled content ≥ 52 % (Vibrasto 15), ≥ 68 % (Vibrasto 30), ≥ 76 % (Vibrasto 55); AF2 felt 60 % recycled; RI panel 80 % recycled; wadding 100 % recycled

Colours: 30 Aeria colors; special colors on request

Measurement data

Sound absorption

Reverberation chamber (ASTM C423 / ISO 354)· 9 variants

Choose thickness

NRC

0.55

Frequency values

α_p per octave band

f (Hz)	125	250	500	1k	2k	4k
α_p	0.30	0.30	0.45	0.65	0.80	0.85

Create a permanent free account. Access frequency bands, variants and export.

Free. No password required.

		Value
plasterboard with mineral wool	0.39 in AF2 felt	NRC0.55
concrete	0.39 in AF2 felt	NRC0.40
concrete	none, 0.51 in air gap	NRC0.15

Test report: PV 1130

NRC: 0.55 (derived from ISO 354 lab data)

Institute: Texaa, Gradignan (FR)

Room volume: 7,126 cu ft

Object area: 116 sq ft

Measured values as a table (9 measurements)

Texaa Vibrasto acoustic cladding: sound absorption coefficient αs per ISO 354 by frequency and test build-up
Build-up	NRC	100 Hz	125 Hz	160 Hz	200 Hz	250 Hz	315 Hz	400 Hz	500 Hz	630 Hz	800 Hz	1000 Hz	1250 Hz	1600 Hz	2000 Hz	2500 Hz	3150 Hz	4000 Hz	5000 Hz
0.59 in · concrete	0.40	0.02	0.04	0.06	0.06	0.12	0.16	0.22	0.32	0.37	0.44	0.50	0.56	0.65	0.71	0.72	0.78	0.80	0.80
0.59 in · plasterboard with mineral wool	0.55	0.39	0.29	0.23	0.24	0.30	0.35	0.39	0.48	0.52	0.57	0.67	0.72	0.79	0.80	0.83	0.85	0.82	0.83
0.59 in · concrete	0.15	0.01	0.01	0.02	0.03	0.03	0.03	0.05	0.07	0.09	0.10	0.14	0.18	0.23	0.27	0.32	0.38	0.44	0.47
1.2 in · concrete	0.70	0.03	0.06	0.11	0.12	0.26	0.37	0.50	0.68	0.77	0.83	0.89	0.87	0.87	0.87	0.85	0.83	0.84	0.83
1.2 in · plasterboard with mineral wool	0.85	0.43	0.29	0.25	0.32	0.42	0.55	0.69	0.90	0.97	1.04	1.08	1.02	1.04	1.00	1.03	1.00	0.97	0.97
1.2 in · concrete	0.20	0.01	0.04	0.02	0.03	0.05	0.06	0.07	0.10	0.11	0.18	0.21	0.30	0.36	0.41	0.47	0.49	0.54	0.51
2.2 in · concrete	0.90	0.17	0.27	0.42	0.65	0.86	0.92	1.00	0.92	0.95	0.95	0.94	0.89	0.87	0.88	0.91	0.86	0.83	0.90
2.2 in · plasterboard with mineral wool	1.10	0.42	0.40	0.45	0.66	0.81	1.02	1.16	1.24	1.21	1.18	1.17	1.10	1.07	1.08	1.03	1.02	0.97	1.01
2.2 in · concrete	0.85	0.10	0.15	0.29	0.47	0.81	0.92	0.94	0.89	0.89	0.90	0.89	0.85	0.81	0.86	0.82	0.85	0.84	0.88

Measured values as a table (9 measurements)

Access frequency bands, variants and export. Create a permanent free account

Last updated: 10/28/2026

Calculate reverberation time with this product
