Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Stereo wall and ceiling panel
Description

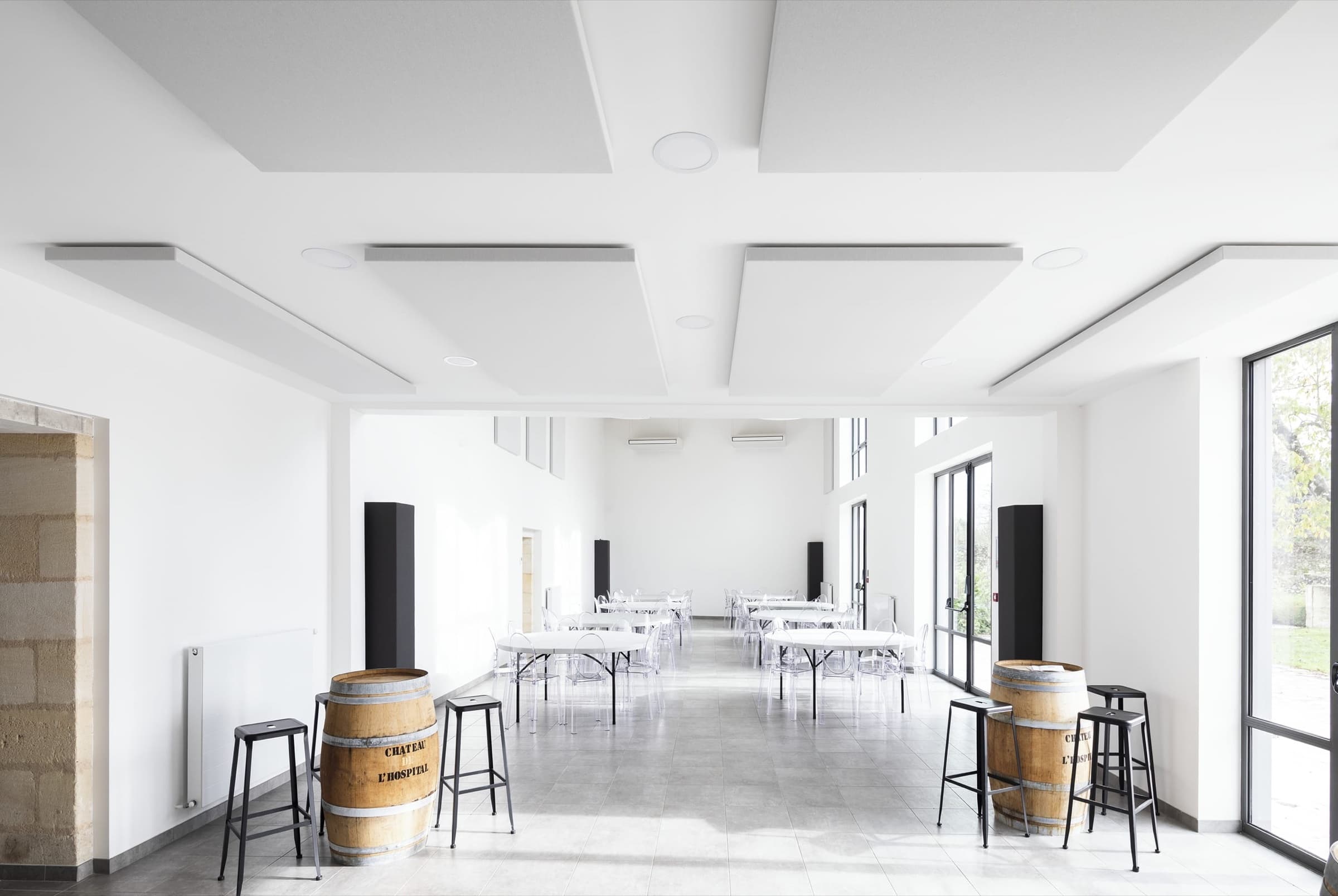

Stereo is Texaa's modular acoustic panel. A rustproof steel frame holds recycled white wadding behind a microporous cloth, dressed in a removable cover of knitted Aeria fabric. The frame keeps corners and edges precise in rectangular, round and triangular formats. In this version the panel sits flat on the wall or soffit and can be lifted off and refitted. Single panels treat a specific zone, while panels laid edge to edge form a continuous acoustic surface across a wall or ceiling. Panels in different colors vary a space discreetly. The same panel also exists suspended and as a partition.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 16 variants
Frequency values
αp per octave band
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.40 | 0.60 | 1.00 | 1.00 | 1.00 | 0.95 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| Area 9.8 × 12 ft | NRC0.95 | |
| Area 7.9 × 16 ft | NRC0.85 | |
| 47 × 94 × 2.2 in | Sabins/unit34 | |
| 47 × 71 × 2.2 in | Sabins/unit26 | |
| 24 × 94 × 2.2 in | Sabins/unit20 | |
| 47 × 47 × 2.2 in | Sabins/unit19 | |
| Ø 47 × 2.2 in | Sabins/unit17 | |
| 24 × 71 × 2.2 in | Sabins/unit16 | |
| 12 × 94 × 2.2 in | Sabins/unit13 | |
| Ø 39 × 2.2 in | Sabins/unit12 | |
| Triangle 47 × 47 × 67 × 2.2 in | Sabins/unit11 | |
| 12 × 71 × 2.2 in | Sabins/unit11 | |
| 24 × 47 × 2.2 in | Sabins/unit11 | |
| Ø 31 × 2.2 in | Sabins/unit8.4 | |
| 24 × 24 × 2.2 in | Sabins/unit6.2 | |
| 12 × 47 × 2.2 in | Sabins/unit6.1 |
Test report: PV 1133
NRC: 0.95 (derived from ISO 354 lab data)
Institute: Texaa, Gradignan (FR)
Room volume: 7,126 cu ft
Object area: 116 sq ft
Measured values as a table (16 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 × 47 × 2.2 in · Single panel (sabins/unit) | – | 0.65 | 0.65 | 0.86 | 1.6 | 2.5 | 4.2 | 5.3 | 7 | 7.3 | 6.7 | 6.1 | 5.4 | 5.1 | 4.5 | 4.4 | 4.5 | 4.5 | 5.1 |
| 12 × 71 × 2.2 in · Single panel (sabins/unit) | – | 0.65 | 0.65 | 1.3 | 2.2 | 3 | 4.7 | 6.7 | 8.6 | 10 | 11 | 11 | 8.9 | 8.2 | 8.1 | 7.5 | 7.8 | 7.4 | 7.8 |
| 12 × 94 × 2.2 in · Single panel (sabins/unit) | – | 1.5 | 1.4 | 1.6 | 3.4 | 4.8 | 8.2 | 11 | 13 | 14 | 14 | 13 | 12 | 11 | 10 | 9.3 | 9.3 | 9.9 | 9.9 |
| 24 × 24 × 2.2 in · Single panel (sabins/unit) | – | 0.54 | 0.65 | 1.2 | 1.3 | 1.9 | 3.2 | 4.1 | 5.7 | 6.6 | 6.5 | 6.2 | 5.8 | 5.2 | 4.8 | 4.3 | 3.9 | 4.4 | 4.6 |
| 24 × 47 × 2.2 in · Single panel (sabins/unit) | – | 0.32 | 0.75 | 2.9 | 3 | 5.3 | 7.1 | 9.3 | 12 | 12 | 12 | 11 | 9 | 8.7 | 8.4 | 8 | 8 | 7.9 | 8.8 |
| 24 × 71 × 2.2 in · Single panel (sabins/unit) | – | 1.3 | 1.8 | 2.9 | 4 | 6.1 | 9.1 | 11 | 15 | 17 | 17 | 16 | 15 | 13 | 12 | 12 | 12 | 13 | 12 |
| 24 × 94 × 2.2 in · Single panel (sabins/unit) | – | 1.1 | 2.6 | 4.3 | 5 | 7.6 | 12 | 17 | 21 | 22 | 21 | 20 | 18 | 17 | 16 | 16 | 16 | 16 | 17 |
| 47 × 47 × 2.2 in · Single panel (sabins/unit) | – | 2.5 | 2.2 | 4.2 | 6.6 | 9.5 | 12 | 18 | 20 | 21 | 20 | 19 | 17 | 16 | 15 | 16 | 16 | 16 | 15 |
| 47 × 71 × 2.2 in · Single panel (sabins/unit) | – | 3.1 | 3.6 | 6.4 | 7.5 | 11 | 17 | 24 | 28 | 27 | 28 | 26 | 25 | 23 | 23 | 23 | 23 | 23 | 24 |
| 47 × 94 × 2.2 in · Single panel (sabins/unit) | – | 0.86 | 4.6 | 8.3 | 10 | 16 | 23 | 31 | 36 | 38 | 36 | 34 | 32 | 30 | 31 | 32 | 32 | 31 | 32 |
| Ø 31 × 2.2 in · Single panel (sabins/unit) | – | 0.97 | 0.75 | 1.6 | 1.8 | 2.9 | 4.7 | 5.9 | 7.6 | 8.7 | 9.1 | 8.4 | 7.8 | 7.2 | 6.7 | 6.2 | 5.2 | 5.9 | 7 |
| Ø 39 × 2.2 in · Single panel (sabins/unit) | – | 0.75 | 0.86 | 2.5 | 3.1 | 4.3 | 7.1 | 9 | 11 | 12 | 13 | 12 | 11 | 10 | 9.7 | 9.6 | 8.8 | 8.8 | 10 |
| Ø 47 × 2.2 in · Single panel (sabins/unit) | – | 1.2 | 1.7 | 2.9 | 4.7 | 6.2 | 10 | 14 | 16 | 18 | 18 | 17 | 15 | 14 | 13 | 12 | 12 | 12 | 12 |
| Triangle 47 × 47 × 67 × 2.2 in · Single panel (sabins/unit) | – | 1.4 | 1.3 | 2.7 | 3.1 | 5.4 | 7 | 9.9 | 11 | 11 | 12 | 11 | 9.5 | 8.3 | 8 | 7.9 | 8.3 | 8.8 | 9.4 |
| Area 2.4 × 4.8 m · grouped on concrete | 0.85 | 0.06 | 0.09 | 0.25 | 0.40 | 0.49 | 0.71 | 0.87 | 0.99 | 1.00 | 0.98 | 0.97 | 0.89 | 0.87 | 0.85 | 0.83 | 0.88 | 0.87 | 0.91 |
| Area 3.0 × 3.6 m · grouped on plasterboard with 1.6 in mineral wool | 0.95 | 0.48 | 0.38 | 0.31 | 0.42 | 0.60 | 0.80 | 0.98 | 1.13 | 1.14 | 1.17 | 1.13 | 1.06 | 1.01 | 0.99 | 0.97 | 0.94 | 0.92 | 0.94 |
