Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Stereo partition panel
Description

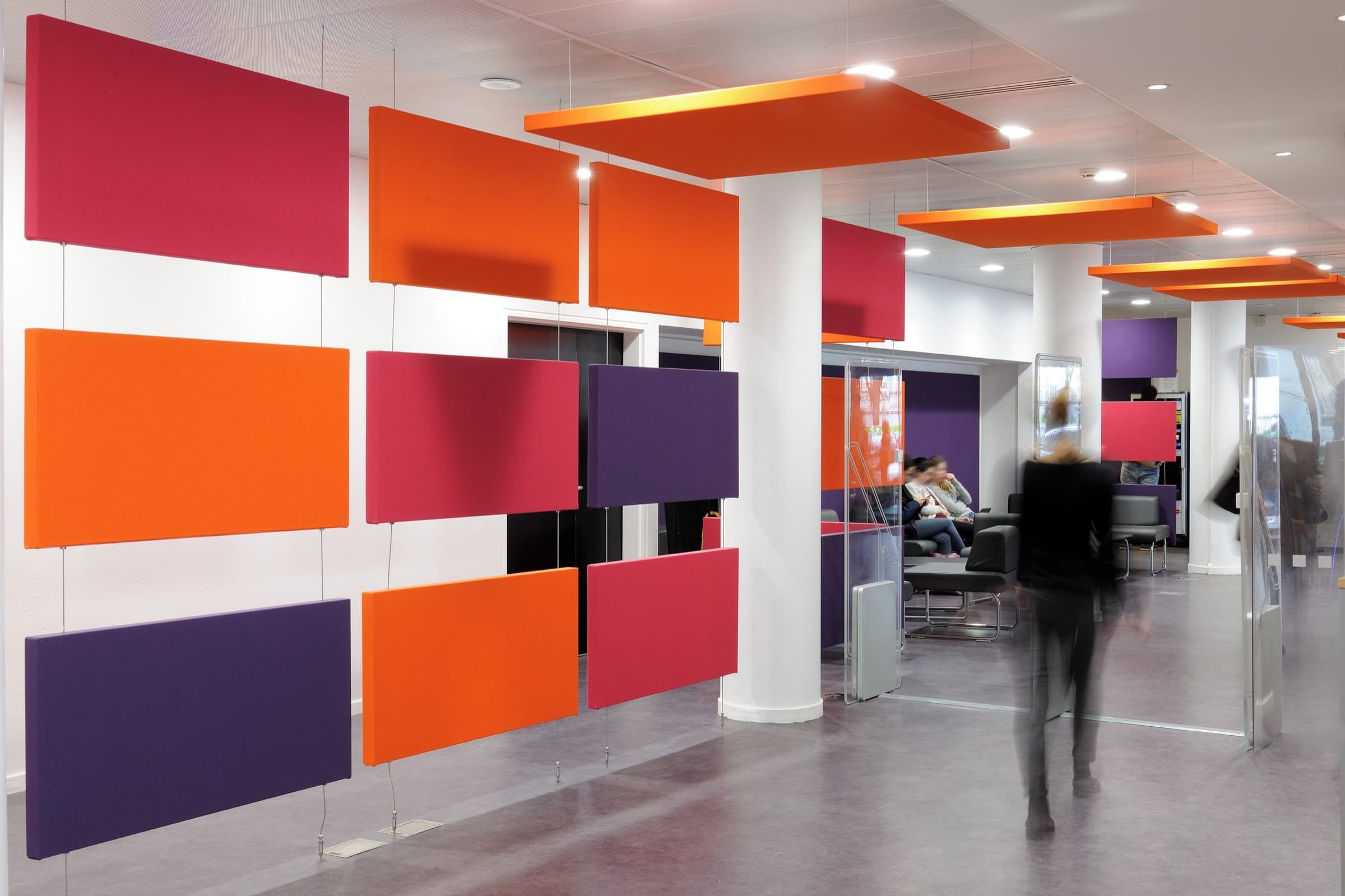

Set on edge, the Stereo panel becomes a hanging partition. Either two stainless steel cables run through each panel from soffit to floor and are tensioned against concrete, so the panels hold their plane without feet or frames, or several panels hang one above another on thin cables from the ceiling, leaving the floor free. In large open spaces the partitions mark out sub-areas, separating them visually and giving each its own acoustic character without building walls.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 9 variants
Frequency values
Sabins per unit per ISO 354 · third-octave band
| f (Hz) | 100 | 125 | 160 | 200 | 250 | 315 |
|---|---|---|---|---|---|---|
| Sabins | 4.6 | 8.1 | 12 | 18 | 25 | 29 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| 47 × 94 × 2.2 in | 12 in below the ceiling | Sabins/unit47 | |
| 47 × 71 × 2.2 in | 12 in below the ceiling | Sabins/unit35 | |
| 24 × 94 × 2.2 in | no gap to the ceiling | Sabins/unit27 | |
| 47 × 47 × 2.2 in | 12 in below the ceiling | Sabins/unit26 | |
| 24 × 71 × 2.2 in | no gap to the ceiling | Sabins/unit21 | |
| 12 × 94 × 2.2 in | 12 in below the ceiling | Sabins/unit15 | |
| 24 × 47 × 2.2 in | 12 in below the ceiling | Sabins/unit14 | |
| 12 × 71 × 2.2 in | no gap to the ceiling | Sabins/unit9.4 | |
| 12 × 47 × 2.2 in | 12 in below the ceiling | Sabins/unit6.9 |
Test report: PV 1055
Institute: Texaa, Gradignan (FR)
Room volume: 7,119 cu ft
Measured values as a table (9 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 × 47 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 0.75 | 1.5 | 2 | 2 | 3.3 | 3.9 | 4.5 | 5.5 | 6.1 | 6.7 | 6.9 | 6.7 | 6.2 | 5.9 | 5.8 | 5.5 | 6 | 6 |
| 12 × 71 × 2.2 in · no gap to the ceiling (sabins/unit) | – | 0.54 | 2 | 2.3 | 3.1 | 4.8 | 5.3 | 6.5 | 7.6 | 8.7 | 9.4 | 9.4 | 9.3 | 8.8 | 8 | 7.9 | 8 | 8.1 | 8.3 |
| 12 × 94 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 1.8 | 2.7 | 4.1 | 4.3 | 6 | 6.7 | 8.3 | 11 | 13 | 15 | 15 | 15 | 14 | 14 | 14 | 14 | 15 | 15 |
| 24 × 47 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 1.6 | 2.2 | 3.6 | 4.3 | 5.9 | 6.9 | 9.4 | 11 | 13 | 14 | 14 | 14 | 13 | 12 | 12 | 12 | 12 | 13 |
| 24 × 71 × 2.2 in · no gap to the ceiling (sabins/unit) | – | 1.1 | 3.3 | 4.5 | 5.8 | 9.3 | 10 | 13 | 16 | 18 | 20 | 21 | 20 | 19 | 18 | 17 | 17 | 17 | 18 |
| 24 × 94 × 2.2 in · no gap to the ceiling (sabins/unit) | – | 2.5 | 4.2 | 4.8 | 7.1 | 13 | 15 | 18 | 22 | 26 | 27 | 27 | 27 | 23 | 24 | 22 | 23 | 23 | 24 |
| 47 × 47 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 2.7 | 3.2 | 6.1 | 7.9 | 11 | 13 | 16 | 21 | 23 | 25 | 26 | 25 | 24 | 23 | 23 | 23 | 23 | 25 |
| 47 × 71 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 2 | 9.5 | 9.5 | 13 | 17 | 20 | 25 | 27 | 33 | 35 | 35 | 34 | 35 | 33 | 33 | 33 | 34 | 37 |
| 47 × 94 × 2.2 in · 12 in below the ceiling (sabins/unit) | – | 4.6 | 8.1 | 12 | 18 | 25 | 29 | 30 | 39 | 43 | 46 | 47 | 49 | 47 | 45 | 46 | 47 | 49 | 50 |
Measured values as a table (9 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
