Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Stereo suspended panel
Description

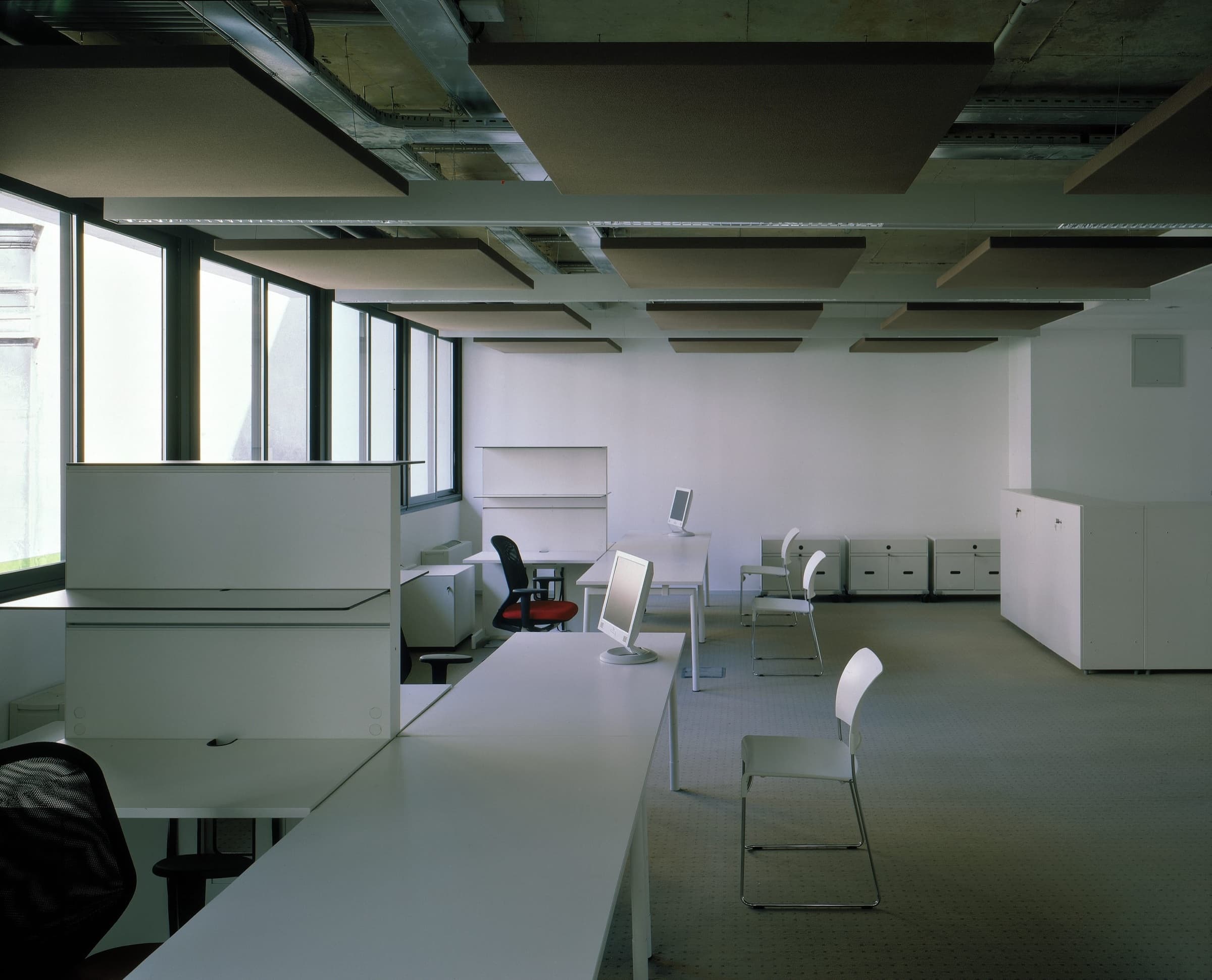

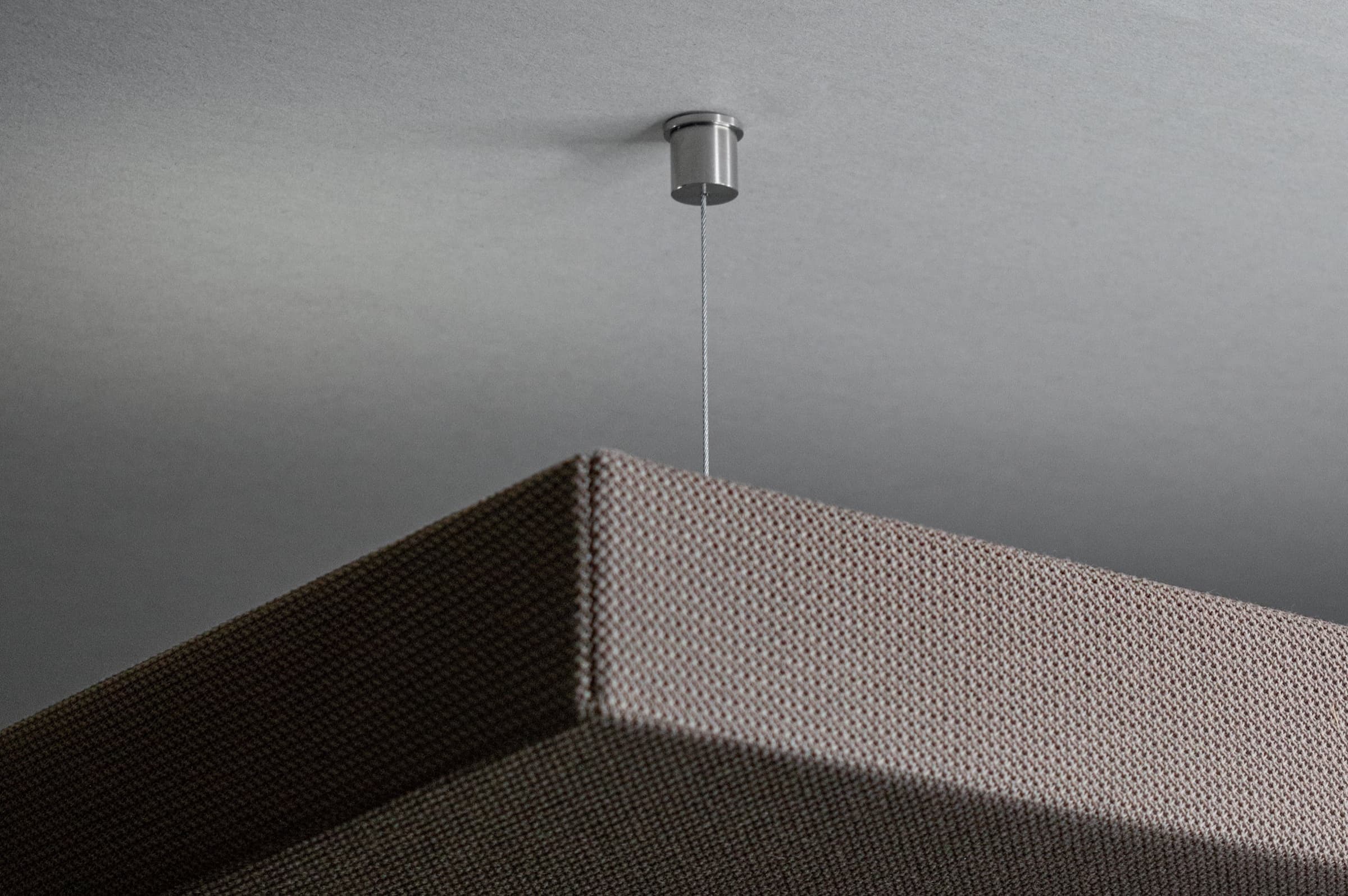

Here the Stereo panel hangs horizontally below the soffit on fine steel cables. The panel itself is unchanged: steel frame, recycled wadding, microporous cloth and a removable knitted Aeria cover, which can also wrap the top face where it stays visible. Panels float singly as clouds or hang on edge as baffles. Joined together, several panels form a flat cluster, the principle behind the Strato ceiling.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 15 variants
Frequency values
αp per octave band
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.25 | 0.80 | 1.00 | 1.00 | 1.00 | 1.00 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | |
|---|---|---|
| Area 7.9 × 16 ft | NRC1.00 | |
| 47 × 94 × 2.2 in | Sabins/unit43 | |
| 47 × 71 × 2.2 in | Sabins/unit34 | |
| 24 × 94 × 2.2 in | Sabins/unit24 | |
| 47 × 47 × 2.2 in | Sabins/unit24 | |
| Ø 47 × 2.2 in | Sabins/unit19 | |
| 24 × 71 × 2.2 in | Sabins/unit18 | |
| 12 × 94 × 2.2 in | Sabins/unit15 | |
| Ø 39 × 2.2 in | Sabins/unit14 | |
| Triangle 47 × 47 × 67 × 2.2 in | Sabins/unit13 | |
| 24 × 47 × 2.2 in | Sabins/unit13 | |
| 12 × 71 × 2.2 in | Sabins/unit11 | |
| Ø 31 × 2.2 in | Sabins/unit9.4 | |
| 12 × 47 × 2.2 in | Sabins/unit7.6 | |
| 24 × 24 × 2.2 in | Sabins/unit7.2 |
Test report: PV 1041
NRC: 1.00 (derived from ISO 354 lab data)
Institute: Texaa, Gradignan (FR)
Room volume: 7,126 cu ft
Object area: 124 sq ft
Distance: 12 in suspended
Measured values as a table (15 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 × 47 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 1.2 | 0.97 | 1.5 | 2.2 | 3.6 | 4.7 | 5.6 | 5.8 | 6.6 | 7.4 | 7.6 | 7.5 | 7.3 | 6.4 | 6.1 | 6.1 | 6.2 | 6.2 |
| 12 × 71 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 0.65 | 1.4 | 1.7 | 3 | 4.3 | 6.5 | 7.5 | 8.1 | 9 | 10 | 11 | 11 | 10 | 9.9 | 9.4 | 9.5 | 9.4 | 9.3 |
| 12 × 94 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 1.4 | 2.3 | 3.6 | 4.8 | 7.5 | 9.9 | 11 | 12 | 13 | 14 | 15 | 15 | 14 | 12 | 12 | 12 | 12 | 12 |
| 24 × 24 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 1.1 | 1.9 | 1.7 | 2.6 | 2.9 | 3.8 | 4.3 | 5.1 | 6.1 | 6.7 | 7.2 | 7.5 | 7.2 | 6.7 | 6.1 | 5.7 | 5.8 | 5.3 |
| 24 × 47 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 3.7 | 2.5 | 4.2 | 6.1 | 8.2 | 9.4 | 9.9 | 10 | 11 | 12 | 13 | 12 | 12 | 11 | 11 | 11 | 11 | 11 |
| 24 × 71 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 4.1 | 2.6 | 5.7 | 6.7 | 9.7 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 18 | 18 | 18 | 16 | 15 | 16 |
| 24 × 94 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 6 | 3.9 | 8.5 | 9.6 | 13 | 16 | 19 | 20 | 21 | 23 | 24 | 24 | 24 | 22 | 23 | 22 | 23 | 22 |
| 47 × 47 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 6.2 | 3.2 | 7.5 | 8.7 | 15 | 17 | 20 | 19 | 20 | 23 | 24 | 23 | 23 | 22 | 22 | 22 | 22 | 22 |
| 47 × 71 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 7.6 | 6.6 | 13 | 14 | 18 | 22 | 28 | 29 | 29 | 33 | 34 | 33 | 32 | 32 | 31 | 31 | 33 | 33 |
| 47 × 94 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 8.4 | 7.6 | 14 | 19 | 25 | 32 | 40 | 38 | 41 | 42 | 43 | 42 | 42 | 41 | 41 | 42 | 42 | 43 |
| Ø 31 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 1.9 | 2 | 3.1 | 3.4 | 5.2 | 6.4 | 7 | 7 | 7.2 | 9.5 | 9.4 | 9.3 | 10 | 9.8 | 9.8 | 9.3 | 9.6 | 9.8 |
| Ø 39 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 3.2 | 2.7 | 4.5 | 5.4 | 8.4 | 9.5 | 9.9 | 10 | 11 | 13 | 14 | 15 | 15 | 15 | 14 | 13 | 14 | 14 |
| Ø 47 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 4.5 | 2.8 | 6.1 | 7.6 | 11 | 13 | 16 | 15 | 15 | 19 | 19 | 20 | 19 | 19 | 17 | 17 | 17 | 18 |
| Triangle 47 × 47 × 67 × 2.2 in · 12 in suspended · Single panel (sabins/unit) | – | 3.8 | 2.5 | 4 | 5 | 7.3 | 8.6 | 9.4 | 11 | 11 | 13 | 13 | 13 | 12 | 11 | 11 | 11 | 11 | 13 |
| Area 2.4 × 4.8 m · 12 in suspended · grouped | 1.00 | 0.20 | 0.23 | 0.32 | 0.63 | 0.76 | 0.96 | 0.97 | 0.97 | 1.04 | 1.12 | 1.13 | 1.13 | 1.13 | 1.12 | 1.15 | 1.11 | 1.11 | 1.17 |
Measured values as a table (15 measurements)
