Manufacturer
Texaa
Texaa is a privately owned French company with about 50 employees, based in Gradignan near Bordeaux. Since 1978 it has designed, manufactured and distributed acoustic solutions together with architects. Every product is covered with Aeria, Texaa's own sound-transparent knitted fabric, protected by an international patent and knitted in its workshop near Bordeaux in 30 colors. The range covers Stereo panels, Stereo Air open mesh panels, Strato ceilings, Vibrasto stretched cladding, Velio curtains, drapes and blinds, Kora screens and the Abso objects: cushions, pads, totems, cubes and cones. Texaa has offices in Frankfurt am Main and London, a sales contact for the USA, and exports worldwide.
Texaa Aeria acoustic fabric
Description

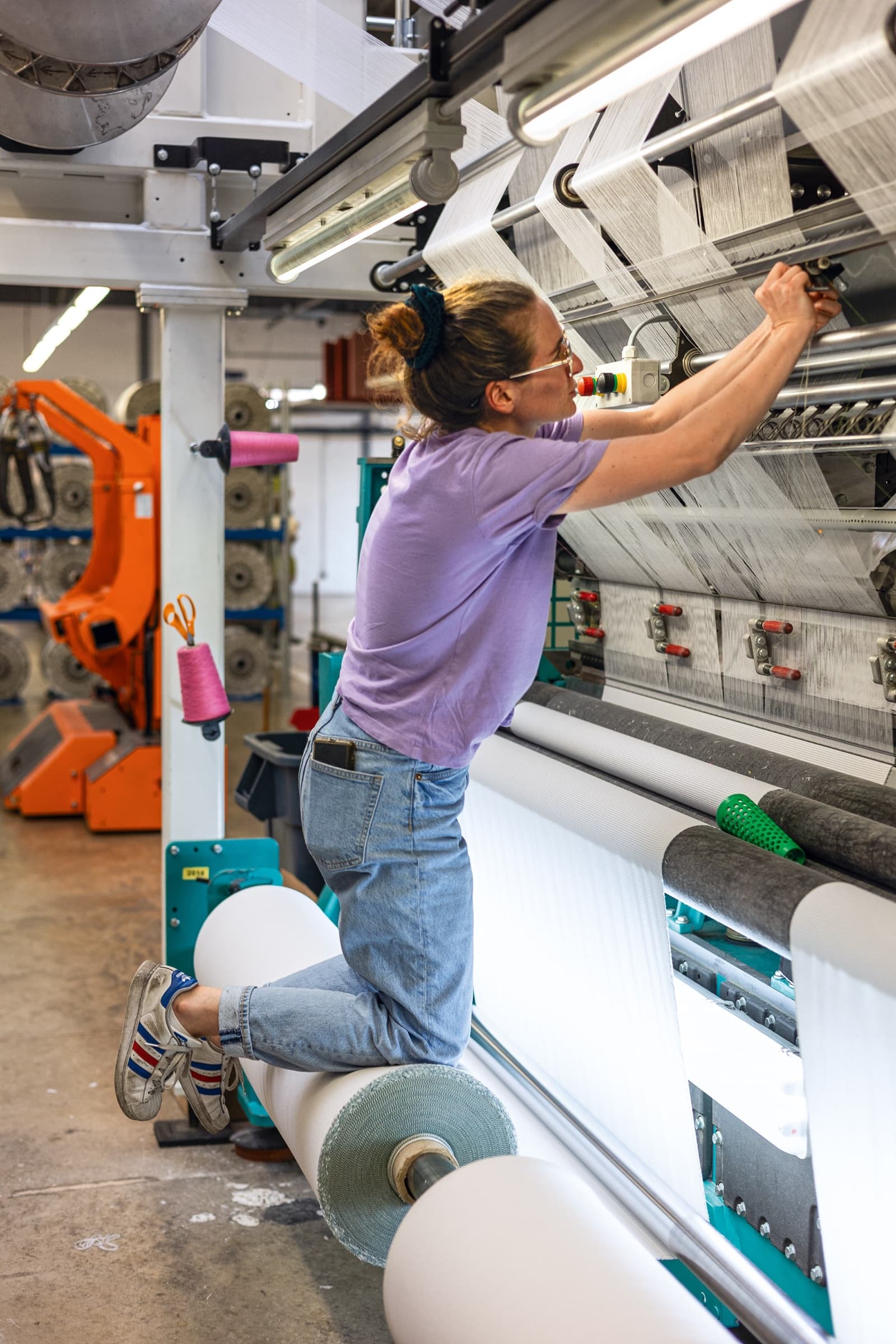

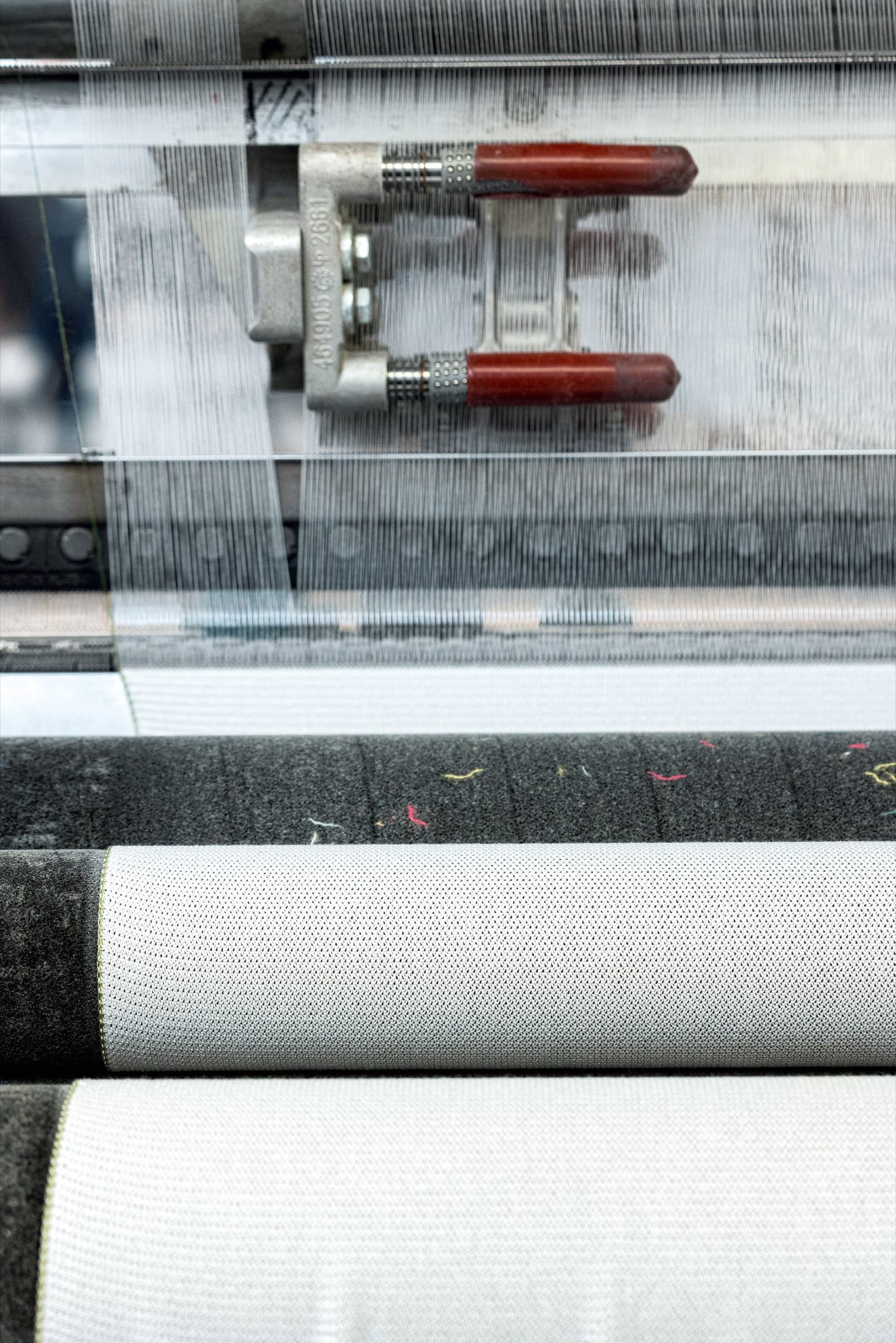

Aeria is the knitted fabric Texaa makes for all of its own products, and it is also sold by the roll. It is sound-transparent: on its own it absorbs very little, because its job is to let sound through to the absorber behind it. It comes as dense Maille Ronde (MR) and open-stitch Grande Maille Ronde (GMR). Use Aeria to cover absorbers and technical installations, not as an absorber by itself. The knit is elastic and follows pronounced edges and curves when stretched. Vibrasto and both Velio products are faced with it, and it can run next to Vibrasto where a surface should stay open.
Technical data
Measurement data
Sound absorption
Reverberation chamber (ASTM C423 / ISO 354)· 4 variants
Frequency values
αp per octave band
| f (Hz) | 125 | 250 | 500 | 1k | 2k | 4k |
|---|---|---|---|---|---|---|
| αp | 0.25 | 0.15 | 0.20 | 0.20 | 0.15 | 0.15 |
Create a permanent free account. Access frequency bands, variants and export.
Free. No password required.
| Compare | Value | ||
|---|---|---|---|
| directly on plasterboard | Aeria Maille Ronde (MR) | NRC0.20 | |
| 12 in suspended | Aeria Maille Ronde (MR) | NRC0.10 | |
| 12 in suspended | Aeria Grande Maille Ronde (GMR) | NRC0.05 | |
| directly on concrete | Aeria Maille Ronde (MR) | NRC0.05 |
Test report: PV 1128
NRC: 0.20 (derived from ISO 354 lab data)
Institute: Texaa, Gradignan (FR)
Room volume: 7,126 cu ft
Object area: 116 sq ft
Measured values as a table (4 measurements)
| Build-up | NRC | 100 Hz | 125 Hz | 160 Hz | 200 Hz | 250 Hz | 315 Hz | 400 Hz | 500 Hz | 630 Hz | 800 Hz | 1000 Hz | 1250 Hz | 1600 Hz | 2000 Hz | 2500 Hz | 3150 Hz | 4000 Hz | 5000 Hz |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 in suspended · Aeria Maille Ronde (MR) | 0.10 | 0.02 | 0.05 | 0.05 | 0.05 | 0.07 | 0.08 | 0.10 | 0.09 | 0.08 | 0.07 | 0.06 | 0.07 | 0.09 | 0.10 | 0.12 | 0.12 | 0.15 | 0.15 |
| 12 in suspended · Aeria Grande Maille Ronde (GMR) | 0.05 | 0.00 | 0.03 | 0.02 | 0.01 | 0.02 | 0.02 | 0.03 | 0.03 | 0.02 | 0.03 | 0.04 | 0.04 | 0.05 | 0.07 | 0.07 | 0.06 | 0.08 | 0.14 |
| directly on concrete · Aeria Maille Ronde (MR) | 0.05 | 0.01 | 0.00 | 0.01 | 0.01 | 0.02 | 0.01 | 0.02 | 0.03 | 0.02 | 0.04 | 0.04 | 0.04 | 0.05 | 0.07 | 0.08 | 0.09 | 0.11 | 0.12 |
| directly on plasterboard · Aeria Maille Ronde (MR) | 0.20 | 0.36 | 0.24 | 0.16 | 0.15 | 0.17 | 0.17 | 0.18 | 0.20 | 0.18 | 0.20 | 0.18 | 0.19 | 0.16 | 0.15 | 0.16 | 0.16 | 0.15 | 0.20 |
Measured values as a table (4 measurements)
Access frequency bands, variants and export. Create a permanent free account
Last updated:
